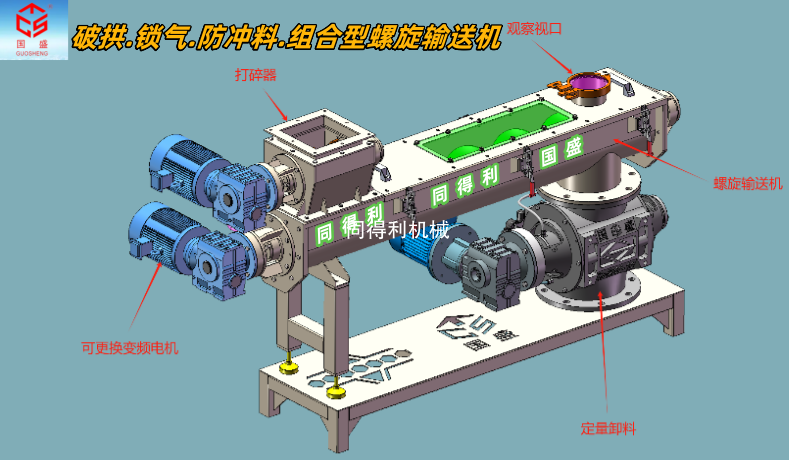

【料仓破拱】　　什么是破拱机?　　破拱机，也称解桥器，是一种用于处理粉体物料的机器设备。它能有效地破除物料中的桥梁效应，以确保物料在生产和运输中的顺畅流动。破拱机主要由外壳、旋转器、电动机、减速机、传动装置、支架、进出料口等组成。它能够适用于多种颗粒大小和料种的物料处理。　　破拱机原理：　　破拱机主要通过旋转器的高速旋转来产生离心力，使物料沿着机器的壁面滚动，并在离心力的作用下逐渐下降。这一过程中，物料之间的碰撞摩擦和壁面的作用力逐渐将物料中的桥梁形成的结构破坏解除，使物料恢复自然状态，从而保证物料的正常通畅流动。【电话/微信咨询：陈经理18068546632】 　　破拱机的应用：　　破拱机能有效的加强不同领域中各种物料的流动性并保持顺畅卸料，它广泛应用在具有不同堆积密度、粒度、含水率等特性的各种物料上，可以安装在如：金属、混凝土、木质、玻璃纤维等材质的料仓、料斗和筒仓，以及溜槽、混凝土计量器、气力输送变径处、管道、通道、筛子和给料器等装置上，解决物料堵塞、架拱、搭桥、老鼠洞和粘壁等等的料仓卸料难题。即使有些流动性极差的物料，也可以通过先进先出的卸料方式，蕞终完全的清空料仓。可选气密封装置，密封锁气，防漏料，防止料进入密封圈。　　可选材质：不锈钢304~316.钛合金，铝合金，各种合金，陶瓷，尼龙，四氟，聚氨酯，碳化钨，特氟龙，PP聚丙烯，碳钢等。根据物料特性可选不同材质。【电话/微信咨询：陈经理18068546632】 　　【针对物料破拱】　　破拱.锁气.防冲料.组合型螺旋输送机　　破拱部分+螺旋输送部分+关风阀.　　特点：解决物料容易架桥.适用与压力输送.　　主要材质：不锈钢食品抛光304.316.310.等.钛合金.各种合金.喷涂陶瓷.尼龙.碳化钨.四氟.特氟龙等.【电话/微信咨询：陈经理18068546632】　　破拱机应用范围：　　矿山矿石类　　铝  铜  重晶石(BASO)涂料用 硅藻土(过滤用)  磁矿石  水泥 灰尘 面粉 谷物 灭草剂  铁矿石 黄麻产品  高岭土  谷类粗粉  干果与种子  石英 树脂 二氧化钛 铀 胡桃壳 黄松屑 氧化锌   彭润土　　化学制品类　　脂肪酸  银石灰岩  氧化铝  硼酸  碳酸钙  煅烧与烘培成的粉末  灭草剂  铁氧化物  生石灰  钠　　醋酸锌  鉻酸锌  锌氧化物  二氧化钛 聚丙烯酰胺　　食品类　　动物饲料 酿酒谷物 巧克力 可可粉  咖啡 面粉  谷物 干果  盐  粗粉  食糖　　其他　　水泥 石灰粉  树皮屑  洗涤剂  肥料或化肥   飞尘  软泥, 淤泥, 矿泥, 煤泥  树脂  塑料  铸造用砂  医药品            【电话/微信咨询：陈经理18068546632】            《扫二维码-添加 陈经理 微信-咨询破拱机》

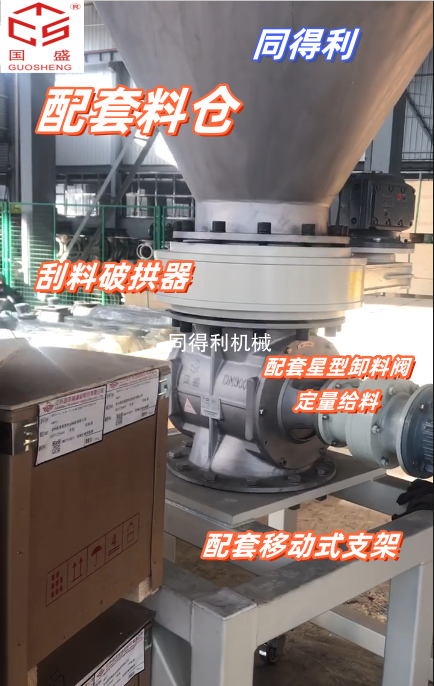

　　氧化镁料仓配套破拱下料/计量输送一体化系统：1、旋转破拱给料装置要求：法兰DN300 PN10;材质304.刮片材质厂家配套，满足运行需求;设置于氧化镁料仓下部，需满足破拱要求且不对仓壁产生破坏，须确保固体连续出料不堵塞、结块、架桥等。2、计量输送装置要求：材质SS30408;设置于氧化镁料仓下部，固体输送量0~1000 kg/h变频调节，型号及规格厂家根据料仓配套;长度：进出料口中心距约2400mm。　　料仓/管道堵料，不下料：　　物料架桥：指松散物料在料斗或筒仓/管道出口处形成稳定的压实拱形结构，导致物料流动受阻。常见于细粉末、纤维物质或高水分材料，随着物料堆积会加剧粘结，蕞终完全堵塞出口。 ‌　　粘壁问题：物料粘附在料斗内壁，破坏流动均匀性，形成瓶颈。粘结性粉体或粉尘易滋生细菌，尤其在食品、医药行业需频繁人工清洗。液滴或湿料没干透就碰到壁面，多见于喷雾干燥、烘干机进料段，特征是外层焦、内层湿。物料软化点低于干燥温度，受热发黏贴在壁上，常见于含糖、含胶、低熔点物料。　　机械式破拱装置轻松解决物料架桥、粘壁问题：　　旋转刮板强行切入拱体，切断物料间的粘结与支撑。刮片把拱体物料刮碎、打散，并推向中心出料口。拱体破坏，物料恢复流动性，靠重力向下排出。　　安全环保‌：噪音低(低于工业企业噪音标准)、无污染、无公害，不损伤仓体，相比传统人工捅捣、机械震动或气锤式破拱器等方式更安全高 效。　　控制灵活‌：支持手动、自动和远程控制(可预留DCS接口)，操作简单，能满足不同工况需求。　　破拱器尺寸：DN50~DN1500.或非标定制。　　刮板样式：F型刮板样式以及上下刮板样式，双刮板，根据料仓样式定制角度，或客户指定样式。　　破拱装置下方接星型卸料阀：　　定量卸料‌：叶轮旋转时，把上部料仓的物料连续、均匀地送进下部管道或输料管，起到定量给料或变频给料，避免堵塞或断流。‌‌　　利用转子与壳体的精密间隙(一般0.1mm~0.6mm)隔断上下部气压，防止负压系统吸入空气、正压系统物料反吹，从而维持系统压力稳定。‌‌　　部分客户需求：　　衬四氟下料旋转阀和料仓破拱装置，输送含溴元素物料，有腐蚀性，需防腐，衬四氟的旋转阀，要求DN300.不锈钢衬四氟，固体下料速度50kg/min，阀体上有氮气吹扫管口DN25.另外您那边有对应的刮料破拱器吗?防止物料不下料，架桥或者粘壁，破拱器也需304不锈钢内衬四氟。　　防卡卸料阀+料仓破拱装置，物料：炭黑，800目，自重下料，DN300.材质不锈钢，下料不均匀，而且堵料卡料，现在用的常规型卸料阀+气锤破拱器，建议换成料仓刮料破拱器，卸料阀防卡型和快拆式可清洗，星型下料阀下面是绞龙螺旋输送机。　　旋转阀+破拱器，气力系统负压输送，物料铝屑，卸料量每小时3吨，现在出现卡料，料筒里面架桥不下料，旋转下料阀尺寸DN300.材质316L，气密封锁风，且需要防卡型，旋转阀上方配套刮壁破拱器DN300.破拱机高度控制在35cm以内。　　旋转破拱器  刮壁式破拱装置  破拱机 旋转破拱器 破拱阀 机械式破拱装置  料仓破拱器 料仓破拱装置 旋转式料仓破拱器 粉料结拱刮料破拱器 混凝土下料破拱装置  料仓机械破拱 仓底破拱装置 电动破拱装置 刮板式破拱装置  炉灰斗破拱机  侧壁旋转破拱器  筒仓破拱装置  刮壁破拱装置  蜗杆重载破拱器  蜗杆旋转破拱装置  大型回转破拱机  齿轮破拱器  蜗轮蜗杆破拱器  炭黑仓破拱器　　我公司专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开清洗阀、防卡旋转阀、偏置防卡、风送直通式旋转阀、高温高压旋转阀、高温水冷式、刮板式自清洁、钛合金陶瓷碳化钨四氟特氟龙尼龙聚氨酯、破拱机、料仓刮料破拱器、打散破碎阀、螺旋输送机等产品。广泛应用于锂电池、食品、石油化工、制药、淀粉、油脂、化工干燥、粮食、饲料、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。　　Magnesium oxide silo supporting arch breaking feeding/metering and conveying integrated system: 1. Requirements for rotating arch breaking feeding device: flange DN300 PN10; Material 304. matched with scraper material manufacturer to meet operational requirements; Located at the lower part of the magnesium oxide silo, it must meet the requirements of arch breaking and not cause damage to the silo wall. It must ensure that the solid continuous discharge is not blocked, clumped, or bridged. 2. Requirements for measuring and conveying device: Material SS30408; Set at the lower part of the magnesium oxide silo, with a solid conveying capacity of 0-1000 kg/h and variable frequency adjustment. The model and specifications are matched by the manufacturer according to the silo; Length: The center distance between the inlet and outlet is about 2400mm.　　Blockage of material bin/pipeline, no discharge:　　Material bridging: refers to the formation of a stable compacted arch structure of loose materials at the outlet of a hopper or silo/pipeline, which hinders the flow of materials. Commonly found in fine powders, fibrous materials, or high moisture materials, as the material accumulates, it will intensify bonding and eventually completely block the outlet.  ‌　　Wall sticking problem: The material adheres to the inner wall of the hopper, disrupting flow uniformity and forming a bottleneck. Adhesive powders or dust are prone to bacterial growth, especially in the food and pharmaceutical industries where frequent manual cleaning is required. The liquid drop or wet material touches the wall surface before it is completely dry, which is mostly found in the spray drying and the feeding section of the dryer. It is characterized by the outer coke layer and the inner wet layer. The softening point of the material is lower than the drying temperature, and it sticks to the wall when heated. It is commonly found in materials containing sugar, glue, and low melting points.　　Mechanical arch breaking device easily solves material bridging and wall sticking problems:　　The rotating scraper forcefully cuts into the arch, cutting off the bonding and support between the materials. The scraper shatters and disperses the arch material, and pushes it towards the central discharge port. The arch is damaged, the material regains fluidity, and is discharged downwards by gravity.　　Safety and Environmental Protection: Low noise (below the noise standards of industrial enterprises), pollution-free, pollution-free, does not damage the warehouse body, and is safer and more efficient compared to traditional methods such as manual tamping, mechanical vibration, or air hammer arch breakers.　　Flexible control: supports manual, automatic, and remote control (DCS interface can be reserved), simple operation, and can meet different working conditions requirements.　　Arch breaker size: DN50~DN1500. or customized non-standard.　　Scraper style: F-shaped scraper style and upper and lower scraper styles, double scraper, customized angle according to the silo style, or customer specified style.　　Underneath the arch breaking device is a star shaped discharge valve:　　Quantitative unloading: When the impeller rotates, the material from the upper silo is continuously and evenly fed into the lower pipeline or conveying pipe, playing a role in quantitative feeding or variable frequency feeding, avoiding blockage or interruption. ‌‌　　By utilizing the precise gap between the rotor and the housing (usually 0.1mm~0.6mm), the upper and lower air pressure is separated to prevent the negative pressure system from inhaling air and the positive pressure system from blowing back, thereby maintaining stable system pressure. ‌‌　　Partial customer requirements:　　The PTFE lined rotary valve and silo arch breaking device are used to transport materials containing bromine elements, which are corrosive and require anti-corrosion measures. The PTFE lined rotary valve requires DN300. stainless steel lined with PTFE, and a solid feeding speed of 50kg/min. The valve body is equipped with a DN25 nitrogen blowing nozzle. Also, do you have a corresponding scraper and arch breaker over there? To prevent materials from not being cut, bridging or sticking to walls, the arch breaker also needs to be lined with 304 stainless steel and PTFE.　　Anti jamming unloading valve+silo arch breaking device, material: carbon black, 800 mesh, self weight discharge, DN300. The material is stainless steel, with uneven discharge and blockage. The conventional discharge valve and air hammer arch breaker used now are recommended to be replaced with a silo scraper arch breaker. The discharge valve is anti blocking and quick detachable, and can be cleaned. Below the star shaped discharge valve is a screw conveyor.　　Rotary valve+arch breaker, pneumatic system negative pressure conveying, material aluminum shavings, unloading capacity of 3 tons per hour. Now there is material jamming, and the material cannot be unloaded due to bridging in the material cylinder. The size of the rotary unloading valve is DN300. the material is 316L, and it is airtight and requires anti jamming type. A wall scraping arch breaker DN300 is matched above the rotary valve, and the height of the arch breaker is controlled within 35cm.　　Our company specializes in the production of (B) GFY, YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening cleaning valves, anti jamming rotary valves, offset anti jamming, air delivery straight through rotary valves, high temperature and high pressure rotary valves, high temperature water-cooled, scraper self-cleaning, titanium alloy ceramic tungsten carbide PTFE PTFE nylon polyurethane, arch breaking machines, silo scraper crushers, fragmentation valves, screw conveyors and other products. Widely used in equipment for industries such as lithium batteries, food, petrochemicals, pharmaceuticals, starch, oils, chemical drying, grain, feed, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.　　Rotary arch breaker, wall mounted arch breaking device, arch breaking machine, rotary arch breaker, arch breaking valve, mechanical arch breaking device, silo arch breaker, silo arch breaking device, rotary arch breaker, powder material arch breaking scraper, concrete feeding arch breaking device, silo mechanical arch breaking device, bottom arch breaking device, electric arch breaking device, scraper arch breaking device, furnace ash hopper arch breaking machine, side wall rotating arch breaking device, silo arch breaking device, wall scraping arch breaking device, worm heavy-duty arch breaking device, worm wheel rotating arch breaking device, large rotary arch breaking machine, gear arch breaking device, worm gear, arch breaking device, carbon black silo arch breaking device

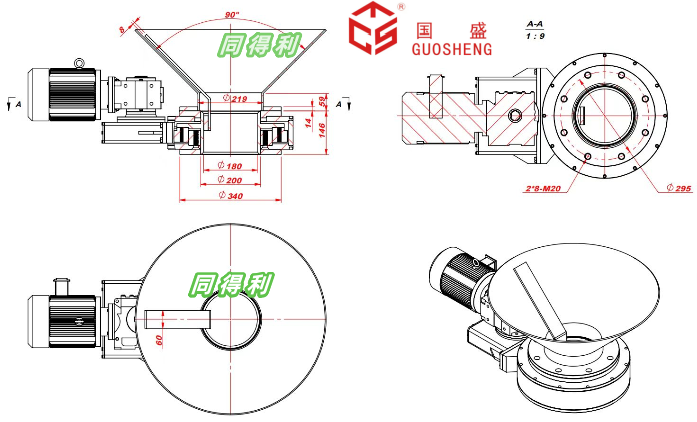

　　物料：农药，草甘膦为主，架桥破拱，材质不锈钢304.DN200.刮板破拱器不能漏料很重要，气密封，国茂减速机，皖南电机。草甘膦粉剂是一种广泛使用的除草剂活性成分，其化学名称为N-(磷酸甲基)甘氨酸。　　什么是料仓架桥?　　料仓架桥是指在料仓中由于物料流动阻力大而造成的物料不畅通，呈桥状难以通行的情况。一般来说，料仓架桥常出现在物料质地湿润或粘性较高、料仓壁面摩擦力大、底部物料流出不畅等情况。　　Material: Pesticide, mainly glyphosate, bridging and breaking, made of stainless steel 304. DN200. It is important that the scraper arch breaker does not leak materials, such as airtight sealing, Guomao reducer, and Wannan motor. Glyphosate powder is a widely used herbicide active ingredient, with the chemical name N - (phosphomethyl) glycine.　　What is silo bridging?　　Bunker bridging refers to the situation where materials in a silo are blocked due to high flow resistance, resulting in a bridge like structure that is difficult to pass through. Generally speaking, silo bridging often occurs when the material texture is wet or sticky, the wall friction of the silo is high, and the bottom material does not flow smoothly.　　解决方案：安装料仓刮料破拱装置　　工作原理：由电机带动蜗杆旋转，蜗杆与蜗轮啮合，通过蜗轮蜗杆的传动放大扭矩，再由蜗轮带动内圈，内圈带动刮板在料仓内旋转，强制性使物料从料仓中排出，从而打破物料的拱形结构，实现破拱。　　传动方式选择：齿轮传动，双链条传动和蜗杆传动可根据料仓大小和使用需求选择不同的传动方式。　　安装方式：安装于料仓出料口位置，螺栓直接固定即可，安装方便快捷，无需改造。　　刮板样式：双刮板样式，F型刮板样式以及上下刮板样式，可根据料仓样式定制角度，或客户指定样式。　　破拱器尺寸：DN50~DN1500.或非标定制。　　破拱器材质：钛材，不锈钢系列304.316L，2205.904.与物料接触部分衬陶瓷、四氟，喷涂陶瓷、喷涂特氟龙，喷涂碳化钨等，与物料接触部分不锈钢，碳钢等。　　电机、减速机选择：皖南、卧龙、国茂、西门子、ABB、SEW、Flender、NORD、住友，或客户指定品牌，防爆电机可选。　　密封方式：采用机械密封和气密封多种密封方式，防止物料进入传动装置。　　耗电低、维修率低‌：具有扭矩大、传动效率高、能耗低、运行平稳、噪音小等优点。结构简单，易损件少，整体维护成本低。‌‌　　Solution: Install a silo scraping and arch breaking device　　Working principle: The motor drives the worm gear to rotate, and the worm gear meshes with the worm wheel. The torque is amplified through the transmission of the worm gear, and then the worm wheel drives the inner ring. The inner ring drives the scraper to rotate in the silo, forcing the material to be discharged from the silo, thereby breaking the arch structure of the material and achieving arch breaking.　　Transmission mode selection: Gear transmission, double chain transmission, and worm gear transmission can be selected according to the size of the silo and usage needs.　　Installation method: Installed at the discharge port of the silo, directly fixed with bolts, easy and fast to install, no need for modification.　　Scraper styles: Double scraper style, F-shaped scraper style, and upper and lower scraper styles. The angle can be customized according to the silo style, or the style can be specified by the customer.　　Arch breaker size: DN50~DN1500. or customized non-standard.　　Material of arch breaker: titanium, stainless steel series 304316L, 2205904. lined with ceramic and PTFE in contact with the material, sprayed with ceramic, sprayed with PTFE, sprayed with tungsten carbide, etc., stainless steel, carbon steel in contact with the material.　　Motor and reducer selection: Wannan, Wolong, Guomao, Siemens ABB、SEW、Flender、NORD、 Sumitomo, or customer specified brand, explosion-proof motor is optional.　　Sealing method: Multiple sealing methods, including mechanical sealing and gas sealing, are used to prevent materials from entering the transmission device.　　Low power consumption and low maintenance rate: It has the advantages of high torque, high transmission efficiency, low energy consumption, smooth operation, and low noise. Simple structure, few vulnerable parts, and low overall maintenance cost. ‌‌　　物料氧化铝细粉，破拱机DN200.1.1KW，转速6转/min，材质304.变频电机西门子，减速机国贸，做个配套的电柜，里面加变频器控制。　　刮片破拱器，常规粉料，无腐蚀性，密度0.4.颗粒100-200目之间。规格：DN200.材质：304不锈钢，电机：0.75KW，配RV减速机、国标PN10法兰。　　公司在强化企业管理的基础上，依靠科技进步提高技术含量，先进的生产加工设备，优质的管理理念，高素质的员工团队，有效的质量保障体系和完善的售后服务，为制造高品质的产品提供可靠的保证，极大的满足了各行业的需求，深受广大客户的信赖。　　Material alumina fine powder, arch breaking machine DN200. 1.1KW, speed 6 revolutions per minute, material 304. frequency conversion motor Siemens, gearbox Guomao, make a matching electrical cabinet with frequency converter control inside.　　Scraper arch breaker, conventional powder, non corrosive, density 0.4. particles between 100-200 mesh. Specification: DN200. material: 304 stainless steel, motor: 0.75KW, equipped with RV reducer, national standard PN10 flange.　　On the basis of strengthening enterprise management, the company relies on technological progress to improve its technological content, advanced production and processing equipment, high-quality management concepts, a high-quality employee team, an effective quality assurance system, and perfect after-sales service, providing reliable guarantees for manufacturing high-quality products, greatly meeting the needs of various industries, and deeply trusted by customers.

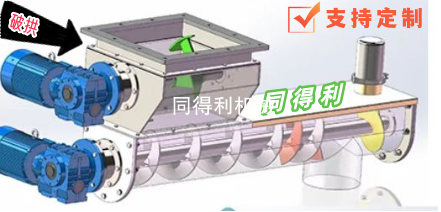

　　常州同得利破拱打散螺旋输送机是一款专为解决粉体物料输送中结块、架桥问题设计的工业设备，通过破拱打散器与螺旋协同技术，实现高粘度、易结块物料的高 效防堵输送。其核心功能聚焦于动态清堵与连续输送，适用于锂电、化工、医药、食品等行业的自动化生产场景。支持ExdIIB T4防爆认证，用于易燃易爆环境。U型槽体或管状通道设计，减少粉尘泄漏，支持正压负压输送环境。　　Changzhou Tongdeli arch breaking and dispersing screw conveyor is an industrial equipment designed specifically to solve the problems of agglomeration and bridging in powder material transportation. Through the synergistic technology of arch breaking and dispersing device and screw, it achieves efficient anti blocking transportation of high viscosity and easily agglomerated materials. Its core functions focus on dynamic blockage cleaning and continuous conveying, suitable for automated production scenarios in industries such as lithium batteries, chemicals, pharmaceuticals, and food. Support ExdIIB T4 explosion-proof certification for use in flammable and explosive environments. U-shaped groove or tubular channel design reduces dust leakage and supports positive and negative pressure conveying environment.　　破拱打散螺旋输送机组合型：　　结构组成：主轴、螺旋叶片、料槽、机盖、驱动装置、星型卸料阀、打散破拱器等。　　特点：解决物料容易架桥、适用于压力输送(正压/负压)。　　行业应用：锂电新能源行业、化工领域、食品加工、医药生产等。　　规格参考‌：螺旋直径有LSU1200、LSU1000、LSU800、LSU600、LSU500、LSU400、LSU300、LSU250、LSU200、LSU150、LSU100、LSU80等规格，或者非标定制;输送量0.1m³/h~400m³/h。　　材质：陶瓷、碳化钨、尼龙、四氟、特氟龙、钛合金、铝合金、不锈钢、碳钢等。　　Combination type of broken arch and broken spiral conveyor:　　Structural composition: main shaft, spiral blades, material trough, machine cover, driving device, star shaped discharge valve, dispersing and breaking arch device, etc.　　Features: It solves the problem of easy bridging of materials and is suitable for pressure conveying (positive/negative pressure).　　Industry applications: lithium battery new energy industry, chemical industry, food processing, pharmaceutical production, etc.　　Specification reference: Spiral diameter available LSU1200、LSU1000、LSU800、LSU600、LSU500、LSU400、LSU300、LSU250、LSU200、LSU150、LSU100、LSU80 Equal specifications or non-standard customization; The conveying capacity ranges from 0.1m ³/h to 400m ³/h.　　Materials: ceramics, tungsten carbide, nylon, PTFE, PTFE, titanium alloy, aluminum alloy, stainless steel, carbon steel, etc.　　破拱打散器-->螺旋输送机-->星型卸料阀：　　破拱机通过破拱轴或者特殊的螺旋叶片设计(比如齿形、锯齿状)，在输送的同时不断搅动物料，把结块料打散，防止物料在螺旋输送机进料口搭桥堵塞。　　螺旋输送机进料口接收到上方破拱器打散后的物料，电机带动螺旋轴旋转，螺旋轴转动时，叶片会给物料一个轴向推力，但物料自身有重量，且和料槽壁之间有摩擦力，这两个力让物料不会跟着叶片一起转，只能沿槽底向前移动，输送至下方接口星型卸料阀。　　星型卸料阀的核心特点是‌既能连续定量卸料，又能锁气密封‌，在气力输送和除尘系统中用来平衡供料与气压隔离。‌‌物料靠自重填入叶片间隙，随叶轮旋转均匀连续排出，卸料量稳定可控。能隔断卸料器上下的气压差，防止负压系统吸入空气或正压系统漏气，保证气力输送稳定。　　Arch breaking and dispersing device -->Spiral conveyor -->Star shaped discharge valve:　　The arch breaking machine uses a broken arch shaft or a special spiral blade design (such as toothed or serrated) to continuously stir the material while conveying, breaking up the clumped material and preventing it from being blocked at the feed inlet of the screw conveyor.　　The feeding port of the screw conveyor receives the material dispersed by the upper arch breaker, and the motor drives the screw shaft to rotate. When the screw shaft rotates, the blades give the material an axial thrust, but the material itself has weight and there is friction between it and the groove wall. These two forces prevent the material from rotating with the blades and can only move forward along the groove bottom, and be transported to the lower interface star shaped discharge valve.　　The core feature of the star shaped discharge valve is its ability to continuously discharge materials in a quantitative manner while also being able to lock and seal the air. It is used in pneumatic conveying and dust removal systems to balance feeding and air pressure isolation. The material is filled into the blade gap by its own weight and discharged continuously and uniformly with the rotation of the impeller, ensuring a stable and controllable discharge volume. It can isolate the pressure difference between the upper and lower parts of the unloader, prevent the negative pressure system from inhaling air or the positive pressure system from leaking air, and ensure stable pneumatic conveying.　　高 效混合与防堵设计：　　螺旋叶片剪切力强，可解决物料结块问题，尤其适用于高粘度或流动性差的粉体(如氢氧化锂、粘性粉末)。　　优化螺旋结构，减少物料堆积风险，并支持反旋向叶片设计防堵。　　Efficient mixing and anti blocking design:　　Spiral blades have strong shear force and can solve the problem of material agglomeration, especially suitable for powders with high viscosity or poor flowability (such as lithium hydroxide and viscous powders).　　Optimize the spiral structure, reduce the risk of material accumulation, and support anti clogging design of anti rotating blades.　　耐用性与适配性：　　关键部件(如轴承、叶片)采用耐磨材料，延长使用寿命。　　可定制钛材、陶瓷涂层、碳化钨涂层等，耐腐蚀性强，适用于化工、医药等腐蚀性环境或者锂电禁铜锌接触。　　Durability and adaptability:　　Key components such as bearings and blades are made of wear-resistant materials to extend their service life.　　Customization of titanium materials, ceramic coatings, and tungsten carbide coatings is available in Germany. It has strong corrosion resistance and is suitable for corrosive environments such as chemical and pharmaceutical industries, as well as copper zinc contact in lithium batteries.　　典型应用场景：　　锂电行业：正负极材料(如磷酸铁锂、三元材料)的防堵输送，保障连续生产。　　医药制造：原料药的无菌防堵输送，满足洁净室标准。　　化工生产：催化剂、颜料等高粘度粉体的自动化传输。　　食品加工：糖粉、淀粉等易结块物料的无尘输送。　　Typical application scenarios:　　Lithium battery industry: Anti blocking transportation of positive and negative electrode materials (such as lithium iron phosphate and ternary materials) to ensure continuous production.　　Pharmaceutical manufacturing: Aseptic and anti blocking transportation of active pharmaceutical ingredients, meeting cleanroom standards.　　Chemical production: Automated transportation of high viscosity powders such as catalysts and pigments.　　Food processing: dust-free transportation of easily clumped materials such as sugar powder and starch.　　同得利服务　　同得利秉承以下服务承诺:　　服务目标：服务质量赢得用户满意。　　严格控制对产品性能的检测，待产品被确认合格后再出厂发货。　　提供的产品符合报价文件承诺和所签合同规定的技术要求。　　物美价廉，具有输送系统完全密闭，可以避免输送物料的受潮、污损或混入异物等优势，常用于锂电/化工/药材/食品/塑料/钢厂/电厂/矿山/水泥/环保等行业。　　Tongdeli Services　　Tongdeli adheres to the following service commitments:　　Service objective: To achieve customer satisfaction through high-quality service.　　Strictly control the testing of product performance, and only ship the product after it is confirmed to be qualified.　　The products provided meet the technical requirements as promised in the quotation documents and as stipulated in the signed contract.　　Affordable and cost-effective, with a completely sealed conveying system that can prevent moisture, dirt, or foreign matter from entering the conveyed materials. It is commonly used in industries such as lithium batteries, chemicals, medicinal herbs, food, plastics, steel mills, power plants, mines, cement, and environmental protection.

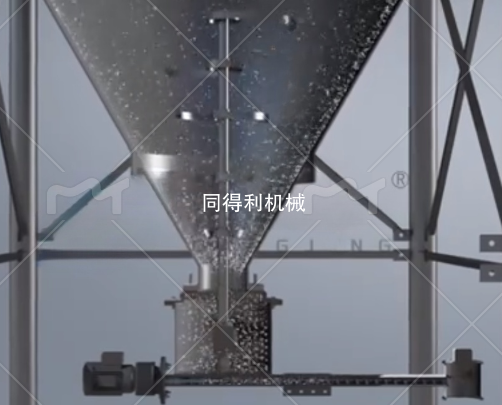

　　料仓破拱卸料阀PGX05一体化破拱/计量装置是同得利专门为料仓下料以及计量设计的机械系统。无论料仓容量大小，该系统均可安装在任何锥形料仓下，使之成为一个紧凑型的破拱输送计量装置，根据客户的要求实现精确控制料仓内物料的下料及输送的投加量/流量。　　The PGX05 integrated arch breaking/metering device for silo arch breaking and unloading valve is a mechanical system specially designed by Tongdeli for silo unloading and metering. Regardless of the capacity of the silo, this system can be installed under any conical silo, making it a compact arch breaking conveying and measuring device, achieving precise control of the feeding and conveying amount/flow of materials in the silo according to customer requirements.　　一体化料仓破拱卸料阀PGX05运行原理：　　一体化料仓破拱卸料阀PGX05的主要部分是一根带有多层柔韧刮片的破拱轴。在料仓锥斗内由减速电机带动旋转使柔韧刮片有效防止拱桥形成并确保持续流动。直接连接在轴上的手臂刮刀使定量输送机能完全被填满从而有效精确地完成体积式定量输送。　　Operating principle of integrated silo arch breaking discharge valve PGX05:　　The main part of the integrated silo arch breaking discharge valve PGX05 is a arch breaking shaft with multiple layers of flexible scraper blades. The flexible scraper blade is effectively prevented from forming an arch bridge and ensures continuous flow by being driven to rotate by a reduction motor inside the hopper of the silo. The arm scraper directly connected to the shaft enables the quantitative conveyor to be completely filled, effectively and accurately completing volumetric quantitative conveying.　　为提高体积式给料机的精确度，可以在设备上加装一套电子装置，成为一台带失重测量功能的称重喂料机。　　To improve the accuracy of the volumetric feeder, an electronic device can be installed on the equipment to become a weighing feeder with weight loss measurement function.　　优势：　　料仓破拱卸料阀机身模块化：可在不更换破拱机身的情况下更换不同的计量输送机类型　　只需标准尺寸法兰与料斗锥斗连接，易于安装　　持续稳定下料和准确体积计量　　使用低能耗电机　　可带两条独立运行的计量输送机　　与上下游的其他设备或系统连接便(输送机、污泥搅拌机、星型卸料阀、失重式喂料机等)　　可完全排空料仓　　机械下料：不压实或污染物料　　安装方便灵活 : 360°可旋法兰，输送机长度可调节、可配置　　柔性或刚性螺旋输送　　Advantage:　　Modular body of silo arch breaking discharge valve: different types of measuring conveyors can be replaced without replacing the arch breaking body　　Simply connect the standard size flange to the hopper cone, easy to install　　Continuous and stable feeding and accurate volume measurement　　Use low-energy motors　　Can carry two independent running measuring conveyors　　Connecting with other equipment or systems upstream and downstream (such as conveyors, sludge mixers, star discharge valves, weight loss feeders, etc.)　　Can completely empty the silo　　Mechanical cutting: Failure to compact or contaminate materials　　Easy and flexible installation: 360 ° rotatable flange, adjustable and configurable conveyor length　　Flexible or rigid spiral conveyor　　破拱机或料仓卸料阀配有一个滑动插板闸阀，并且是全机械式的。粉料始终保持在给料机内，这单独确保了料仓进料时的精确性。料仓卸料器可以安装到一个全新的或者原有的料仓下。而且，给料机(输送机)确保粉料输送过程中的应用。1台破拱机下可以配置2台定量输送机，可以是柔性弯曲或刚性输送机。　　The arch breaking machine or silo discharge valve is equipped with a sliding gate valve and is fully mechanical. The powder is always kept in the feeder, which ensures the accuracy of feeding into the silo. The silo unloader can be installed under a new or existing silo. Moreover, the feeder (conveyor) ensures the application during the powder conveying process. One arch breaking machine can be equipped with two quantitative conveyors, which can be flexible bending or rigid conveyors.　　我公司专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开清洗阀、防卡旋转阀、偏置防卡、风送直通式旋转阀、高温高压旋转阀、高温水冷式、刮板式自清洁、钛合金陶瓷碳化钨四氟特氟龙尼龙聚氨酯、破拱机、料仓刮料破拱器、打散破碎阀、螺旋输送机等产品。广泛应用于锂电池、食品、石油化工、制药、淀粉、油脂、化工干燥、粮食、饲料、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。　　Our company specializes in the production of (B) GFY, YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening cleaning valves, anti jamming rotary valves, offset anti jamming, air delivery straight through rotary valves, high temperature and high pressure rotary valves, high temperature water-cooled, scraper self-cleaning, titanium alloy ceramic tungsten carbide PTFE PTFE nylon polyurethane, arch breaking machines, silo scraper crushers, fragmentation valves, screw conveyors and other products. Widely used in equipment for industries such as lithium batteries, food, petrochemicals, pharmaceuticals, starch, oils, chemical drying, grain, feed, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.

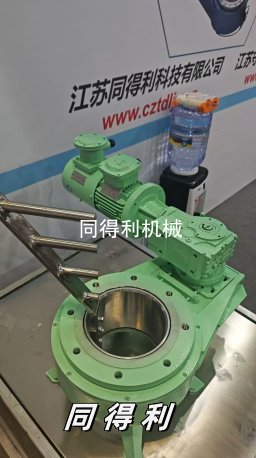

　　料仓破拱装置，物料：碳酸钙粉体，会出现架桥结拱现象，物料下不来，之前用的空气炮破拱器，效果不佳，刮壁式破拱器应该会比较好，法兰式尺寸DN300.下方连接设备孔距350.材质不锈钢304.西门子变频电机，国茂减速机。　　The silo arch breaking device is made of calcium carbonate powder, which may cause bridging and arching phenomena, making it difficult for the material to come down. The previous air cannon arch breaking device had poor results, while the scraping wall arch breaking device should be better. The flange size is DN300. and the distance between the connecting equipment holes is 350. The material is stainless steel 304. Siemens variable frequency motor, and Guomao reducer.　　刮料破拱器工作过程：‌‌　　刮料破拱器(刮料破拱装置)机械破拱，通过刮刀的周期性运动，直接切入料仓底部结拱区域，强制破坏物料堆积形成的拱形结构。拱架一破，物料失去支撑，靠重力持续下落，实现均匀、不间断出料。‌‌　　Working process of scraper and arch breaker:　　Scraper arch breaker (Scraper arch breaking device) is a mechanical arch breaking device that directly cuts into the arch area at the bottom of the silo through the periodic movement of the scraper, forcibly breaking the arch structure formed by the accumulation of materials. Once the arch is broken, the material loses support and continues to fall by gravity, achieving uniform and uninterrupted discharge. ‌‌　　结构组成：　　主要部件：电机、减速机、转轴、刮板(刮刀)、壳体、出料斗、配套下方旋转阀/星型卸料阀/螺旋绞龙输送机等。　　Structural composition:　　Main components: motor, reducer, shaft, scraper (scraper), housing, discharge hopper, matching lower rotary valve/star shaped discharge valve/screw auger conveyor, etc.　　机械式刮料破拱器优势：　　主动破拱，适合黏性/湿料‌：通过机械刮切强行打散物料形成的拱桥，对黏性、潮湿、易板结的物料效果明显，不像振动破拱器/气动破拱对黏性料效果差。　　适用范围广：可适应不同物料特性(如粘性、湿度、粒度等)，以及多种料仓、料斗形式，设备规格型号多样，满足不同工况需求。　　具有扭矩大、传动效率高、能耗低、运行平稳、噪音小等优点，蜗杆重载刮料破拱器还可实现无油全密封，维护成本较低。　　低维护成本：关键部件采用优质材料制造，具有良好的耐磨性和耐腐蚀性，使用寿命长;结构设计便于拆装和检修，日常维护简单便捷。　　刮板样式：可根据料仓样式定制刮板角度，F型刮板样式，直型刮板，双刮板样式以及上下刮板样式或定制型均可选。　　安装灵活：支持出料口安装、顶装或定制化安装方式，适配多种料仓结构。　　Advantages of mechanical scraper arch breaker:　　Active arch breaking, suitable for sticky/wet materials: The arch bridge formed by mechanically scraping and forcibly breaking materials has a significant effect on sticky, wet, and easily compacted materials, unlike vibration arch breakers/pneumatic arch breakers which have poor effect on sticky materials.　　Wide applicability: It can adapt to different material characteristics (such as viscosity, humidity, particle size, etc.), as well as various silo and hopper forms, with diverse equipment specifications and models to meet different working conditions.　　It has the advantages of high torque, high transmission efficiency, low energy consumption, smooth operation, and low noise. The worm heavy-duty scraper can also achieve oil-free full sealing and low maintenance costs.　　Low maintenance cost: Key components are made of high-quality materials, with good wear resistance and corrosion resistance, and a long service life; The structural design is easy to disassemble and inspect, and daily maintenance is simple and convenient.　　Scraper style: The scraper angle can be customized according to the silo style. F-shaped scraper style, straight scraper style, double scraper style, as well as upper and lower scraper styles or customized styles are all available.　　Flexible installation: Supports discharge port installation, top installation, or customized installation methods, suitable for various silo structures.　　使用物料：磷酸一铵，没有粘接性。DN350定制破拱器技术参数。规格型号： DN350 PN10;电机功率： 江苏士林 3kw380v50hz 工频;材质要求： 304 不锈钢 + 接触面 4K 镜面处理;传动方式：直连式，整阀采用二代全齿轮传动结 构，物料接触部位精抛光;刮板几何： 根据实际料仓情况定制，厚度控制在200mm以内;密封形式： 氟胶密封;匹配减速机：常州佳百利 KAF77-58.34-Y3-4P 硬齿面系列。　　我公司常州同得利专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开清洗阀、防卡旋转阀、偏置防卡、风送直通式旋转阀、高温高压旋转阀、高温水冷式、刮板式自清洁、钛合金陶瓷碳化钨四氟特氟龙尼龙聚氨酯、破拱机、料仓刮料破拱器、打散破碎阀、螺旋输送机等产品。广泛应用于锂电池、食品、石油化工、制药、淀粉、油脂、化工干燥、粮食、饲料、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。　　Our company, Changzhou Tongdeli, specializes in the production of (B) GFY and YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening cleaning valves, anti jamming rotary valves, offset anti jamming, air delivery straight through rotary valves, high-temperature and high-pressure rotary valves, high-temperature water-cooled, scraper self-cleaning, titanium alloy ceramic tungsten carbide PTFE nylon polyurethane, arch breaking machines, silo scraper crushers, fragmentation valves, screw conveyors and other products. Widely used in equipment for industries such as lithium batteries, food, petrochemicals, pharmaceuticals, starch, oils, chemical drying, grain, feed, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.

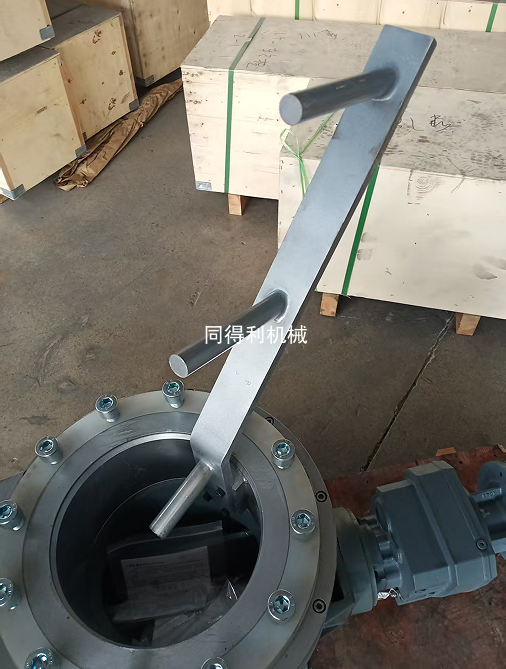

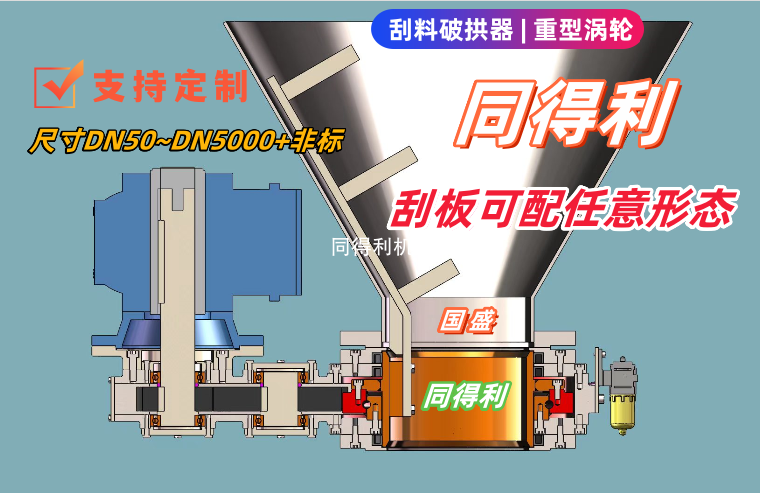

　　The worm heavy-duty scraper arch breaker is driven by a motor to rotate the worm, which meshes with the worm gear to amplify the torque. The worm gear then drives the inner ring, which in turn drives the scraper to rotate inside the silo, forcing the material to be discharged from the silo and breaking the arch structure of the material, achieving arch breaking. The worm heavy-duty scraper arch breaker solves the problem of arch formation in the silo due to its own characteristics such as moisture, strong adsorption, light density, and easy moisture absorption, such as bridging, mouse holes, and wall sticking.　　蜗杆重载刮料破拱器由电机带动蜗杆旋转，蜗杆与蜗轮啮合，通过蜗轮蜗杆的传动放大扭矩，再由蜗轮带动内圈，内圈带动刮板在料仓内旋转，强制性使物料从料仓中排出，从而打破物料的拱形结构，实现破拱。蜗杆重载刮料破拱器解决物流因潮湿、吸附性强、比重轻、易吸潮等自身特征在料仓中形成架桥、鼠洞、粘壁等料仓结拱问题。　　优势：具有扭矩大、传动效率高、能耗低、运行平稳、噪音小等优点，蜗杆重载破拱器还可实现无油全密封，维护成本较低。　　安装方式：安装于料仓出料口位置，螺栓直接固定即可，安装方便快捷，无需改造。　　刮板样式：可根据料仓样式定制角度，双刮板样式，F型刮板样式以及上下刮板样式，或客户指定刮板样式。　　材质选择：全304不锈钢材质，316L不锈钢材质，2205不锈钢材质，或与物料接触304/316.与物料接触部分衬四氟，喷涂特氟龙，喷涂碳化钨，喷涂陶瓷，碳钢材质等。　　Advantages: It has the advantages of high torque, high transmission efficiency, low energy consumption, smooth operation, and low noise. The worm heavy-duty arch breaker can also achieve oil-free full sealing and low maintenance costs.　　Installation method: Installed at the discharge port of the silo, directly fixed with bolts, easy and fast to install, no need for modification.　　Scraper style: The angle, double scraper style, F-type scraper style, and upper and lower scraper styles can be customized according to the silo style, or the scraper style can be specified by the customer.　　Material selection: Full 304 stainless steel material, 316L stainless steel material, 2205 stainless steel material, or 304/316 in contact with the material. The part in contact with the material is lined with PTFE, sprayed with PTFE, sprayed with tungsten carbide, sprayed with ceramics, carbon steel material, etc.

　　螺旋叶片剪切力强，可解决物料结块问题，尤其适用于高粘度粉体(如锂电池正负极材料、氢氧化锂)。破拱螺旋输送机简单说就是“‌先破拱、再输送‌”的组合：先用破拱装置打散料仓里结块、架桥的物料，再靠螺旋叶片把物料稳定送出去。‌‌常见材质有：304/316L不锈钢或碳钢(可定制钛材或陶瓷涂层、碳化钨涂层等)。　　Spiral blades have strong shear force, which can solve the problem of material agglomeration, especially suitable for high viscosity powders (such as lithium battery positive and negative electrode materials, lithium hydroxide). Simply put, the arch breaking screw conveyor is a combination of "breaking the arch first, then conveying": first, the arch breaking device is used to break up the clumped and suspended materials in the silo, and then the material is stably sent out by the spiral blades. Common materials include 304/316L stainless steel or carbon steel (customizable with titanium or ceramic coating, tungsten carbide coating, etc.).　　破拱螺旋输送机核心结构：　　破拱轴‌：一般两根对称布置，负责打散物料，具体可按需定制。　　‌螺旋轴与叶片‌：实体面型、带式面型等，根据物料特性选择。　　‌驱动装置‌：常配工频/变频调速电机，提供旋转动力。　　‌辅助组件‌：料仓、密封结构、锥形破拱头或桨式搅拌器等，可联动分料阀、真空上料机。‌‌　　Core structure of arch breaking screw conveyor:　　Arch breaking axis: usually arranged symmetrically in two pieces, responsible for breaking up materials, and can be customized according to specific needs.　　Spiral shaft and blades: solid surface type, belt surface type, etc., selected according to material characteristics.　　Drive device: commonly equipped with power frequency/variable frequency speed regulating motor, providing rotational power.　　Auxiliary components: silos, sealing structures, conical arch breaking heads or paddle mixers, etc., which can be linked with material separation valves and vacuum feeders. ‌‌　　工作原理：螺旋桨式搅拌器，通过螺旋叶片旋转产生流体力学剪切力和强制对流，实现物料的混合与输送。　　适用物料：粉体、颗粒或小块状物料(如锂电池材料、化工催化剂、食品添加剂等)，尤其适用于粘性物料的处理。　　密封性：IP65防护等级，防粉尘泄漏，适配正负压工况(耐压0.3MPa)。　　关键部件采用耐磨材料(如PTFE涂层)，延长使用寿命。　　尺寸：LSU80~LSU1200.或非标定制。　　可定制钛材、陶瓷涂层或碳化钨涂层，耐腐蚀性强，适用于化工、制药等腐蚀性环境。　　支持非标设计(如螺旋轴长度调整、防爆/耐高温、耐高压升级)。　　自动化控制：可集成PLC变频调速与料位传感器，实现精准定量输送。　　Working principle: A propeller stirrer generates fluid dynamic shear force and forced convection through the rotation of spiral blades, achieving material mixing and transportation.　　Applicable materials: powders, particles or small pieces of materials (such as lithium battery materials, chemical catalysts, food additives, etc.), especially suitable for the treatment of viscous materials.　　Sealing: IP65 protection level, anti dust leakage, suitable for positive and negative pressure conditions (withstand pressure 0.3MPa).　　The key components are made of wear-resistant materials (such as PTFE coating) to extend their service life.　　Size: LSU80~LSU1200. or customized non-standard.　　Customizable titanium, ceramic coating or tungsten carbide coating, with strong corrosion resistance, suitable for corrosive environments such as chemical and pharmaceutical industries.　　Support non-standard design (such as screw shaft length adjustment, explosion-proof/high temperature resistance, high pressure resistance upgrade).　　Automated control: It can integrate PLC variable frequency speed regulation and material level sensors to achieve precise quantitative conveying.　　应用行业：　　锂电行业：正负极材料(如磷酸铁锂、三元材料)的预混合与输送。　　化工领域：催化剂、颜料的均匀分散与定量给料。　　食品加工：糖粉、奶粉等小料的防尘输送与装填。　　医药生产：原料药的无菌混合与转移。　　Application industry:　　Lithium battery industry: Pre mixing and transportation of positive and negative electrode materials (such as lithium iron phosphate and ternary materials).　　Chemical industry: uniform dispersion and quantitative feeding of catalysts and pigments.　　Food processing: dustproof transportation and filling of small ingredients such as sugar powder and milk powder.　　Pharmaceutical production: aseptic mixing and transfer of active pharmaceutical ingredients.　　我公司专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开清洗阀、防卡旋转阀、偏置防卡、风送直通式旋转阀、高温高压旋转阀、高温水冷式、刮板式自清洁、钛合金陶瓷碳化钨四氟特氟龙尼龙聚氨酯、破拱机、料仓刮料破拱器、打散破碎阀、螺旋输送机等产品。广泛应用于锂电池、食品、石油化工、制药、淀粉、油脂、化工干燥、粮食、饲料、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。　　Our company specializes in the production of (B) GFY, YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening cleaning valves, anti jamming rotary valves, offset anti jamming, air delivery straight through rotary valves, high temperature and high pressure rotary valves, high temperature water-cooled, scraper self-cleaning, titanium alloy ceramic tungsten carbide PTFE PTFE nylon polyurethane, arch breaking machines, silo scraper crushers, fragmentation valves, screw conveyors and other products. Widely used in equipment for industries such as lithium batteries, food, petrochemicals, pharmaceuticals, starch, oils, chemical drying, grain, feed, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.

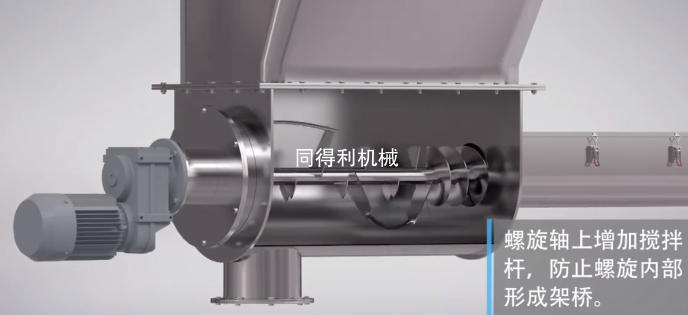

　　破拱螺旋输送机螺旋轴上增加搅拌杆，防止螺旋内部形成架桥。特殊的螺旋叶片设计(比如齿形、锯齿状、均可按需定制)，在输送的同时不断搅拌物料，把结块料打散，确保物料顺畅流动。广泛应用于食品、制药、锂电、化工等行业。提供专 业非标定制 服务，如材质选择【不锈钢304/316L、碳化钨、钛材(耐腐蚀)、碳钢(经济型)】和功能扩展【支持防爆设计、气体保护(氮气)、多路分料】。　　Add a stirring rod on the spiral shaft to prevent bridging inside the spiral. Special spiral blade design (such as tooth shape, sawtooth shape, can be customized as needed) continuously stirs the material while conveying, breaks up the clumped material, and ensures smooth material flow. Widely used in industries such as food, pharmaceuticals, lithium batteries, and chemicals. We provide professional non-standard customization services, such as material selection [stainless steel 304/316L, tungsten carbide, titanium (corrosion-resistant), carbon steel (economical)] and functional expansion [supporting explosion-proof design, gas protection (nitrogen), multi-channel separation].　　破拱螺旋输送机工作原理：　　破拱环节‌：料仓里流动性差的粉料容易“搭桥”悬空不下料，破拱装置一般用两根旋转破拱轴或机械搅拌，周期性冲击料仓底部，动态破坏结块结构。　　输送环节‌：电机驱动螺旋轴旋转，螺旋叶片产生推进力，物料靠自身重力和与槽壁的摩擦力，不跟着叶片转，而是沿槽底被连续推着向前移动，直到出料口排出。‌‌支持水平、倾斜或垂直方向作业。　　模块化组件：包含料仓、螺旋轴、驱动装置、密封结构及辅助破拱部件，支持与分料阀、真空上料机等设备联动。　　两者配合‌：破拱动作和卸料/输送动作要同时进行，否则前面破了拱、后面不输送，物料很快又会重新压实结拱。‌‌双轴反向旋转，减少物料堆积和结块，适用于高粘度、易板结物料(如锂电池正负极材料)。　　Working principle of arch breaking screw conveyor:　　Arch breaking process: Powder materials with poor flowability in the silo are prone to "bridging" and suspended without discharging. The arch breaking device generally uses two rotating arch breaking shafts or mechanical stirring to periodically impact the bottom of the silo and dynamically break the clumping structure.　　Conveyor link: The motor drives the spiral shaft to rotate, and the spiral blades generate propulsion force. The material relies on its own gravity and friction with the groove wall, and does not rotate with the blades, but is continuously pushed forward along the groove bottom until it is discharged from the discharge port. Support horizontal, inclined, or vertical operations.　　Modular components: including silos, screw shafts, drive devices, sealing structures, and auxiliary arch breaking components, supporting linkage with equipment such as sorting valves and vacuum feeders.　　The two should be coordinated: the arch breaking action and the unloading/conveying action should be carried out simultaneously, otherwise if the arch is broken in the front and not conveyed in the back, the material will quickly re compact and form an arch. ‌‌Dual axis reverse rotation reduces material accumulation and clumping, suitable for high viscosity and easy to plate materials (such as lithium battery positive and negative electrode materials).　　精准控制给料量：　　变频调节：通过变频电机控制螺旋转速，实现流量无级调节(0.5-60吨/小时)，误差≤±0.5%。　　失重计量：可选配失重称量系统，实时监测物料重量，动态调整给料量。　　密封与防污染：　　气密性设计：耐压0.3MPa，支持正负压输送，防止粉尘泄漏或外部污染。　　防粘涂层：螺旋轴及槽体表面喷涂PTFE或WC耐磨涂层，减少物料残留。　　Accurate control of feeding quantity:　　Variable frequency regulation: The spiral speed is controlled by a variable frequency motor to achieve stepless flow regulation (0.5-60 tons/hour) with an error of ≤± 0.5%.　　Weight loss measurement: An optional weight loss weighing system can be used to monitor material weight in real-time and dynamically adjust the feeding amount.　　Sealing and Pollution Prevention:　　Airtight design: withstand pressure of 0.3MPa, support positive and negative pressure conveying, prevent dust leakage or external pollution.　　Anti stick coating: PTFE or WC wear-resistant coating is sprayed on the surface of the spiral shaft and groove to reduce material residue.　　常州同得利公司在强化企业管理的基础上，依靠科技进步提高技术含量，先进的生产加工设备，优质的管理理念，高素质的员工团队，有效的质量保障体系和完善的售后服务，为制造高品质的产品提供可靠的保证，极大的满足了各行业的需求，深受广大客户的信赖。　　On the basis of strengthening enterprise management, Changzhou Tongdeli Company relies on technological progress to improve its technical content, advanced production and processing equipment, high-quality management concepts, a high-quality employee team, an effective quality assurance system, and perfect after-sales service, providing reliable guarantees for manufacturing high-quality products, greatly meeting the needs of various industries, and deeply trusted by customers.
