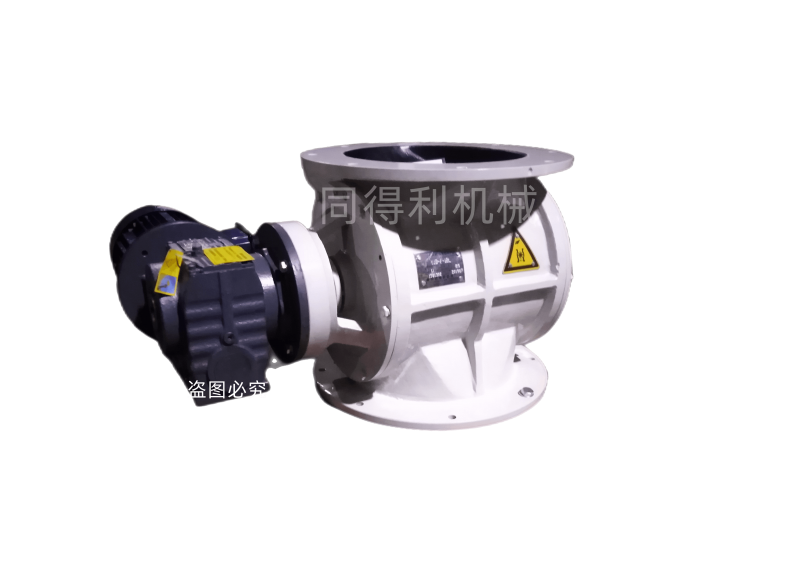

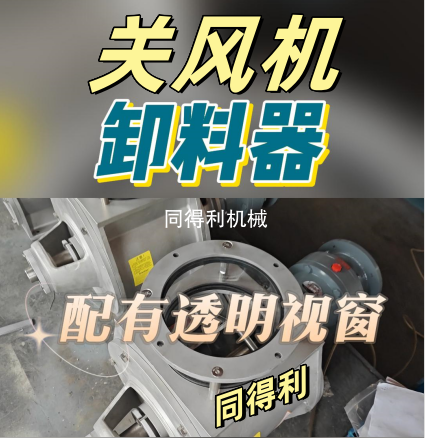

关风机又称卸料器、星型卸料阀、旋转阀、旋转卸料阀、旋转给料器、锁气阀、电动锁气器、旋转供料阀，通常星型卸料器的结构是由带有数片叶片的转子叶轮、壳体、密封件及减速器、电动机等组成。【电话/微信咨询：陈经理18068546632】　　T(B)GFY型不锈钢强力组合关风机系列：　　压力范围：0.5kg/cm²系统压力或压差。　　关风机入口/出口：入口为圆口并配有透明视窗，以便观察物料的流动状况;出口为方形，增大了出口面积使物料顺利排出。　　普通型：结构紧凑，占用空间小。　　轴承外置式：有效的防止粉尘侵入轴承。　　驱动方式：马达直连驱动为主。　　动力配置：摆线针轮减速机、Y系列电机(可按需方指定动力配置)。　　材质选项：碳钢、铸铁、不锈钢、铝合金、钛合金、四氟、陶瓷、PPC系列、尼龙、特氟龙等。【电话/微信咨询：陈经理18068546632】　　常州同得利机械厂拥有多年的研发生产/定制关风机，卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的关风机/旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。【电话/微信咨询：陈经理18068546632】《扫二维码-添加 陈经理 微信-咨询T(B)GFY型不锈钢关风机/关风器》　　Shutter fan, also known as unloader, star shaped unloader valve, rotary valve, rotary unloader valve, rotary feeder, air lock valve, electric air lock valve, rotary feeding valve, is usually composed of a rotor impeller with several blades, a housing, seals, a reducer, an electric motor, etc.　　T (B) GFY stainless steel strong combination fan series　　Pressure range: 0.5kg/cm ² system pressure or pressure difference.　　Entrance/Exit: The entrance is circular and equipped with a transparent window for observing the flow of materials; The exit is square, increasing the exit area to facilitate the smooth discharge of materials.　　Ordinary type: compact structure and small space occupation.　　External bearing: effectively prevents dust from entering the bearing.　　Drive mode: Mainly driven by direct motor connection.　　Power configuration: Cycloid pinwheel reducer, Y series motor (power configuration can be specified by the demand).　　Material options: carbon steel, cast iron, stainless steel, aluminum alloy, titanium alloy, PTFE, ceramic, PPC series, nylon, PTFE, etc.

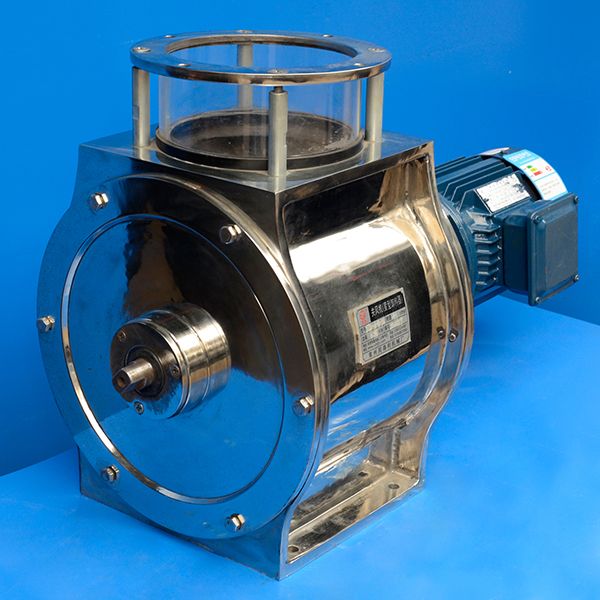

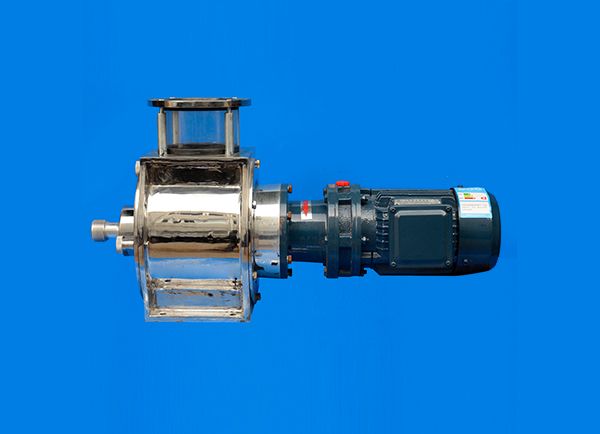

　　关风机入口/出口：入口为圆口并配有透明视窗，以便观察物料的流动状况;出口为方形增大了出口面积使物料顺利排出。　　普通型：结构紧凑，占用空间小。　　轴承外置式：防止粉尘侵入轴承、增大适应温度的范围。　　轴承外置式安装、性能优异。　　驱动方式：马达直联驱动为主、链驱动。　　关风机材质：碳钢、铸铁、不锈钢、陶瓷、尼龙、四氟、特氟龙、钛合金、铝合金、各种合金系列等。【电话/微信咨询：陈经理18068546632】　　关风机的安装：　　1、检查产品经过运输或贮藏后是否损坏锈蚀;叶轮应能灵活转动。　　2、与关风器的结合平面应平整，平面度不大于0.5mm，以免机壳变形引起故障。　　3、关风器安装后要校正水平，紧固固定螺栓，叶轮能灵活转动无障碍。【电话/微信咨询：陈经理18068546632】　　我公司专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开阀、清洁阀、风送式旋转阀等产品。广泛应用于锂电池、粮食、饲料、石油化工、制药、淀粉、油脂、化工干燥、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。           《扫二维码-添加 陈经理 微信-咨询风送式关风机》　　Shut down the inlet/outlet of the fan: The inlet is circular and equipped with a transparent window for observing the flow of materials; The square shape of the outlet increases the outlet area and facilitates the smooth discharge of materials.　　Ordinary type: compact structure and small space occupation.　　External bearing: prevents dust from entering the bearing and increases the temperature adaptability range.　　External installation of bearings, excellent performance.　　Drive mode: mainly direct motor drive, chain drive.　　Material of the fan: carbon steel, cast iron, stainless steel, ceramic, nylon, PTFE, PTFE, titanium alloy, aluminum alloy, various alloy series, etc.　　Installation of shutdown fan:　　1. Check whether the product is damaged or corroded after transportation or storage; The impeller should be able to rotate flexibly.　　2. The joint plane with the air conditioner should be flat, with a flatness of no more than 0.5mm, to prevent deformation of the casing and potential malfunctions.　　3. After the installation of the air conditioner, it is necessary to calibrate the level, tighten the fixing bolts, and ensure that the impeller can rotate flexibly without obstacles.

关风机

关风机

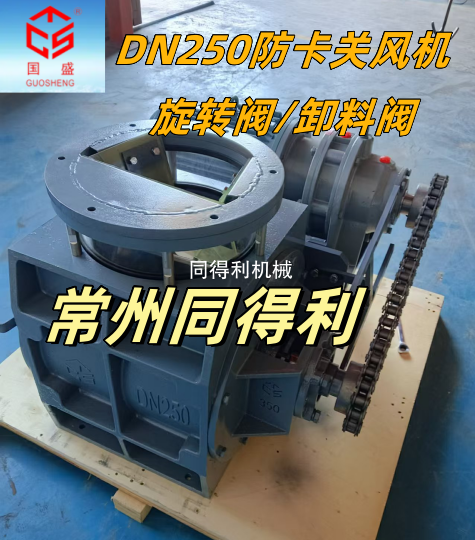

　　关风机/关风器卸料阀入口/出口：入口为圆口并配有透明视窗，以便观察物料的流动状况;出口为方形增大了出口面积使物料顺利排出。　　防卡型关风机主要用于塑料、化工、食品、制药、木材原料输送。　　针对颗粒、片状、块状物料，实现不卡料、不堵料。【电话/微信咨询：陈经理18068546632】　　普通型：结构紧凑，占用空间小。　　轴承外置式：防止粉尘侵入轴承、增大适应温度的范围。　　轴承外置式安装、性能优异。　　驱动方式：链驱动/马达直连驱动口。　　材质：碳钢、铸铁、不锈钢、陶瓷、尼龙、四氟、特氟龙、钛合金、铝合金、各种合金系列等。【电话/微信咨询：陈经理18068546632】          《扫二维码-添加 陈经理 微信-咨询防卡型关风机》　　Shutter/Shutter discharge valve inlet/outlet: The inlet is circular and equipped with a transparent window for observing the flow of materials; The square shape of the outlet increases the outlet area and facilitates the smooth discharge of materials.　　Anti jamming type air blowers are mainly used for conveying plastic, chemical, food, pharmaceutical, and wood raw materials.　　For granular, flake, and block materials, achieve no material jamming or blockage.

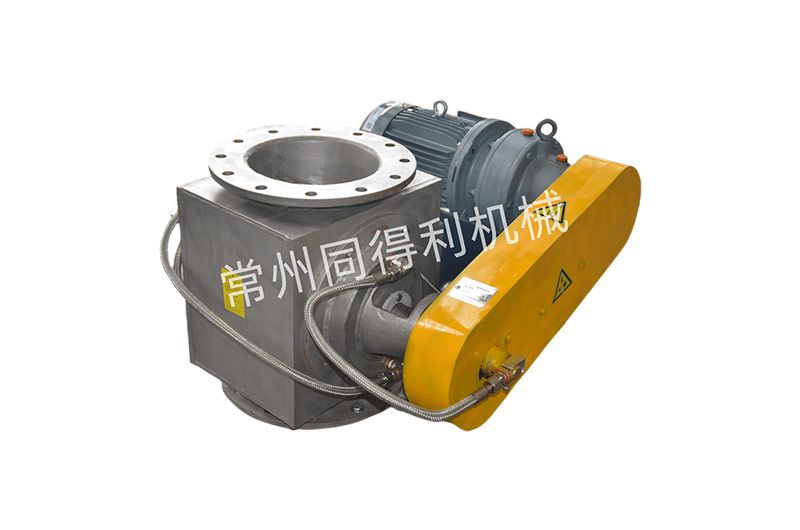

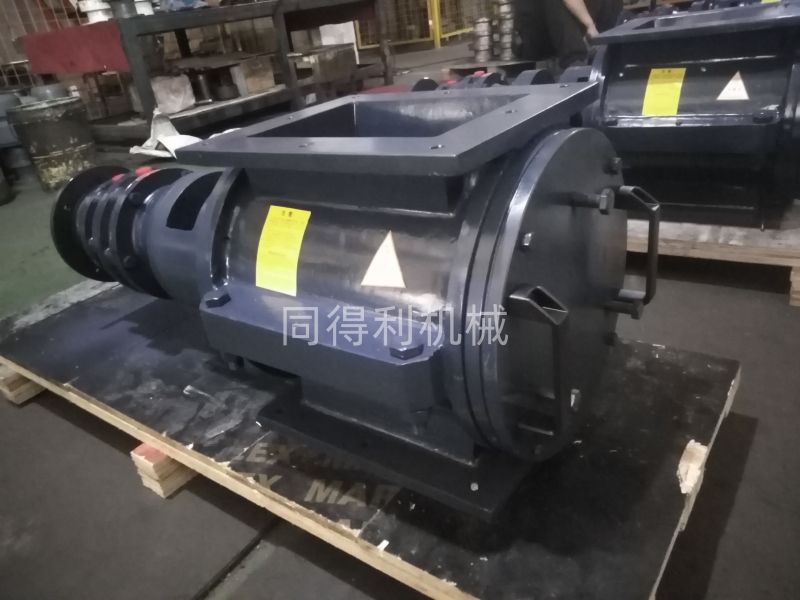

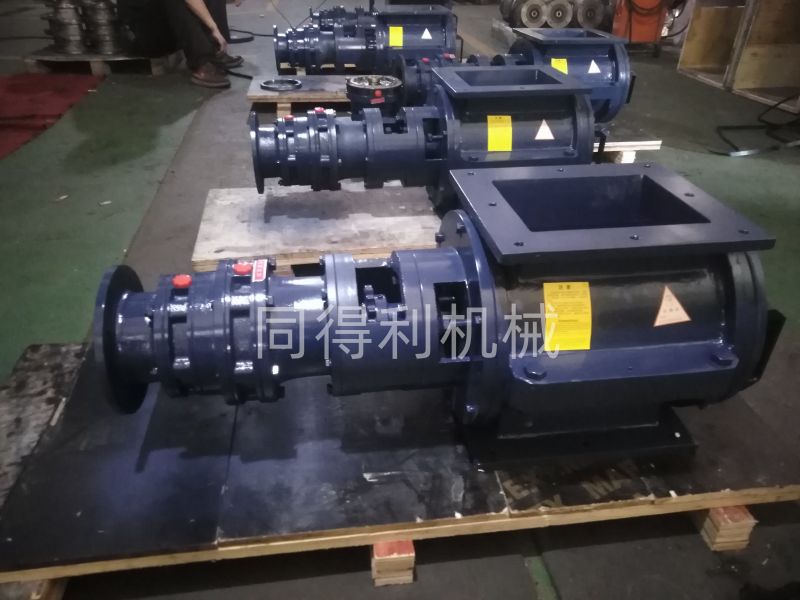

　　关风机又称卸料器、星型卸料阀、旋转阀、旋转卸料阀、旋转给料器、锁气阀、电动锁气器、旋转供料阀，通常星型卸料器的结构是由带有数片叶片的转子叶轮、壳体、密封件及减速器、电动机等组成。　　T(B)GFY型碳钢强力组合关风机系列：　　压力范围：2kg/cm²系统压力或压差。　　轴承外置式：有效的防止粉尘侵入轴承。　　驱动方式：马达直连驱动为主。　　动力配置：摆线针轮减速机、Y系列电机(可按需方指定动力配置)。　　材质选项：碳钢、铸铁、不锈钢、铝合金、钛合金、四氟、陶瓷、PPC系列、尼龙、特氟龙等。【电话/微信咨询：陈经理18068546632】　　关风机开机前准备工作：　　1、关风机设备上需要加油的地方应检查是否添加了润滑油。　　2、按电机接线规定正确接电，并加装电机过载保护装置。　　3、检查关风器运转方向是否正确。　　4、关风机设备需空运行1个小时，应能正常运转，无异常情况方可进入重载。【电话/微信咨询：陈经理18068546632】      《扫二维码-添加 陈经理 微信-咨询耐磨型方口关风机》　　Shutter fan, also known as unloader, star shaped unloader valve, rotary valve, rotary unloader valve, rotary feeder, air lock valve, electric air lock valve, rotary feeding valve, is usually composed of a rotor impeller with several blades, a housing, seals, a reducer, an electric motor, etc.　　T (B) GFY Carbon Steel Strong Combination Fan Series:　　Pressure range: 2kg/cm ² system pressure or pressure difference.　　External bearing: effectively prevents dust from entering the bearing.　　Drive mode: Mainly driven by direct motor connection.　　Preparation before turning off the fan and starting it up:　　1. The areas on the fan equipment that require refueling should be checked for the addition of lubricating oil.　　2. Connect the power correctly according to the motor wiring regulations and install a motor overload protection device.　　3. Check if the direction of operation of the air damper is correct.　　4. The shutdown fan equipment needs to run empty for 1 hour and should be able to operate normally without any abnormal conditions before it can enter heavy load.

　　关风机的工作原理主要涉及电动机驱动减速机，通过联轴器或链轮使旋转阀的转子旋转。在旋转过程中，材料位于旋转叶片的空间内，叶片的旋转将材料带到排出口，材料的自重使其流入输送系统或储藏室。这种工作方式使得关风机能够均匀、连续地向输料管供料，保证气力输出管内的气体和固体物质保持稳定，从而确保气力输送系统的正常工作。同时，关风机还具有锁气作用，能够隔断卸料阀上下部的气压。‌【电话/微信咨询：陈经理18068546632】      《扫二维码-添加 陈经理 微信-咨询不锈钢风送关风机》　　The working principle of the fan mainly involves the motor driving the reducer, which rotates the rotor of the rotary valve through a coupling or sprocket. During the rotation process, the material is located in the space of the rotating blades, and the rotation of the blades brings the material to the discharge outlet. The self weight of the material causes it to flow into the conveying system or storage room.　　Shutting off the fan can evenly and continuously supply material to the conveying pipe, ensuring that the gas and solid substances in the pneumatic output pipe remain stable, thereby ensuring the normal operation of the pneumatic conveying system. At the same time, the fan also has a locking effect, which can block the air pressure above and below the discharge valve. ‌

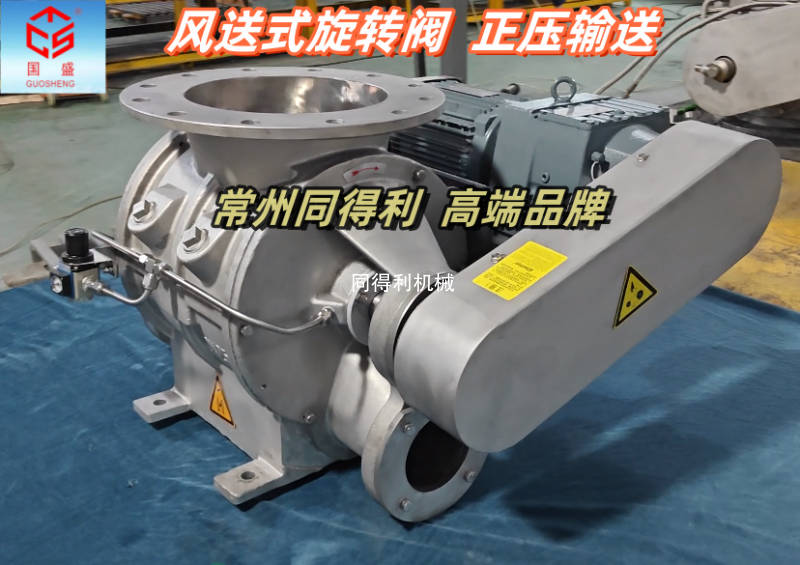

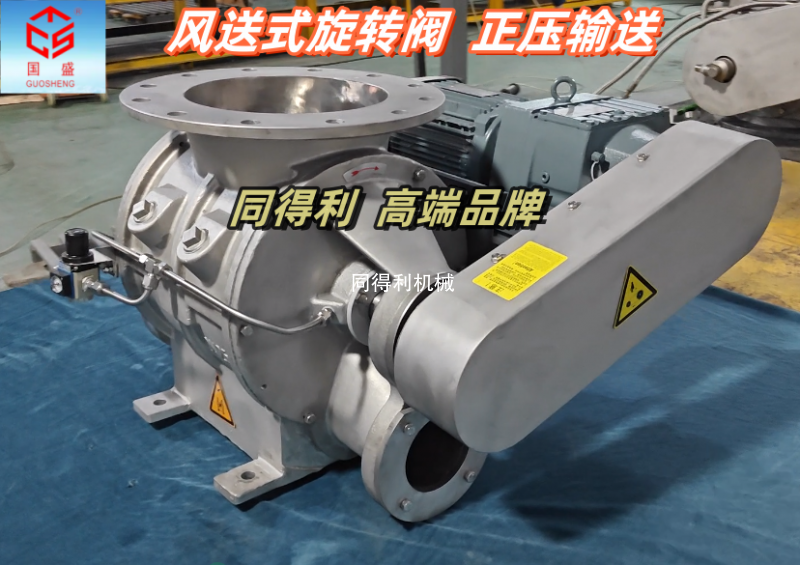

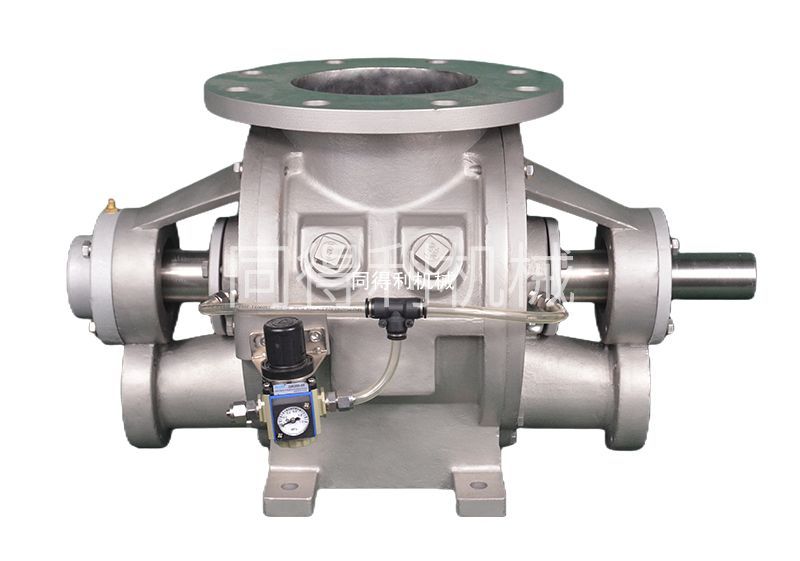

　　关风机(又称电动锁气器、旋转阀、星形下料器、旋转供料器、星型卸料阀、旋转卸料器、卸料器)广泛地应用于高中低压气力输送系统中，它有定量供料与锁气的功能。它利用压缩空气或罗茨鼓风机作为气源将物料从一个点输送到另一个点的技术，具有可以将由数点集中的物料送往一处或有一处送往分散的数点，并实现输送等特点，具有粉体输送等作用，关风机常用于锂电、化工、医药、塑料、食品、钢厂、电厂、水泥、环保、矿山、石油、冶金等行业。旋转供料器主要由主阀(壳体,端盖,叶轮,密封结构等),电机减速机,防护装置(链轮,链轮罩等),排气口等组成。　　风送直吹式关风机，用于粉状物料的气力输送系统中作为加料装置，由于优化设计的进料口和直吹通道，进而提高了输送量，不受转速和压力影响的高填充效率，通道压力损失小，多形式结构转子，较小化的转子间隙将泄漏量降到较低，关风机材质采用不锈钢或碳钢，经过特殊处理，可达到超强耐磨。也可喷涂碳化钨陶瓷特氟龙等;达到耐磨损、耐腐蚀。适用于各种介质在气力输送中的应用，其轴向采用多层保护或淡气隔离,确保长期安全工作。【电话/微信咨询：陈经理18068546632】         《扫二维码-添加 陈经理 微信-咨询气力输送关风机》　　Shut off fans (also known as electric air locks, rotary valves, star shaped feeders, rotary feeders, star shaped discharge valves, rotary unloaders, and unloaders) are widely used in high, medium, and low pressure pneumatic conveying systems. They have the functions of quantitative feeding and air locking. It uses compressed air or Roots blower as the gas source to transport materials from one point to another, and has the characteristics of being able to transport materials concentrated in a few points to one or dispersed points, and achieve transportation. It also has functions such as powder transportation.　　Wind turbines are commonly used in industries such as lithium batteries, chemicals, pharmaceuticals, plastics, food, steel mills, power plants, cement, environmental protection, mining, petroleum, metallurgy, etc. The rotary feeder is mainly composed of a main valve (housing, end cover, impeller, sealing structure, etc.), a motor reducer, protective devices (sprocket, sprocket cover, etc.), exhaust port, etc.

根据使用方的要求，依据物料属性、使用工况，专注定制关风机卸料阀。

根据使用方的要求，依据物料属性、使用工况，专注定制关风机卸料阀。

我公司研制的静电喷涂专用卸料阀，解决因关风机的问题导致除尘器的运行不畅，维护简单，使用寿命增加，使用成本降低。
