造纸行业用旋转阀，输送物料：木片，正压1公斤/0.1MPa，要锁住蒸汽，温度130度左右，进料口干料配一台旋转阀，要经过蒸煮器，出料口配一台旋转阀，每个系统需要2台旋转阀，输送量30立方-50立方/小时，尺寸方口800*800.设置清理口，能定期清理及检修，一线品牌减速机和电机。　　我厂对于特殊工况用途旋转阀或平替一线进口品牌均可定制生产。　　造纸行业用的旋转阀，常见是刚性旋转阀，偏置式旋转阀，陶瓷旋转阀，钛合金旋转阀等，主要用来控制高浓度纸浆、蒸汽等介质，适合含纤维、颗粒和易堵介质及输送量大的工况。　　造纸制浆备料是整个制浆工艺的第一道工序，核心目的是把木材、草类等植物纤维原料加工到符合蒸煮或磨浆要求的状态，并做定量储备。备料质量直接决定后续蒸煮是否均匀、浆料得率和质量。‌‌　　木材备料：　　储存与清洗‌：原木进厂后分类堆存，先用水或蒸汽清洗，去除泥沙、砾石等。　　剥皮‌：原木送入滚筒剥皮机，靠翻滚互相摩擦脱落树皮，剥净率一般在90%以上。树皮可收集作生物能源或土壤改良剂。　　除石与除铁‌：木材经过石阱去除带进的石块，再用金属探测器排查钉子等金属碎片，防止损坏后续设备。　　削片‌：去皮后的木段进入削片机，切削成合格木片，长度约15～30毫米、厚度3～5毫米。木片过薄易碎成屑，过厚则蒸煮药液难渗透，会产生生浆。　　筛选与洗涤‌：木片经振动筛按尺寸分级，太大的回碎、太小的作生物燃料，合格品再水洗去除表面污物。筛选环节是控制浆料质量的关键。　　非木材原料：　　禾麦草类一般做‌切断和除尘‌;蔗渣主要做‌除髓‌;竹材、麦草、芦苇等还需切料、水洗，除去杂细胞和泥沙。　　造纸行业用旋转阀-刚性旋转阀：　　适用于坚硬物料、块状物料、高温物料。　　叶轮稳定性好、圆滑过度、无夹角、扭矩更大。　　阀体设置清理口，便于清理物料。　　设备具有非常好的承重性。　　尺寸：DN150.DN200.DN250.DN300.DN350.DN400.DN500.DN600.DN800.DN1000.DN1200.DN1500.或方口150*150 ~ 1500*1500.或非标定制。　　材质：不锈钢系列，哈氏合金，钛合金，耐磨合金系列，陶瓷，碳化钨，耐磨400.耐磨500等。　　造纸行业旋转阀常见工况：　　‌耐磨和防堵能力‌：纸浆含纤维和硬颗粒，阀内件宜选堆焊耐磨合金或陶瓷涂层，流道要顺直，减少挂浆。　　‌耐腐蚀性能‌：漂白段接触氯气、酸碱等介质，可选双相钢、哈氏合金等材质。　　‌密封与可调性‌：密封锁气性能;能剪切纤维，适合浆料调节。　　‌工况匹配‌：按介质浓度、温度、压力、腐蚀性确定阀体材料、密封形式和执行机构类型。　　部分客户需求：　　DN600.防爆等级Exdb IICT4 Gb/Extb IIIC T135℃ Db。物料：木头碎屑及粉末，产能7.5t/h，尺寸DN700.材质不锈钢，减速机厂家：SEW、弗兰德、NORD、国茂、通力、恒齿或国内一线品牌产品。防爆电机卧龙电气集团南阳防爆品牌或者佳木斯品牌或同等质量产品。　　客户提供的德国某品牌VST系列450x810 mm，输送木片3*5不等，卸料量10m3/h，配套他们的产品设备出口国外。　　型号对标捷克haveko：ZRS500 重型外置轴承旋转卸料阀，流量：141m³/h(100%填充率);驱动：3KW减速电机，运行转速25r/min，额定33r/min;防爆要求：粉尘防爆 150℃表面温度(国内DIP A21 TA150℃);整机重量：约650kg，加厚耐磨壳体、耐磨叶轮衬片;使用工况：木粉/木屑除尘气力输送，环境温度-20~40℃。　　破拱器+旋转阀，物料：木屑，DN300.3立方的料仓用，料仓底部锥度50°，料仓长度大约1.3m，出现架桥不下料现象，需要刮料破拱器，DN300.材质304不锈钢，破拱器下方配套旋转阀，均匀定量给料。　　造纸业：　　环保包装纸、高档全木浆纸及其上下游产业链纸类产品，包括牛卡纸、环保牛卡纸、白面牛卡纸、涂布牛卡纸、白卡纸、高强瓦楞芯纸、涂布灰底白板纸、文化纸、特种纸及浆品。　　高档文化用纸、高档包装用纸、高档生活用纸、高档特种纸及特种纤维溶解浆等。　　常州同得利机械厂/江苏同得利科技专业的团队，拥有二十余年经验，定制、设计、研发、生产经验丰富。为您提供专业的设计、选材和指导，为不同使用工况量身打造一体化的输送设备。自动精加工中心，搭配进口自动设备，专有生产工装，提高生产效率和精度。        《扫二维码-添加 陈经理 微信-咨询纸业专用旋转阀》　　Rotary valves are used in the paper industry to transport materials such as wood chips at a positive pressure of 1 kg/0.1 MPa. Steam must be locked at a temperature of around 130 degrees Celsius. A rotary valve is installed at the feed inlet for dry materials, which must pass through a steamer, and a rotary valve is installed at the discharge outlet. Each system requires 2 rotary valves, with a conveying capacity of 30 cubic meters to 50 cubic meters per hour and a size of 800 * 800 square mouth. A cleaning port is set up for regular cleaning and maintenance. First tier brand reducers and motors are also available.　　Our factory can customize the production of rotary valves for special working conditions or imported brands such as Pingti first-line.　　Rotary valves commonly used in the paper industry include rigid rotary valves, offset rotary valves, ceramic rotary valves, titanium alloy rotary valves, etc. They are mainly used to control high concentration pulp, steam and other media, and are suitable for working conditions containing fibers, particles, easily clogged media and large conveying volumes.　　Paper and pulp preparation is the first process of the entire pulp making process, with the core purpose of processing plant fiber materials such as wood and grass into a state that meets the requirements of steaming or grinding, and making quantitative reserves. The quality of material preparation directly determines whether the subsequent cooking is uniform, the yield and quality of pulp. ‌‌　　Wood preparation:　　Storage and cleaning: After entering the factory, the logs are classified and stored, and first washed with water or steam to remove sediment, gravel, etc.　　Peeling: The logs are fed into a drum peeling machine and the bark is peeled off by rolling and rubbing against each other, with a stripping rate generally above 90%. The bark can be collected as bioenergy or soil amendment.　　Stone removal and iron removal: Wood is removed from the stones brought in through a stone trap, and then metal detectors are used to check for metal fragments such as nails to prevent damage to subsequent equipment.　　Chipping: The peeled wood segments are fed into a slicer and cut into qualified wood chips, with a length of approximately 15-30 millimeters and a thickness of 3-5 millimeters. Wood chips that are too thin are easily broken into chips, while those that are too thick make it difficult for cooking agents to penetrate and produce pulp.　　Screening and washing: Wood chips are classified by size through a vibrating screen, with larger ones being crushed and smaller ones being used as biofuels. Qualified products are then washed with water to remove surface contaminants. The screening process is the key to controlling the quality of the slurry.　　Non wood raw materials:　　Generally, grasses and grasses are cut and dusted; Bagasse is mainly used for pulp removal; Bamboo, wheat straw, reeds, etc. still need to be cut and washed to remove impurities and sediment.　　Rotary valves for papermaking industry - rigid rotary valves:　　Suitable for hard materials, block materials, and high-temperature materials.　　The impeller has good stability, smooth transition, no angle, and greater torque.　　The valve body is equipped with a cleaning port for easy cleaning of materials.　　The equipment has excellent load-bearing capacity.　　Size: DN150.DN200.DN250.DN300.DN350.DN400.DN500.DN600.DN800.DN1000.DN1200.DN1500. Or square mouth 150 * 150~1500 * 1500. or non-standard customization.　　Material: Stainless steel series, Hastelloy, Titanium alloy, Wear resistant alloy series, Ceramic, Tungsten carbide, Wear resistant 400. Wear resistant 500. etc.　　Common working conditions of rotary valves in the paper industry:　　Wear resistance and anti blocking ability: Pulp contains fibers and hard particles, and valve internals should be coated with wear-resistant alloys or ceramic coatings. The flow channel should be straight to reduce slurry sticking.　　Corrosion resistance: The bleaching section comes into contact with chlorine gas, acid and alkali media, and can be made of materials such as duplex steel and Hastelloy alloy.　　Sealing and adjustability: sealing and gas locking performance; Capable of cutting fibers, suitable for adjusting pulp.　　Working condition matching: Determine the valve body material, sealing form, and actuator type based on the medium concentration, temperature, pressure, and corrosiveness.　　Partial customer requirements:　　DN600. Explosion proof grade Exdb IICT4 Gb/Extb IIIC T135 ℃ Db. Material: wood chips and powder, production capacity 7.5t/h, size DN700. material stainless steel, reducer manufacturers: SEW, Flender NORD、 Guomao, Tongli, Hengchi or domestic first-line brand products. Explosion proof motors from Wolong Electric Group's Nanyang explosion-proof brand or Jiamusi brand or equivalent quality products.　　The VST series of a certain German brand provided by the customer is 450x810 mm, with a conveying capacity of 3 * 5 wood chips and a discharge capacity of 10m3/h. It is exported abroad with their product equipment.　　Model benchmark for Czech Haveko: ZRS500 heavy-duty external bearing rotary discharge valve, flow rate: 141m ³/h (100% filling rate); Drive: 3KW reduction motor, operating speed of 25r/min, rated at 33r/min; Explosion proof requirement: Dust explosion-proof with a surface temperature of 150 ℃ (domestic DIP A21 TA150 ℃); Whole machine weight: about 650kg, thickened wear-resistant shell, wear-resistant impeller lining; Operating conditions: Pneumatic conveying for dust removal of wood powder/sawdust, ambient temperature -20~40 ℃.　　Arch breaker+rotary valve, material: sawdust, DN300. A 3-cubic-meter silo is used, with a bottom taper of 50 ° and a length of approximately 1.3m. If there is a bridging problem and the material cannot be unloaded, a scraper and arch breaker are needed, DN300. Material: 304 stainless steel, equipped with a rotary valve below the arch breaker for uniform and quantitative feeding.　　Paper industry:　　Environmentally friendly packaging paper, high-end all wood pulp paper and its upstream and downstream industrial chain paper products, including kraft paper, environmentally friendly kraft paper, white faced kraft paper, coated kraft paper, white paper, high-strength corrugated core paper, coated gray bottom whiteboard paper, cultural paper, specialty paper and pulp products.　　High end cultural paper, high-end packaging paper, high-end household paper, high-end specialty paper, and specialty fiber dissolving pulp.　　Changzhou Tongdeli Machinery Factory/Jiangsu Tongdeli Technology has a professional team with over 20 years of experience in customization, design, research and development, and production. We provide professional design, material selection, and guidance to tailor integrated conveying equipment for different operating conditions. Automatic precision machining center, equipped with imported automatic equipment and proprietary production fixtures, improves production efficiency and accuracy.

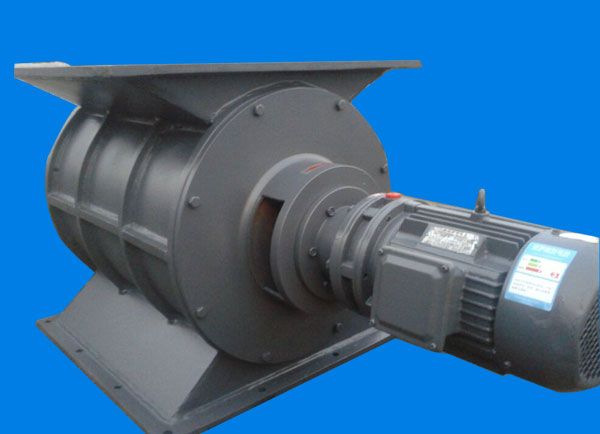

　　刚性旋转阀，刚性卸料阀主要用于钢厂、电厂、矿山等行业。　　适用于坚硬物料、块状物料、高温物料。　　叶轮稳定性好、圆滑度好、无夹角、扭矩更大。　　阀体设置清理口，便于清理物料。　　设备具有非常好的承重性。【电话/微信咨询：陈经理18068546632】　　我公司专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开阀、清洁阀、风送式旋转阀等产品。广泛应用于粮食、饲料、石油化工、制药、淀粉、油脂、化工干燥、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。　　公司在强化企业管理的基础上，依靠科技进步提高技术含量，先进的生产加工设备，领 先的管理理念，高素质的员工团队，有效的质量保障体系和完善的售后服务，为制造高品质的产品提供可靠的保证，极大的满足了各行业的需求，深受广大客户的信赖。【电话/微信咨询：陈经理18068546632】            《扫二维码-添加 陈经理 微信-咨询刚性旋转阀》　　Rigid rotary valves and rigid discharge valves are mainly used in industries such as steel mills, power plants, and mines.　　Suitable for hard materials, block materials, and high-temperature materials.　　The impeller has good stability, smoothness, no angle, and higher torque.　　The valve body is equipped with a cleaning port for easy material cleaning.　　The equipment has excellent load-bearing capacity.　　Our company specializes in the production of (B) GFY, YJD series shut-off fans (shut-off fans), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening valves, cleaning valves, pneumatic rotary valves, and other products. Widely used in industries such as grain, feed, petrochemicals, pharmaceuticals, starch, fats, chemical drying, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid particles, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.　　On the basis of strengthening enterprise management, the company relies on technological progress to improve technological content, advanced production and processing equipment, leading management concepts, a high-quality staff team, an effective quality assurance system, and perfect after-sales service to provide reliable guarantees for manufacturing high-quality products, greatly meeting the needs of various industries, and deeply trusted by customers.

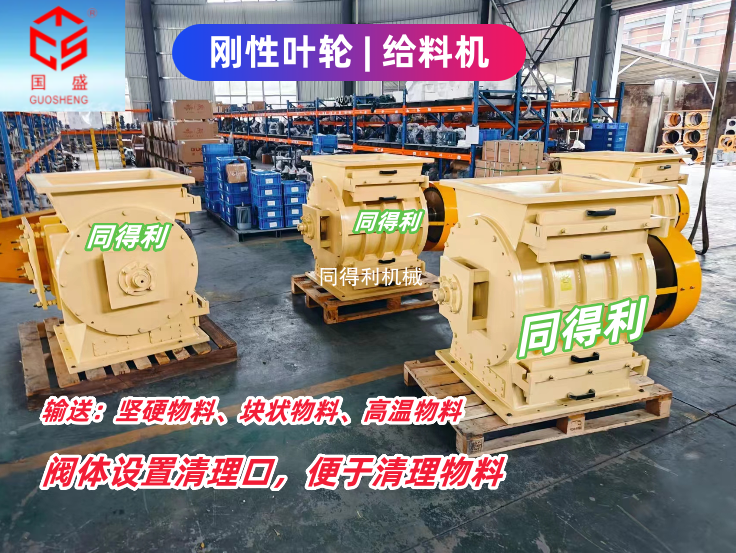

　　旋转刚性叶轮给料机能够连续、均匀、定量给后续设备给料，适用于输送坚硬物料、块状物料、高温物料、粉末状、颗粒状干燥物料;叶轮给料机具备密封功能，在负压或者正压工况下有效隔断气流，防止漏风、窜气，倒吸等现象;在过载、过热、堵转等工况时具备防护功能，电机异常时可实现过载保护机制;刚性叶轮给料机设备在运行过程中严格保证物料无法泄露，采用填料进行密封，密封材料与物料、环境介质相容，耐磨损、耐腐蚀、耐高温。叶轮给料机是一种通过旋转部件旋转使阀从开位变化至关位从而用于输送物料的机械装置。　　冶金行业，钢厂用刚性叶轮给料机，物料：高温块状，700x700.200t/h，设专用检修孔，旋转叶片需要做特氟龙处理。　　钢厂用，有3种物料:矿渣粉、钢渣粉、水渣铁，尺寸方口500*500.电机型号：YE4-100L2-4(3KW)，叶轮稳定性能要好，阀体设置清理口，便于清理物料。　　替代德国Jaudt旋转阀，Vario rotary valve，ZS Vario，TM-E-250-X，钢铁厂供应商，热轧厂用，培烧炉，培烧料铁粉，尺寸630*630.外形尺寸750*750.高度900.重量1100kg。【电话/微信咨询：陈经理18068546632】　　刚性叶轮给料机特点：　　叶轮稳定性好、圆滑过度、无夹角、扭矩更大。阀体设置清理口，便于清理物料。具有非常好的承重性。适用于坚硬物料、块状物料、高温物料。主要用于钢厂、电厂、水泥、矿山等行业。　　高耐用性与承载力‌：叶片为固定一体刚性结构，材质硬度高(高锰钢ZG120Mn18Cr2/Q355/耐磨500/不锈钢/耐磨合金/陶瓷可选)，抗磨损、抗冲击。　　定量均匀供料‌：旋转格室实现连续、稳定的定量卸料。　　工况适应广‌：常规型适用常温至180℃，特殊设计(如水冷却)可耐温达1000℃甚至更高。‌‌【电话/微信咨询：陈经理18068546632】　　常州同得利/江苏同得利专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开清洗阀、防卡旋转阀、偏置防卡、风送直通式旋转阀、高温高压旋转阀、高温水冷式、刮板式自清洁、钛合金陶瓷碳化钨四氟特氟龙尼龙聚氨酯、破拱机、料仓刮料破拱器、打散破碎阀、螺旋输送机等产品。广泛应用于锂电池、食品、石油化工、制药、淀粉、油脂、化工干燥、粮食、饲料、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。　　部分客户需求：　　武钢旗下公司用，输送：粉煤灰，除尘器下面用，隔爆型，方口300*30.材质碳钢，要求耐磨，锁气，负压-7.27KPa，以前用的质量不行，现在要找质量好的厂家。　　物料：垃圾焚烧，卸灰，电厂用，目前用的美国品牌Plattco找替代。　　电厂用钢厂叶轮给料机，壳体ZG45或QT500;叶片 304不锈钢;填料碳素纤维，壳体内耐磨套材质为耐磨合金，卸料量>40T/H。　　火力发电厂高温烟气的除尘，烟气温度：在300~400℃范围内;输送介质：烟气中的粉煤灰;输送能力：输送容积0.7∽2m3/h，按不小于2m3/h设计选型。　　电厂用，旋转阀DN350和DN500.介质：高钙粉煤灰及浓相高钙粉煤灰，工作温度：80℃～180℃，蕞高温度：250℃，工作压力0.6 MPa，设计压力1.2 MPa;流速5～15m/s，蕞高20m/s;户外布置。　　电厂灰库改造，搅拌器是200吨/小时，旋转阀要求锁气，方口，尺寸大于400.材质耐磨400.每小时卸料量能不能达到150吨左右，推荐选型。　　热电厂2×350MW热电机组项目，脱硫废水零排放EPC总承包工程，粉煤灰、破碎脱硫废水中的钙镁化合物(包含碳酸钙、硫酸钙、氢氧化镁、硅化合物等物质)10t/h，块料，高温，过流介质温度150-200℃，接口：400*400.　　热电厂用，同得利刚性叶轮给料机\YJD-F-8L，污泥分离器星形给料机，卸料能力大于每小时20立方米，壳体材质球墨铸铁，内部做耐磨处理内部增加均压装置以减少气流冲刷，壳体壁厚大于20MM，内部需做耐磨处理(内部贴陶瓷片)，工作温度150度以上，工作介质为碳化污泥粉，颗粒度不均等。　　替代国外品牌旋转给料机，发电厂用，旋转给料机\ZRS-340-KE\36t/h，用于脱硫系统石灰石粉给料，介质石灰石粉。叶轮材质16Mn;1.1kW，400V，50HZ;电机转速1455r/min。　　刚性叶轮给料机，物料：0-3mm萤石粉矿山，正压输送，压力0.04MPa，输送量400公斤/h，变频，材质Q355.    《扫二维码-添加 陈经理 微信-咨询刚性叶轮给料机》　　The rotating rigid impeller feeder can continuously, uniformly, and quantitatively feed subsequent equipment, suitable for conveying hard materials, block materials, high-temperature materials, powdered and granular dry materials; The impeller feeder has a sealing function, which effectively blocks the airflow under negative or positive pressure conditions, preventing air leakage, channeling, reverse suction and other phenomena; It has protective functions in working conditions such as overload, overheating, and stalling, and can implement overload protection mechanism when the motor is abnormal; The rigid impeller feeder equipment strictly ensures that materials cannot leak during operation, and uses packing for sealing. The sealing material is compatible with the materials and environmental media, and is wear-resistant, corrosion-resistant, and high-temperature resistant. The impeller feeder is a mechanical device used for conveying materials by rotating a rotating component to change the valve from the open position to the close position.　　In the metallurgical industry, steel mills use rigid impeller feeders with high-temperature block materials, 700x700200t/h, equipped with dedicated inspection holes, and rotating blades require PTFE treatment.　　For steel mills, there are three types of materials: slag powder, steel slag powder, and slag iron. The size of the square mouth is 500 * 500. and the motor model is YE4-100L2-4 (3KW). The impeller has good stability, and the valve body is equipped with a cleaning port for easy material cleaning.　　Replace the German Jaudt rotary valve, Vario rotary valve，ZS Vario，TM-E-250-X， Supplier of steel plants, used in hot rolling plants, furnace for sintering, iron powder for sintering materials, dimensions 630 * 630. external dimensions 750 * 750. height 900. weight 1100kg.　　Characteristics of rigid impeller feeder:　　The impeller has good stability, smooth transition, no angle, and greater torque. The valve body is equipped with a cleaning port for easy cleaning of materials. Has very good load-bearing capacity. Suitable for hard materials, block materials, and high-temperature materials. Mainly used in industries such as steel mills, power plants, cement, mining, etc.　　High durability and bearing capacity: The blade is a fixed integrated rigid structure with high material hardness (high manganese steel ZG120Mn18Cr2/Q355/wear-resistant 500/stainless steel/wear-resistant alloy/ceramic optional), wear-resistant and impact resistant.　　Quantitative and uniform feeding: The rotating grid chamber achieves continuous and stable quantitative unloading.　　Wide adaptability to working conditions: Conventional models are suitable for temperatures ranging from room temperature to 180 ℃, while special designs (such as water cooling) can withstand temperatures up to 1000 ℃ or even higher. ‌‌　　Changzhou Tongdeli/Jiangsu Tongdeli specializes in the production of (B) GFY and YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening cleaning valves, anti jamming rotary valves, offset anti jamming, air delivery straight through rotary valves, high-temperature and high-pressure rotary valves, high-temperature water-cooled, scraper self-cleaning, titanium alloy ceramic tungsten carbide PTFE nylon polyurethane, arch breakers, silo scraper crushers, dispersing and crushing valves, screw conveyors and other products. Widely used in equipment for industries such as lithium batteries, food, petrochemicals, pharmaceuticals, starch, oils, chemical drying, grain, feed, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.　　Partial customer requirements:　　Used by companies under Wuhan Iron and Steel Group for conveying: fly ash, used under dust collectors, explosion-proof type, square mouth 300 * 30. made of carbon steel, required to be wear-resistant, gas locking, negative pressure -7.27KPa. The quality used before was not good, now we need to find a good quality manufacturer.　　Materials: Garbage incineration, ash unloading, power plant use, currently using the American brand Plattco to find alternatives.　　Steel plant impeller feeder, shell ZG45 or QT500; Blade made of 304 stainless steel; The filling material is carbon fiber, and the wear-resistant sleeve material inside the shell is wear-resistant alloy, with a discharge capacity of>40T/H.　　Dust removal of high-temperature flue gas in thermal power plants, with flue gas temperature ranging from 300~400 ℃; Transport medium: fly ash in flue gas; Conveying capacity: Conveying capacity of 0.7-2m3/h, designed and selected according to a minimum of 2m3/h.　　For power plants, rotary valves DN350 and DN500. medium: high calcium fly ash and concentrated phase high calcium fly ash, working temperature: 80 ℃~180 ℃, maximum temperature: 250 ℃, working pressure 0.6 MPa, design pressure 1.2 MPa; Flow rate of 5-15m/s, with a maximum of 20m/s; Outdoor decoration.　　The power plant ash silo renovation requires a mixer with a capacity of 200 tons/hour, a rotary valve with air locking, a square mouth, a size greater than 400. a wear-resistant material of 400. and an hourly discharge capacity of about 150 tons. It is recommended to choose the appropriate type.　　The 2 × 350MW thermal power plant project is an EPC general contracting project for zero discharge of desulfurization wastewater. The project involves the use of 10t/h of calcium and magnesium compounds (including calcium carbonate, calcium sulfate, magnesium hydroxide, silicon compounds, etc.) in fly ash and crushed desulfurization wastewater, with block materials, high temperature, and an overcurrent medium temperature of 150-200 ℃. The interface is 400 * 400.　　Used in thermal power plants, Tongdeli rigid impeller feeder YJD-F-8L, sludge separator star shaped feeder, discharge capacity greater than 20 cubic meters per hour, shell material ductile iron, internal wear-resistant treatment, internal pressure equalization device added to reduce airflow erosion, shell wall thickness greater than 20MM, internal wear-resistant treatment (internal ceramic tiles), working temperature above 150 degrees, working medium carbonized sludge powder, uneven particle size.　　Replace foreign brand rotary feeders, used in power plants, rotary feeder ZRS-340-KE 36t/h, used for limestone powder feeding and medium limestone powder in desulfurization systems. Impeller material 16Mn; 1.1kW, 400V, 50HZ; The motor speed is 1450r/min.　　Rigid impeller feeder, material: 0-3mm fluorite powder mine, positive pressure conveying, pressure 0.04MPa, conveying capacity 400 kg/h, frequency conversion, material Q355.

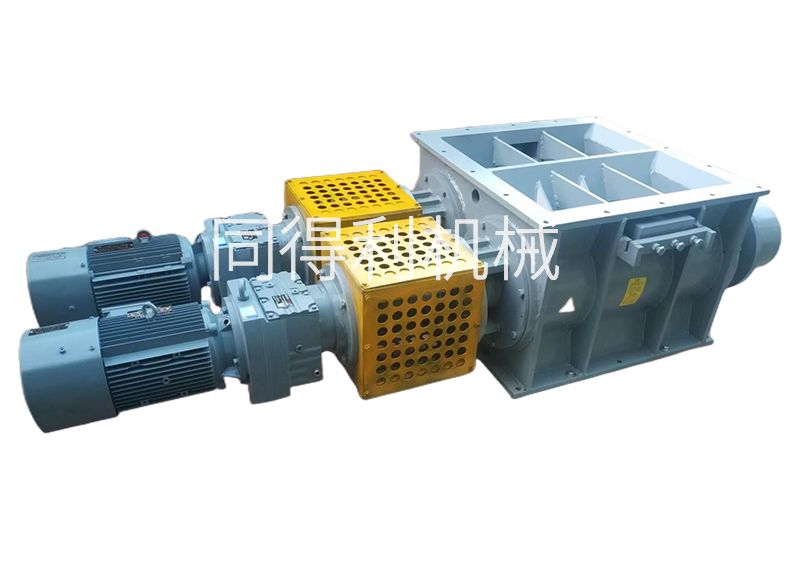

　　双叶轮旋转阀，主要用于钢厂、电厂等行业。　　适用于卸料量调节范围更大的工况。　　下料面积大、不堵料不卡料。　　双转子驱动、双转子调节。　　常州同得利专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开阀、清洁阀、风送式旋转阀等产品。广泛应用于粮食、饲料、石油化工、制药、淀粉、油脂、化工干燥、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。　　Double bladed rotary valve, mainly used in industries such as steel mills and power plants.　　Suitable for working conditions with a wider range of discharge volume adjustment.　　Large cutting area, no blockage or jamming.　　Dual rotor drive, dual rotor adjustment.　　Changzhou Tongdeli specializes in the production of (B) GFY, YJD series shut-off fans (shut-off fans), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening valves, cleaning valves, and pneumatic rotary valves. Widely used in industries such as grain, feed, petrochemicals, pharmaceuticals, starch, fats, chemical drying, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid particles, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.

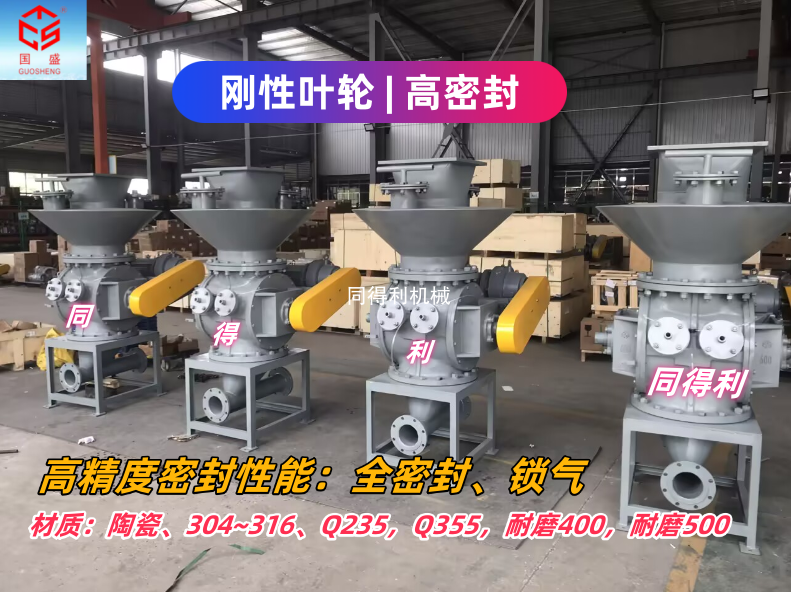

　　脱硫脱硝项目上面用刚性叶轮给料机，电石净化过滤器内高温净化灰，DN400.2.2KW，处理能力≥2t/h，0.1MPa,≥230℃;DN600.4KW，处理能力≥6t/h，0.1MPa,≥500℃。刚性叶轮给料机(又称刚性分格轮卸料器、回转给料机等)是一种用于输送高温物料、坚硬物料、块状物料、干燥粉状物料的定量给料与锁气设备，具有非常好的承重性。　　脱硫：脱去烟气中的二氧化硫，防止形成酸雨。　　脱硝：脱去烟气中的氮氧化物，减少大气污染。　　主要应用：火电厂、钢铁厂、水泥厂等燃煤锅炉烟气治理。　　常见技术：石灰石 - 石膏法(脱硫)、SCR/SNCR 催化还原法(脱硝)。‌‌　　刚性叶轮给料机作用：　　实现均匀、连续的定量给料：它利用旋转的叶轮，将上方料仓中的粉状或小颗粒物料，均匀、连续地喂送到下一道工序设备中。通过选用调速电机，还可以按需调节给料量。　　提供可靠的锁气与密封：在除尘或气力输送系统中隔断上下部气压差，‌阻止气流串通‌，维持系统负压/正压稳定。　　‌卸灰排料‌：作为除尘器灰斗底部装置，高 效排出收集的粉尘或颗粒，‌抑制二次扬尘‌与泄漏。‌‌　　刚性叶轮给料机主要用于钢厂、电厂、水泥、矿山等行业。　　材质：304~316.Q235.Q355.耐磨400.耐磨500.高锰钢(ZG120Mn18Cr2/Mn13)，耐磨合金，陶瓷等。　　部分客户需求：　　刚性叶轮给料机输送能力：8t/h-10t/h;工作温度：50℃-300℃;工作介质：固体粉末状颗粒物料，流动性差，平均粒度：45-150μm;堆积密度：2500-3000kg/m³，物料中夹杂有HF、H2O(气体);电源电压：380V。　　刚性叶轮给料机阀体材质：HT350.端板材质：Q235B;转轴材质：45#;叶片材质：Q235B;密封垫圈采用聚四氟乙烯材质;电机：功率3Kw，0-1400r/min，可调频，防护等级：IP65.绝缘等级：F级。　　输送物料水泥，稳流仓装置，刚性叶轮给料机，尺寸DN500.输送计量范围80t/h，材质Q235.　　物料：煤粉，型号:WLF-500.材质:Q355B，DN600.齿轮减速电动机(变频电机，3kW)，聚四氟密封条。　　物料：电石净化过滤器内高温净化灰，DN400.2.2KW，处理能力≥2t/h，0.1MPa,≥230℃;DN600.4KW，处理能力≥3t/h，0.1MPa,≥500℃。　　常州同得利/江苏同得利专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开清洗阀、防卡旋转阀、偏置防卡、风送直通式旋转阀、高温高压旋转阀、高温水冷式、刮板式自清洁、钛合金陶瓷碳化钨四氟特氟龙尼龙聚氨酯、破拱机、料仓刮料破拱器、打散破碎阀、螺旋输送机等产品。广泛应用于锂电池、食品、石油化工、制药、淀粉、油脂、化工干燥、粮食、饲料、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。         《扫二维码-添加 陈经理 微信-咨询刚性叶轮给料机》　　On the desulfurization and denitrification project, a rigid impeller feeder is used, and high-temperature purified ash is purified in the carbide purification filter, DN400.2.2KW， Processing capacity ≥ 2t/h, 0.1MPa, ≥ 230 ℃; DN600.4KW， Processing capacity ≥ 6t/h, 0.1MPa, ≥ 500 ℃. A rigid impeller feeder (also known as a rigid dividing wheel unloader, rotary feeder, etc.) is a quantitative feeding and air locking device used for conveying high-temperature materials, hard materials, block materials, and dry powder materials, with excellent load-bearing capacity.　　Desulfurization: Removing sulfur dioxide from flue gas to prevent the formation of acid rain.　　Denitrification: Removing nitrogen oxides from flue gas and reducing air pollution.　　Main applications: flue gas treatment of coal-fired boilers in thermal power plants, steel plants, cement plants, etc.　　Common techniques: limestone gypsum method (desulfurization), SCR/SNCR catalytic reduction method (denitrification). ‌‌　　Function of rigid impeller feeder:　　Realize uniform and continuous quantitative feeding: It uses a rotating impeller to uniformly and continuously feed powdered or small particle materials from the upper silo to the next process equipment. By selecting a speed regulating motor, the feeding amount can also be adjusted as needed.　　Provide reliable air locking and sealing: isolate the pressure difference between the upper and lower parts in dust removal or pneumatic conveying systems, prevent air flow collusion, and maintain stable negative/positive pressure in the system.　　Unloading and discharging: As a bottom device of the dust collector ash hopper, it efficiently discharges collected dust or particles, suppressing secondary dust and leakage. ‌‌　　Rigid impeller feeders are mainly used in industries such as steel mills, power plants, cement, and mining.　　Material: 304~316. Q235.Q355. Wear resistant 400. wear resistant 500. high manganese steel (ZG120Mn18Cr2/Mn13), wear-resistant alloy, ceramics, etc.　　Partial customer requirements:　　Rigid impeller feeder conveying capacity: 8t/h-10t/h; Working temperature: 50 ℃ -300 ℃; Working medium: Solid powder like granular material with poor flowability, average particle size: 45-150 μ m; Bulk density: 2500-3000kg/m ³, with HF and H2O (gases) mixed in the material; Power supply voltage: 380V.　　Rigid impeller feeder valve body material: HT350. end plate material: Q235B; Spindle material: 45 #; Blade material: Q235B; The sealing gasket is made of polytetrafluoroethylene material; Motor: power 3Kw, 0-1400r/min, adjustable frequency, protection level: IP65. insulation level: F.　　Conveying material cement, stable flow bin device, rigid impeller feeder, size DN500. conveying measuring range 80t/h, material Q235.　　Material: coal powder, model: WLF-500. material: Q355B, DN600. gear reduction motor (variable frequency motor, 3kW), PTFE sealing strip.　　Material: High temperature purified ash inside the carbide purification filter, DN400.2.2KW， Processing capacity ≥ 2t/h, 0.1MPa, ≥ 230 ℃; DN600.4KW， Processing capacity ≥ 3t/h, 0.1MPa, ≥ 500 ℃.　　Changzhou Tongdeli/Jiangsu Tongdeli specializes in the production of (B) GFY and YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening cleaning valves, anti jamming rotary valves, offset anti jamming, air delivery straight through rotary valves, high-temperature and high-pressure rotary valves, high-temperature water-cooled, scraper self-cleaning, titanium alloy ceramic tungsten carbide PTFE nylon polyurethane, arch breakers, silo scraper crushers, dispersing and crushing valves, screw conveyors and other products. Widely used in equipment for industries such as lithium batteries, food, petrochemicals, pharmaceuticals, starch, oils, chemical drying, grain, feed, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.

　　刚性叶轮给料机俗称卸料器，又叫卸灰阀。主要适用于发电厂、水泥厂、化工厂等行业除尘灰尘清理和包装机及专 业输送配料系统中，作为输送干燥粉状物料时锁气或定量给料用，也可用于除尘器及空气预热器的灰斗下出灰，其结构简单，性能稳定，操作维修方便，是输送、卸料、配料系统中理想的配套件。　　1、结构紧凑：采用行星转动原理、纯铜电机，输入输出在同一轴线上，而且有与电机直联一体的独特性，体积小，重量轻，因而结构紧凑造型美观新样。　　2、耐磨性高：运行可靠平稳，噪音低，故障少，寿命长，耐磨性高。　　3、过载能力强：卸料器具有过载能力强，耐冲击惯性力矩小，适用于启动频繁和正反转。　　4、使用寿命长：轴承、齿箱、远离阀体避免高温灰尘的影响，前后密封性能好，防止灰尘外泄，延长机动件，润滑系统的使用寿命。　　5、支持定制/替代进口品牌：用户如有特殊规格要求，可以按照客户要求定做。　　常州同得利机械厂拥有多年的研发生产/定制卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粉料、超微粉体等。　　The rigid impeller feeder is commonly known as the unloader, also known as the ash discharge valve. It is mainly suitable for dust removal, cleaning, packaging machines, and professional conveying and batching systems in industries such as power plants, cement plants, and chemical plants. It is used for air locking or quantitative feeding when conveying dry powder materials. It can also be used for ash discharge under the ash hopper of dust collectors and air preheaters. Its structure is simple, performance is stable, and operation and maintenance are convenient. It is an ideal supporting component in conveying, unloading, and batching systems.　　1. Compact structure: Adopting the principle of planetary rotation and a pure copper motor, the input and output are on the same axis, and it has the unique feature of being directly connected with the motor. It has a small volume and light weight, resulting in a compact and beautiful design.　　2. High wear resistance: reliable and stable operation, low noise, few faults, long service life, and high wear resistance.　　3. Strong overload capacity: The unloader has strong overload capacity, low impact resistance inertia moment, and is suitable for frequent starting and forward and reverse rotation.　　4. Long service life: bearings, gearboxes, and valves are kept away from the valve body to avoid the influence of high temperature dust. The front and rear sealing performance is good, preventing dust leakage and extending the service life of motor parts and lubrication systems.　　5. Support customization/replacement of imported brands: If users have special specifications, they can customize according to customer requirements.　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production, and customization of discharge valve rotary valves, adhering to the principle of quality first and customer first. Our rotary valve can handle various types of particles, flakes, blocks, powders, and ultrafine powders in industries such as lithium batteries, steel mills, power plants, cement, mines, environmental protection, plastics, chemicals, food, and pharmaceuticals.
