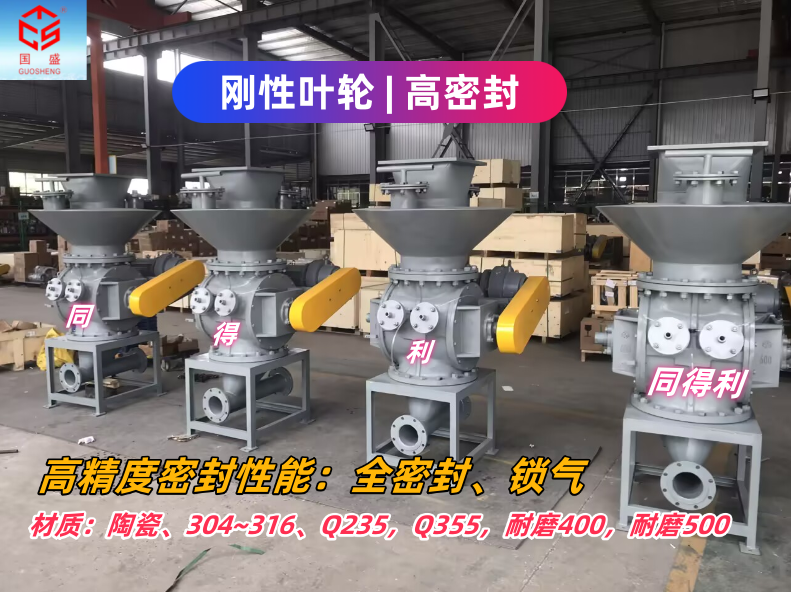

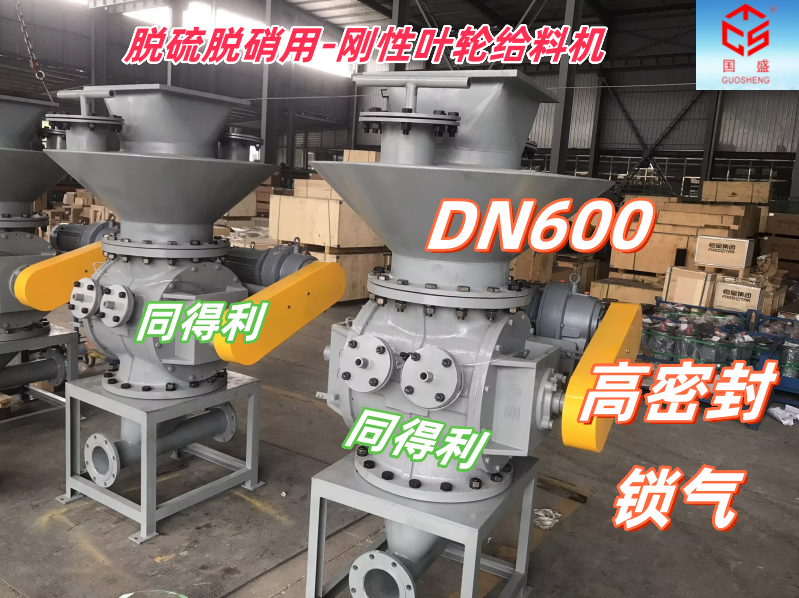

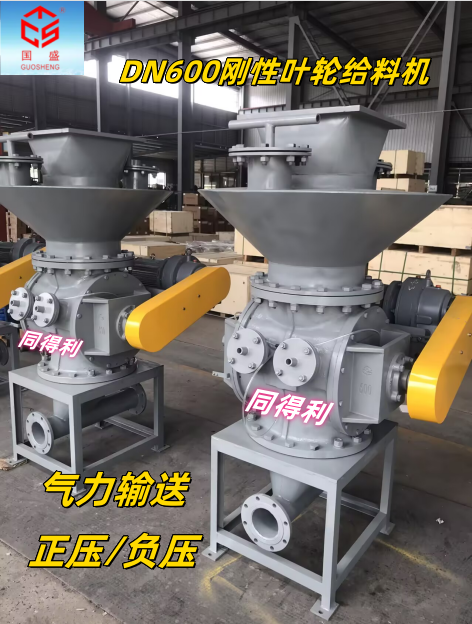

脱硫脱硝项目上面用刚性叶轮给料机，电石净化过滤器内高温净化灰，DN400.2.2KW，处理能力≥2t/h，0.1MPa,≥230℃;DN600.4KW，处理能力≥6t/h，0.1MPa,≥500℃。刚性叶轮给料机(又称刚性分格轮卸料器、回转给料机等)是一种用于输送高温物料、坚硬物料、块状物料、干燥粉状物料的定量给料与锁气设备，具有非常好的承重性。

　　脱硫：脱去烟气中的二氧化硫，防止形成酸雨。

　　脱硝：脱去烟气中的氮氧化物，减少大气污染。

　　主要应用：火电厂、钢铁厂、水泥厂等燃煤锅炉烟气治理。

　　常见技术：石灰石 - 石膏法(脱硫)、SCR/SNCR 催化还原法(脱硝)。‌‌

　　刚性叶轮给料机作用：

　　实现均匀、连续的定量给料：它利用旋转的叶轮，将上方料仓中的粉状或小颗粒物料，均匀、连续地喂送到下一道工序设备中。通过选用调速电机，还可以按需调节给料量。

　　提供可靠的锁气与密封：在除尘或气力输送系统中隔断上下部气压差，‌阻止气流串通‌，维持系统负压/正压稳定。

　　‌卸灰排料‌：作为除尘器灰斗底部装置，高 效排出收集的粉尘或颗粒，‌抑制二次扬尘‌与泄漏。‌‌

　　刚性叶轮给料机主要用于钢厂、电厂、水泥、矿山等行业。

　　材质：304~316.Q235.Q355.耐磨400.耐磨500.高锰钢(ZG120Mn18Cr2/Mn13)，耐磨合金，陶瓷等。

　　部分客户需求：

　　刚性叶轮给料机输送能力：8t/h-10t/h;工作温度：50℃-300℃;工作介质：固体粉末状颗粒物料，流动性差，平均粒度：45-150μm;堆积密度：2500-3000kg/m³，物料中夹杂有HF、H2O(气体);电源电压：380V。

　　刚性叶轮给料机阀体材质：HT350.端板材质：Q235B;转轴材质：45#;叶片材质：Q235B;密封垫圈采用聚四氟乙烯材质;电机：功率3Kw，0-1400r/min，可调频，防护等级：IP65.绝缘等级：F级。

　　输送物料水泥，稳流仓装置，刚性叶轮给料机，尺寸DN500.输送计量范围80t/h，材质Q235.

　　物料：煤粉，型号:WLF-500.材质:Q355B，DN600.齿轮减速电动机(变频电机，3kW)，聚四氟密封条。

　　物料：电石净化过滤器内高温净化灰，DN400.2.2KW，处理能力≥2t/h，0.1MPa,≥230℃;DN600.4KW，处理能力≥3t/h，0.1MPa,≥500℃。

　　常州同得利/江苏同得利专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开清洗阀、防卡旋转阀、偏置防卡、风送直通式旋转阀、高温高压旋转阀、高温水冷式、刮板式自清洁、钛合金陶瓷碳化钨四氟特氟龙尼龙聚氨酯、破拱机、料仓刮料破拱器、打散破碎阀、螺旋输送机等产品。广泛应用于锂电池、食品、石油化工、制药、淀粉、油脂、化工干燥、粮食、饲料、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。

         《扫二维码-添加 陈经理 微信-咨询刚性叶轮给料机》

　　On the desulfurization and denitrification project, a rigid impeller feeder is used, and high-temperature purified ash is purified in the carbide purification filter, DN400.2.2KW， Processing capacity ≥ 2t/h, 0.1MPa, ≥ 230 ℃; DN600.4KW， Processing capacity ≥ 6t/h, 0.1MPa, ≥ 500 ℃. A rigid impeller feeder (also known as a rigid dividing wheel unloader, rotary feeder, etc.) is a quantitative feeding and air locking device used for conveying high-temperature materials, hard materials, block materials, and dry powder materials, with excellent load-bearing capacity.

　　Desulfurization: Removing sulfur dioxide from flue gas to prevent the formation of acid rain.

　　Denitrification: Removing nitrogen oxides from flue gas and reducing air pollution.

　　Main applications: flue gas treatment of coal-fired boilers in thermal power plants, steel plants, cement plants, etc.

　　Common techniques: limestone gypsum method (desulfurization), SCR/SNCR catalytic reduction method (denitrification). ‌‌

　　Function of rigid impeller feeder:

　　Realize uniform and continuous quantitative feeding: It uses a rotating impeller to uniformly and continuously feed powdered or small particle materials from the upper silo to the next process equipment. By selecting a speed regulating motor, the feeding amount can also be adjusted as needed.

　　Provide reliable air locking and sealing: isolate the pressure difference between the upper and lower parts in dust removal or pneumatic conveying systems, prevent air flow collusion, and maintain stable negative/positive pressure in the system.

　　Unloading and discharging: As a bottom device of the dust collector ash hopper, it efficiently discharges collected dust or particles, suppressing secondary dust and leakage. ‌‌

　　Rigid impeller feeders are mainly used in industries such as steel mills, power plants, cement, and mining.

　　Material: 304~316. Q235.Q355. Wear resistant 400. wear resistant 500. high manganese steel (ZG120Mn18Cr2/Mn13), wear-resistant alloy, ceramics, etc.

　　Partial customer requirements:

　　Rigid impeller feeder conveying capacity: 8t/h-10t/h; Working temperature: 50 ℃ -300 ℃; Working medium: Solid powder like granular material with poor flowability, average particle size: 45-150 μ m; Bulk density: 2500-3000kg/m ³, with HF and H2O (gases) mixed in the material; Power supply voltage: 380V.

　　Rigid impeller feeder valve body material: HT350. end plate material: Q235B; Spindle material: 45 #; Blade material: Q235B; The sealing gasket is made of polytetrafluoroethylene material; Motor: power 3Kw, 0-1400r/min, adjustable frequency, protection level: IP65. insulation level: F.

　　Conveying material cement, stable flow bin device, rigid impeller feeder, size DN500. conveying measuring range 80t/h, material Q235.

　　Material: coal powder, model: WLF-500. material: Q355B, DN600. gear reduction motor (variable frequency motor, 3kW), PTFE sealing strip.

　　Material: High temperature purified ash inside the carbide purification filter, DN400.2.2KW， Processing capacity ≥ 2t/h, 0.1MPa, ≥ 230 ℃; DN600.4KW， Processing capacity ≥ 3t/h, 0.1MPa, ≥ 500 ℃.

　　Changzhou Tongdeli/Jiangsu Tongdeli specializes in the production of (B) GFY and YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening cleaning valves, anti jamming rotary valves, offset anti jamming, air delivery straight through rotary valves, high-temperature and high-pressure rotary valves, high-temperature water-cooled, scraper self-cleaning, titanium alloy ceramic tungsten carbide PTFE nylon polyurethane, arch breakers, silo scraper crushers, dispersing and crushing valves, screw conveyors and other products. Widely used in equipment for industries such as lithium batteries, food, petrochemicals, pharmaceuticals, starch, oils, chemical drying, grain, feed, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.
