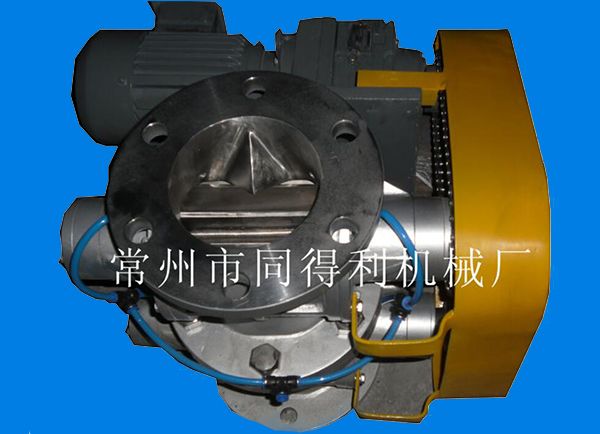

防卡旋转阀-对标全球一线品牌：　　进口品牌价格贵，交期长怎么办？找国产替代，选大品牌-国盛商标常州同得利，专 利技术，匠心质造。【电话/微信咨询：陈经理18068546632】　　防卡型旋转阀主要用于颗粒料和重力下料和气力输送卸料，配备特殊防卡结构的导流槽.一般采用V型进料口，叶片顶端倒角;一体式阀体排气口。　　1.适用于≤4kg/cm2系统压力或压差。　　2.设置排气口(正压输送时选用)将叶轮旋转带出的高压气体通过排气口送至排气装置，提高填充效率。　　3.防切料入口设计，即便上游充满物料也可安全启动。　　4.轴承外置式安装、经久耐用、性能优异。　　5.提供链驱动、直联驱动多种安装方式。　　6.根据需求配置减速机电机。       7.输送物料：颗粒料，片状料，块状料，实现不卡料，不堵料。　　8.材质主要有:不锈钢304-310系列、铝合金、钛合金、陶瓷系列等。【电话/微信咨询：陈经理18068546632】　　防卡旋转阀配备气密封装置：　　气密封旋转卸料阀的用途广泛，‌特别适用于需要连续、‌定量卸料的场合。‌它能够在负压或压力输出系统中均匀且连续地将物料供给到输送管中，‌稳定气体固体混合物的输送，‌并起到遮断排出阀上下部气压的锁定功能。‌通过自重使上料盒的材料落下，‌填充叶片间的间隙，‌并随着叶片的旋转排出到下部，‌从而实现定量且连续的物料排出。‌【电话/微信咨询：陈经理18068546632】　　常州同得利机械厂拥有多年的研发生产/定制卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。          《扫二维码-添加 陈经理 微信-咨询防卡旋转阀》　　Anti jamming rotary valve - benchmarking against top global brands.　　What should we do if imported brands are expensive and have long delivery times? Find domestic alternatives, choose the big brand - Guosheng trademark Changzhou Tongdeli, patented technology, and craftsmanship.　　Anti jamming rotary valves are mainly used for granular materials, gravity feeding, and pneumatic conveying unloading, equipped with special anti jamming structure guide grooves. Generally, V-shaped feeding ports are used, and the blade tips are chamfered; Integrated valve body exhaust port.　　1. Suitable for system pressures or pressure differentials of ≤ 4kg/cm2.　　2. Set up an exhaust port (selected for positive pressure conveying) to send the high-pressure gas carried out by the impeller rotation to the exhaust device through the exhaust port, improving the filling efficiency.　　3. Anti cutting material inlet design, even if the upstream is filled with materials, it can be safely started.　　4. The bearing is externally installed, durable, and has excellent performance.　　5. Provide multiple installation methods for chain drive and direct drive.　　6. Configure the gearbox motor according to the requirements.　　7. The main materials include stainless steel 304-310 series, aluminum alloy, titanium alloy, ceramic series, etc.

　　卸料阀又称卸料器、星型卸料阀、旋转阀、旋转卸料阀、旋转给料器、关风机、关风器、锁气阀、电动锁气器、旋转供料阀，通常星型卸料器的结构是由带有数片叶片的转子叶轮、壳体、密封件及减速器、电动机等组成。　　Unloading valve, also known as unloader, star shaped unloading valve, rotary valve, rotary unloading valve, rotary feeder, shut-off fan, shut-off fan, air lock valve, electric air lock, rotary feeding valve, is usually composed of a rotor impeller with several blades, a housing, seals, a reducer, an electric motor, etc.　　Z(B)FK防卡式卸料阀系列：　　压力：2kg/cm²系统压力或压差。　　增大入口/出口：正方形和圆形。　　轴承外置式：有效的防止粉尘侵入轴承，增大设备适应较高温度的使用范围。　　驱动方式：链驱动/马达直连驱动口。　　动力配置：摆线针轮减速机、Y系列电机(可按需方指定动力配置)，排气口增压输送时将叶轮旋转带出的高压气体通过排气口送至排气装置，提高填充效率。【电话/微信咨询：陈经理18068546632】　　防卡式卸料阀材质选项：碳钢、铸铁、不锈钢、铝合金、钛合金、陶瓷系列等。　　气密封卸料阀主要用于在气力输出系统中，‌特别是在需要处理粉尘和小颗粒物料的场合。气密封卸料阀的工作原理依赖于气体密封技术，‌通过保持一定的气源压力，‌通常高于管道内压力0.1个大气压，‌从而在卸料阀内部形成正负压差，‌确保充气的压力大于内部物料的压力，‌从而实现有效的密封。‌这种设计不仅提高了卸料阀的可靠性，‌还能有效防止物料在输送过程中的泄漏，‌确保系统的正常运行。‌　　我公司专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开阀、清洁阀、风送式旋转阀等产品。广泛应用于锂电池、粮食、饲料、石油化工、制药、淀粉、油脂、化工干燥、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。【电话/微信咨询：陈经理18068546632】       《扫二维码-添加 陈经理 微信-咨询气密封防卡式卸料阀》　　Z (B) FK anti card unloading valve series:　　Pressure: 2kg/cm ² system pressure or pressure difference.　　Increase entrance/exit: square and circular.　　External bearing: effectively prevents dust from entering the bearing and increases the equipment's adaptability to higher temperatures.　　Drive mode: chain drive/motor directly connected to the drive port.　　Power configuration: Cycloid pinwheel reducer, Y-series motor (can be configured according to the power requirements specified by the demand). When the exhaust port is pressurized and transported, the high-pressure gas carried out by the impeller rotation is sent to the exhaust device through the exhaust port to improve the filling efficiency.　　Material options for anti card discharge valve: carbon steel, cast iron, stainless steel, aluminum alloy, titanium alloy, ceramic series, etc.

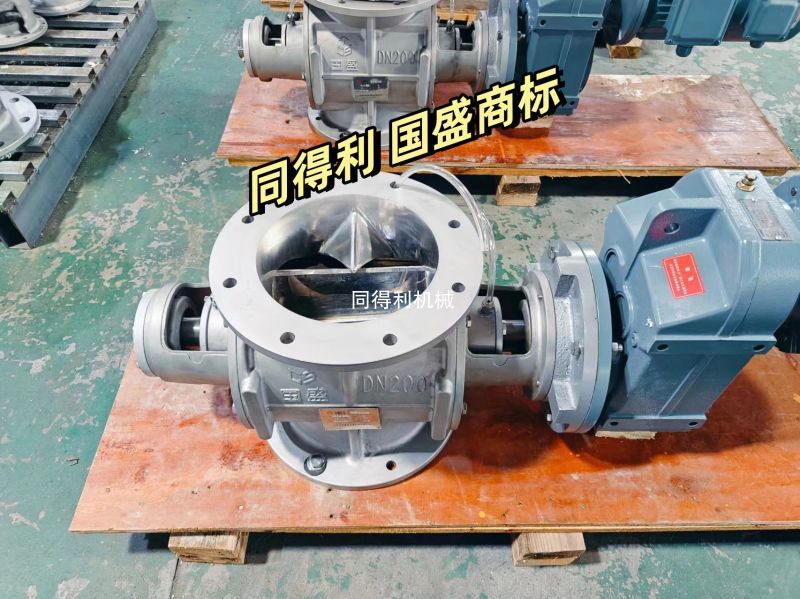

　　不锈钢防卡旋转阀主要用于塑料、食品、化工、锂电、矿山、环保行业原料输送。　　针对颗粒、片状、块状物料，实现不卡料、不堵料。　　防卡型旋转阀主要材质：不锈钢304-310、铝合金、钛合金、陶瓷系列等。　　压力：2kg/cm²系统压力或压差。　　增大入口/出口：正方形和圆形。　　轴承外置式：有效的防止粉尘侵入轴承，增大设备适应较高温度的使用范围。　　驱动方式：链驱动/马达直连驱动口。　　动力配置：摆线针轮减速机、Y系列电机(可按需方指定动力配置)，排气口增压输送时将叶轮旋转带出的高压气体通过排气口送至排气装置，提高填充效率。【电话/微信咨询：陈经理18068546632】　　旋转阀气密封装置主要用于在气力输出系统中，‌特别是在需要处理粉尘和小颗粒物料的场合。工作原理依赖于气体密封技术，‌通过保持一定的气源压力，‌通常高于管道内压力0.1个大气压，‌从而在卸料阀内部形成正负压差，‌确保充气的压力大于内部物料的压力，‌从而实现有效的密封。‌这种设计不仅提高了卸料阀的可靠性，‌还能有效防止物料在输送过程中的泄漏，‌确保系统的正常运行。‌【电话/微信咨询：陈经理18068546632】        《扫二维码-添加 陈经理 微信-咨询不锈钢防卡旋转阀》　　Stainless steel anti seize rotary valves are mainly used for raw material transportation in the plastic, food, chemical, lithium battery, mining, and environmental protection industries.　　For granular, flake, and block materials, achieve no material jamming or blockage.　　The main materials of anti jamming rotary valve include stainless steel 304-310. aluminum alloy, titanium alloy, ceramic series, etc.　　Pressure: 2kg/cm ² system pressure or pressure difference.　　Increase entrance/exit: square and circular.　　External bearing: effectively prevents dust from entering the bearing and increases the equipment's adaptability to higher temperatures.　　Drive mode: chain drive/motor directly connected to the drive port.　　Power configuration: Cycloid pinwheel reducer, Y-series motor (can be configured according to the power requirements specified by the demand). When the exhaust port is pressurized and transported, the high-pressure gas carried out by the impeller rotation is sent to the exhaust device through the exhaust port to improve the filling efficiency.　　The rotary valve air seal device is mainly used in pneumatic output systems, especially in situations where dust and small particle materials need to be processed. The working principle relies on gas sealing technology. By maintaining a certain gas source pressure, usually 0.1 atmospheres higher than the pressure inside the pipeline, a positive and negative pressure difference is formed inside the discharge valve to ensure that the inflation pressure is greater than the pressure of the internal material, thus achieving effective sealing. This design not only improves the reliability of the discharge valve, but also effectively prevents material leakage during transportation, ensuring the normal operation of the system.

　　1. 防卡旋转阀进料口采用防卡进料口设计，能将物料均匀投入叶轮每个角落。根据不同介质调整间隙设计，采用V形叶片及其他特殊转子形式，物料运行更流畅。　　2. 进料口设有鹰嘴防卡口设计，适用于颗粒物料输送。通过减少叶轮与阀体的接触面，物料被拨开分离有更多角度落入叶腔，减少阻力，卡滞问题。　　法兰形式：圆形、方形、偏置式　　鹰嘴防卡式旋转阀/卸料阀/星型卸料器/旋转给料器广泛适用于塑料、石化、化工等行业中气力输送、计量等场合，尤其适用颗粒料，也可用于粉末料的输送。【电话/微信咨询：陈经理18068546632】　　特殊防卡料设计，避免运转中粒子剪断现象;高强度的阀体及轴，可承受高压且运转平稳;壳体及主要零部件采用精密铸造，外形美观。　　旋转卸料阀轴两端的气密封圈是一种密封件，用于防止卸料阀轴两端的物料或气体泄漏。旋转卸料阀一般用于粉状或颗粒状物料的卸料，它的主要作用是在物料的卸出过程中控制气体或物料的流动。【电话/微信咨询：陈经理18068546632】             《扫二维码-添加 陈经理 微信-咨询防卡式旋转阀》　　1. The anti jamming rotary valve adopts an anti jamming feeding port design, which can evenly feed materials into every corner of the impeller. Adjust the gap design according to different media, adopt V-shaped blades and other special rotor forms, and ensure smoother material operation.　　2. The feeding port is equipped with an eagle beak anti lock design, suitable for conveying granular materials. By reducing the contact surface between the impeller and the valve body, the material is separated and more angles fall into the blade cavity, reducing resistance and jamming problems.　　Flange form: circular, square, offset type.　　Eagle beak anti card rotary valve/discharge valve/star shaped unloader/rotary feeder are widely used in pneumatic conveying, metering and other applications in industries such as plastics, petrochemicals, and chemicals, especially for granular materials, and can also be used for conveying powder materials.　　Special anti jamming material design to avoid particle shearing during operation; High strength valve body and shaft, capable of withstanding high pressure and running smoothly; The shell and main components are precision cast, with a beautiful appearance.

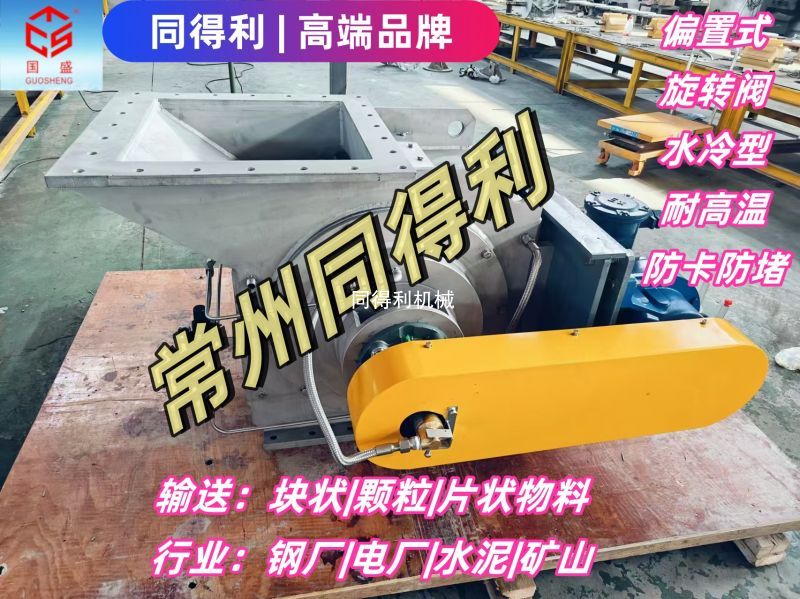

防卡型偏置式卸料器主要用于钢厂、电厂、水泥、矿山。适用于块状、颗料、片状物料，起到很好的防卡防堵作用。防切料入口设计：即便上游充满物料也可安全启动。偏置式进出料口设计：减少了物料的破碎与损坏。【电话/微信咨询：陈经理18068546632】         《扫二维码-添加 陈经理 微信-咨询偏置式卸料阀》

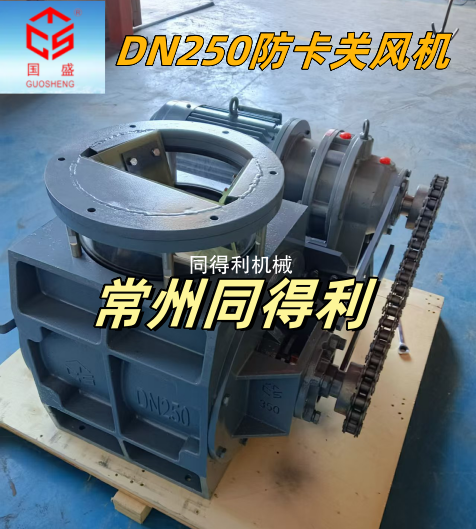

　　防卡关风机/旋转阀/卸料阀/锁气阀主要用于化工，食品，药材，锂电原料输送。　　针对粉体、颗粒、片状、块状物料，实现不卡料、不堵料。　　防卡关风机主要材质：碳钢、铸铁、不锈钢304-310、铝合金、钛合金、陶瓷系列等。【电话/微信咨询：陈经理18068546632】　　关风机入口/出口：入口为圆口并配有透明视窗，以便观察物料的流动状况;出口为方形增大了出口面积使物料顺利排出。　　驱动方式：链驱动/马达直连驱动口。　　动力配置：摆线针轮减速机、Y系列电机(可按需方指定动力配置)，排气口增压输送时将叶轮旋转带出的高压气体通过排气口送至排气装置，提高填充效率。【电话/微信咨询：陈经理18068546632】          《扫二维码-添加 陈经理 微信-咨询防卡关风机》　　Anti jamming fans/rotary valves/discharge valves/lock valves are mainly used for conveying chemical, food, medicinal materials, and lithium battery raw materials.　　For powder, particle, flake, and block materials, achieve no material jamming or blockage.　　The main materials of the anti jamming fan include carbon steel, cast iron, stainless steel 304-310. aluminum alloy, titanium alloy, ceramic series, etc.　　Shut down the inlet/outlet of the fan: The inlet is circular and equipped with a transparent window for observing the flow of materials; The square shape of the outlet increases the outlet area and facilitates the smooth discharge of materials.　　Drive mode: chain drive/motor directly connected to the drive port.　　Power configuration: Cycloid pinwheel reducer, Y-series motor (can be configured according to the power requirements specified by the demand). When the exhaust port is pressurized and transported, the high-pressure gas carried out by the impeller rotation is sent to the exhaust device through the exhaust port to improve the filling efficiency.
