★耐高温高压旋转阀/卸料阀/星型卸料器主要用于钢厂、电厂、环保行业、航空航天、锂电、化工等。　　★适用于温度过高的物料，很好的降温。【电话/微信咨询：陈经理18068546632】　　★阀体：采用整体浇铸于不锈钢全 面通水降温。　　★端盖采用全 面通水降温，避免轴承传递高温。　　★叶轮主轴采用全 面通水降温，避免高温形变，影响同心度。　　★针对有腐蚀物料、有害气体，实现零泄漏、耐腐蚀、耐磨。压力<1MPa为常规品，高压大于2MPa或20Kg/² 可定制。【电话/微信咨询：陈经理18068546632】　　★温度小于1000℃为常规品，高温大于1300℃ 可定制。　　★常州同得利拥有多年的研发生产/定制卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粉料、超微粉体等。【电话/微信咨询：陈经理18068546632】       在常规水冷式技术基础上，我司已研发出全局式通水降温，更耐高温！好的产品需要企业不断科技创新，我司拥有强大科研能力以及创新能力，研发生产各种非标定制版旋转阀卸料阀。打造国家民族品牌旋转阀，成就奋斗者的幸福人生！       《扫二维码-添加 陈经理 微信-咨询高温高压旋转阀》　　High temperature and high-pressure rotary valves/discharge valves/star shaped unloaders are mainly used in steel mills, power plants, environmental protection industries, aerospace, lithium batteries, chemical industries, etc.　　Suitable for materials with excessively high temperatures, it effectively cools down.　　Valve body: It is cast as a whole in stainless steel and fully cooled by water flow.　　The end cover adopts comprehensive water cooling to avoid bearing transmission of high temperature.　　The impeller spindle adopts comprehensive water cooling to avoid high-temperature deformation and affect concentricity.　　To achieve zero leakage, corrosion resistance, and wear resistance for corrosive materials and harmful gases. Pressure<1MPa is a standard product, while high pressure greater than 2MPa or 20Kg/² can be customized.　　Temperature below 1000 ℃ is a standard product, while high temperature above 1300 ℃ can be customized.　　Changzhou Tongdeli has many years of experience in research and development, production, and customization of discharge valve rotary valves, adhering to the principle of quality first and customer first. Our rotary valves are capable of handling various types of particles, flakes, blocks, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.     On the basis of conventional water-cooled technology, our company has developed a global water cooling system that is more resistant to high temperatures! Good products require continuous technological innovation from enterprises. Our company has strong research and innovation capabilities, and has developed and produced various non-standard customized rotary valve discharge valves. Build a national ethnic brand rotary valve and achieve a happy life for hardworking people!

　　进口品牌德国科贝隆Coperio**，zeppeli**泽普琳、荷兰DMN、格律克Gericke、威埃姆WAMGROUP、芬兰BMH、美国派力特隆pelletron旋转阀 。常州同得利专注研发生产高端旋转阀，拥有多年的研发生产/定制非标旋转阀卸料阀的经验，口碑好，旋转阀性能优越，让物料更流畅，使用更精久。　　国产选大品牌-国盛商标常州同得利，专 利技术，匠心质造。工匠精神是中国的瑰宝，它是我们民族文化的结晶，更是中华民族的灵魂所在。【电话/微信咨询：陈经理18068546632】　　滑杆式旋转阀/星型卸料阀/关风机卸料器/旋转供料器主要结构：外壳金属；物料接触部分：内衬陶瓷、陶瓷氧化铝、尼龙、四氟、特氟龙、钛合金、铝合金、不锈钢。　　尺寸：DN50~~非标定制。　　清洗型滑杆式旋转阀制作精致、成功使用德、日技术制造之精华。产品拆装灵活、易于清洗。主要用于锂电、化工、制药、食品等行业高卫生标准的物料卸料及经常更换物料的场所工作。本产品对标全球一线品牌的旋转阀，性能更优，价格&交期更好!　　清洗型旋转阀特点：物料粘接设备，可以快速清理，快速复位。稳定性优于其他开拆式阀门，可原地抽出转子。清洗前的拆卸：松开活动端盖上的螺旋手柄，沿柱将端盖和转子一起拉出，松开轴端的螺旋手柄，取出转子。清洗后，装入叶轮(转动叶轮使花键齿合)，推入端盖(转动活动轴柄使花键齿合)，拧紧螺栓手柄。【电话/微信咨询代替方案：陈经理18068546632】　　滑杆式旋转阀主要用于输送锂电池正极材料、磷酸铁锂、三元材料、化工粉料/颗粒、食品、塑料等。　　同得利秉承以下服务承诺:　　服务目标：服务质量赢得用户满意。　　严格控制对产品性能的检测，待产品被确认合格后再出厂发货。　　提供的产品符合报价文件承诺和所签合同规定的技术要求。　　物美价廉，具有输送系统完全密闭，可以避免输送物料的受潮、污损或混入异物等优势，常用于锂电/化工/药材/食品/塑料/钢厂/电厂/矿山/水泥/环保等行业。　　全新的铸造方法用于改善外表面光洁度和铸造完整性，阀体外壳强度更高。【电话/微信咨询：陈经理18068546632】　　我公司是集科研、开发、设计、制造、售后服务于一体的环保型机械重 点企业。公司地处经济发达的长江金三角，坐落在全国闻名的科技示范城-龙城常州，地理位置优越，千年古运河入境而过，沿江高速、京沪高速、沪宁高速纵横交错，交通十分便利。　　公司在强化企业管理的基础上，依靠科技进步提高技术含量，先进的生产加工设备，领 先的管理理念，高素质的员工团队，有效的质量保障体系和完善的售后服务，为制造高品质的产品提供可靠的保证，极大的满足了各行业的需求，深受广大客户的信赖。　　我公司始终坚持“质量第 一、用户至 上”的宗旨，服务于社会，诚信于业界，竭诚欢迎世界各地的业界好友光临指导，洽谈合作。【电话/微信咨询：陈经理18068546632】抛光处理：       Domestic selection of major brands - Guosheng trademark Changzhou Tongdeli, patented technology, craftsmanship and quality. The spirit of craftsmanship is a treasure of China, a crystallization of our national culture, and the soul of the Chinese nation.　　Sliding rod rotary valve/star shaped discharge valve/shut-off fan unloader/rotary feeder Main structure: metal shell; Material contact parts: lined with ceramic, ceramic alumina, nylon, PTFE, PTFE, titanium alloy, aluminum alloy, stainless steel.　　Size: DN50~~Non standard customization.　　The cleaning sliding rod rotary valve is exquisitely made, and successfully uses the essence of German and Japanese technology. The product is flexible in disassembly and easy to clean. Mainly used for unloading materials with high hygiene standards in industries such as lithium batteries, chemicals, pharmaceuticals, and food, as well as working in places where materials are frequently replaced. This product is benchmarked against top global brands of rotary valves, with better performance, price, and delivery time!　　Characteristics of cleaning type rotary valve: Material bonding equipment, can be quickly cleaned and reset. Stability is superior to other detachable valves, and the rotor can be pulled out in place. Disassembly before cleaning: Release the screw handle on the movable end cover, pull out the end cover and rotor together along the column, release the screw handle on the shaft end, and remove the rotor. After cleaning, install the impeller (rotate the impeller to engage the spline teeth), push in the end cover (rotate the movable shaft handle to engage the spline teeth), and tighten the bolt handle.　　Sliding rod rotary valves are mainly used for transporting lithium battery cathode materials, lithium iron phosphate, ternary materials, chemical powders/particles, food, plastics, etc.

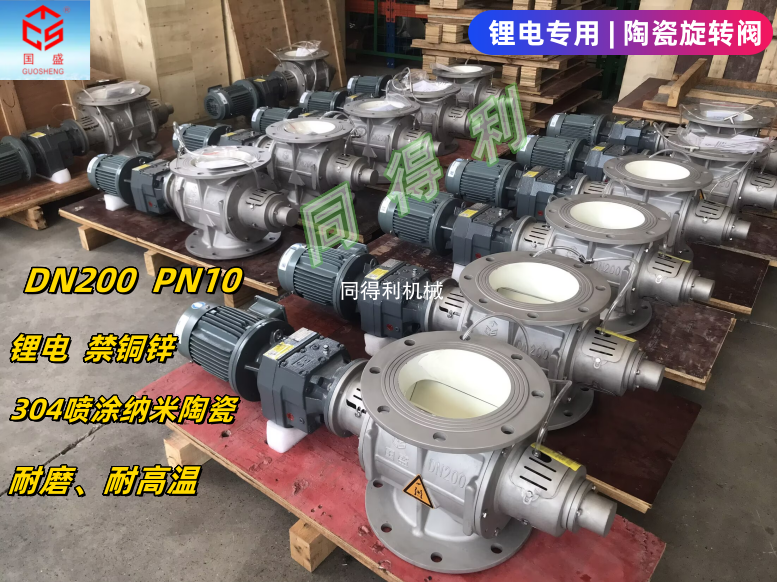

　　旋风卸料阀，物料名称：磷酸铁锂;堆积比重:0.6g/cm3.阀体材质304.阀体内部喷涂纳米陶瓷，转子材质304.转子容积：6L，转子叶片数量6片，转子与外壳间隙0.3mm;转子表面处理：喷涂纳米陶瓷0.3mm;端盖材质304.回转阀两端密封形式：迷宫气密封，填料密封;轴承NSK;轴端.密封.外露保护罩需要304.传动方式直连，物料接触涂层喷涂纳米陶瓷0.3mm;电机：皖南0.75KW-380V-50Hz，不含铜锌;减速机：国茂，不含铜锌。　　主要结构：外壳金属;物料接触部分：内衬陶瓷8-10mm/喷涂陶瓷0.15-0.3mm/刷陶瓷2-3mm。陶瓷种类：陶瓷粉、纳米陶瓷、氧化铝陶瓷、碳化硅陶瓷、氮化硅陶瓷、氮化铝陶瓷、六方氮化硼陶瓷等。　　主要用于输送锂电池正极材料、磷酸铁锂、三元材料、磷酸铁锂中间体等;火力发电厂;冶金;矿山;食品;制药等原料。　　特点：耐高温、耐磨耐冲刷、耐腐蚀、自洁防卡料、使用寿命长。　　技术研发于2015年，批量生产于2017年，2020年更新第3代陶瓷星型旋转阀，目前有陶瓷星型旋转阀专利。　　尺寸：DN50 ~ DN2000.方口150*150 ~ 5000*4000.或非标定制。　　电机、减速机：皖南、卧龙、国茂、西门子、ABB、SEW、Flender、NORD、住友、防爆型可选，或客户指定品牌。　　旋转阀喷涂纳米陶瓷主要作用：　　1、防金属接触：锂电行业禁铜锌，防止输送过程中与金属接触。　　2、耐磨耐冲刷：陶瓷层硬度极高(洛氏硬度可达 HRC90.仅次于金刚石)，能有效抵抗粉体、颗粒物料高速通过时的冲刷和磨损。对比普通金属阀，陶瓷密封阀的寿命通常能延长 ‌3 到 6倍‌，甚至更久。　　3、耐腐蚀：陶瓷材料化学性质稳定，对酸、碱、盐等腐蚀性介质有很强的耐受性，特别适合化工、脱硫等腐蚀性环境。　　4、耐高温：喷涂纳米陶瓷阀适用温度范围≤400℃‌，更高温度需要选择其他陶瓷材质。　　5、转动更顺滑‌：陶瓷表面能低，摩擦系数小(干态约0.15-0.25)，物料不容易粘附，扭矩更平稳。　　6、自洁防卡料‌：启闭时阀板能自旋转研磨，把密封面上的积灰磨掉，所以不卡灰、不积料，启闭灵活。　　7、密封可靠‌：陶瓷件精磨后贴合好，可实现硬密封，泄漏量低;阀体内腔无积料死角。　　陶瓷旋转阀常见应用行业：　　锂电池：锂电正极材料，锂电负极材料，磷酸铁锂，三元材料，硅料，锂电粉料，碳酸锂，石墨。　　化工行业：密封材料、粉末涂料等有腐蚀性或高温。　　工程塑料(聚乙醛、聚酰胺、聚氨酯等)的聚合与反应。　　塑料(环氧树脂、聚酰胺、聚酯等)的混炼。　　造纸行业：粉料、块料、纸浆。　　火力发电厂干灰系统‌：做仓泵的进料阀、出料阀、耐高温、耐磨损。　　冶炼行业：各种类型的炉渣。　　‌食品、药材、原料输送‌：内衬/喷涂陶瓷还能避免金属接触物料，保持洁净度。　　制药‌：散状物料输送和有磨损干粉尘介质。　　气力输送系统‌：用于干灰、粉煤、矿渣、铁砂、氧化铝粉、颗粒物料等的输送。　　太多行业和物料可以用，就不一一列举了。　　部分客户需求：　　物料：锂电原材料，规格：DN350.主体材质：SUS304.转子：喷涂氧化铝陶瓷200um(热喷)。内表面处理：304喷涂氧化铝陶瓷 200um(热喷)，外表面处理：喷砂。防爆：非防爆，参考功率：2.2kw，变频(变频器要求重载矢量型)，电机品牌：皖南，带轴端气密封及相关配件，耐温140℃。　　物料：锂电正极材料，旋转阀规格：DN450.主体材质：SUS304;转子：喷涂氧化铝陶瓷200um(热喷);内表面处理：304喷涂氧化铝陶瓷 200um(热喷);外表面处理：喷砂;防爆：非防爆;参考功率：3.0kw，变频(变频器要求重载矢量型);电机品牌：皖南;带轴端气密封及相关配件;耐温120℃;间隙要求：径向0.08-0.12mm，轴向0.08-0.10mm。　　锂电进料星型卸料阀：电机功率约1.5KW，变频调速电机，型号规格：DN300.法兰连接(压力等级：PN10)材质：与物料接触304+纳米陶瓷涂层(厚度：喷涂工艺0.3mm以上，冷刷工艺0.6mm);密封：填料+气密封;下料速度：1-10m³/h介质：锂电粉料，粒径：>1mm，占比约70%，常温。　　物料：多晶硅粉，粉体，带细小颗粒，DN100.容积0.6L/转，工作温度60-100℃，物料粒度：20-300μm，物料处理量400-500Kg，输送压力≥0.5Mpa，回转阀填充系数0.6-0.7.回转阀转速29R/min，端盖材质304.转子材质304.外壳材质304(内衬陶瓷)，端盖形式：外置轴承式端盖气密封，主轴密闭做成硬密封，电机功率1.5kw-380-50hz，齿轮减速机国茂GKAF-59-48.89.　　物科:氢溴酸粉末状，酸浓度40%~48%，堆比重3.每小时下科量100公斤，常温常压。材质304 DN150.PN10.与物料接触处喷涂氧化铝陶瓷，转速25RPI，转子容积2/转，工频电机0.75KW-4P-B5.　　公称通径DN300;公称压力1.0MPa;介质:除尘设备焦粉;工作温度≤200°C;控制气源压力0.4-1.5MPa;耗气量1-3L/次。材料:阀体为不锈钢;阀芯为陶瓷，表面硬化处理;密封圈为特制耐磨橡胶。叶片耐磨有除尘硬块破碎能力。　　我公司常州同得利/江苏同得利专业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、YJD型旋转阀，快开清洗阀、防卡旋转阀、偏置防卡、风送直通式旋转阀、高温高压旋转阀、高温水冷式、刮板式自清洁、钛合金陶瓷碳化钨四氟特氟龙尼龙聚氨酯、破拱机、料仓刮料破拱器、打散破碎阀、螺旋输送机等产品。广泛应用于锂电池、食品、石油化工、制药、淀粉、油脂、化工干燥、粮食、饲料、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。           《扫二维码-添加 陈经理 微信-咨询陶瓷旋转阀》　　Cyclone discharge valve, material name: lithium iron phosphate; Stacking density: 0.6g/cm3. valve body material 304. nano ceramic sprayed inside the valve body, rotor material 304. rotor volume: 6L, number of rotor blades 6. gap between rotor and housing 0.3mm; rotor surface treatment: nano ceramic sprayed 0.3mm; end cap material 304. sealing form at both ends of the rotary valve: labyrinth gas seal, packing seal; Bearing NSK; Shaft end seal up. The exposed protective cover requires 304. with direct transmission and material contact coating sprayed with 0.3mm nano ceramic; motor: Anhui South 0.75KW-380V-50Hz, free of copper and zinc; Gearbox: Guomao, free of copper and zinc.　　Main structure: metal shell; Material contact part: ceramic lining 8-10mm/sprayed ceramic 0.15-0.3mm/brushed ceramic 2-3mm. Ceramic types: ceramic powder, nano ceramic, alumina ceramic, silicon carbide ceramic, silicon nitride ceramic, aluminum nitride ceramic, hexagonal boron nitride ceramic, etc.　　Mainly used for transporting lithium battery cathode materials, lithium iron phosphate, ternary materials, lithium iron phosphate intermediates, etc; Thermal power plants; Metallurgy; Mining; Food; Pharmaceutical and other raw materials.　　Features: High temperature resistance, wear resistance, erosion resistance, corrosion resistance, self-cleaning and anti jamming materials, long service life.　　The technology was developed in 2015. mass-produced in 2017. and the third-generation ceramic star shaped rotary valve was updated in 2020. Currently, there is a patent for ceramic star shaped rotary valve.　　Size: DN50~DN2000. square mouth 150 * 150~5000 * 4000. or non-standard customization.　　Motors and reducers: Wannan, Wolong, Guomao, Siemens ABB、SEW、Flender、NORD、 Sumitomo, explosion-proof type optional, or customer specified brand.　　The main function of spraying nano ceramics on rotary valves is:　　1. Anti metal contact: Copper and zinc are prohibited in the lithium battery industry to prevent contact with metals during transportation.　　2. Wear and erosion resistance: The ceramic layer has extremely high hardness (Rockwell hardness can reach HRC90. second only to diamond), which can effectively resist the erosion and wear of powder and particle materials passing through at high speed. Compared to ordinary metal valves, the lifespan of ceramic sealed valves can usually be extended by 3 to 6 times, or even longer.　　3. Corrosion resistance: Ceramic materials have stable chemical properties and strong resistance to corrosive media such as acids, alkalis, and salts, making them particularly suitable for corrosive environments such as chemical engineering and desulfurization.　　4. High temperature resistance: The spray coated nano ceramic valve is suitable for a temperature range of ≤ 400 ℃, and other ceramic materials need to be selected for higher temperatures.　　5. Smooth rotation: Ceramic surface energy is low, friction coefficient is small (about 0.15-0.25 in dry state), material is not easy to adhere, and torque is smoother.　　6. Self cleaning and anti sticking material: When opening and closing, the valve plate can rotate and grind itself to remove the accumulated dust on the sealing surface, so there is no sticking or material accumulation, and the opening and closing are flexible.　　7. Reliable sealing: The ceramic parts are finely ground and fit well, achieving hard sealing and low leakage; There is no dead corner of material accumulation in the inner cavity of the valve body.　　Common application industries of ceramic rotary valves:　　Lithium batteries: positive electrode materials, negative electrode materials, lithium iron phosphate, ternary materials, silicon materials, lithium battery powders, lithium carbonate, graphite.　　Chemical industry: Sealing materials, powder coatings, etc. are corrosive or high-temperature.　　The polymerization and reaction of engineering plastics (such as acetaldehyde, polyamide, polyurethane, etc.).　　Mixing of plastics (epoxy resin, polyamide, polyester, etc.).　　Paper industry: powder, block, pulp.　　Dry ash system for thermal power plants: including inlet and outlet valves for warehouse pumps, high temperature resistance, and wear resistance.　　Smelting industry: various types of slag.　　Food, medicinal materials, and raw material transportation: Lining/spraying ceramics can also avoid metal contact with materials and maintain cleanliness.　　Pharmaceutical: Bulk material transportation and dry dust media with wear and tear.　　Pneumatic conveying system: used for conveying dry ash, pulverized coal, slag, iron sand, alumina powder, granular materials, etc.　　There are too many industries and materials that can be used, so I won't list them one by one.　　Partial customer requirements:　　Material: Lithium battery raw material, specification: DN350. main material: SUS304. rotor: sprayed alumina ceramic 200um (thermal spray). Internal surface treatment: 304 sprayed alumina ceramic 200um (thermal spray), external surface treatment: sandblasting. Explosion proof: Non explosion proof, reference power: 2.2kw, frequency converter (frequency converter requires heavy-duty vector type), motor brand: Wannan, with shaft end air seal and related accessories, temperature resistance of 140 ℃.　　Material: Lithium ion positive electrode material, rotary valve specification: DN450. main body material: SUS304; Rotor: Spray coated alumina ceramic 200um (thermal spray); Internal surface treatment: 304 sprayed alumina ceramic 200um (thermal spray); External surface treatment: sandblasting; Explosion proof: non explosion proof; Reference power: 3.0kw, frequency converter (frequency converter requires heavy-duty vector type); Motor brand: Wannan; Equipped with shaft end gas seal and related accessories; Temperature resistance of 120 ℃; Gap requirements: radial 0.08-0.12mm, axial 0.08-0.10mm.　　Lithium ion feeding star shaped discharge valve: motor power of about 1.5KW, variable frequency speed regulating motor, model and specification: DN300. flange connection (pressure rating: PN10) material: 304+nano ceramic coating in contact with the material (thickness: spraying process above 0.3mm, cold brushing process 0.6mm); Sealing: packing+airtight seal; Cutting speed: 1-10m ³/h medium: lithium battery powder, particle size:>1mm, accounting for about 70%, at room temperature.　　Material: Polycrystalline silicon powder, powder with fine particles, DN100. Volume 0.6L/rev, working temperature 60-100 ℃, material particle size: 20-300 μ m, material processing capacity 400-500kg, conveying pressure ≥ 0.5Mpa, rotary valve filling coefficient 0.6-0.7. rotary valve speed 29R/min, end cover material 304. rotor material 304. shell material 304 (lined with ceramic), end cover form: external bearing type end cover gas seal, main shaft sealed with hard seal, motor power 1.5kw-380-50Hz, gear reducer Guomao GKAF-59-48.89.　　Physical Science: Hydrobromic acid powder, acid concentration of 40%~48%, bulk density of 3. hourly yield of 100 kilograms, normal temperature and pressure. Material 304 DN150. PN10. sprayed with alumina ceramic at the contact with the material, speed 25RPI, rotor volume 2/rev, power frequency motor 0.75KW-4P-B5.　　Our company Changzhou Tongdeli/Jiangsu Tongdeli specializes in the production of (B) GFY, YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, YJD type rotary valves, quick opening cleaning valves, anti jamming rotary valves, offset anti jamming, air delivery straight through rotary valves, high temperature and high pressure rotary valves, high temperature water-cooled, scraper self-cleaning, titanium alloy ceramic tungsten carbide PTFE PTFE nylon polyurethane, arch breaking machines, silo scraper crushers, breaking valves, screw conveyors and other products. Widely used in equipment for industries such as lithium batteries, food, petrochemicals, pharmaceuticals, starch, oils, chemical drying, grain, feed, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.

　　星型旋转阀常用在气力输出系统中。对于压力输出系统或负压输出系统，星型旋转阀可以均匀、连续地向输料管供料，以保证气力输出管内的气、固态比较稳定，从而使气力输送能正常工作，同时又能将旋转阀的上、下部气压隔断而起到锁气作用。因此，星型旋转阀是气力输送系统中常用的重要设备。　　Star shaped rotary valves are commonly used in pneumatic output systems. For pressure output systems or negative pressure output systems, star shaped rotary valves can uniformly and continuously supply material to the conveying pipe to ensure that the gas and solid in the pneumatic output pipe are relatively stable, so that the pneumatic conveying can work normally. At the same time, they can also block the upper and lower air pressure of the rotary valve and play a role in air locking. Therefore, the star shaped rotary valve is an important equipment commonly used in pneumatic conveying systems.　　正压稀相输送的介质一般采用空气或氮气，动力提供一般由罗茨鼓风机提供，氮气输送时则有制氮机进行提供。罗茨鼓风机的稀相输送时，物料在管道中呈悬浮状态，输送距离可以达百米，气流速度较高。　　由于系统处于正压，所以密封性要求很高，若有一丝泄漏就会造成供料端或者整个系统的粉尘外溢;系统物料采用吹送式。【电话/微信咨询：陈经理18068546632】　　风送式旋转阀：　　针对物料粘接，风力直吹转子清理物料。　　主要材质：碳钢、不锈钢304-316、钛合金、铝合金、各种合金、陶瓷、尼龙系列等。　　气密封装置：高精度密封锁气，防止物料在输送过程中的泄漏，‌确保系统的正常运行。‌【电话/微信咨询：陈经理18068546632】　　轴承外置式：有效的防止粉尘侵入轴承，增大设备适应较高温度的使用范围。　　驱动方式：链驱动/马达直连驱动口。　　动力配置：摆线针轮减速机、Y系列电机、标配皖南、卧龙、国茂、西门子、ABB、SEW、Flender、NORD、住友(可按客户指定动力配置)。【电话/微信咨询：陈经理18068546632】　　常州同得利机械厂拥有多年的研发生产/定制卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。           【电话/微信咨询：陈经理18068546632】      《扫二维码-添加 陈经理 微信-咨询正负压输送旋转阀》　　部分客户需求：　　1、替代意大利威埃姆，物料：动物饲料里面的预混料，阀体材质：不锈钢304;阀板材质：不锈钢304;带瓜片;转速：20rpm/min;功率0.75kw，非防爆电机，380V,50Hz;硬齿面减速电机,IE3能效等级电机;带轴承端盖保护;CE认证。　　2、旋转给料阀：DN150.物料名称：抗氧剂，物料堆积密度：400~600kg/m3.工况：气力输送,工作温度：50°C,与物料接触材质CF8/SS304.输送能力0.3~0.35T/h,主体结构：开式叶轮,轴气封,轴承外置,背包式,容积效率:45%,叶轮转速18rpm。　　3、火力发电厂在省煤器出口、SCR脱硝入口段，抽取部分烟气进行高温烟气的除尘。输灰用罗茨风机、工频旋转给料阀，现场除尘装置已配置收灰的储灰罐，需要在储灰缓冲罐下加装正压稀相气力输送系统。烟气温度：在300∽400℃范围内;输送介质：烟气中的粉煤灰;输送能力：输送容积0.7∽2m3/h，按不小于2m3/h设计选型;输送粉煤灰的重量约1600kg/h。【电话/微信咨询：陈经理18068546632】　　4、物料：饲料颗料，正压输送，500公斤/小时，变频，锁气功能，出口到国外需要CE认证。　　5、物料：生物质颗粒，直径5mm、长度40mm以下，正压气力输送，50kg/h。　　6、水硫酸铝粉末定量稳定输送，每小时60公斤左右，微正压，无氧无水环境要求能通过DCS自动控制。　　7、物料：板材行业的砂光粉，配罗茨风机用，正压输送，进口360*280高400.每小时2立方。　　8、物料：输送催化剂，正压气力输送，6~8吨/小时，温度在500度左右，配水冷耐高温型。　　9、粉料，储料罐小罐输送到大罐，正压输送，每小时输送量12吨，要气密封，防轴两端漏料。【电话/微信咨询：陈经理18068546632】　　10、化肥助剂粉料，卸料量五百公斤/小时，密度0.8.正压输送，变频，需要锁气功能。　　11、物料：铝粉，正压输送，DN200.伺服电机。　　12、物料：塑料粉尘  正压输送 末端除尘器锁气卸料用，需求：低泄漏率的锁气卸灰阀。　　13、替代泽普林旋转阀，物料：糖粉面粉,风送有正压和负压，DN150.DN200.DN300.DN500.　　14、物料：草铵膦粉料，正压6000-9000Pa，密封锁气，防堵型DN200.　　15、DN150不锈钢关风机，正压输送食品粉体，旋转阀需要抛光，配清洗型可以定期清理，侧开门式。【电话/微信咨询：陈经理18068546632】　　16、食品粉料，正压输送用，食品级旋转阀，气密封，要清洗型，输送量1.5T/h。　　17、输送物料：颗粒食用盐，输送量 5T/h，快拆式，材质 304.法兰标准 GB，SEW减速机;设备用途，正压风力输送使用;输送设计压力：50Kpa。　　The medium for positive pressure dilute phase transportation is generally air or nitrogen, and the power supply is usually provided by a Roots blower. When transporting nitrogen, a nitrogen generator is used. During the dilute phase conveying of Roots blower, the material is suspended in the pipeline, with a conveying distance of up to 100 meters and a high airflow velocity.　　Due to the positive pressure of the system, high sealing requirements are required. Any slight leakage can cause dust to overflow from the feeding end or the entire system; The system materials are blown.　　Pneumatic rotary valve:　　For material bonding, the rotor is blown directly by wind to clean the material.　　Main materials: carbon steel, stainless steel 304-316. titanium alloy, aluminum alloy, various alloys, ceramics, nylon series, etc.　　Airtight sealing device: high-precision sealing and gas locking to prevent material leakage during transportation and ensure the normal operation of the system. ‌　　External bearing: effectively prevents dust from entering the bearing and increases the equipment's adaptability to higher temperatures.　　Drive mode: chain drive/motor directly connected to the drive port.　　Power configuration: Cycloid pinwheel reducer, Y series motor (can be configured according to customer's specified power).

　　The main function of the rotary crushing valve is to crush the block materials in the material flow of the unloader. These block materials are formed by moisture in the warehouse or bin. When large blocks of material appear in the material, they can be immediately crushed to prevent them from blocking the channel of the unloading valve and improve smooth unloading. The rotor of the crushing valve is equipped with radially arranged crushing claws, which move the block materials through the grid and crush them.　　The operational safety of the block material crushing valve unloader is ensured by the motor speed detection device integrated in the electric control box. When some block materials in the material cannot be crushed and get stuck in the rotor, the speed detection device will alarm and automatically reverse, pushing away the block materials that cannot be crushed before proceeding with forward rotation. When both forward and reverse rotation are stuck, the crushing valve will automatically stop and wait for the fault to be resolved before running again. The speed detection device is an optional device, and this requirement needs to be explained when ordering the equipment.　　旋转破碎阀主要功能是破碎卸料器物料流中的块料，这些块料是物料在库内或仓中因受潮而形成，当物料中出现较大块状物时，可立即将其破碎，以防止这些大块物料堵塞卸料阀门的通道，提高通畅卸料，破碎阀的转子上安装有放射状布置的破碎爪，拨动块料物料通过栅格并将其破碎。　　块料破碎阀卸料器的运转安全性是通过在电控箱中集成的电机转速检测装置来保证，当物料中的某些块料物料无法破碎而卡住转子时，转速检测装置将报警并自动反转，将无法破碎块料物料推开后再进行正转。当正转或反转都被卡住时，破碎阀则自动停机，等待排除故障后再运行。转速检测装置为选配装置，有此要求时需要在设备订货时说明。【电话/微信咨询：陈经理18068546632】　　常见破碎物料：沫煤、锂矿、结块颗粒、磷酸铁粉、电石渣烧生石灰、碳酸钙、锂电池正极材料碳纳米管材料、硬脂酸盐产品、净化灰块状物料、炭黑结块。　　旋转破碎阀设计特点：　　蕞大型号的通过量可达1200m3/h，或非标定做。　　适用于各种气化斜槽和储库卸料出口。　　为高达350度的物料温度而设计，更高温度可配水冷式定做。　　低能耗，维护简单。　　破碎爪和栅格板使用高耐磨材料。　　集成转速检测装置(选配项)。       破碎后块料常规直径＜10mm，更精细可定做。       密封锁气，可配气密封装置，高精度密封锁气。破碎阀非标尺寸可定制。　　部分客户需求：　　1、破碎阀DN500. PN6.介质：锂辉石酸化熟料，破碎前≤30mm,破碎到≤10mm;含水率≤6%，物料堆密度890g/m³;介质流量37t/h;工作温度300℃。　　2、物料：氧化铝粉末可能结块，需要打散一下，从烘干设备出来可能会成团-破碎阀。导热粉体材料(球形氧化铝、类球形氧化铝、氮化铝、氮化硼)、电磁屏蔽粉体材料(镍包石墨)，以及锂电极片涂覆及隔膜涂层材料等。　　3、化工物料：三氯化锂，需要破碎，高密封不能进空气，耐腐蚀，破碎至小于30mm，以前用过德国进口科倍隆的。高纯盐酸(HCl)次氯酸钠(NaClO)合成盐酸(HCl)食品级盐酸，液氯(Cl₂)高品质氢氧化钾。　　4、物料：锂电池正极材料碳纳米管，料很轻粉末，现在卸料有问题，粉末飞起来不好卸料，想把料凝固成颗粒类的然后破碎卸料。　　5、物料：硬脂酸盐产品，物料有些像爆米花的形状，轻抛体积大，想破碎增大物料的堆密度，物料大小一般10-20cm，要求下料速度快，破碎越小越好，下料管道DN300.物料温度高的时候会有一点粘。　　6、旋转破碎阀：DN200.PN=1.0MPa,容积:6L处理物料:净化灰(块状物料占比约5%)，配防爆电机:功率:1.5KW,防爆等级ExdIICT4减速机:SAF硬齿面减速机，转速:180r/min，处理里:0.4m³/min，破碎后粒度:2-5片状，壳体材质:WCB，厚度:14mm，端盖:WCB,厚度:16mm,转子叶片:材质不锈钢，厚度8mm,叶片间隙:2-5mm,转轴材质:不锈钢，带配对法兰及紧固件。　　7、物料：沫煤，要求：破碎+密封。　　8、西草甲型结块，吨包物料打散进仓电动破碎阀。　　9、物料：粉体材料，小结块颗粒可粉料，需要卸料破碎器。　　10、物料：石灰粉，300*300.碳钢材质。【电话/微信咨询：陈经理18068546632】　　11、DN300破碎阀，转数328r/min 破碎≤10mm，减速机泰隆RF47-3KW，电机不防爆品牌皖南，与物料接触部分材质304.含铜量≤0.5%，输送介质无水磷酸铁粉体材料，物料温度200℃，PH值1.8-2.5;破碎动刀淬火处理，齿厚8mm间隙10mm，破碎阀内部要求无毛刺锐边，清洁干净无残存金属和其他粉末，进出料口封闭。　　12、破碎阀，破碎物料Ca0、结块料、部分浇注料，物料温度200℃，进料粒度：>50mm 的料预计10%，个别结块料可达 80mm，出料粒度<8mm，处理量45t/h，Ca0 堆积密度0.7t/m³。　　13、高温电动破碎阀，块状物料水泥半成品，规格500*800.温度600℃，密封功能要好。　　14、化工物料：不到15mm化工产品有腐蚀性，料仓下料易结块堵塞，严重影响称重计量包装，需要加装一台破碎卸料阀，DN300接口，316L材质。　　15、物料：炭黑，结块4-5cm，旋转破碎阀不锈钢，尺寸DN300.【电话/微信咨询：陈经理18068546632】　　16、物料石块，破碎卸料器1:每小时2吨左右 温度:150℃。2:大料尺寸100mm,需要处理到10mm以下。3:大颗粒量约为每小时1吨。4:现场高度500mm上下一样的法兰接口，阀体材质:316L*10mm,动静齿材质:316L*6mm,法兰材质:316L*12mm,主轴材质:316L*55mm,间隙面积:约为总面积的10%。电机11KW减速比 i=19.25减速机:硬齿面K87系列(变频防爆)。　　17、旋转破碎阀，物料：盐，硝酸钠在干燥过程中，有结块，影响下游螺旋输送机。　　18、物料：抗氧剂块料，有点结块，挺硬的。需要破碎阀，DN500.　　19、破碎阀DN500. PN6.介质：锂辉石酸化熟料，破碎前≤30mm;含水率≤6%,物料堆密度890g/m³;介质流量35t/h;工作温度300℃。　　20、炉子出来的可能存在块状盐，500-600度，需要打散，同时卸料阀要降温措施保护电机，破碎尺寸5CM以内。【电话/微信咨询：陈经理18068546632】         《扫二维码-添加 陈经理微信  咨询破碎打散卸料阀》　　Common crushed materials: foam coal, lithium ore, agglomerated particles, iron phosphate powder, calcined quicklime from carbide slag, calcium carbonate, positive electrode material for lithium batteries, carbon nanotube material, stearate products, purified ash block materials, carbon black agglomerates.　　Partial customer requirements:　　Crushing valve DN500. PN6. Medium: spodumene acid clinker, ≤ 30mm before crushing, ≤ 10mm after crushing; Moisture content ≤ 6%, material bulk density 890g/m ³; Medium flow rate 37t/h; The working temperature is 300 ℃.　　Material: Aluminum oxide powder may clump and need to be broken up, and it may form clumps when coming out of the drying equipment - crushing valve. Thermal conductive powder materials (spherical alumina, quasi spherical alumina, aluminum nitride, boron nitride), electromagnetic shielding powder materials (nickel coated graphite), as well as lithium electrode sheet coating and diaphragm coating materials.　　Chemical material: Lithium trichloride, needs to be crushed, highly sealed and cannot enter air, corrosion-resistant, crushed to less than 30mm, previously used from Germany imported Kobelon. High purity hydrochloric acid (HCl) and sodium hypochlorite (NaClO) are used to synthesize food grade hydrochloric acid (HCl) and high-quality potassium hydroxide for liquid chlorine (Cl ₂).　　Material: Carbon nanotubes, the positive electrode material of lithium batteries, are a very light powder. There is a problem with unloading now, as the powder flies and is difficult to unload. I want to solidify the material into particles and then crush them for unloading.　　Material: stearic acid salt product. The material has a shape similar to popcorn and has a large volume when lightly thrown. If you want to increase the bulk density of the material by crushing it, the material size is generally 10-20cm. The material needs to be cut quickly and the smaller the crushing, the better. The cutting pipeline is DN300. and the material will be a little sticky when the temperature is high.

　　对于由于潮湿高水分黏附的粉粒料和由于静电易附着流动性差的粉粒料，非常容易架桥或粘附填充在旋转阀的叶片间空腔中不脱落排卸下来，将叶子空腔“糊”住，给气力输送和旋转供料器操作带来很大困难。常州同得利提供的刮板式旋转阀/卸料阀,其特点是采用圆弧浅腔叶轮和一个能随之转动的刮板，旋转的刮板能将附着在叶片上的料粒挂落清除，能解决粉粒料在叶片上粘接的问题。使定量供料和排料更加顺畅，比较适用于容易导致堵塞的粉粒体，能提供150-5000mm的各种尺寸的方形和圆形口径。【电话/微信咨询：陈经理18068546632】　　(GBS)刮板式旋转阀/卸料阀/星型卸料器适用于具有吸湿粘性和带有静电吸附性的粉粒物料、物料架桥结块。　　阀体下部的旋转刮板自动将附在转子料斗内的物料刮落。　　阀体上开有清理口，便于定期清除旋转阀内部的物料，设备带扭力保护器。　　提供链驱动、马达直连驱动。　　材质：碳钢、不锈钢、陶瓷、合金系列等。按客户需求定制。【电话/微信咨询：陈经理18068546632】　　刮板式自清洁旋转阀/卸料阀，包括电机和壳体，其特征在于弧形叶轮和旋转刮板，弧形叶轮安装在壳体内部，弧形叶轮通过电机驱动;旋转刮板设置在弧形叶轮的下方，刮板卸料阀旋转刮板的顶部与弧形叶轮的弧面相接触，卸料阀旋转刮板与弧形叶轮之间通过壳体外的齿轮传动机构进行同步反向转动。       常州同得利机械厂拥有多年的研发生产/定制卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。【电话/微信咨询：陈经理18068546632】             《扫二维码-添加 陈经理 微信-咨询刮板式旋转阀》　　For powder particles with high moisture adhesion due to humidity and poor flowability due to static electricity, it is very easy to bridge or adhere and fill the cavity between the blades of the rotary valve without falling off and being discharged, which "sticks" the leaf cavity and brings great difficulties to the operation of pneumatic conveying and rotary feeders. The scraper type rotary valve/discharge valve provided by Changzhou Tongdeli is characterized by using a curved shallow cavity impeller and a rotating scraper. The rotating scraper can remove the particles attached to the blades and solve the problem of powder particles sticking to the blades. Make quantitative feeding and discharging smoother, more suitable for powder particles that are prone to clogging, and can provide various sizes of square and circular diameters ranging from 150-5000mm.　　(GBS) Scraper type rotary valve/discharge valve/star shaped unloader is suitable for powder materials with hygroscopic viscosity and electrostatic adsorption, as well as material bridging and agglomeration.　　The rotating scraper at the bottom of the valve body automatically scrapes off the material attached to the rotor hopper.　　There is a cleaning port on the valve body for regular removal of materials inside the rotary valve, and the equipment is equipped with a torque protector.　　Provide chain drive and motor direct drive.　　Materials: carbon steel, stainless steel, ceramics, alloy series, etc. Customize according to customer needs.　　Scraper type self-cleaning rotary valve/discharge valve, comprising a motor and a housing, characterized by an arc-shaped impeller and a rotating scraper. The arc-shaped impeller is installed inside the housing and is driven by a motor; The rotating scraper is set below the arc-shaped impeller, and the top of the scraper discharge valve rotating scraper is in contact with the arc-shaped surface of the impeller. The rotating scraper of the discharge valve and the arc-shaped impeller rotate synchronously and in reverse through a gear transmission mechanism outside the housing.

　　常州同得利拥有多年的研发生产/定制卸料阀旋转阀的经验，专 业替代进口德国品牌科倍龙Coperio*旋转阀，我公司专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开阀、清洁阀、风送式旋转阀等产品。广泛应用于粮食、饲料、石油化工、制药、淀粉、油脂、化工干燥、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。　　公司在强化企业管理的基础上，依靠科技进步提高技术含量，先进的生产加工设备，领 先的管理理念，高素质的员工团队，有效的质量保障体系和完善的售后服务，为制造高品质的产品提供可靠的保证，极大的满足了各行业的需求，深受广大客户的信赖。      进口品牌价格贵，交期长怎么办？找国产替代，选大品牌-国盛商标常州同得利，专 利技术，匠心质造。【电话/微信咨询：陈经理18068546632】　　以下【同得利】都可以替代 德国Coperio*科倍龙旋转阀：　　德国科倍*ZRD旋转阀：应用于粉料的卸料和计量阀，1.5巴(21psi)系统压力和压差。　　德国科倍*ZXD旋转阀：应用于粉料的底吹式，将散料喂入到气力输送系统中，1.5巴(21psi)系统压力和压差。　　德国Coperi** 科倍*ZVB/ZVD旋转阀：适用于粒料的卸料阀，1.5巴(21psi)系统压力和压差。　　德国Coperi** 科倍*旋转阀ZHD：适用于粉料的卸料和计量阀，增大入口的铸铁阀，尤其适用于排料应用，0.8 barg (12 psi) 系统和压差，聚四氟乙烯密封，无需气流冲洗。　　德国Coperi** 科倍*ZKD旋转阀：适用于粉料的卸料和计量阀，矩形连接法兰的坚硬壳体，1.5巴(21psi)，系统压力和压差，通过吹洗密封和物料掉落口将物料和轴承隔开。【电话/微信咨询代替方案：陈经理18068546632】　  德国Coperi** 科倍*ZVH旋转阀：粒料高压卸料阀，几何形防切料入口可带料启动，3.5巴(51psi)系统压力和压差，带有12个转子腔和轴向密封的高压转子。　　德国Coperi** 科倍*ZXQ旋转阀：适用于粉料的高压底吹式旋转阀，3.5巴(51psi)系统压力和压差。　　德国Coperi** 科倍*旋转阀ZFD：吹除式阀门用于CIP执行的粉料，1.5 barg (21 psi)系统压力和压差。　　德国Coperi** 科倍*MD旋转阀：应用于难处理物料的锁气阀，适用粉料、颗粒和磨料的卸料阀门，可承受严酷的冲击力，承受温度可达121o C[+250o F]，1.4 巴(g) [20 psi(g)]。【电话/微信咨询代替方案：陈经理18068546632】　　科倍*BT旋转阀：应用于研磨和烘焙卸料锁气旋转阀，经常应用于粘性应用，且能防止物料在转子腔中积聚，其配置提高了转子的自清洁功能，因而使得可在狭窄空间内安装。0.8 bar(g) [12 psi(g)] 压差，聚四氟乙烯复合密封，空气吹扫。　　德国Coperi** 科倍*MD 1820 旋转阀：常用于难处理的物料，适用于粉料、颗粒和磨料的卸料阀，适用于重负荷和严苛的应用环境，可抵抗严苛的冲击力，承受高温达121o C [+250o F]，1.4 巴(g) [20 psi(g)]。　　德国Coperi** 科倍*卫生级旋转阀：应用于食品配方输送的旋转阀，必须满足卫生和高可靠性的要求。　　我公司始终坚持“质量第 一、用户至 上”的宗旨，服务于社会，诚信于业界，竭诚欢迎世界各地的业界好友光临指导，洽谈合作。           《扫二维码-添加 陈经理 微信-咨询代替方案》　　【部分客户需求】　　1、替代科蓓隆：DN250.输送量10吨/小时，密封压力1.5BAR(G)，DN200.输送量5吨/小时,密封压力1.6BAR(G)物料塑料粒子。　　2、替代科倍隆CRD320.1-21-SS高度500容积21L，物料：PVC糊树脂粉料，堆积比重参照0.4~0.6t/m3.供料器能力按年平均产量推算约3t/h，物料温度<50℃。原设备口径 DN300.设备进出料口法兰端面间距500mm，电机功率 0.55KW，要求对设备整机进行替换。　　3、对标科倍隆ZVB系列，出口用，物料：化工颗粒物料，400kg/h，误差精度要求比较高。　　4、替代科倍隆ZKD 400.1-35-GC，物料：纤维素颗粒。【电话/微信咨询代替方案：陈经理18068546632】　　5、替代科倍隆ZVH系列，物料石油树脂、橡胶粉末，粉料，每小时1200公斤，负压-0.095.　　6、替代科倍隆ZFD系列，物料白糖，有负压状态，需要防卡和气密封型。　　7、替代科倍隆ZXD 300.1-25-SC-DB4.物料粉料，钾肥。　　8、客户以前用的科倍隆，现在需要国产化，物料：三氯化锂，并且需要破碎，高密封不能进空气，耐腐蚀，破碎至小于20~30mm。　　9、客户以前用的科倍隆，现在需要国产化，食品级旋转下料阀(快拆易清洗)，DN200旋转阀，物料名称 麦芽糖醇，颗粒物，40℃，物料含水<1%，物料粒度 10目，堆积密度(g/cm³) 0.8.物料接触部分材质为食用级SUS304.变频电机，粉尘防爆。　　10、客户想用国产品牌，替代科倍隆ZXD 250 1-12-SC-DP3.物料煤粉。　　11、客户以前用的科倍隆，现在需要国产化，原科倍隆型号ZRD 630.1-172-GC-DP1 1bar，450℃，水泥行业用。　　12、客户以前用的科倍隆MD 1820系列，现在需要国产化，高压1.8MPa，颗粒8-12mm，生物质颗粒。【电话/微信咨询代替方案：陈经理18068546632】　　13、客户想用国产品牌，替代科倍隆ZRD系列，粉体，叶轮和内衬都需要碳化钨，输送物料0-5kg/min，密度在0.8-2之间，颗粒度粉料2-3mm 。　　14、客户之前用科倍隆ZVD系列，现在需要换成国产品牌，物料：炭黑粉料，锁气卸灰，负压，圆口200管径，6-8L，需要防爆型。

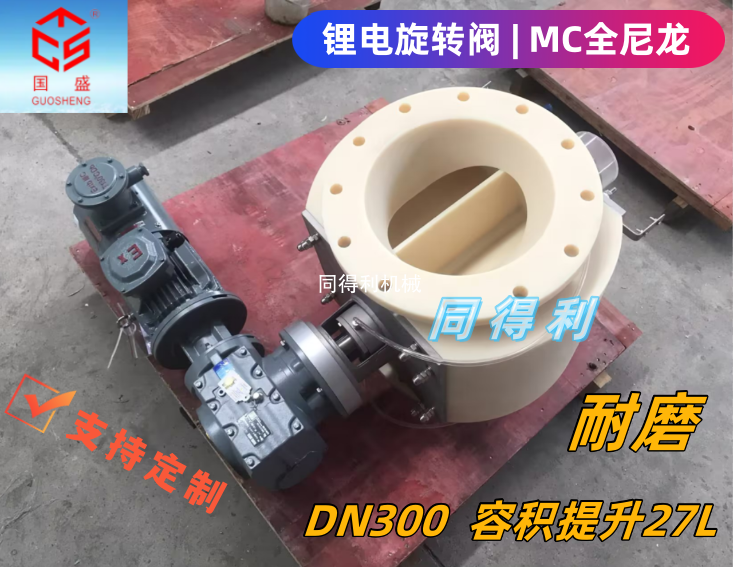

　　MC全尼龙旋转阀/星型卸料阀/关风机，输送新能源锂电原材料，YJD-F-DN300-PN10-27L-1.5kW。物料比重0.5~0.6.输送量14t/h，常温常压，容积27升/转，容积升级版，回转阀转速30r/min。外壳材质MC尼龙，闭式叶轮，转子材质MC尼龙+304.转子与外壳间隙0.6mm。回转阀两轴端密封方式：迷宫气密封+骨架氟油封，端盖材质304+尼龙内衬，轴承密封方式油封，直连驱动，禁铜锌调压阀，透明防尘罩，喷涂工艺：外观喷砂。皖南1.5kW变频禁铜锌电机，防爆，国茂减速机。　　MC尼龙‌：学名单体浇铸尼龙，是己内酰胺单体直接浇铸到模具里聚合而成，分子量很高(是普通尼龙的3倍左右)，所以综合机械性能强，特别适合做‌大型厚壁件‌或异形件。选MC尼龙‌：需要耐磨、低噪音、抗冲击的场景，尤其是替代铜、钢等金属的耐磨件。　　‌PA66‌：学名聚己二酰己二胺，由己二胺和己二酸缩聚而成，通常用注塑或挤出工艺加工，分子链排列更规整，刚性和耐热性更突出。选PA66‌：需要高刚性、高尺寸精度、耐高温的结构件。名称MC尼龙PA66耐磨性显著更优，自润滑性好，干摩擦也能用一般，需要外部润滑刚性/强度拉伸强度约60-70MPa更高，约80-90MPa冲击韧性更好，能承受动态载荷和振动稍弱，低温下易变脆耐低温更好，-40℃冲击韧性几乎不减低温下冲击强度下降耐热性长期使用80℃，熔点约220℃长期使用80℃，熔点约260℃　　改性尼龙性能更优于MC尼龙优于PA66。　　改性尼龙旋转阀--全球只此一家　　主要结构：壳体、叶轮、端盖，采用改性尼龙。　　主要用于输送锂电池正极材料、磷酸铁锂、三元材料、液态锂电池材料六氟磷酸锂等。　　特点：改性尼龙比普通尼龙更耐磨、耐高温。　　技术研发于2016年，批量生产于2018年，2020年更新第4代尼龙星型旋转阀，目前有尼龙星型旋转阀专利。　　电机、减速机：皖南、卧龙、国茂、西门子、ABB、SEW、Flender、NORD、住友、防爆型可选，或客户指定品牌。　　部分客户需求：　　锂电负极材料，全尼龙星型给料机\圆形，处理量Q=2t/h。处理量:22L/min;叶轮:8片;容积:1L/r;电机功率:0.75kw;电源:380V，50HZ;腔体高度:300mm;减速比:i=56.73;进出口连接口径:DN150.PN10 法兰;壳体及转子整体采用材质为尼龙材质;电机采用SEW/诺德/住友/国茂减速电机，电机为带风扇变频电机，频率30Hz，保证给料速度均匀搭配变频器使用，减速电机无过载，过热异常现象。轴承座与轴承盖采用SUS304不锈钢材质;整机不含铜、锌、镍单质及不含镀铜、锌、镍件，整机无生锈点;轴密封:油封，轴承外置。　　全尼龙关风机，锂电池正极粉体材料关风锁气及均匀下料:最大下料速度不低于12L/min，速度可调;满足三元(单晶、多晶)、钴酸锂产品、氢氧化锂使用要求。壳体:尼龙材质;转子:尼龙材质，整体式;进出口连接:DN200 PN10法兰连接;轴密封:采用气密封与盘根密封型式;电机座与轴套:采用SUS304材质;总高:控制在400mm。电机选用带风扇变频电机，选用国际品牌，SEW、住友;提供功率负荷及电源配置;轴承选用用国际知名品牌(SKF或同等品牌);电机防护等级不低于IP54;电机能效等级不低于国家最新标准I级能效要求。　　项目：锂电配套设备;锂电尼龙旋转阀，输送磷酸铁锂原料，采用变频器控制下料速度;耐磨尼龙转子，阀体材质SUS304内衬尼龙，间隙设计需防止受热卡顿。轴套需非金属耐磨,且轴套长度需延伸到尼龙转子的端面;阀体侧壁偏下设吹气孔，304不锈钢吹气管，电机采用变频电机，减速机采用齿轮;旋转阀总高度约400mm，有效容积≥6L，额定转速25转/min(变频可调) 。　　全尼龙旋转阀，输送三元材料，阀体参数:尺寸:DN250;转子容积:4L/;转速：24rmin;工作温度<80℃;材质：阀体密封：全尼龙;配套螺丝、垫片，国茂减速机，卧龙电机。　　锂电行业用，尼龙旋转阀主轴轴芯304的，转子和腔体都是尼龙的，端板和轴承座304的，轴芯要整轴，不能用断开的。腔体与转子材质为尼龙(PA66)，主轴与端板及其他零件为304不锈钢，端板与腔体物料接触部分衬2mm四氟板，按规定部位喷涂0.1MM厚纳米陶瓷，转子、腔体、主轴、端板与物料接触部分无裸露金属，皖南三相电机，国茂减速机，禁铜锌。DN200电机功率0.75KW变频,DN250电机功率1.5KW变频。　　(锥形混合釜)星形卸料阀，规格:DN300.容积16升/转，满频(50HEZ)转速≥32转/min;壳体及叶轮:材质MC尼龙，闭式叶轮，叶轮与腔壁单边间隙1.2mm;密封形式:气密封+芳纶浸四氟盘根密封组合;减速机品牌:国茂;电机品牌:皖南、卧龙南阳、佳木斯，二级能效，防水等级:IP55.变频控制，散热风扇独立供电;法兰标准符合BG20592.　　常州同得利机械厂/江苏同得利科技专业的团队，拥有二十余年经验，定制、设计、研发、生产经验丰富。为您提供专业的设计、选材和指导，为不同使用工况量身打造一体化的输送设备。自动精加工中心，搭配进口自动设备，专有生产工装，提高生产效率和精度。　　MC all nylon rotary valve/star shaped discharge valve/shut-off fan, conveying new energy lithium battery raw materials, YJD-F-DN300-PN10-27L-1.5kW。 The material has a specific gravity of 0.5~0.6. a conveying capacity of 14t/h, normal temperature and pressure, a volume of 27 liters/revolution, an upgraded volume version, and a rotary valve speed of 30r/min. The shell material is MC nylon, the closed impeller, the rotor material is MC nylon+304. and the gap between the rotor and the shell is 0.6mm. The sealing method for both shaft ends of the rotary valve is labyrinth gas seal+skeleton fluorine oil seal, the end cover material is 304+nylon lining, the bearing sealing method is oil seal, direct drive, copper zinc pressure regulating valve, transparent dust cover, spraying process: sandblasting for appearance. Wannan 1.5kW variable frequency copper zinc motor, explosion-proof, Guomao reducer.　　MC Nylon: It is a synthetic casting nylon made by directly casting caprolactam monomer into a mold and polymerizing it. It has a high molecular weight (about three times that of ordinary nylon), so it has strong comprehensive mechanical properties and is particularly suitable for making large thick walled or irregular parts. Choose MC nylon: for scenarios that require wear resistance, low noise, and impact resistance, especially for wear-resistant parts that replace copper, steel, and other metals.　　PA66: scientific name polyhexamethylenediamine, formed by the condensation of hexamethylenediamine and adipic acid. It is usually processed by injection molding or extrusion technology, with more regular molecular chain arrangement, outstanding rigidity and heat resistance. Choose PA66: structural components that require high rigidity, high dimensional accuracy, and high temperature resistance.　　Modified nylon has better performance than MC nylon and PA66　　Modified Nylon Rotary Valve - The Only One in the World　　Main structure: shell, impeller, end cover, made of modified nylon.　　Mainly used for transporting lithium battery cathode materials, lithium iron phosphate, ternary materials, liquid lithium battery materials such as lithium hexafluorophosphate, etc.　　Characteristics: Modified nylon is more wear-resistant and heat-resistant than ordinary nylon.　　The technology was developed in 2016. mass-produced in 2018. and the fourth generation nylon star shaped rotary valve was updated in 2020. Currently, there is a patent for nylon star shaped rotary valve.　　Motors and reducers: Wannan, Wolong, Guomao, Siemens ABB、SEW、Flender、NORD、 Sumitomo, explosion-proof type optional, or customer specified brand.　　Partial customer requirements:　　Lithium battery negative electrode material, all nylon star shaped feeder/circular, processing capacity Q=2t/h. Processing capacity: 22L/min; Impeller: 8 pieces; Capacity: 1L/r; Motor power: 0.75kw; Power supply: 380V, 50HZ; Chamber height: 300mm; Reduction ratio: i=56.73; Import and export connection diameter: DN150. PN10 flange; The shell and rotor are made of nylon material as a whole; The motor adopts SEW/Nord/Sumitomo/Guomao reduction motor. The motor is a variable frequency motor with a fan, with a frequency of 30Hz, to ensure uniform feeding speed. When used with the frequency converter, the reduction motor has no overload or overheating abnormalities. The bearing seat and bearing cover are made of SUS304 stainless steel material; The whole machine does not contain copper, zinc, or nickel elements, and does not contain copper, zinc, or nickel plated parts. The whole machine has no rust spots; Shaft seal: oil seal, external bearing.　　All nylon shut-off fan, lithium battery positive electrode powder material shut-off air lock and uniform feeding: maximum feeding speed not less than 12L/min, adjustable speed; Meet the requirements for the use of ternary (single crystal, polycrystalline), lithium cobalt oxide products, and lithium hydroxide. Shell: Nylon material; Rotor: Nylon material, integral type; Import and export connection: DN200 PN10 flange connection; Shaft seal: adopts gas seal and packing seal types; Motor seat and shaft sleeve: made of SUS304 material; Total height: controlled at 400mm. The motor is a variable frequency motor with a fan, selected from an international brand, SEW、 Sumitomo; Provide power load and power configuration; The bearings shall be selected from internationally renowned brands (SKF or equivalent); The motor protection level shall not be lower than IP54; The energy efficiency level of the motor shall not be lower than the latest national standard I energy efficiency requirement.　　Project: Lithium battery supporting equipment; Lithium ion nylon rotary valve, conveying lithium iron phosphate raw materials, using frequency converter to control the feeding speed; Wear resistant nylon rotor, valve body material SUS304 lined with nylon, gap design to prevent thermal jamming. The shaft sleeve should be non-metallic and wear-resistant, and the length of the shaft sleeve should extend to the end face of the nylon rotor; Under the side wall of the valve body, there are blowing holes and 304 stainless steel blowing pipes. The motor uses a variable frequency motor, and the reducer uses gears; The total height of the rotary valve is about 400mm, the effective volume is ≥ 6L, and the rated speed is 25 revolutions per minute (adjustable by frequency conversion).　　Full nylon rotary valve, conveying ternary materials, valve body parameters: size: DN250; Rotor volume: 4L/; speed: 24rmin; Working temperature<80 ℃; Material: Valve body seal: All nylon; Supporting screws, gaskets, Guomao reducer, Wolong motor.　　For the lithium battery industry, the main shaft core of the nylon rotary valve is made of 304. and the rotor and cavity are made of nylon. The end plate and bearing seat are made of 304. and the shaft core must be intact and cannot be disconnected. The material of the cavity and rotor is nylon (PA66), and the main shaft, end plate, and other parts are made of 304 stainless steel. The contact part between the end plate and the cavity material is lined with 2mm PTFE plate, and 0.1mm thick nano ceramic is sprayed according to the specified location. There is no exposed metal in the contact part between the rotor, cavity, main shaft, end plate, and material. Wannan three-phase motor, Guomao reducer, copper zinc is prohibited. DN200 motor power 0.75KW frequency conversion, DN250 motor power 1.5KW frequency conversion.　　(Cone mixing kettle) star shaped discharge valve, specification: DN300. volume 16 liters/rpm, full frequency (50HEZ) speed ≥ 32 revolutions/min; Shell and impeller: made of MC nylon, closed impeller, with a single-sided gap of 1.2mm between the impeller and the cavity wall; sealing form: combination of airtight seal and aramid impregnated PTFE packing seal; Gearbox brand: Guomao; Motor brands: Wannan, Wolong Nanyang, Jiamusi, second level energy efficiency, waterproof rating: IP55. variable frequency control, independent power supply for cooling fan; The flange standard complies with BG20592.　　Changzhou Tongdeli Machinery Factory/Jiangsu Tongdeli Technology has a professional team with over 20 years of experience in customization, design, research and development, and production. We provide professional design, material selection, and guidance to tailor integrated conveying equipment for different operating conditions. Automatic precision machining center, equipped with imported automatic equipment and proprietary production fixtures, improves production efficiency and accuracy.

　　【料仓破拱】　　什么是破拱机?　　破拱机，也称解桥器，是一种用于处理粉体物料的机器设备。它能有效地破除物料中的桥梁效应，以确保物料在生产和运输中的顺畅流动。破拱机主要由外壳、旋转器、电动机、减速机、传动装置、支架、进出料口等组成。它能够适用于多种颗粒大小和料种的物料处理。　　破拱机原理：　　破拱机主要通过旋转器的高速旋转来产生离心力，使物料沿着机器的壁面滚动，并在离心力的作用下逐渐下降。这一过程中，物料之间的碰撞摩擦和壁面的作用力逐渐将物料中的桥梁形成的结构破坏解除，使物料恢复自然状态，从而保证物料的正常通畅流动。【电话/微信咨询：陈经理18068546632】 　　破拱机的应用：　　破拱机能有效的加强不同领域中各种物料的流动性并保持顺畅卸料，它广泛应用在具有不同堆积密度、粒度、含水率等特性的各种物料上，可以安装在如：金属、混凝土、木质、玻璃纤维等材质的料仓、料斗和筒仓，以及溜槽、混凝土计量器、气力输送变径处、管道、通道、筛子和给料器等装置上，解决物料堵塞、架拱、搭桥、老鼠洞和粘壁等等的料仓卸料难题。即使有些流动性极差的物料，也可以通过先进先出的卸料方式，蕞终完全的清空料仓。可选气密封装置，密封锁气，防漏料，防止料进入密封圈。　　可选材质：不锈钢304~316.钛合金，铝合金，各种合金，陶瓷，尼龙，四氟，聚氨酯，碳化钨，特氟龙，PP聚丙烯，碳钢等。根据物料特性可选不同材质。【电话/微信咨询：陈经理18068546632】 　　【针对物料破拱】　　破拱.锁气.防冲料.组合型螺旋输送机　　破拱部分+螺旋输送部分+关风阀.　　特点：解决物料容易架桥.适用与压力输送.　　主要材质：不锈钢食品抛光304.316.310.等.钛合金.各种合金.喷涂陶瓷.尼龙.碳化钨.四氟.特氟龙等.【电话/微信咨询：陈经理18068546632】　　破拱机应用范围：　　矿山矿石类　　铝  铜  重晶石(BASO)涂料用 硅藻土(过滤用)  磁矿石  水泥 灰尘 面粉 谷物 灭草剂  铁矿石 黄麻产品  高岭土  谷类粗粉  干果与种子  石英 树脂 二氧化钛 铀 胡桃壳 黄松屑 氧化锌   彭润土　　化学制品类　　脂肪酸  银石灰岩  氧化铝  硼酸  碳酸钙  煅烧与烘培成的粉末  灭草剂  铁氧化物  生石灰  钠　　醋酸锌  鉻酸锌  锌氧化物  二氧化钛 聚丙烯酰胺　　食品类　　动物饲料 酿酒谷物 巧克力 可可粉  咖啡 面粉  谷物 干果  盐  粗粉  食糖　　其他　　水泥 石灰粉  树皮屑  洗涤剂  肥料或化肥   飞尘  软泥, 淤泥, 矿泥, 煤泥  树脂  塑料  铸造用砂  医药品            【电话/微信咨询：陈经理18068546632】            《扫二维码-添加 陈经理 微信-咨询破拱机》

　　螺旋输送机/‌绞龙输送机/螺杆上料机专为塑料及粉体生产加工行业设计制造，本机与物料接触部分全部采用不锈钢制作，可与各种规格挤出机，高速混合机，塑料搅拌机配套使用，广泛适用于各类粉状，粒状，回收破碎等物料的上(送)料用途。 可多机串联使用，具有：自动控制加料，维修方便，安全可靠，提高工作效率等优点。接触物料采用不锈钢制作，输送过程中原料完全不受污染，不带入任何异物，能使生产过程中实现封闭自动化。　　The screw conveyor/auger conveyor/screw feeder is designed and manufactured specifically for the plastic and powder production and processing industry. The parts in contact with the materials are all made of stainless steel and can be used in conjunction with various specifications of extruders, high-speed mixers, and plastic mixers. It is widely used for feeding various types of powder, granular, recycled and crushed materials. It can be used in series with multiple machines and has the advantages of automatic feeding control, convenient maintenance, safety and reliability, and improved work efficiency. The contact material is made of stainless steel, and the raw materials are completely uncontaminated during the transportation process, without bringing in any foreign objects, which can achieve closed automation in the production process.【电话/微信咨询：陈经理18068546632】　　【螺旋输送机类型】：　　1、破拱.锁气.防冲料.组合螺旋送料机;　　2、双向螺旋输送机;　　3、精准喂料螺旋送料机;　　4、子母螺旋输送机 / 双轴;　　5、提升螺旋输送 / 垂直;　　6、双螺旋输送机;　　7、滑杆快拆螺旋送料机;　　8、高温螺旋输送机；       9、水冷式螺旋输送机 ≥1000℃ 。　　Spiral conveyor type: arch breaking Lock the air Anti erosion material Combination spiral feeder; Bidirectional screw conveyor; Precision feeding screw feeder; Mother child screw conveyor; Enhance spiral conveying; Double helix conveyor; Sliding rod quick disassembly spiral feeder; High temperature screw conveyor.　　【主要材质】：不锈钢食品抛光304.316.310.等.钛合金.喷涂陶瓷.碳化钨.四氟.陶瓷.尼龙.碳钢.定制.   (总有一款适合您的需求)【电话/微信咨询：陈经理18068546632】          《扫二维码-添加 陈经理 微信-咨询螺旋输送机》　　Main materials: stainless steel food polishing 304.316.310. etc Titanium alloy Spray painted ceramics Tungsten carbide Tetrafluoroethylene Ceramics Nylon Carbon steel.   【电话/微信咨询：陈经理18068546632】    【电话/微信咨询：陈经理18068546632】       《扫二维码-添加 陈经理 微信-咨询螺旋输送机》   《扫二维码-添加 陈经理 微信-咨询绞龙螺旋输送机》
