耐高压星型旋转阀主要结构：壳体、叶轮、端盖，采用机械手喷涂，碳化钨、纳米陶瓷、四氟。高压阀主要用于输送锂电池正极材料、磷酸铁锂、三元材料、化工粉料等。耐高压星型旋转阀特点：杜绝金属接触，防腐蚀，增加使用寿命。针对有腐蚀物料、有害气体，实现零泄漏、耐腐蚀、耐磨。压力<1MPa为常规品，高压大于1MPa或10Kg/² 可定制 【电话/微信咨询：陈经理18068546632】轴承外置式安装、经久耐用、性能优异。常州同得利提供链驱动、直连驱动多种安装方式。高温旋转阀，其外壳、盖板、转子以及轴承部件都采用循环水冷却，密封材料和轴承部分能承受在高温下正常运转，适用于钢厂、电厂、环保、污泥逢烧、桔杆逢烧、窑底出料、锅炉排料、真空杀菌等行业。也可根据用户要求进行结构设计制造，确保安全正常工作。【电话/微信咨询：陈经理18068546632】<1000℃为常规品，高温大于1000℃ 可定制。           《扫二维码-添加 陈经理 微信-咨询产品/报价》The main structure of the high-pressure resistant star shaped rotary valve includes a shell, impeller, and end cover, which are sprayed by a robotic arm, tungsten carbide, nano ceramic, and PTFE.High pressure valves are mainly used for transporting lithium battery cathode materials, lithium iron phosphate, ternary materials, chemical powders, etc.Characteristics of high-pressure star shaped rotary valve: eliminating metal contact, preventing corrosion, and increasing service life.To achieve zero leakage, corrosion resistance, and wear resistance for corrosive materials and harmful gases. Pressure<1MPa is a standard product, while high pressure greater than 1MPa or 10Kg/² can be customizedExternal installation of bearings, durable and excellent performance.Changzhou Tongdeli provides multiple installation methods for chain drive and direct drive.High temperature rotary valve, its shell, cover plate, rotor, and bearing components are all cooled by circulating water. The sealing material and bearing parts can withstand normal operation at high temperatures, and are suitable for industries such as steel mills, power plants, environmental protection, sludge burning, orange stem burning, kiln bottom discharge, boiler discharge, vacuum sterilization, etc. Structural design and manufacturing can also be carried out according to user requirements to ensure safe and normal operation.<1000 ℃ is a standard product, while high temperatures above 1000 ℃ can be customized.

　　耐高压星型卸料阀主要用于化工原料输送。　　针对有腐蚀物料、有害气体，实现零泄露、耐腐蚀、耐磨。　　主要材质：哈氏合金、钛合金、各种合金、不锈钢。　　常州同得利机械厂拥有多年的研发生产/定制旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粉料、超微粉体等。我们也提供卫生或高压要求的解决方案。          【电话/微信咨询：陈经理18068546632】　　The high-pressure star shaped discharge valve is mainly used for the transportation of chemical raw materials.　　To achieve zero leakage, corrosion resistance, and wear resistance for corrosive materials and harmful gases.　　Main materials: Hastelloy alloy, titanium alloy, various alloys, stainless steel.　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production, and customization of rotary valves, adhering to the principle of quality first and customer first. Our rotary valve can handle various types of particles, flakes, blocks, powders, and ultrafine powders in industries such as lithium batteries, steel mills, power plants, cement, mines, environmental protection, plastics, chemicals, food, and pharmaceuticals. We also provide solutions for hygiene or high pressure requirements.

　　★高压卸料阀-高压旋转阀适用于-0.8~3kg/cm²系统压力或压差。　　★设置排气口(正压输送时选用)将叶轮旋转带出的气体通过排气口送至排期装置，提高填充效率。　　★极小的间隙和特殊的密封装置保持设备的可靠运行。　　★轴承外置式安装、经久耐用、性能优异。　　★常州同得利提供链驱动、直连驱动多种安装方式。【电话/微信咨询：陈经理18068546632】　　★改型机组进出口安装尺寸一致，是根据不同的安装要求而专门设计的机型。　　★材质主要有：钛合金、铝合金、陶瓷、不锈钢、铸铁等。　　常州同得利机械厂拥有多年的研发生产/定制卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粉料、超微粉体等。【电话/微信咨询：陈经理18068546632】　　★ High pressure discharge valve - High pressure rotary valve suitable for -0.8~3kg/cm ² System pressure or differential pressure.　　★ Set up an exhaust port (selected for positive pressure conveying) to send the gas carried out by the impeller rotation to the scheduling device through the exhaust port, improving the filling efficiency.　　★ The extremely small gap and special sealing device ensure the reliable operation of the equipment.　　★ External installation of bearings, durable, and excellent performance.　　Changzhou Tongdeli provides multiple installation methods, including chain drive and direct drive.　　The inlet and outlet installation dimensions of the modified unit are consistent, and the model is specially designed according to different installation requirements.　　The main materials include titanium alloy, aluminum alloy, ceramics, stainless steel, cast iron, etc.　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production, and customization of discharge valve rotary valves, adhering to the principle of quality first and customer first. Our rotary valve can handle various types of particles, flakes, blocks, powders, and ultrafine powders in industries such as lithium batteries, steel mills, power plants, cement, mines, environmental protection, plastics, chemicals, food, and pharmaceuticals.

　　高压星型旋转阀为我公司自主研发，具备在高压工况下运行能力，耐压能力达到1MPa。　　主要结构：壳体、叶轮、端盖、采购机械手喷涂，碳化钨、纳米陶瓷、四氟。　　主要用于输送电池正极材料，磷酸铁锂，三元材料等。【电话/微信咨询：陈经理18068546632】　　特点：杜绝金属接触，防腐蚀，增加使用寿命。            《扫二维码-添加 陈经理 微信-咨询产品》　　The high-pressure star type rotary valve is independently developed by our company and has the ability to operate under high pressure conditions, with a pressure resistance of up to 1MPa.　　Main structure: shell, impeller, end cover, procurement mechanical arm spraying, tungsten carbide, nano ceramic, PTFE.　　Mainly used for transporting battery cathode materials, lithium iron phosphate, ternary materials, etc.　　Features: Eliminate metal contact, prevent corrosion, and increase service life.

进口品牌 Coperion MD 1820 科倍隆旋转阀：适用于粉料、颗粒和磨料的卸料阀，大型号旋转阀，为高流量设计。适用于重负荷和严苛的应用环境，压力可达1.4 bar(g) [20 psi(g)]可抵抗严苛的冲击力，承受高温达121o C [+250o F]轴封：聚四氟乙烯复合密封，空气吹扫增大入口/出口：增大的截面从而提高产能。【电话/微信咨询：陈经理18068546632】外侧轴承布置：通过密封和物料掉落口将物料和轴承隔开。                                                     （尺寸E600-方口，可按需定制）旋转阀又称卸料阀、星型卸料器、旋转给料器、锁气阀、关风机等，通常星型旋转阀的结构是由带有数片叶片的转子叶轮、壳体、密封件及减速器、电动机等组成。当上部料仓的物料靠自重落下充填在叶片之间的空隙中，随叶片的旋转而在下部卸出，因此星型旋转阀可以定量而连续地卸料。【电话/微信咨询：陈经理18068546632】对标进口品牌-我们是专 业的。常州同得利机械厂拥有多年的研发生产/定制卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粉料、超微粉体等。            《扫二维码-添加 陈经理 微信-咨询产品或定制》The Coperion MD 1820 series rotary valve is suitable for discharging powders, particles, and abrasives. It is a large rotary valve designed for high flow rates.Shaft seal: PTFE composite seal, air blowingIncrease inlet/outlet: Increase the cross-section to improve production capacity.Outer bearing arrangement: Separate the material from the bearing through sealing and material drop ports.Benchmarking imported brands - we are professional. Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of discharge valve rotary valves, adhering to the principle of quality first and customer first. Our rotary valves are capable of handling various types of particles, flakes, blocks, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.

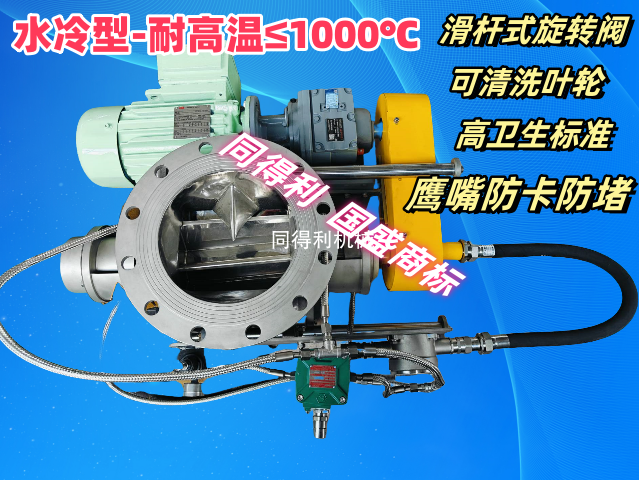

耐高压卸料阀主要用于化工、锂电正极材料、磷酸铁锂、三元材料等原料输送。主要结构：壳体、叶轮、端盖，采用机械手喷涂，碳化钨、纳米陶瓷、四氟。针对有腐蚀物料、有害气体，实现零泄漏、耐腐蚀、耐磨。主要材质：不锈钢、哈氏合金、钛合金、铝合金、各种合金。耐高压卸料阀设置排气口(正压输送时选用)将叶轮旋转带出的气体通过排气口送至排气装置，提高填充效率。【电话/微信咨询：陈经理18068546632】极小的间隙和特殊的密封装置保持设备的可靠运行。High pressure discharge valves are mainly used for transporting raw materials such as chemical, lithium-ion positive electrode materials, lithium iron phosphate, and ternary materials.Main structure: shell, impeller, end cover, sprayed by robotic arm, tungsten carbide, nano ceramic, PTFE.耐高温卸料阀适用于温度过高的物料，很好的降温。阀体：采用整体浇铸于不锈钢全 面通水降温。耐高温卸料阀端盖采用全 面通水降温，避免轴承传递高温。叶轮主轴采用全 面通水降温，避免高温形变，影响同心度。【电话/微信咨询：陈经理18068546632】High temperature resistant discharge valve is suitable for materials with excessively high temperatures, providing excellent cooling.Valve body: It is cast as a whole in stainless steel and fully cooled by water flow.滑杆式卸料阀特点：物料粘接设备，可以快速清理，快速复位。稳定性优于其他开拆式阀门，可原地抽出转子。【电话/微信咨询：陈经理18068546632】                  《扫二维码-添加 陈经理 微信-咨询产品》Features of sliding rod discharge valve: material bonding equipment, can be quickly cleaned and reset.Stability is superior to other detachable valves, and the rotor can be pulled out in place.
