高压卸料阀-高压旋转阀

  ★高压卸料阀-高压旋转阀适用于-0.8~3kg/cm²系统压力或压差。  ★设置排气口(正压输送时选用)将叶轮旋转带出的气体通过排气口送至排期装置,提高填充效率。  ★极小的间隙和特殊的密封装置保持设备的可靠运行。  ★轴承外置式安装、经久耐用、性能优异。  ★常州同得利提供链驱动、直连驱动多种安装方式。  ★改型机组进出口安装尺寸一致,是根据不同的安装要求而专门设计的机型。  ★材质主要有:钛合金、铝合金、陶瓷、不锈钢、铸铁等。  常州同得利机械厂拥有多年的研发生产/定制卸料阀旋转阀的经验,秉承质量第 一、用户至 上的原则。我们的旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粉料、超微粉体等。  ★ High pressure discharge valve - High pressure rotary valve suitable for -0.8~3kg/cm ² System pressure or differential pressure.  ★ Set up an exhaust port (selected for positive pressure conveying) to send the gas carried out by the impeller rotation to the scheduling device through the exhaust port, improving the filling efficiency.  ★ The extremely small gap and special sealing device ensure the reliable operation of the equipment.  ★ External installation of bearings, durable, and excellent performance.  Changzhou Tongdeli provides multiple installation methods, including chain drive and direct drive.  The inlet and outlet installation dimensions of the modified unit are consistent, and the model is specially designed according to different installation requirements.  The main materials include titanium alloy, aluminum alloy, ceramics, stainless steel, cast iron, etc.  Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production, and customization of discharge valve rotary valves, adhering to the principle of quality first and customer first. Our rotary valve can handle various types of particles, flakes, blocks, powders, and ultrafine powders in industries such as lithium batteries, steel mills, power plants, cement, mines, environmental protection, plastics, chemicals, food, and pharmaceuticals.
    相关产品:
  • 化工专用耐高压卸料阀-星型旋转阀

  • 高压卸料阀-高压旋转阀

  • 高压星型旋转阀

立即咨询
参数名称 参数值
品名 高压卸料阀/旋转阀/锁气阀/关风机
应用行业 锂电池,化工
输送物料(介质) 电池正极材料,磷酸铁锂,三元材料,化工原料,粉料
高压卸料阀旋转阀特点 耐腐蚀,耐磨,零泄露
高压卸料阀旋转阀材质 哈氏合金,钛合金,铝合金,陶瓷,不锈钢等

  ★高压卸料阀-高压旋转阀适用于-0.8~3kg/cm²系统压力或压差。

  ★设置排气口(正压输送时选用)将叶轮旋转带出的气体通过排气口送至排期装置,提高填充效率。

  ★极小的间隙和特殊的密封装置保持设备的可靠运行。

  ★轴承外置式安装、经久耐用、性能优异。

  ★常州同得利提供链驱动、直连驱动多种安装方式。

  ★改型机组进出口安装尺寸一致,是根据不同的安装要求而专门设计的机型。

  ★材质主要有:钛合金、铝合金、陶瓷、不锈钢、铸铁等。

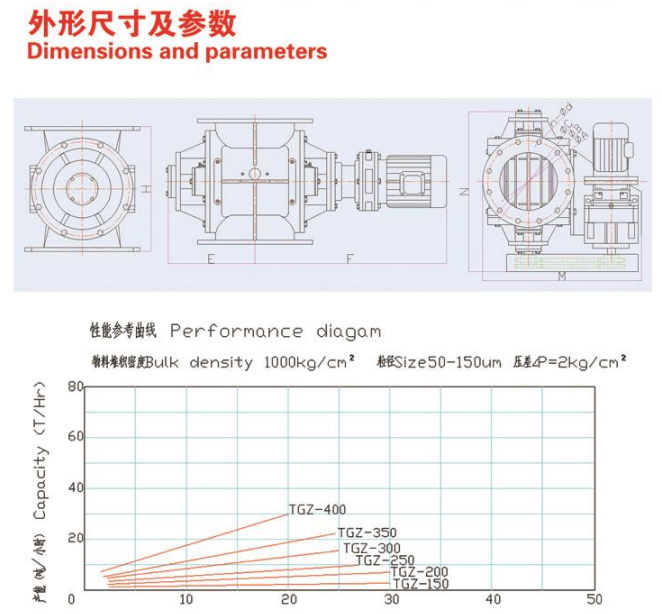

外形尺寸-耐压型

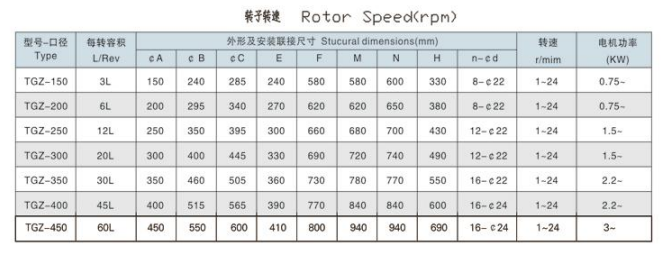

转子转速-耐压型

  常州同得利机械厂拥有多年的研发生产/定制卸料阀旋转阀的经验,秉承质量第 一、用户至 上的原则。我们的旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粉料、超微粉体等。


  ★ High pressure discharge valve - High pressure rotary valve suitable for -0.8~3kg/cm ² System pressure or differential pressure.

  ★ Set up an exhaust port (selected for positive pressure conveying) to send the gas carried out by the impeller rotation to the scheduling device through the exhaust port, improving the filling efficiency.

  ★ The extremely small gap and special sealing device ensure the reliable operation of the equipment.

  ★ External installation of bearings, durable, and excellent performance.

  Changzhou Tongdeli provides multiple installation methods, including chain drive and direct drive.

  The inlet and outlet installation dimensions of the modified unit are consistent, and the model is specially designed according to different installation requirements.

  The main materials include titanium alloy, aluminum alloy, ceramics, stainless steel, cast iron, etc.

  Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production, and customization of discharge valve rotary valves, adhering to the principle of quality first and customer first. Our rotary valve can handle various types of particles, flakes, blocks, powders, and ultrafine powders in industries such as lithium batteries, steel mills, power plants, cement, mines, environmental protection, plastics, chemicals, food, and pharmaceuticals.
