氧化镁料仓配套破拱下料/计量输送一体化系统：1、旋转破拱给料装置要求：法兰DN300 PN10;材质304.刮片材质厂家配套，满足运行需求;设置于氧化镁料仓下部，需满足破拱要求且不对仓壁产生破坏，须确保固体连续出料不堵塞、结块、架桥等。2、计量输送装置要求：材质SS30408;设置于氧化镁料仓下部，固体输送量0~1000 kg/h变频调节，型号及规格厂家根据料仓配套;长度：进出料口中心距约2400mm。

　　料仓/管道堵料，不下料：

　　物料架桥：指松散物料在料斗或筒仓/管道出口处形成稳定的压实拱形结构，导致物料流动受阻。常见于细粉末、纤维物质或高水分材料，随着物料堆积会加剧粘结，蕞终完全堵塞出口。 ‌

　　粘壁问题：物料粘附在料斗内壁，破坏流动均匀性，形成瓶颈。粘结性粉体或粉尘易滋生细菌，尤其在食品、医药行业需频繁人工清洗。液滴或湿料没干透就碰到壁面，多见于喷雾干燥、烘干机进料段，特征是外层焦、内层湿。物料软化点低于干燥温度，受热发黏贴在壁上，常见于含糖、含胶、低熔点物料。

　　机械式破拱装置轻松解决物料架桥、粘壁问题：

　　旋转刮板强行切入拱体，切断物料间的粘结与支撑。刮片把拱体物料刮碎、打散，并推向中心出料口。拱体破坏，物料恢复流动性，靠重力向下排出。

　　安全环保‌：噪音低(低于工业企业噪音标准)、无污染、无公害，不损伤仓体，相比传统人工捅捣、机械震动或气锤式破拱器等方式更安全高 效。

　　控制灵活‌：支持手动、自动和远程控制(可预留DCS接口)，操作简单，能满足不同工况需求。

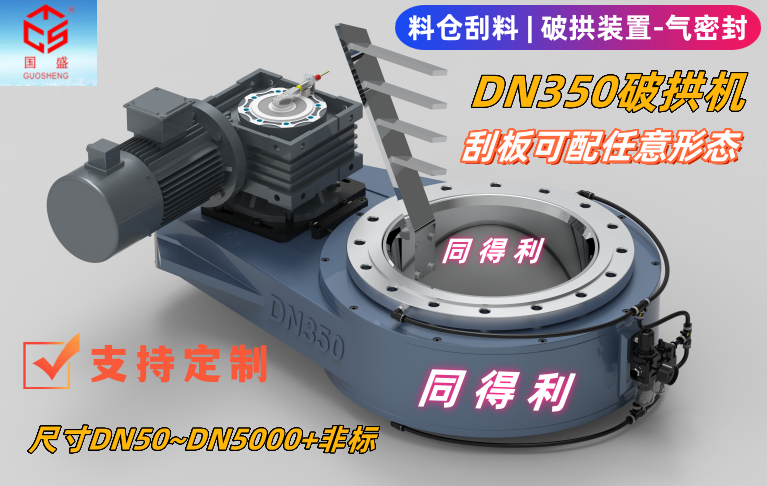

　　破拱器尺寸：DN50~DN1500.或非标定制。

　　刮板样式：F型刮板样式以及上下刮板样式，双刮板，根据料仓样式定制角度，或客户指定样式。

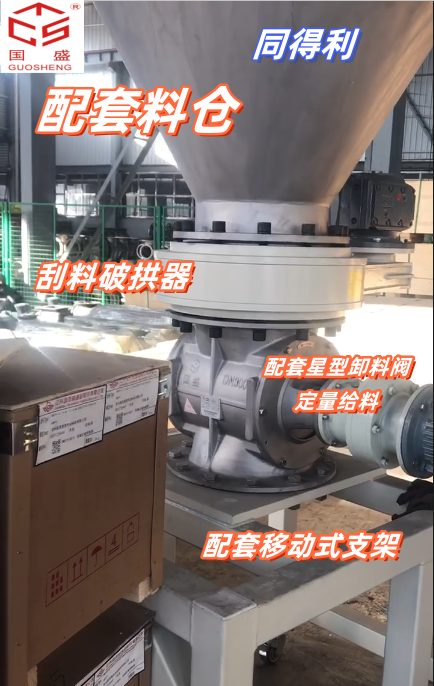

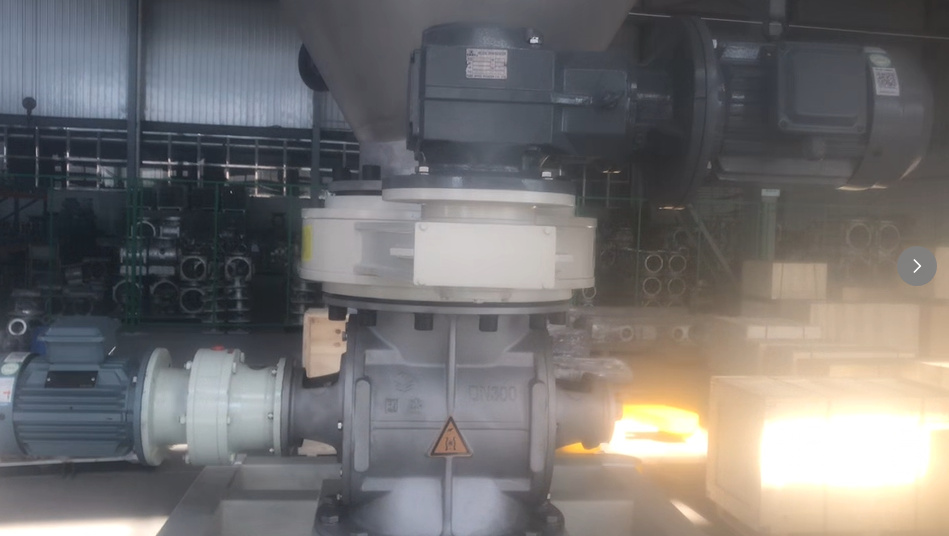

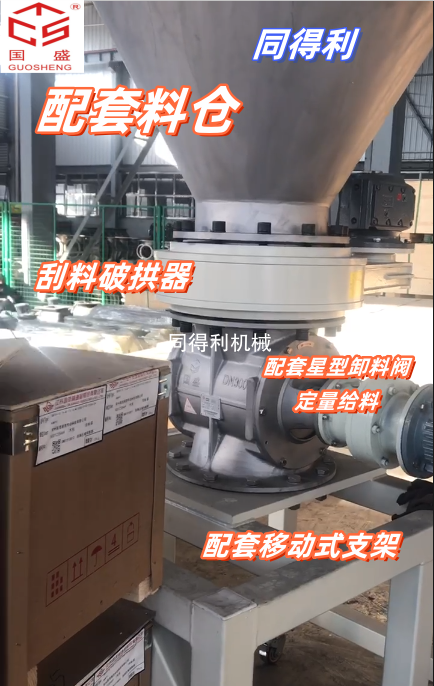

　　破拱装置下方接星型卸料阀：

　　定量卸料‌：叶轮旋转时，把上部料仓的物料连续、均匀地送进下部管道或输料管，起到定量给料或变频给料，避免堵塞或断流。‌‌

　　利用转子与壳体的精密间隙(一般0.1mm~0.6mm)隔断上下部气压，防止负压系统吸入空气、正压系统物料反吹，从而维持系统压力稳定。‌‌

　　部分客户需求：

　　衬四氟下料旋转阀和料仓破拱装置，输送含溴元素物料，有腐蚀性，需防腐，衬四氟的旋转阀，要求DN300.不锈钢衬四氟，固体下料速度50kg/min，阀体上有氮气吹扫管口DN25.另外您那边有对应的刮料破拱器吗?防止物料不下料，架桥或者粘壁，破拱器也需304不锈钢内衬四氟。

　　防卡卸料阀+料仓破拱装置，物料：炭黑，800目，自重下料，DN300.材质不锈钢，下料不均匀，而且堵料卡料，现在用的常规型卸料阀+气锤破拱器，建议换成料仓刮料破拱器，卸料阀防卡型和快拆式可清洗，星型下料阀下面是绞龙螺旋输送机。

　　旋转阀+破拱器，气力系统负压输送，物料铝屑，卸料量每小时3吨，现在出现卡料，料筒里面架桥不下料，旋转下料阀尺寸DN300.材质316L，气密封锁风，且需要防卡型，旋转阀上方配套刮壁破拱器DN300.破拱机高度控制在35cm以内。

　　旋转破拱器  刮壁式破拱装置  破拱机 旋转破拱器 破拱阀 机械式破拱装置  料仓破拱器 料仓破拱装置 旋转式料仓破拱器 粉料结拱刮料破拱器 混凝土下料破拱装置  料仓机械破拱 仓底破拱装置 电动破拱装置 刮板式破拱装置  炉灰斗破拱机  侧壁旋转破拱器  筒仓破拱装置  刮壁破拱装置  蜗杆重载破拱器  蜗杆旋转破拱装置  大型回转破拱机  齿轮破拱器  蜗轮蜗杆破拱器  炭黑仓破拱器

　　我公司专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开清洗阀、防卡旋转阀、偏置防卡、风送直通式旋转阀、高温高压旋转阀、高温水冷式、刮板式自清洁、钛合金陶瓷碳化钨四氟特氟龙尼龙聚氨酯、破拱机、料仓刮料破拱器、打散破碎阀、螺旋输送机等产品。广泛应用于锂电池、食品、石油化工、制药、淀粉、油脂、化工干燥、粮食、饲料、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。

　　Magnesium oxide silo supporting arch breaking feeding/metering and conveying integrated system: 1. Requirements for rotating arch breaking feeding device: flange DN300 PN10; Material 304. matched with scraper material manufacturer to meet operational requirements; Located at the lower part of the magnesium oxide silo, it must meet the requirements of arch breaking and not cause damage to the silo wall. It must ensure that the solid continuous discharge is not blocked, clumped, or bridged. 2. Requirements for measuring and conveying device: Material SS30408; Set at the lower part of the magnesium oxide silo, with a solid conveying capacity of 0-1000 kg/h and variable frequency adjustment. The model and specifications are matched by the manufacturer according to the silo; Length: The center distance between the inlet and outlet is about 2400mm.

　　Blockage of material bin/pipeline, no discharge:

　　Material bridging: refers to the formation of a stable compacted arch structure of loose materials at the outlet of a hopper or silo/pipeline, which hinders the flow of materials. Commonly found in fine powders, fibrous materials, or high moisture materials, as the material accumulates, it will intensify bonding and eventually completely block the outlet.  ‌

　　Wall sticking problem: The material adheres to the inner wall of the hopper, disrupting flow uniformity and forming a bottleneck. Adhesive powders or dust are prone to bacterial growth, especially in the food and pharmaceutical industries where frequent manual cleaning is required. The liquid drop or wet material touches the wall surface before it is completely dry, which is mostly found in the spray drying and the feeding section of the dryer. It is characterized by the outer coke layer and the inner wet layer. The softening point of the material is lower than the drying temperature, and it sticks to the wall when heated. It is commonly found in materials containing sugar, glue, and low melting points.

　　Mechanical arch breaking device easily solves material bridging and wall sticking problems:

　　The rotating scraper forcefully cuts into the arch, cutting off the bonding and support between the materials. The scraper shatters and disperses the arch material, and pushes it towards the central discharge port. The arch is damaged, the material regains fluidity, and is discharged downwards by gravity.

　　Safety and Environmental Protection: Low noise (below the noise standards of industrial enterprises), pollution-free, pollution-free, does not damage the warehouse body, and is safer and more efficient compared to traditional methods such as manual tamping, mechanical vibration, or air hammer arch breakers.

　　Flexible control: supports manual, automatic, and remote control (DCS interface can be reserved), simple operation, and can meet different working conditions requirements.

　　Arch breaker size: DN50~DN1500. or customized non-standard.

　　Scraper style: F-shaped scraper style and upper and lower scraper styles, double scraper, customized angle according to the silo style, or customer specified style.

　　Underneath the arch breaking device is a star shaped discharge valve:

　　Quantitative unloading: When the impeller rotates, the material from the upper silo is continuously and evenly fed into the lower pipeline or conveying pipe, playing a role in quantitative feeding or variable frequency feeding, avoiding blockage or interruption. ‌‌

　　By utilizing the precise gap between the rotor and the housing (usually 0.1mm~0.6mm), the upper and lower air pressure is separated to prevent the negative pressure system from inhaling air and the positive pressure system from blowing back, thereby maintaining stable system pressure. ‌‌

　　Partial customer requirements:

　　The PTFE lined rotary valve and silo arch breaking device are used to transport materials containing bromine elements, which are corrosive and require anti-corrosion measures. The PTFE lined rotary valve requires DN300. stainless steel lined with PTFE, and a solid feeding speed of 50kg/min. The valve body is equipped with a DN25 nitrogen blowing nozzle. Also, do you have a corresponding scraper and arch breaker over there? To prevent materials from not being cut, bridging or sticking to walls, the arch breaker also needs to be lined with 304 stainless steel and PTFE.

　　Anti jamming unloading valve+silo arch breaking device, material: carbon black, 800 mesh, self weight discharge, DN300. The material is stainless steel, with uneven discharge and blockage. The conventional discharge valve and air hammer arch breaker used now are recommended to be replaced with a silo scraper arch breaker. The discharge valve is anti blocking and quick detachable, and can be cleaned. Below the star shaped discharge valve is a screw conveyor.

　　Rotary valve+arch breaker, pneumatic system negative pressure conveying, material aluminum shavings, unloading capacity of 3 tons per hour. Now there is material jamming, and the material cannot be unloaded due to bridging in the material cylinder. The size of the rotary unloading valve is DN300. the material is 316L, and it is airtight and requires anti jamming type. A wall scraping arch breaker DN300 is matched above the rotary valve, and the height of the arch breaker is controlled within 35cm.

　　Our company specializes in the production of (B) GFY, YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening cleaning valves, anti jamming rotary valves, offset anti jamming, air delivery straight through rotary valves, high temperature and high pressure rotary valves, high temperature water-cooled, scraper self-cleaning, titanium alloy ceramic tungsten carbide PTFE PTFE nylon polyurethane, arch breaking machines, silo scraper crushers, fragmentation valves, screw conveyors and other products. Widely used in equipment for industries such as lithium batteries, food, petrochemicals, pharmaceuticals, starch, oils, chemical drying, grain, feed, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.
