料仓破拱卸料阀PGX05一体化破拱/计量装置是同得利专门为料仓下料以及计量设计的机械系统。无论料仓容量大小，该系统均可安装在任何锥形料仓下，使之成为一个紧凑型的破拱输送计量装置，根据客户的要求实现精确控制料仓内物料的下料及输送的投加量/流量。

　　The PGX05 integrated arch breaking/metering device for silo arch breaking and unloading valve is a mechanical system specially designed by Tongdeli for silo unloading and metering. Regardless of the capacity of the silo, this system can be installed under any conical silo, making it a compact arch breaking conveying and measuring device, achieving precise control of the feeding and conveying amount/flow of materials in the silo according to customer requirements.

　　一体化料仓破拱卸料阀PGX05运行原理：

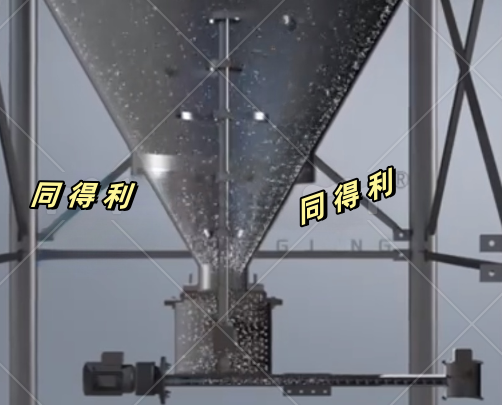

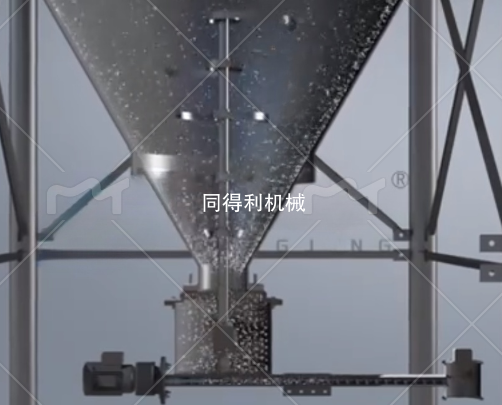

　　一体化料仓破拱卸料阀PGX05的主要部分是一根带有多层柔韧刮片的破拱轴。在料仓锥斗内由减速电机带动旋转使柔韧刮片有效防止拱桥形成并确保持续流动。直接连接在轴上的手臂刮刀使定量输送机能完全被填满从而有效精确地完成体积式定量输送。

　　Operating principle of integrated silo arch breaking discharge valve PGX05:

　　The main part of the integrated silo arch breaking discharge valve PGX05 is a arch breaking shaft with multiple layers of flexible scraper blades. The flexible scraper blade is effectively prevented from forming an arch bridge and ensures continuous flow by being driven to rotate by a reduction motor inside the hopper of the silo. The arm scraper directly connected to the shaft enables the quantitative conveyor to be completely filled, effectively and accurately completing volumetric quantitative conveying.

　　为提高体积式给料机的精确度，可以在设备上加装一套电子装置，成为一台带失重测量功能的称重喂料机。

　　To improve the accuracy of the volumetric feeder, an electronic device can be installed on the equipment to become a weighing feeder with weight loss measurement function.

　　优势：

　　料仓破拱卸料阀机身模块化：可在不更换破拱机身的情况下更换不同的计量输送机类型

　　只需标准尺寸法兰与料斗锥斗连接，易于安装

　　持续稳定下料和准确体积计量

　　使用低能耗电机

　　可带两条独立运行的计量输送机

　　与上下游的其他设备或系统连接便(输送机、污泥搅拌机、星型卸料阀、失重式喂料机等)

　　可完全排空料仓

　　机械下料：不压实或污染物料

　　安装方便灵活 : 360°可旋法兰，输送机长度可调节、可配置

　　柔性或刚性螺旋输送

　　Advantage:

　　Modular body of silo arch breaking discharge valve: different types of measuring conveyors can be replaced without replacing the arch breaking body

　　Simply connect the standard size flange to the hopper cone, easy to install

　　Continuous and stable feeding and accurate volume measurement

　　Use low-energy motors

　　Can carry two independent running measuring conveyors

　　Connecting with other equipment or systems upstream and downstream (such as conveyors, sludge mixers, star discharge valves, weight loss feeders, etc.)

　　Can completely empty the silo

　　Mechanical cutting: Failure to compact or contaminate materials

　　Easy and flexible installation: 360 ° rotatable flange, adjustable and configurable conveyor length

　　Flexible or rigid spiral conveyor

　　破拱机或料仓卸料阀配有一个滑动插板闸阀，并且是全机械式的。粉料始终保持在给料机内，这单独确保了料仓进料时的精确性。料仓卸料器可以安装到一个全新的或者原有的料仓下。而且，给料机(输送机)确保粉料输送过程中的应用。1台破拱机下可以配置2台定量输送机，可以是柔性弯曲或刚性输送机。

　　The arch breaking machine or silo discharge valve is equipped with a sliding gate valve and is fully mechanical. The powder is always kept in the feeder, which ensures the accuracy of feeding into the silo. The silo unloader can be installed under a new or existing silo. Moreover, the feeder (conveyor) ensures the application during the powder conveying process. One arch breaking machine can be equipped with two quantitative conveyors, which can be flexible bending or rigid conveyors.
