常州同得利破拱打散螺旋输送机是一款专为解决粉体物料输送中结块、架桥问题设计的工业设备，通过破拱打散器与螺旋协同技术，实现高粘度、易结块物料的高 效防堵输送。其核心功能聚焦于动态清堵与连续输送，适用于锂电、化工、医药、食品等行业的自动化生产场景。支持ExdIIB T4防爆认证，用于易燃易爆环境。U型槽体或管状通道设计，减少粉尘泄漏，支持正压负压输送环境。

　　Changzhou Tongdeli arch breaking and dispersing screw conveyor is an industrial equipment designed specifically to solve the problems of agglomeration and bridging in powder material transportation. Through the synergistic technology of arch breaking and dispersing device and screw, it achieves efficient anti blocking transportation of high viscosity and easily agglomerated materials. Its core functions focus on dynamic blockage cleaning and continuous conveying, suitable for automated production scenarios in industries such as lithium batteries, chemicals, pharmaceuticals, and food. Support ExdIIB T4 explosion-proof certification for use in flammable and explosive environments. U-shaped groove or tubular channel design reduces dust leakage and supports positive and negative pressure conveying environment.

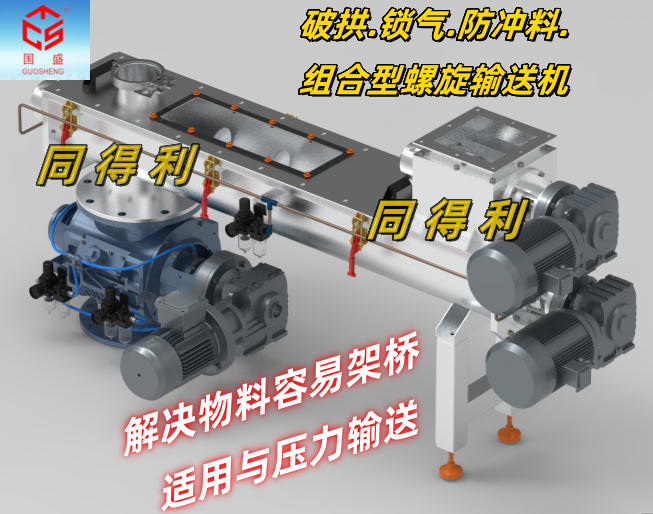

　　破拱打散螺旋输送机组合型：

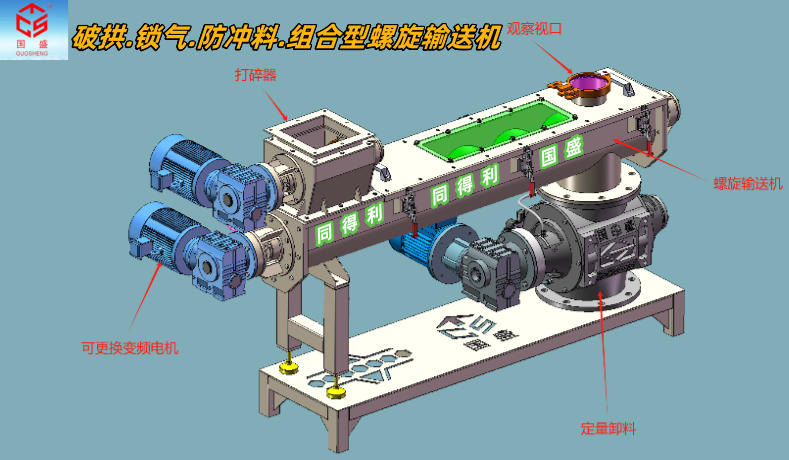

　　结构组成：主轴、螺旋叶片、料槽、机盖、驱动装置、星型卸料阀、打散破拱器等。

　　特点：解决物料容易架桥、适用于压力输送(正压/负压)。

　　行业应用：锂电新能源行业、化工领域、食品加工、医药生产等。

　　规格参考‌：螺旋直径有LSU1200、LSU1000、LSU800、LSU600、LSU500、LSU400、LSU300、LSU250、LSU200、LSU150、LSU100、LSU80等规格，或者非标定制;输送量0.1m³/h~400m³/h。

　　材质：陶瓷、碳化钨、尼龙、四氟、特氟龙、钛合金、铝合金、不锈钢、碳钢等。

　　Combination type of broken arch and broken spiral conveyor:

　　Structural composition: main shaft, spiral blades, material trough, machine cover, driving device, star shaped discharge valve, dispersing and breaking arch device, etc.

　　Features: It solves the problem of easy bridging of materials and is suitable for pressure conveying (positive/negative pressure).

　　Industry applications: lithium battery new energy industry, chemical industry, food processing, pharmaceutical production, etc.

　　Specification reference: Spiral diameter available LSU1200、LSU1000、LSU800、LSU600、LSU500、LSU400、LSU300、LSU250、LSU200、LSU150、LSU100、LSU80 Equal specifications or non-standard customization; The conveying capacity ranges from 0.1m ³/h to 400m ³/h.

　　Materials: ceramics, tungsten carbide, nylon, PTFE, PTFE, titanium alloy, aluminum alloy, stainless steel, carbon steel, etc.

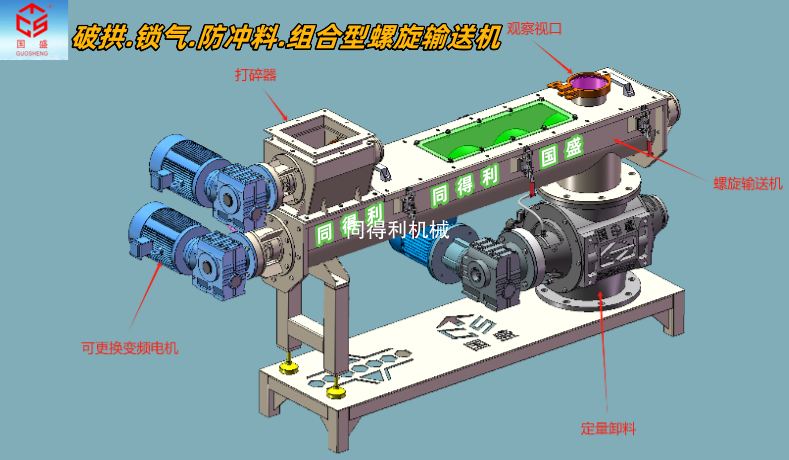

　　破拱打散器-->螺旋输送机-->星型卸料阀：

　　破拱机通过破拱轴或者特殊的螺旋叶片设计(比如齿形、锯齿状)，在输送的同时不断搅动物料，把结块料打散，防止物料在螺旋输送机进料口搭桥堵塞。

　　螺旋输送机进料口接收到上方破拱器打散后的物料，电机带动螺旋轴旋转，螺旋轴转动时，叶片会给物料一个轴向推力，但物料自身有重量，且和料槽壁之间有摩擦力，这两个力让物料不会跟着叶片一起转，只能沿槽底向前移动，输送至下方接口星型卸料阀。

　　星型卸料阀的核心特点是‌既能连续定量卸料，又能锁气密封‌，在气力输送和除尘系统中用来平衡供料与气压隔离。‌‌物料靠自重填入叶片间隙，随叶轮旋转均匀连续排出，卸料量稳定可控。能隔断卸料器上下的气压差，防止负压系统吸入空气或正压系统漏气，保证气力输送稳定。

　　Arch breaking and dispersing device -->Spiral conveyor -->Star shaped discharge valve:

　　The arch breaking machine uses a broken arch shaft or a special spiral blade design (such as toothed or serrated) to continuously stir the material while conveying, breaking up the clumped material and preventing it from being blocked at the feed inlet of the screw conveyor.

　　The feeding port of the screw conveyor receives the material dispersed by the upper arch breaker, and the motor drives the screw shaft to rotate. When the screw shaft rotates, the blades give the material an axial thrust, but the material itself has weight and there is friction between it and the groove wall. These two forces prevent the material from rotating with the blades and can only move forward along the groove bottom, and be transported to the lower interface star shaped discharge valve.

　　The core feature of the star shaped discharge valve is its ability to continuously discharge materials in a quantitative manner while also being able to lock and seal the air. It is used in pneumatic conveying and dust removal systems to balance feeding and air pressure isolation. The material is filled into the blade gap by its own weight and discharged continuously and uniformly with the rotation of the impeller, ensuring a stable and controllable discharge volume. It can isolate the pressure difference between the upper and lower parts of the unloader, prevent the negative pressure system from inhaling air or the positive pressure system from leaking air, and ensure stable pneumatic conveying.

　　高 效混合与防堵设计：

　　螺旋叶片剪切力强，可解决物料结块问题，尤其适用于高粘度或流动性差的粉体(如氢氧化锂、粘性粉末)。

　　优化螺旋结构，减少物料堆积风险，并支持反旋向叶片设计防堵。

　　Efficient mixing and anti blocking design:

　　Spiral blades have strong shear force and can solve the problem of material agglomeration, especially suitable for powders with high viscosity or poor flowability (such as lithium hydroxide and viscous powders).

　　Optimize the spiral structure, reduce the risk of material accumulation, and support anti clogging design of anti rotating blades.

　　耐用性与适配性：

　　关键部件(如轴承、叶片)采用耐磨材料，延长使用寿命。

　　可定制钛材、陶瓷涂层、碳化钨涂层等，耐腐蚀性强，适用于化工、医药等腐蚀性环境或者锂电禁铜锌接触。

　　Durability and adaptability:

　　Key components such as bearings and blades are made of wear-resistant materials to extend their service life.

　　Customization of titanium materials, ceramic coatings, and tungsten carbide coatings is available in Germany. It has strong corrosion resistance and is suitable for corrosive environments such as chemical and pharmaceutical industries, as well as copper zinc contact in lithium batteries.

　　典型应用场景：

　　锂电行业：正负极材料(如磷酸铁锂、三元材料)的防堵输送，保障连续生产。

　　医药制造：原料药的无菌防堵输送，满足洁净室标准。

　　化工生产：催化剂、颜料等高粘度粉体的自动化传输。

　　食品加工：糖粉、淀粉等易结块物料的无尘输送。

　　Typical application scenarios:

　　Lithium battery industry: Anti blocking transportation of positive and negative electrode materials (such as lithium iron phosphate and ternary materials) to ensure continuous production.

　　Pharmaceutical manufacturing: Aseptic and anti blocking transportation of active pharmaceutical ingredients, meeting cleanroom standards.

　　Chemical production: Automated transportation of high viscosity powders such as catalysts and pigments.

　　Food processing: dust-free transportation of easily clumped materials such as sugar powder and starch.

　　同得利服务

　　同得利秉承以下服务承诺:

　　服务目标：服务质量赢得用户满意。

　　严格控制对产品性能的检测，待产品被确认合格后再出厂发货。

　　提供的产品符合报价文件承诺和所签合同规定的技术要求。

　　物美价廉，具有输送系统完全密闭，可以避免输送物料的受潮、污损或混入异物等优势，常用于锂电/化工/药材/食品/塑料/钢厂/电厂/矿山/水泥/环保等行业。

　　Tongdeli Services

　　Tongdeli adheres to the following service commitments:

　　Service objective: To achieve customer satisfaction through high-quality service.

　　Strictly control the testing of product performance, and only ship the product after it is confirmed to be qualified.

　　The products provided meet the technical requirements as promised in the quotation documents and as stipulated in the signed contract.

　　Affordable and cost-effective, with a completely sealed conveying system that can prevent moisture, dirt, or foreign matter from entering the conveyed materials. It is commonly used in industries such as lithium batteries, chemicals, medicinal herbs, food, plastics, steel mills, power plants, mines, cement, and environmental protection.
