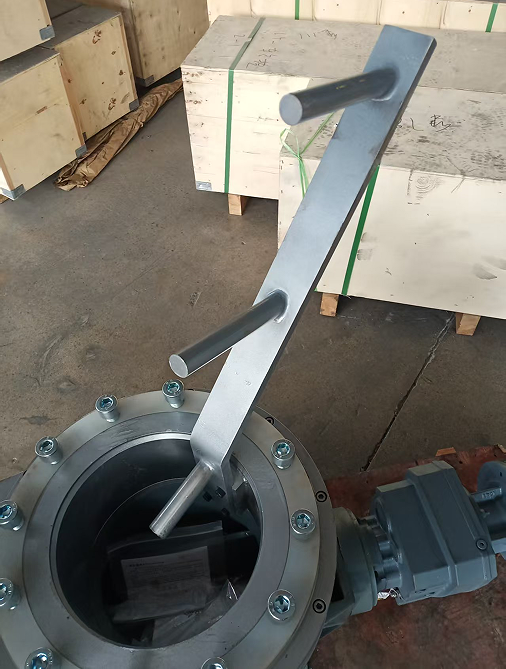

The worm heavy-duty scraper arch breaker is driven by a motor to rotate the worm, which meshes with the worm gear to amplify the torque. The worm gear then drives the inner ring, which in turn drives the scraper to rotate inside the silo, forcing the material to be discharged from the silo and breaking the arch structure of the material, achieving arch breaking. The worm heavy-duty scraper arch breaker solves the problem of arch formation in the silo due to its own characteristics such as moisture, strong adsorption, light density, and easy moisture absorption, such as bridging, mouse holes, and wall sticking.

　　蜗杆重载刮料破拱器由电机带动蜗杆旋转，蜗杆与蜗轮啮合，通过蜗轮蜗杆的传动放大扭矩，再由蜗轮带动内圈，内圈带动刮板在料仓内旋转，强制性使物料从料仓中排出，从而打破物料的拱形结构，实现破拱。蜗杆重载刮料破拱器解决物流因潮湿、吸附性强、比重轻、易吸潮等自身特征在料仓中形成架桥、鼠洞、粘壁等料仓结拱问题。

　　优势：具有扭矩大、传动效率高、能耗低、运行平稳、噪音小等优点，蜗杆重载破拱器还可实现无油全密封，维护成本较低。

　　安装方式：安装于料仓出料口位置，螺栓直接固定即可，安装方便快捷，无需改造。

　　刮板样式：可根据料仓样式定制角度，双刮板样式，F型刮板样式以及上下刮板样式，或客户指定刮板样式。

　　材质选择：全304不锈钢材质，316L不锈钢材质，2205不锈钢材质，或与物料接触304/316.与物料接触部分衬四氟，喷涂特氟龙，喷涂碳化钨，喷涂陶瓷，碳钢材质等。

　　Advantages: It has the advantages of high torque, high transmission efficiency, low energy consumption, smooth operation, and low noise. The worm heavy-duty arch breaker can also achieve oil-free full sealing and low maintenance costs.

　　Installation method: Installed at the discharge port of the silo, directly fixed with bolts, easy and fast to install, no need for modification.

　　Scraper style: The angle, double scraper style, F-type scraper style, and upper and lower scraper styles can be customized according to the silo style, or the scraper style can be specified by the customer.

　　Material selection: Full 304 stainless steel material, 316L stainless steel material, 2205 stainless steel material, or 304/316 in contact with the material. The part in contact with the material is lined with PTFE, sprayed with PTFE, sprayed with tungsten carbide, sprayed with ceramics, carbon steel material, etc.
