物料：农药，草甘膦为主，架桥破拱，材质不锈钢304.DN200.刮板破拱器不能漏料很重要，气密封，国茂减速机，皖南电机。草甘膦粉剂是一种广泛使用的除草剂活性成分，其化学名称为N-(磷酸甲基)甘氨酸。

　　什么是料仓架桥?

　　料仓架桥是指在料仓中由于物料流动阻力大而造成的物料不畅通，呈桥状难以通行的情况。一般来说，料仓架桥常出现在物料质地湿润或粘性较高、料仓壁面摩擦力大、底部物料流出不畅等情况。

　　Material: Pesticide, mainly glyphosate, bridging and breaking, made of stainless steel 304. DN200. It is important that the scraper arch breaker does not leak materials, such as airtight sealing, Guomao reducer, and Wannan motor. Glyphosate powder is a widely used herbicide active ingredient, with the chemical name N - (phosphomethyl) glycine.

　　What is silo bridging?

　　Bunker bridging refers to the situation where materials in a silo are blocked due to high flow resistance, resulting in a bridge like structure that is difficult to pass through. Generally speaking, silo bridging often occurs when the material texture is wet or sticky, the wall friction of the silo is high, and the bottom material does not flow smoothly.

　　解决方案：安装料仓刮料破拱装置

　　工作原理：由电机带动蜗杆旋转，蜗杆与蜗轮啮合，通过蜗轮蜗杆的传动放大扭矩，再由蜗轮带动内圈，内圈带动刮板在料仓内旋转，强制性使物料从料仓中排出，从而打破物料的拱形结构，实现破拱。

　　传动方式选择：齿轮传动，双链条传动和蜗杆传动可根据料仓大小和使用需求选择不同的传动方式。

　　安装方式：安装于料仓出料口位置，螺栓直接固定即可，安装方便快捷，无需改造。

　　刮板样式：双刮板样式，F型刮板样式以及上下刮板样式，可根据料仓样式定制角度，或客户指定样式。

　　破拱器尺寸：DN50~DN1500.或非标定制。

　　破拱器材质：钛材，不锈钢系列304.316L，2205.904.与物料接触部分衬陶瓷、四氟，喷涂陶瓷、喷涂特氟龙，喷涂碳化钨等，与物料接触部分不锈钢，碳钢等。

　　电机、减速机选择：皖南、卧龙、国茂、西门子、ABB、SEW、Flender、NORD、住友，或客户指定品牌，防爆电机可选。

　　密封方式：采用机械密封和气密封多种密封方式，防止物料进入传动装置。

　　耗电低、维修率低‌：具有扭矩大、传动效率高、能耗低、运行平稳、噪音小等优点。结构简单，易损件少，整体维护成本低。‌‌

　　Solution: Install a silo scraping and arch breaking device

　　Working principle: The motor drives the worm gear to rotate, and the worm gear meshes with the worm wheel. The torque is amplified through the transmission of the worm gear, and then the worm wheel drives the inner ring. The inner ring drives the scraper to rotate in the silo, forcing the material to be discharged from the silo, thereby breaking the arch structure of the material and achieving arch breaking.

　　Transmission mode selection: Gear transmission, double chain transmission, and worm gear transmission can be selected according to the size of the silo and usage needs.

　　Installation method: Installed at the discharge port of the silo, directly fixed with bolts, easy and fast to install, no need for modification.

　　Scraper styles: Double scraper style, F-shaped scraper style, and upper and lower scraper styles. The angle can be customized according to the silo style, or the style can be specified by the customer.

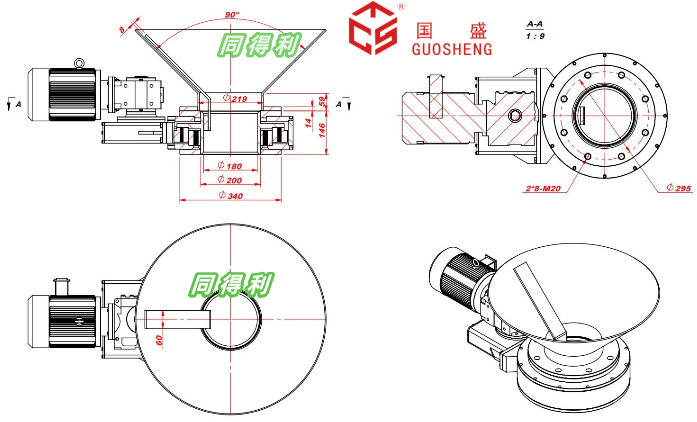

　　Arch breaker size: DN50~DN1500. or customized non-standard.

　　Material of arch breaker: titanium, stainless steel series 304316L, 2205904. lined with ceramic and PTFE in contact with the material, sprayed with ceramic, sprayed with PTFE, sprayed with tungsten carbide, etc., stainless steel, carbon steel in contact with the material.

　　Motor and reducer selection: Wannan, Wolong, Guomao, Siemens ABB、SEW、Flender、NORD、 Sumitomo, or customer specified brand, explosion-proof motor is optional.

　　Sealing method: Multiple sealing methods, including mechanical sealing and gas sealing, are used to prevent materials from entering the transmission device.

　　Low power consumption and low maintenance rate: It has the advantages of high torque, high transmission efficiency, low energy consumption, smooth operation, and low noise. Simple structure, few vulnerable parts, and low overall maintenance cost. ‌‌

　　物料氧化铝细粉，破拱机DN200.1.1KW，转速6转/min，材质304.变频电机西门子，减速机国贸，做个配套的电柜，里面加变频器控制。

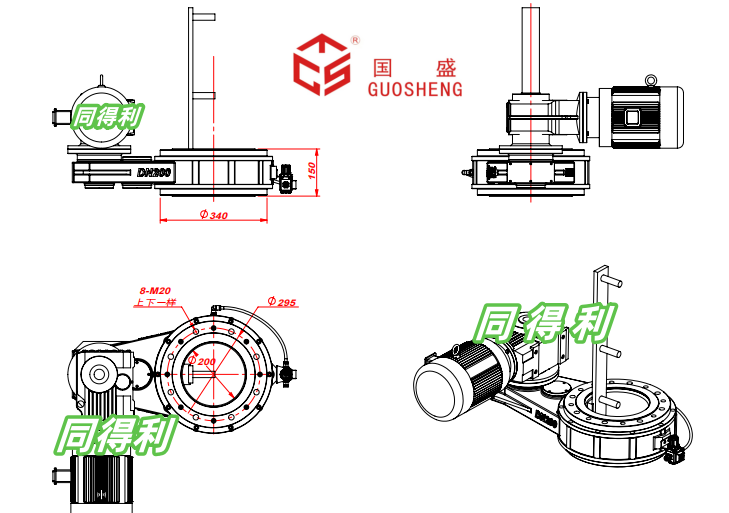

　　刮片破拱器，常规粉料，无腐蚀性，密度0.4.颗粒100-200目之间。规格：DN200.材质：304不锈钢，电机：0.75KW，配RV减速机、国标PN10法兰。

　　公司在强化企业管理的基础上，依靠科技进步提高技术含量，先进的生产加工设备，优质的管理理念，高素质的员工团队，有效的质量保障体系和完善的售后服务，为制造高品质的产品提供可靠的保证，极大的满足了各行业的需求，深受广大客户的信赖。

　　Material alumina fine powder, arch breaking machine DN200. 1.1KW, speed 6 revolutions per minute, material 304. frequency conversion motor Siemens, gearbox Guomao, make a matching electrical cabinet with frequency converter control inside.

　　Scraper arch breaker, conventional powder, non corrosive, density 0.4. particles between 100-200 mesh. Specification: DN200. material: 304 stainless steel, motor: 0.75KW, equipped with RV reducer, national standard PN10 flange.
