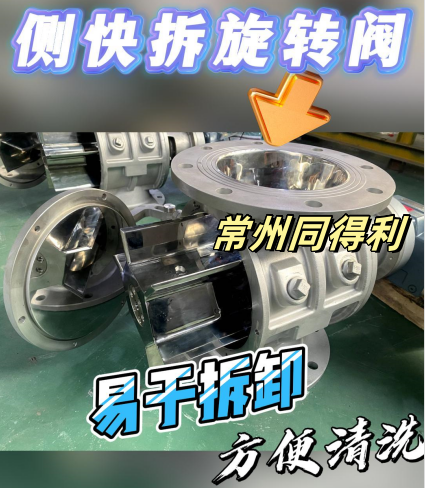

快速清洗旋转阀制作精致、成功使用德、日技术制造之精华。产品拆装灵活、易于清洗。主要用于化工、制药、食品等行业高卫生标准的物料卸料及经常更换物料的场所工作。

　　可拆卸叶轮：便于快速拆卸清洗旋转阀的物料接触面。

　　驱动方式：链驱动/马达直连驱动。

　　动力配置：摆线针轮减速机，Y系列电机(可按客户指定动力配置)

　　侧快拆旋转阀材质：不锈钢304-316、四氟、尼龙、聚氨酯、陶瓷、特氟龙、钛合金、铝合金、不锈钢。【电话/微信咨询：陈经理 18068546632】

　　侧快拆式旋转阀拆卸：松开固定螺栓，打开端盖门，抽出转子，清洗后转子推入壳体内，旋紧定位螺栓。

　　非电机侧的阀体端盖，可快速拆卸并作为清洁时的操作入口，拆卸时可由现场操作人员手动完成，无需特殊工具。

　　提供各种标准的阀体表面处理标准，以满足洁净应用。

　　常用型号：2L  DN150  转速24转/分   电机功率0.75KW

　　6L  DN200  转速24转/分   电机功率0.75KW

　　12L DN250  转速24转/分   电机功率1.1KW

　　16L DN300  转速24转/分   电机功率1.5KW

　　常州同得利机械厂拥有多年的研发生产/定制卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。【电话/微信咨询：陈经理 18068546632】

          《扫二维码-添加 陈经理 微信-咨询侧快拆旋转阀》

　　The rapid cleaning rotary valve is exquisitely made, and successfully uses the essence of German and Japanese technology. The product is flexible in disassembly and easy to clean. Mainly used for unloading materials with high hygiene standards in industries such as chemical, pharmaceutical, and food, as well as working in places where materials are frequently replaced.

　　Detachable impeller: facilitates quick disassembly and cleaning of the material contact surface of the rotary valve.

　　Drive mode: chain drive/direct motor drive.

　　Power configuration: Cycloid pinwheel reducer, Y series motor (can be configured according to customer's specified power)

　　Material of side quick release rotary valve: stainless steel 304-316. PTFE, nylon, polyurethane, ceramic, PTFE, titanium alloy, aluminum alloy, stainless steel.

　　Dismantling of side quick release rotary valve: Loosen the fixing bolts, open the end cover door, extract the rotor, clean it, push the rotor into the housing, and tighten the positioning bolts.

　　The valve body end cover on the non motor side can be quickly disassembled and used as an operating inlet for cleaning. The disassembly can be manually completed by on-site operators without the need for special tools.

　　Provide various standard valve body surface treatment standards to meet clean applications.
