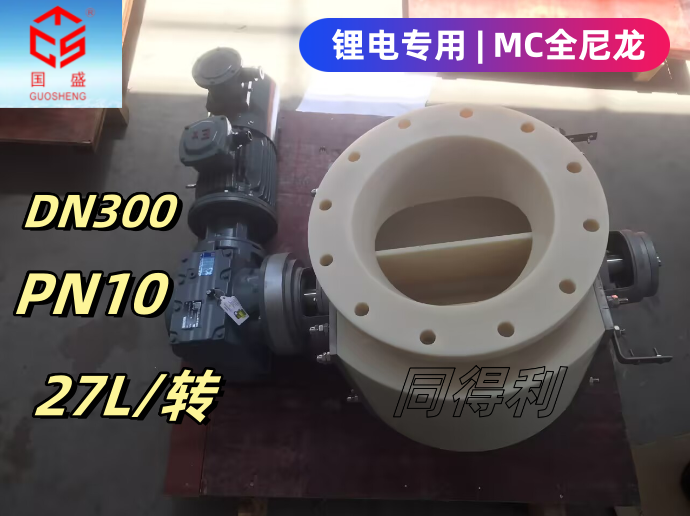

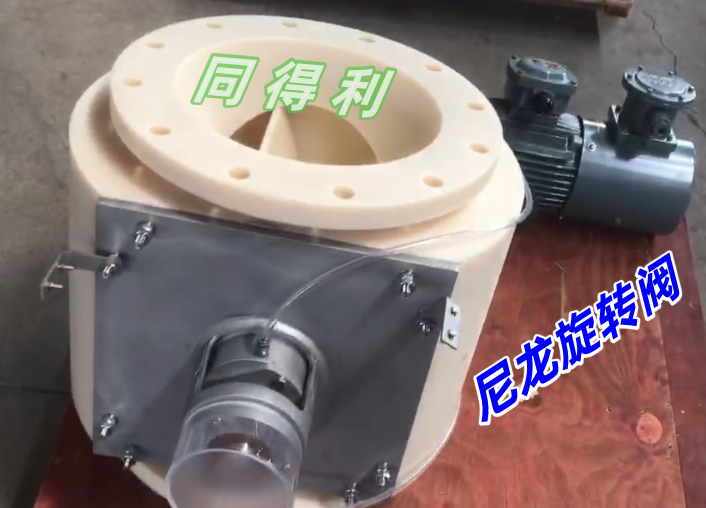

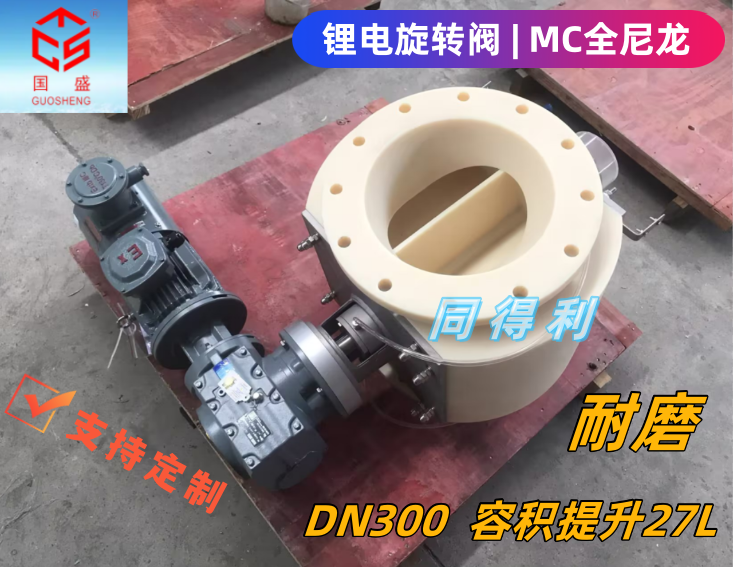

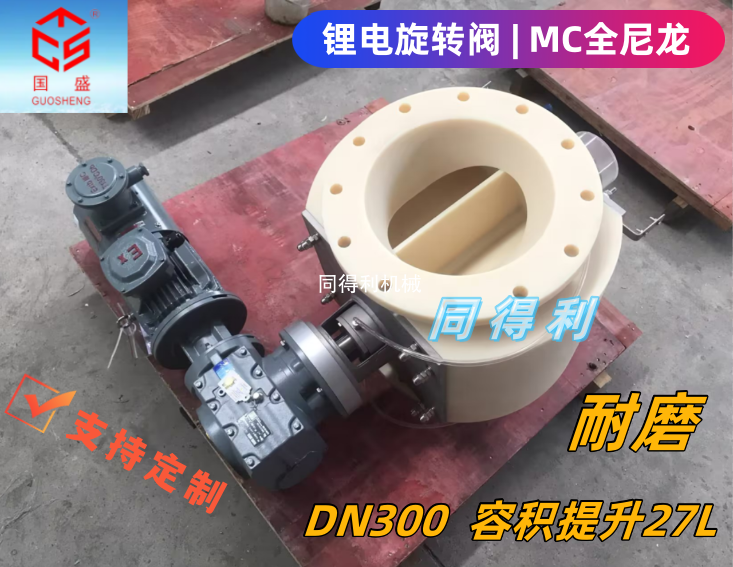

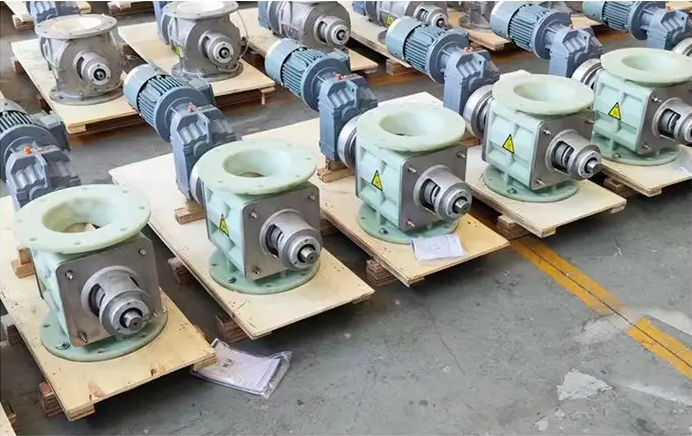

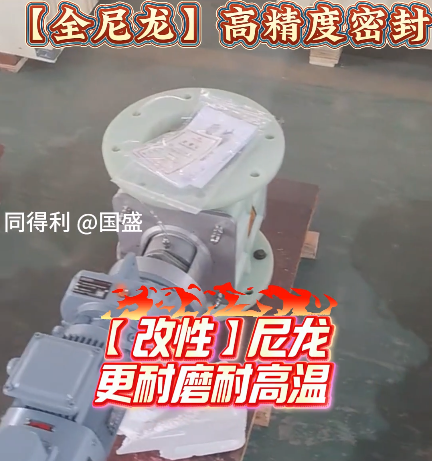

MC全尼龙旋转阀/星型卸料阀/关风机，输送新能源锂电原材料，YJD-F-DN300-PN10-27L-1.5kW。物料比重0.5~0.6.输送量14t/h，常温常压，容积27升/转，容积升级版，回转阀转速30r/min。外壳材质MC尼龙，闭式叶轮，转子材质MC尼龙+304.转子与外壳间隙0.6mm。回转阀两轴端密封方式：迷宫气密封+骨架氟油封，端盖材质304+尼龙内衬，轴承密封方式油封，直连驱动，禁铜锌调压阀，透明防尘罩，喷涂工艺：外观喷砂。皖南1.5kW变频禁铜锌电机，防爆，国茂减速机。　　MC尼龙‌：学名单体浇铸尼龙，是己内酰胺单体直接浇铸到模具里聚合而成，分子量很高(是普通尼龙的3倍左右)，所以综合机械性能强，特别适合做‌大型厚壁件‌或异形件。选MC尼龙‌：需要耐磨、低噪音、抗冲击的场景，尤其是替代铜、钢等金属的耐磨件。　　‌PA66‌：学名聚己二酰己二胺，由己二胺和己二酸缩聚而成，通常用注塑或挤出工艺加工，分子链排列更规整，刚性和耐热性更突出。选PA66‌：需要高刚性、高尺寸精度、耐高温的结构件。名称MC尼龙PA66耐磨性显著更优，自润滑性好，干摩擦也能用一般，需要外部润滑刚性/强度拉伸强度约60-70MPa更高，约80-90MPa冲击韧性更好，能承受动态载荷和振动稍弱，低温下易变脆耐低温更好，-40℃冲击韧性几乎不减低温下冲击强度下降耐热性长期使用80℃，熔点约220℃长期使用80℃，熔点约260℃　　改性尼龙性能更优于MC尼龙优于PA66。　　改性尼龙旋转阀--全球只此一家　　主要结构：壳体、叶轮、端盖，采用改性尼龙。　　主要用于输送锂电池正极材料、磷酸铁锂、三元材料、液态锂电池材料六氟磷酸锂等。　　特点：改性尼龙比普通尼龙更耐磨、耐高温。　　技术研发于2016年，批量生产于2018年，2020年更新第4代尼龙星型旋转阀，目前有尼龙星型旋转阀专利。　　电机、减速机：皖南、卧龙、国茂、西门子、ABB、SEW、Flender、NORD、住友、防爆型可选，或客户指定品牌。　　部分客户需求：　　锂电负极材料，全尼龙星型给料机\圆形，处理量Q=2t/h。处理量:22L/min;叶轮:8片;容积:1L/r;电机功率:0.75kw;电源:380V，50HZ;腔体高度:300mm;减速比:i=56.73;进出口连接口径:DN150.PN10 法兰;壳体及转子整体采用材质为尼龙材质;电机采用SEW/诺德/住友/国茂减速电机，电机为带风扇变频电机，频率30Hz，保证给料速度均匀搭配变频器使用，减速电机无过载，过热异常现象。轴承座与轴承盖采用SUS304不锈钢材质;整机不含铜、锌、镍单质及不含镀铜、锌、镍件，整机无生锈点;轴密封:油封，轴承外置。　　全尼龙关风机，锂电池正极粉体材料关风锁气及均匀下料:最大下料速度不低于12L/min，速度可调;满足三元(单晶、多晶)、钴酸锂产品、氢氧化锂使用要求。壳体:尼龙材质;转子:尼龙材质，整体式;进出口连接:DN200 PN10法兰连接;轴密封:采用气密封与盘根密封型式;电机座与轴套:采用SUS304材质;总高:控制在400mm。电机选用带风扇变频电机，选用国际品牌，SEW、住友;提供功率负荷及电源配置;轴承选用用国际知名品牌(SKF或同等品牌);电机防护等级不低于IP54;电机能效等级不低于国家最新标准I级能效要求。　　项目：锂电配套设备;锂电尼龙旋转阀，输送磷酸铁锂原料，采用变频器控制下料速度;耐磨尼龙转子，阀体材质SUS304内衬尼龙，间隙设计需防止受热卡顿。轴套需非金属耐磨,且轴套长度需延伸到尼龙转子的端面;阀体侧壁偏下设吹气孔，304不锈钢吹气管，电机采用变频电机，减速机采用齿轮;旋转阀总高度约400mm，有效容积≥6L，额定转速25转/min(变频可调) 。　　全尼龙旋转阀，输送三元材料，阀体参数:尺寸:DN250;转子容积:4L/;转速：24rmin;工作温度<80℃;材质：阀体密封：全尼龙;配套螺丝、垫片，国茂减速机，卧龙电机。　　锂电行业用，尼龙旋转阀主轴轴芯304的，转子和腔体都是尼龙的，端板和轴承座304的，轴芯要整轴，不能用断开的。腔体与转子材质为尼龙(PA66)，主轴与端板及其他零件为304不锈钢，端板与腔体物料接触部分衬2mm四氟板，按规定部位喷涂0.1MM厚纳米陶瓷，转子、腔体、主轴、端板与物料接触部分无裸露金属，皖南三相电机，国茂减速机，禁铜锌。DN200电机功率0.75KW变频,DN250电机功率1.5KW变频。　　(锥形混合釜)星形卸料阀，规格:DN300.容积16升/转，满频(50HEZ)转速≥32转/min;壳体及叶轮:材质MC尼龙，闭式叶轮，叶轮与腔壁单边间隙1.2mm;密封形式:气密封+芳纶浸四氟盘根密封组合;减速机品牌:国茂;电机品牌:皖南、卧龙南阳、佳木斯，二级能效，防水等级:IP55.变频控制，散热风扇独立供电;法兰标准符合BG20592.　　常州同得利机械厂/江苏同得利科技专业的团队，拥有二十余年经验，定制、设计、研发、生产经验丰富。为您提供专业的设计、选材和指导，为不同使用工况量身打造一体化的输送设备。自动精加工中心，搭配进口自动设备，专有生产工装，提高生产效率和精度。　　MC all nylon rotary valve/star shaped discharge valve/shut-off fan, conveying new energy lithium battery raw materials, YJD-F-DN300-PN10-27L-1.5kW。 The material has a specific gravity of 0.5~0.6. a conveying capacity of 14t/h, normal temperature and pressure, a volume of 27 liters/revolution, an upgraded volume version, and a rotary valve speed of 30r/min. The shell material is MC nylon, the closed impeller, the rotor material is MC nylon+304. and the gap between the rotor and the shell is 0.6mm. The sealing method for both shaft ends of the rotary valve is labyrinth gas seal+skeleton fluorine oil seal, the end cover material is 304+nylon lining, the bearing sealing method is oil seal, direct drive, copper zinc pressure regulating valve, transparent dust cover, spraying process: sandblasting for appearance. Wannan 1.5kW variable frequency copper zinc motor, explosion-proof, Guomao reducer.　　MC Nylon: It is a synthetic casting nylon made by directly casting caprolactam monomer into a mold and polymerizing it. It has a high molecular weight (about three times that of ordinary nylon), so it has strong comprehensive mechanical properties and is particularly suitable for making large thick walled or irregular parts. Choose MC nylon: for scenarios that require wear resistance, low noise, and impact resistance, especially for wear-resistant parts that replace copper, steel, and other metals.　　PA66: scientific name polyhexamethylenediamine, formed by the condensation of hexamethylenediamine and adipic acid. It is usually processed by injection molding or extrusion technology, with more regular molecular chain arrangement, outstanding rigidity and heat resistance. Choose PA66: structural components that require high rigidity, high dimensional accuracy, and high temperature resistance.　　Modified nylon has better performance than MC nylon and PA66　　Modified Nylon Rotary Valve - The Only One in the World　　Main structure: shell, impeller, end cover, made of modified nylon.　　Mainly used for transporting lithium battery cathode materials, lithium iron phosphate, ternary materials, liquid lithium battery materials such as lithium hexafluorophosphate, etc.　　Characteristics: Modified nylon is more wear-resistant and heat-resistant than ordinary nylon.　　The technology was developed in 2016. mass-produced in 2018. and the fourth generation nylon star shaped rotary valve was updated in 2020. Currently, there is a patent for nylon star shaped rotary valve.　　Motors and reducers: Wannan, Wolong, Guomao, Siemens ABB、SEW、Flender、NORD、 Sumitomo, explosion-proof type optional, or customer specified brand.　　Partial customer requirements:　　Lithium battery negative electrode material, all nylon star shaped feeder/circular, processing capacity Q=2t/h. Processing capacity: 22L/min; Impeller: 8 pieces; Capacity: 1L/r; Motor power: 0.75kw; Power supply: 380V, 50HZ; Chamber height: 300mm; Reduction ratio: i=56.73; Import and export connection diameter: DN150. PN10 flange; The shell and rotor are made of nylon material as a whole; The motor adopts SEW/Nord/Sumitomo/Guomao reduction motor. The motor is a variable frequency motor with a fan, with a frequency of 30Hz, to ensure uniform feeding speed. When used with the frequency converter, the reduction motor has no overload or overheating abnormalities. The bearing seat and bearing cover are made of SUS304 stainless steel material; The whole machine does not contain copper, zinc, or nickel elements, and does not contain copper, zinc, or nickel plated parts. The whole machine has no rust spots; Shaft seal: oil seal, external bearing.　　All nylon shut-off fan, lithium battery positive electrode powder material shut-off air lock and uniform feeding: maximum feeding speed not less than 12L/min, adjustable speed; Meet the requirements for the use of ternary (single crystal, polycrystalline), lithium cobalt oxide products, and lithium hydroxide. Shell: Nylon material; Rotor: Nylon material, integral type; Import and export connection: DN200 PN10 flange connection; Shaft seal: adopts gas seal and packing seal types; Motor seat and shaft sleeve: made of SUS304 material; Total height: controlled at 400mm. The motor is a variable frequency motor with a fan, selected from an international brand, SEW、 Sumitomo; Provide power load and power configuration; The bearings shall be selected from internationally renowned brands (SKF or equivalent); The motor protection level shall not be lower than IP54; The energy efficiency level of the motor shall not be lower than the latest national standard I energy efficiency requirement.　　Project: Lithium battery supporting equipment; Lithium ion nylon rotary valve, conveying lithium iron phosphate raw materials, using frequency converter to control the feeding speed; Wear resistant nylon rotor, valve body material SUS304 lined with nylon, gap design to prevent thermal jamming. The shaft sleeve should be non-metallic and wear-resistant, and the length of the shaft sleeve should extend to the end face of the nylon rotor; Under the side wall of the valve body, there are blowing holes and 304 stainless steel blowing pipes. The motor uses a variable frequency motor, and the reducer uses gears; The total height of the rotary valve is about 400mm, the effective volume is ≥ 6L, and the rated speed is 25 revolutions per minute (adjustable by frequency conversion).　　Full nylon rotary valve, conveying ternary materials, valve body parameters: size: DN250; Rotor volume: 4L/; speed: 24rmin; Working temperature<80 ℃; Material: Valve body seal: All nylon; Supporting screws, gaskets, Guomao reducer, Wolong motor.　　For the lithium battery industry, the main shaft core of the nylon rotary valve is made of 304. and the rotor and cavity are made of nylon. The end plate and bearing seat are made of 304. and the shaft core must be intact and cannot be disconnected. The material of the cavity and rotor is nylon (PA66), and the main shaft, end plate, and other parts are made of 304 stainless steel. The contact part between the end plate and the cavity material is lined with 2mm PTFE plate, and 0.1mm thick nano ceramic is sprayed according to the specified location. There is no exposed metal in the contact part between the rotor, cavity, main shaft, end plate, and material. Wannan three-phase motor, Guomao reducer, copper zinc is prohibited. DN200 motor power 0.75KW frequency conversion, DN250 motor power 1.5KW frequency conversion.　　(Cone mixing kettle) star shaped discharge valve, specification: DN300. volume 16 liters/rpm, full frequency (50HEZ) speed ≥ 32 revolutions/min; Shell and impeller: made of MC nylon, closed impeller, with a single-sided gap of 1.2mm between the impeller and the cavity wall; sealing form: combination of airtight seal and aramid impregnated PTFE packing seal; Gearbox brand: Guomao; Motor brands: Wannan, Wolong Nanyang, Jiamusi, second level energy efficiency, waterproof rating: IP55. variable frequency control, independent power supply for cooling fan; The flange standard complies with BG20592.　　Changzhou Tongdeli Machinery Factory/Jiangsu Tongdeli Technology has a professional team with over 20 years of experience in customization, design, research and development, and production. We provide professional design, material selection, and guidance to tailor integrated conveying equipment for different operating conditions. Automatic precision machining center, equipped with imported automatic equipment and proprietary production fixtures, improves production efficiency and accuracy.
