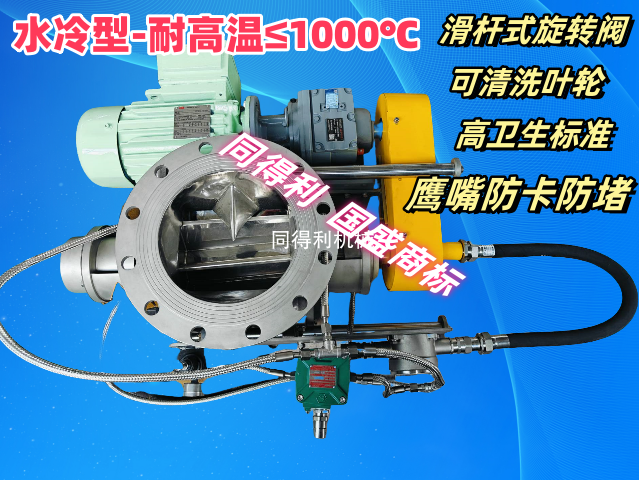

【清洗型】水冷耐高温滑杆式旋转阀，此产品由本公司自主研发生产，其特点集聚一身：水冷式耐高温＜1000℃，鹰嘴防卡防堵，滑杆式可清洗叶轮，高卫生标准。

　　快速清洗旋转阀制作精致、成功使用德、日技术制造之精华。产品拆装灵活、易于清洗。主要用于化工、制药、食品等行业高卫生标准的物料卸料及经常更换物料的场所工作。

　　滑杆式旋转阀可拆卸叶轮：便于快速拆卸清洗旋转阀的物料接触面。

　　驱动方式：链驱动/马达直连驱动。

　　动力配置：摆线针轮减速机，Y系列电机(可按客户指定动力配置)

　　滑杆式旋转阀/星型卸料阀：清洗前的拆卸。松开螺栓手柄，沿导柱将端盖轻轻拉至极限，抽出叶轮，双手握住叶轮两端抽颈取出。清洗后，装入叶轮(转动叶轮使花键齿合)，推入端盖(转动活动轴柄使花键齿合)，拧紧螺栓手柄。【电话/微信咨询：陈经理18068546632】

　　水冷耐高温旋转阀：适用于温度过高的物料，很好的降温。

　　阀体：采用整体浇铸于不锈钢全 面通水降温。

　　端盖采用全 面通水降温，避免轴承传递高温。

　　叶轮主轴采用全 面通水降温，避免高温形变，影响同心度。

　　我公司专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开阀、清洁阀、风送式旋转阀等产品。广泛应用于锂电池、粮食、饲料、石油化工、制药、淀粉、油脂、化工干燥、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。【电话/微信咨询：陈经理18068546632】

     《扫二维码-添加 陈经理 微信-咨询水冷耐高温滑杆式旋转阀》

　　Sliding rod rotary valve/star discharge valve: disassembly before cleaning. Release the bolt handle, gently pull the end cover along the guide column to the limit, extract the impeller, and hold both ends of the impeller with both hands to remove the neck. After cleaning, install the impeller (rotate the impeller to engage the spline teeth), push in the end cover (rotate the movable shaft handle to engage the spline teeth), and tighten the bolt handle.

　　Water cooled high-temperature resistant rotary valve: suitable for materials with excessively high temperatures, providing excellent cooling.

　　Valve body: It is cast as a whole in stainless steel and fully cooled by water flow.

　　The end cover adopts comprehensive water cooling to avoid bearing transmission of high temperature.

　　The impeller spindle adopts comprehensive water cooling to avoid high-temperature deformation and affect concentricity.

　　Our company specializes in the production of (B) GFY, YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening valves, cleaning valves, pneumatic rotary valves and other products. Widely used in equipment for industries such as lithium batteries, grain, feed, petrochemicals, pharmaceuticals, starch, oils and fats, chemical drying, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.
