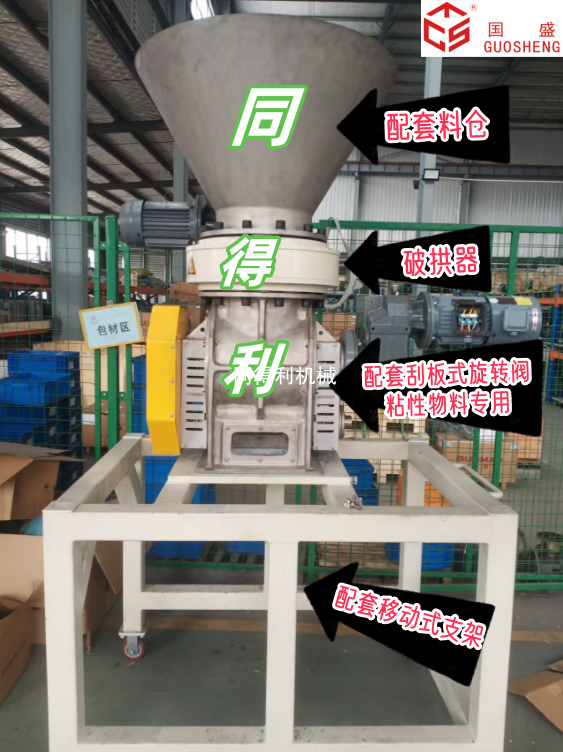

破拱阀安装于生产线料斗下方下料管部位,通过刮刀使粘结在下料管壁上的物料脱落,防止下料管堵塞。下料管规格：DN200.不锈钢材质。刮刀长度：>1380mm，旋转刮下料管道。上下法兰面高度：237mm。刮刀可拆卸，便于日常清洁和后期更换。密封形式：采用气密封和油封双重密封，保证物料与传动机构的绝 对隔离。物料性质：粉末状金属物料，堆比重3.5 g/cm3～4.5 g/cm3.料仓容积：2.8 m³。与物料接触部位必须耐硝酸腐蚀。工作介质：氮氧化物气体(一氧化氮、二氧化氮)、硝酸溶液、硝酸蒸汽、粉状物料、空气、水蒸气。　　The arch breaking valve is installed at the lower part of the discharge pipe under the hopper of the production line, and the material adhered to the wall of the discharge pipe is scraped off by a scraper to prevent blockage of the discharge pipe. Discharge pipe specification: DN200. made of stainless steel material. Scraper length: > 1380mm, rotate the scraper to discharge the material pipeline. Height of the upper and lower flange surfaces: 237mm. The scraper is detachable for easy daily cleaning and later replacement. Sealing form: Double sealing with gas seal and oil seal is adopted to ensure absolute isolation between the material and the transmission mechanism. Material properties: Powdered metal material with a bulk density of 3.5 g/cm3 to 4.5 g/cm3. Storage bin capacity: 2.8 m ³. The parts in contact with the material must be resistant to nitric acid corrosion. Working medium: nitrogen oxide gas (nitric oxide, nitrogen dioxide), nitric acid solution, nitric acid vapor, powdered material, air, water vapor.　　料仓物料为什么会架桥结拱?　　粉体颗粒形状不规则、粒径不均、易吸潮或表面发粘时，颗粒间摩擦力和粘附力增大，容易“抱团”互相咬合搭桥;细粉和超细粉因空隙率高、空气滞留，也极易在挤压后形成稳定料拱。　　Why do silo materials form bridges and arches?　　When the shape of powder particles is irregular, the particle size is uneven, they are prone to moisture absorption, or the surface becomes sticky, the frictional and adhesive forces between particles increase, making it easy for them to "clump" and interlock with each other; Fine powder and ultrafine powder are prone to forming stable material arches after extrusion due to their high porosity and air retention.　　受潮与结块‌：这是粉体料仓架桥的高发原因。物料吸湿后表面形成水膜，颗粒间产生“液桥力”甚至“晶桥”，把相邻颗粒“焊接”在一起;轻微受潮就会让粉体抱团，加剧架桥。　　Moisture and clumping: This is a common cause of bridging in powder silos. After the material absorbs moisture, a water film forms on the surface, and "liquid bridge force" or even "crystal bridge" is generated between particles, which "welds" adjacent particles together; Slight moisture can cause the powder to clump together, exacerbating bridging.　　如何解决物料架桥、结块、堵塞不下料?　　机械式刮料破拱阀破除架桥效果极 佳。电机带动减速机，输出低速大扭矩，驱动旋转轴或回转支承。刮板/刮片紧贴料仓锥壁或出口段做低速圆周运动(或往复滑动)，贴着仓壁刮擦，剥离粘壁物料。刮板切入料拱内部，破坏拱桥的受力点和物料间的内摩擦，让架桥结构垮塌。物料恢复整体流状态，靠重力顺利排出，不再堵塞。对高粘、高湿、含油、易结块的物料效果明显，仓壁振动器和气动破拱装置对这类物料常常效果甚微。　　How to solve material bridging, agglomeration, and blockage that prevent material from being discharged?　　The mechanical scraping arch breaking valve has excellent bridge breaking effect. The motor drives the reducer to output low-speed high torque, driving the rotating shaft or slewing support. Scraper/blade tightly adheres to the cone wall or outlet section of the silo and performs low-speed circular motion (or reciprocating sliding), scraping against the silo wall and peeling off the sticky material. The scraper cuts into the interior of the material arch, damaging the stress points of the arch bridge and the internal friction between the materials, causing the bridge structure to collapse. The material is restored to its overall flow state, smoothly discharged by gravity, and no longer blocked. The effect is obvious for materials with high viscosity, high humidity, oil content, and easy agglomeration, while the wall vibrator and pneumatic arch breaking device often have little effect on such materials.　　破拱器材质：钛材，不锈钢系列304.316L，2205.904.与物料接触部分衬陶瓷、四氟，喷涂陶瓷、喷涂特氟龙，喷涂碳化钨等，与物料接触部分不锈钢，碳钢等。　　刮板样式：一字型/直板型，F型刮板样式，双刮板样式以及上下刮板样式，可根据料仓样式定制角度，或客户指定样式。　　破拱器尺寸：DN50~DN1500.或非标定制。　　密封方式：采用机械密封和气密封多种密封方式，防止物料进入传动装置。　　Material of arch breaker: titanium, stainless steel series 304.316L, 2205.904. The part in contact with the material is lined with ceramics, PTFE, sprayed with ceramics, sprayed with PTFE, sprayed with tungsten carbide, etc. The part in contact with the material is made of stainless steel, carbon steel, etc.　　Scraper styles: linear/straight plate, F-shaped scraper styles, double scraper styles, and upper and lower scraper styles. The angle can be customized according to the silo style, or the style can be specified by the customer.　　Arch breaker size: DN50~DN1500. Or customized non-standard.　　Sealing method: Multiple sealing methods, including mechanical sealing and gas sealing, are used to prevent materials from entering the transmission device.　　破拱阀下方配套刮板式旋转阀：　　旋转阀的核心作用是‌卸料和锁气‌，同时在不同工况下承担定量给料、调节流量和控制流向等功能。‌‌刮板式旋转阀的核心原理是：‌通过阀芯旋转定量给料，同时用随动的刮板把残留在转子料斗内壁的物料刮除，防止粘性、易吸湿物料架桥和积料‌。‌‌　　刮板与阀芯通过传动机构连接，同步转动，实时刮擦承料槽内壁，把附着的物料清除掉，避免物料粘在槽壁或叶片间空腔里排不下来。‌‌　　Supporting scraper type rotary valve below the arch breaking valve:　　The core function of a rotary valve is to unload and lock air, while also undertaking functions such as quantitative feeding, flow regulation, and flow control under different operating conditions. The core principle of the scraper rotary valve is to feed the material quantitatively through the rotation of the valve core, and at the same time, use a follow-up scraper to scrape off the material remaining on the inner wall of the rotor hopper, preventing the bridging and accumulation of viscous and moisture absorbing materials. ‌‌　　The scraper is connected to the valve core through a transmission mechanism and rotates synchronously, scraping the inner wall of the material receiving groove in real time to remove the attached material and avoid it sticking to the groove wall or the cavity between the blades that cannot be discharged. ‌‌　　部分客户需求：　　破拱阀+星型卸料器。筒仓材质：接触物料部分S30408.内部抛光Ra:0.4μm。料仓容积8m³，尺寸Φ1900*2270.设计温度0-100℃，设计压力-100Kpa~100Kpa;DN150破拱器，检修门加强，无变形漏气，漏料现场，除尘器顶盖、筒壁加强设计。旋转破拱阀接触物料部分S30408;破拱阀拨杆抛光Ra:0.2.破拱阀下方配备DN150卸料器，叶片抛光Ra0.2.卸料阀下端连接做提供配套法兰:减速机配带硬齿轮减速机，电机变频，防爆等级ExdIIBT4防护等级:IP55.料仓工艺参数接入DCS(压力、行星下料阀和破拱器运行状态)脉冲吹扫配带控制箱。　　Partial customer requirements:　　Arch breaking valve+star shaped unloader. Silo material: Contact material part S30408. internal polished Ra: 0.4 μ m. The silo has a capacity of 8m ³, a size of Φ 1900 * 2270. a design temperature of 0-100 ℃, and a design pressure of -100Kpa~100Kpa; DN150 arch breaker, reinforced maintenance door, no deformation or air leakage, leakage on site, dust collector top cover and cylinder wall reinforced design. Rotating arch breaking valve in contact with material part S30408; Polishing Ra: 0.2 for the lever of the arch breaking valve, equipped with a DN150 unloader below the arch breaking valve, polishing Ra: 0.2 for the blades, connecting the lower end of the unloading valve with a matching flange: reducer with hard gear reducer, motor frequency conversion, explosion-proof level ExdIIBT4. protection level IP55. The process parameters of the silo are connected to the DCS (pressure, planetary discharge valve, and arch breaker operating status) pulse blowing control box.　　化工粉料仓用，旋转式料仓刮料破拱阀，DN500. PN10.材质:316L不锈钢，配电机、减速机及配套法兰，电机为YE5系列。并且配套负压锁风卸料器YCD-HX-6L，转速:60r/min，材质316L，方形法兰内径300mm*300mm高400mm，电机一级能效。　　For chemical powder silos, a rotary silo scraper arch breaking valve is used, DN500. PN10. Material: 316L stainless steel, equipped with motor, reducer and matching flange, motor is YE5 series. And it is equipped with a negative pressure air lock unloader YCD-HX-6L, with a speed of 60r/min, made of 316L material, square flange inner diameter of 300mm * 300mm, height of 400mm, and motor level one energy efficiency.　　刮壁破拱装置  蜗杆重载破拱器  蜗杆旋转破拱装置  大型回转破拱机  齿轮破拱器  蜗轮蜗杆破拱器  炭黑仓破拱器  煤仓破拱装置  不锈钢破拱器 304破拱装置 304破拱器  破拱机总装模块(齿轮型)  旋转防爆刮料破拱器  粉尘防爆破拱器  精抛光破拱器  料仓破拱  机械旋转破拱阀  卸料破拱阀　　常州同得利机械厂/江苏同得利科技专 业的团队，拥有二十余年经验，旋转破拱阀定制、设计、研发、生产经验丰富。为您提供专 业的设计、选材和指导，为不同使用工况量身打造一体化的输送设备。自动精加工中心，搭配进口自动设备，专有生产工装，提高生产效率和精度。

　　破拱螺旋输送机螺旋轴上增加搅拌杆，防止螺旋内部形成架桥。特殊的螺旋叶片设计(比如齿形、锯齿状、均可按需定制)，在输送的同时不断搅拌物料，把结块料打散，确保物料顺畅流动。广泛应用于食品、制药、锂电、化工等行业。提供专 业非标定制 服务，如材质选择【不锈钢304/316L、碳化钨、钛材(耐腐蚀)、碳钢(经济型)】和功能扩展【支持防爆设计、气体保护(氮气)、多路分料】。　　Add a stirring rod on the spiral shaft to prevent bridging inside the spiral. Special spiral blade design (such as tooth shape, sawtooth shape, can be customized as needed) continuously stirs the material while conveying, breaks up the clumped material, and ensures smooth material flow. Widely used in industries such as food, pharmaceuticals, lithium batteries, and chemicals. We provide professional non-standard customization services, such as material selection [stainless steel 304/316L, tungsten carbide, titanium (corrosion-resistant), carbon steel (economical)] and functional expansion [supporting explosion-proof design, gas protection (nitrogen), multi-channel separation].　　破拱螺旋输送机工作原理：　　破拱环节‌：料仓里流动性差的粉料容易“搭桥”悬空不下料，破拱装置一般用两根旋转破拱轴或机械搅拌，周期性冲击料仓底部，动态破坏结块结构。　　输送环节‌：电机驱动螺旋轴旋转，螺旋叶片产生推进力，物料靠自身重力和与槽壁的摩擦力，不跟着叶片转，而是沿槽底被连续推着向前移动，直到出料口排出。‌‌支持水平、倾斜或垂直方向作业。　　模块化组件：包含料仓、螺旋轴、驱动装置、密封结构及辅助破拱部件，支持与分料阀、真空上料机等设备联动。　　两者配合‌：破拱动作和卸料/输送动作要同时进行，否则前面破了拱、后面不输送，物料很快又会重新压实结拱。‌‌双轴反向旋转，减少物料堆积和结块，适用于高粘度、易板结物料(如锂电池正负极材料)。　　Working principle of arch breaking screw conveyor:　　Arch breaking process: Powder materials with poor flowability in the silo are prone to "bridging" and suspended without discharging. The arch breaking device generally uses two rotating arch breaking shafts or mechanical stirring to periodically impact the bottom of the silo and dynamically break the clumping structure.　　Conveyor link: The motor drives the spiral shaft to rotate, and the spiral blades generate propulsion force. The material relies on its own gravity and friction with the groove wall, and does not rotate with the blades, but is continuously pushed forward along the groove bottom until it is discharged from the discharge port. Support horizontal, inclined, or vertical operations.　　Modular components: including silos, screw shafts, drive devices, sealing structures, and auxiliary arch breaking components, supporting linkage with equipment such as sorting valves and vacuum feeders.　　The two should be coordinated: the arch breaking action and the unloading/conveying action should be carried out simultaneously, otherwise if the arch is broken in the front and not conveyed in the back, the material will quickly re compact and form an arch. ‌‌Dual axis reverse rotation reduces material accumulation and clumping, suitable for high viscosity and easy to plate materials (such as lithium battery positive and negative electrode materials).　　精准控制给料量：　　变频调节：通过变频电机控制螺旋转速，实现流量无级调节(0.5-60吨/小时)，误差≤±0.5%。　　失重计量：可选配失重称量系统，实时监测物料重量，动态调整给料量。　　密封与防污染：　　气密性设计：耐压0.3MPa，支持正负压输送，防止粉尘泄漏或外部污染。　　防粘涂层：螺旋轴及槽体表面喷涂PTFE或WC耐磨涂层，减少物料残留。　　Accurate control of feeding quantity:　　Variable frequency regulation: The spiral speed is controlled by a variable frequency motor to achieve stepless flow regulation (0.5-60 tons/hour) with an error of ≤± 0.5%.　　Weight loss measurement: An optional weight loss weighing system can be used to monitor material weight in real-time and dynamically adjust the feeding amount.　　Sealing and Pollution Prevention:　　Airtight design: withstand pressure of 0.3MPa, support positive and negative pressure conveying, prevent dust leakage or external pollution.　　Anti stick coating: PTFE or WC wear-resistant coating is sprayed on the surface of the spiral shaft and groove to reduce material residue.　　常州同得利公司在强化企业管理的基础上，依靠科技进步提高技术含量，先进的生产加工设备，优质的管理理念，高素质的员工团队，有效的质量保障体系和完善的售后服务，为制造高品质的产品提供可靠的保证，极大的满足了各行业的需求，深受广大客户的信赖。　　On the basis of strengthening enterprise management, Changzhou Tongdeli Company relies on technological progress to improve its technical content, advanced production and processing equipment, high-quality management concepts, a high-quality employee team, an effective quality assurance system, and perfect after-sales service, providing reliable guarantees for manufacturing high-quality products, greatly meeting the needs of various industries, and deeply trusted by customers.

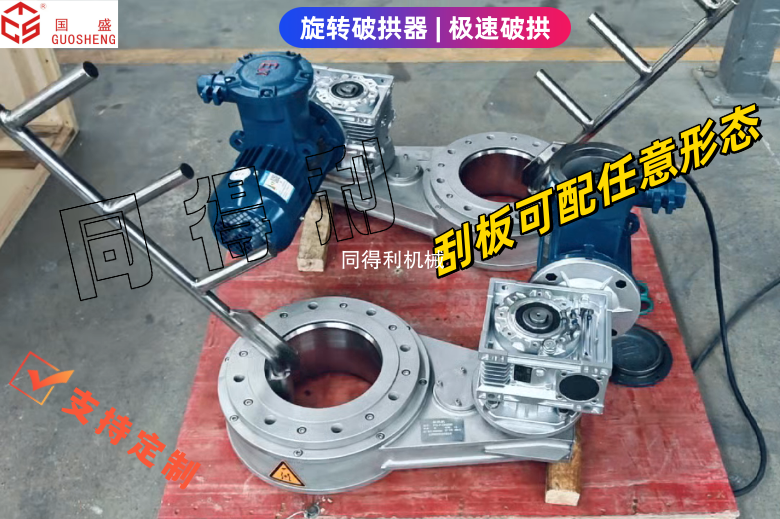

　　The core logic of the scraping and breaking arch valve does not rely on vibration or airflow impact, but rather uses mechanical force to forcefully break the "arch bridge" built by the material. The motor drives the transmission structure (commonly gears or vortex rods) to operate, transmitting power to the scraper. The scraper is installed at the bottom of the silo and moves in a circular motion around the silo wall, continuously rotating against the bottom of the material pile up. The rotating scraper directly cuts and agitates the bottom of the material, breaking the arch structure formed by the mutual support between the material particles. At the same time, it can also scrape off the material stuck to the warehouse wall, allowing the material to fall again under the action of gravity. ‌‌　　刮料破拱阀核心逻辑不靠振动、也不靠气流冲击，而是用机械力硬性破除物料搭起来的“拱桥”。电机带动传动结构(常见的是齿轮或涡杆)运转，把动力传给刮板。刮板安装在料仓底部，绕着仓壁做圆周运动，贴着物料堆积的底部持续旋转。旋转的刮片直接切断、搅动物料底部，破坏物料颗粒之间相互支撑形成的拱形结构，同时也能刮掉黏在仓壁上的料，让物料在重力作用下重新下落。‌‌　　橡胶行业，物料：橡胶型粉体颗粒，刮料破拱阀尺寸DN250 PN10 材质304.刮料器旋转部件密封处应在立面，防止物料细颗粒进入。转动部分加装压缩空气风口，利用压缩空气防止细料进入。2.2KW防爆电机，品牌皖南/南阳/江苏大中等。减速机为一线品牌，破拱阀输出转速为3-4r/min，输出扭矩不小于2390Nm。　　Rubber industry, material: rubber powder particles, scraper arch breaking valve size DN250 PN10 material 304. scraper rotating parts sealing should be on the facade to prevent fine particles from entering. Install compressed air vents on the rotating parts to prevent fine materials from entering using compressed air. 2.2KW explosion-proof motor, brand Wannan/Nanyang/Jiangsu Dazhong. The reducer is a first tier brand, and the output speed of the arch breaking valve is 3-4r/min, with an output torque of not less than 2390Nm.　　旋转破拱阀DN250.材质304不锈钢;国茂减速机4KW;齿轮传动。物料：白烟尘，灰白色或浅灰色，粒度较细，含铜、锌、砷、铅等(流动性较好);堆密度0.5~0.7;弱酸性。含水率≤5%，工作制度330d/a, 24h/d。　　正常烟气温度(℃)：360℃;　　设计温度(℃)：380℃;　　设计压力(KPa)：3KPa;　　手动/电动：电动;　　破拱阀外壳：304;　　破拱阀材质：304;　　密封片与螺栓材质：304;　　刮板形式：F型;　　连接式：法兰连接;　　破拱效果：在额定工作参数下，针对物料，应能在30秒内破除物料起拱，连续工作1小时无堵塞、卡滞现象。满载状态下可连续工作≥8小时，停机后重启正常，无故障。　　破拱阀外表光滑平整美观，涂层均匀一致，无毛刺、漆瘤及严重划痕，油漆采用优质油漆。焊缝牢固可靠，无缺焊、烧穿、夹渣和错位现象。外表面宜涂刷耐高温油漆。涂料应配套使用，涂层一般应由底漆、中间漆和面漆构成。　　破拱阀整体结构在各工况冷热温差悬殊情况下，不发生变形卡涩。　　节能电机，不低于二级能效，全封闭风冷型，防护等级IP55.绝缘等级F级;电机接线盒的防护等级为IP56.电机应能全电压启动，堵转电流不大于额定电流的6.5倍。电控柜防护等级均为IP56.电气元件和电控柜绝缘等级均为F级。电动机应当为高 效节能异步电动机，能效等级为节能电机，且满足GB18613-2020中不低于2级能效等级，电机接线盒空间满足接线要求，接线柱采用双螺母接线方式。电动机引线连接工艺机优先采用热熔焊接或压接浸锡工艺。　　筒仓破拱装置  刮壁破拱装置  蜗杆重载破拱器  蜗杆旋转破拱装置  大型回转破拱机  齿轮破拱器  蜗轮蜗杆破拱器  炭黑仓破拱器  煤仓破拱装置  不锈钢破拱器 304破拱装置 304破拱器  破拱机总装模块(齿轮型)  旋转防爆刮料破拱器  粉尘防爆破拱器  精抛光破拱器  料仓破拱  机械旋转破拱阀  卸料破拱阀　　常州同得利机械厂/江苏同得利科技专 业的团队，拥有二十余年经验，旋转破拱阀定制、设计、研发、生产经验丰富。为您提供专 业的设计、选材和指导，为不同使用工况量身打造一体化的输送设备。自动精加工中心，搭配进口自动设备，专有生产工装，提高生产效率和精度。　　Rotating arch breaking valve DN250. made of 304 stainless steel; Guomao reducer 4KW; gear transmission. Material: White smoke dust, gray white or light gray, fine particle size, containing copper, zinc, arsenic, lead, etc. (with good fluidity); Bulk density ranging from 0.5 to 0.7; Weakly acidic. Moisture content ≤ 5%, working system 330d/a, 24h/d.　　Normal flue gas temperature (℃): 360 ℃;　　Design temperature (℃): 380 ℃;　　Design pressure (KPa): 3KPa;　　Manual/Electric: Electric;　　Arch breaking valve shell: 304;　　Material of arch breaking valve: 304;　　Sealing plate and bolt material: 304;　　Scraper form: F-type;　　Connection type: flange connection;　　Arch breaking effect: Under rated working parameters, the material should be able to break the arch within 30 seconds and work continuously for 1 hour without blockage or jamming. Under full load, it can work continuously for ≥ 8 hours, and restart normally after shutdown without any faults.　　The appearance of the arch breaking valve is smooth, flat and beautiful, with uniform and consistent coating, no burrs, paint lumps or serious scratches, and high-quality paint is used. The weld seam is firm and reliable, without missing welding, burning through, slag inclusion, or misalignment. The outer surface should be coated with high-temperature resistant paint. Coatings should be used in combination, and coatings should generally consist of primer, intermediate coat, and topcoat.　　The overall structure of the arch breaking valve does not deform or jam under different temperature differences in various working conditions.　　Energy saving motor, not lower than Level 2 energy efficiency, fully enclosed air-cooled type, protection level IP55. insulation level F; The protection level of the motor junction box is IP56. The motor should be able to start at full voltage, and the locked rotor current should not exceed 6.5 times the rated current. The protection level of the electrical control cabinet is IP56. and the insulation level of the electrical components and the electrical control cabinet is F level. The motor should be an efficient and energy-saving asynchronous motor, with an energy efficiency level of energy-saving motor, and meet the energy efficiency level of no less than level 2 in GB18613-2020. The space of the motor junction box should meet the wiring requirements, and the terminal posts should be connected with double nuts. The lead connection process for electric motors should preferably use hot melt welding or pressure welding with tin dipping technology.　　Changzhou Tongdeli Machinery Factory/Jiangsu Tongdeli Technology has a professional team with over 20 years of experience in customizing, designing, researching, and producing rotary arch breaking valves. We provide professional design, material selection, and guidance to tailor integrated conveying equipment for different operating conditions. Automatic precision machining center, equipped with imported automatic equipment and proprietary production fixtures, improves production efficiency and accuracy.
