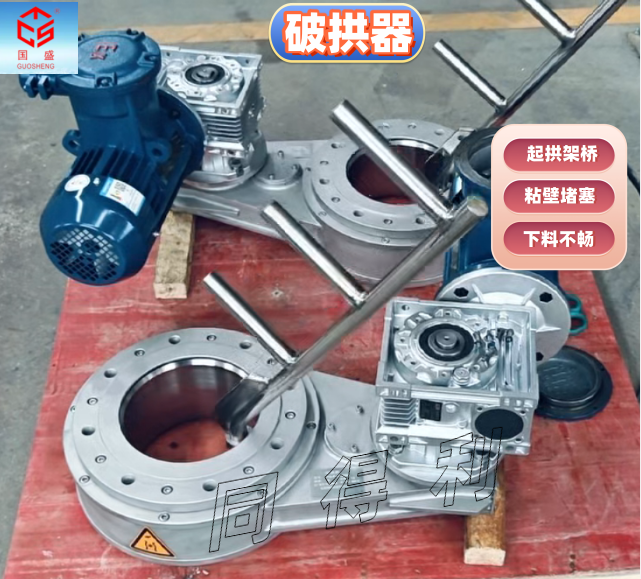

The core logic of the scraping and breaking arch valve does not rely on vibration or airflow impact, but rather uses mechanical force to forcefully break the "arch bridge" built by the material. The motor drives the transmission structure (commonly gears or vortex rods) to operate, transmitting power to the scraper. The scraper is installed at the bottom of the silo and moves in a circular motion around the silo wall, continuously rotating against the bottom of the material pile up. The rotating scraper directly cuts and agitates the bottom of the material, breaking the arch structure formed by the mutual support between the material particles. At the same time, it can also scrape off the material stuck to the warehouse wall, allowing the material to fall again under the action of gravity. ‌‌

　　刮料破拱阀核心逻辑不靠振动、也不靠气流冲击，而是用机械力硬性破除物料搭起来的“拱桥”。电机带动传动结构(常见的是齿轮或涡杆)运转，把动力传给刮板。刮板安装在料仓底部，绕着仓壁做圆周运动，贴着物料堆积的底部持续旋转。旋转的刮片直接切断、搅动物料底部，破坏物料颗粒之间相互支撑形成的拱形结构，同时也能刮掉黏在仓壁上的料，让物料在重力作用下重新下落。‌‌

　　橡胶行业，物料：橡胶型粉体颗粒，刮料破拱阀尺寸DN250 PN10 材质304.刮料器旋转部件密封处应在立面，防止物料细颗粒进入。转动部分加装压缩空气风口，利用压缩空气防止细料进入。2.2KW防爆电机，品牌皖南/南阳/江苏大中等。减速机为一线品牌，破拱阀输出转速为3-4r/min，输出扭矩不小于2390Nm。

　　Rubber industry, material: rubber powder particles, scraper arch breaking valve size DN250 PN10 material 304. scraper rotating parts sealing should be on the facade to prevent fine particles from entering. Install compressed air vents on the rotating parts to prevent fine materials from entering using compressed air. 2.2KW explosion-proof motor, brand Wannan/Nanyang/Jiangsu Dazhong. The reducer is a first tier brand, and the output speed of the arch breaking valve is 3-4r/min, with an output torque of not less than 2390Nm.

　　旋转破拱阀DN250.材质304不锈钢;国茂减速机4KW;齿轮传动。物料：白烟尘，灰白色或浅灰色，粒度较细，含铜、锌、砷、铅等(流动性较好);堆密度0.5~0.7;弱酸性。含水率≤5%，工作制度330d/a, 24h/d。

　　正常烟气温度(℃)：360℃;

　　设计温度(℃)：380℃;

　　设计压力(KPa)：3KPa;

　　手动/电动：电动;

　　破拱阀外壳：304;

　　破拱阀材质：304;

　　密封片与螺栓材质：304;

　　刮板形式：F型;

　　连接式：法兰连接;

　　破拱效果：在额定工作参数下，针对物料，应能在30秒内破除物料起拱，连续工作1小时无堵塞、卡滞现象。满载状态下可连续工作≥8小时，停机后重启正常，无故障。

　　破拱阀外表光滑平整美观，涂层均匀一致，无毛刺、漆瘤及严重划痕，油漆采用优质油漆。焊缝牢固可靠，无缺焊、烧穿、夹渣和错位现象。外表面宜涂刷耐高温油漆。涂料应配套使用，涂层一般应由底漆、中间漆和面漆构成。

　　破拱阀整体结构在各工况冷热温差悬殊情况下，不发生变形卡涩。

　　节能电机，不低于二级能效，全封闭风冷型，防护等级IP55.绝缘等级F级;电机接线盒的防护等级为IP56.电机应能全电压启动，堵转电流不大于额定电流的6.5倍。电控柜防护等级均为IP56.电气元件和电控柜绝缘等级均为F级。电动机应当为高 效节能异步电动机，能效等级为节能电机，且满足GB18613-2020中不低于2级能效等级，电机接线盒空间满足接线要求，接线柱采用双螺母接线方式。电动机引线连接工艺机优先采用热熔焊接或压接浸锡工艺。

　　筒仓破拱装置  刮壁破拱装置  蜗杆重载破拱器  蜗杆旋转破拱装置  大型回转破拱机  齿轮破拱器  蜗轮蜗杆破拱器  炭黑仓破拱器  煤仓破拱装置  不锈钢破拱器 304破拱装置 304破拱器  破拱机总装模块(齿轮型)  旋转防爆刮料破拱器  粉尘防爆破拱器  精抛光破拱器  料仓破拱  机械旋转破拱阀  卸料破拱阀

　　常州同得利机械厂/江苏同得利科技专 业的团队，拥有二十余年经验，旋转破拱阀定制、设计、研发、生产经验丰富。为您提供专 业的设计、选材和指导，为不同使用工况量身打造一体化的输送设备。自动精加工中心，搭配进口自动设备，专有生产工装，提高生产效率和精度。

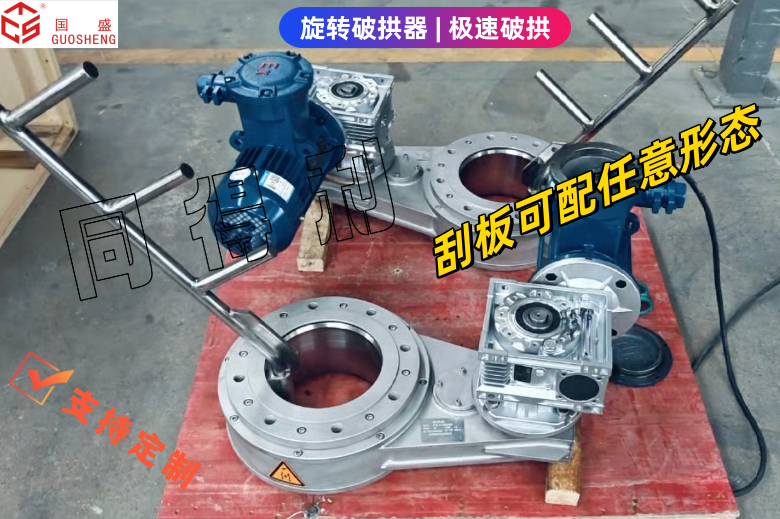

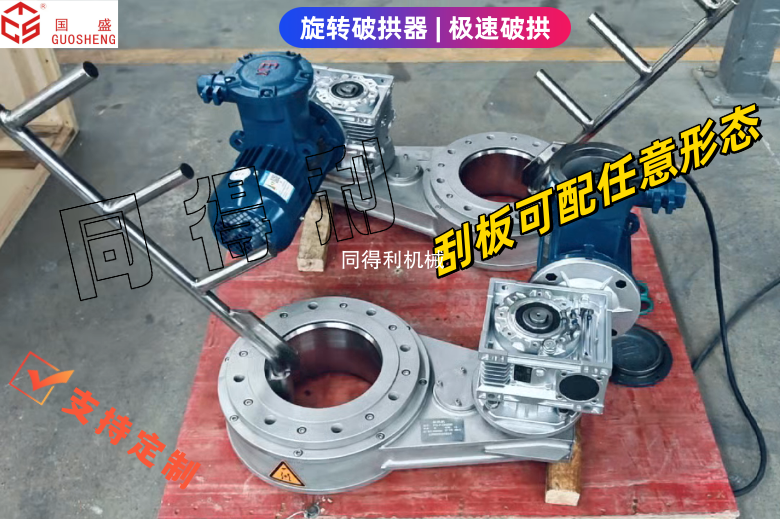

　　Rotating arch breaking valve DN250. made of 304 stainless steel; Guomao reducer 4KW; gear transmission. Material: White smoke dust, gray white or light gray, fine particle size, containing copper, zinc, arsenic, lead, etc. (with good fluidity); Bulk density ranging from 0.5 to 0.7; Weakly acidic. Moisture content ≤ 5%, working system 330d/a, 24h/d.

　　Normal flue gas temperature (℃): 360 ℃;

　　Design temperature (℃): 380 ℃;

　　Design pressure (KPa): 3KPa;

　　Manual/Electric: Electric;

　　Arch breaking valve shell: 304;

　　Material of arch breaking valve: 304;

　　Sealing plate and bolt material: 304;

　　Scraper form: F-type;

　　Connection type: flange connection;

　　Arch breaking effect: Under rated working parameters, the material should be able to break the arch within 30 seconds and work continuously for 1 hour without blockage or jamming. Under full load, it can work continuously for ≥ 8 hours, and restart normally after shutdown without any faults.

　　The appearance of the arch breaking valve is smooth, flat and beautiful, with uniform and consistent coating, no burrs, paint lumps or serious scratches, and high-quality paint is used. The weld seam is firm and reliable, without missing welding, burning through, slag inclusion, or misalignment. The outer surface should be coated with high-temperature resistant paint. Coatings should be used in combination, and coatings should generally consist of primer, intermediate coat, and topcoat.

　　The overall structure of the arch breaking valve does not deform or jam under different temperature differences in various working conditions.

　　Energy saving motor, not lower than Level 2 energy efficiency, fully enclosed air-cooled type, protection level IP55. insulation level F; The protection level of the motor junction box is IP56. The motor should be able to start at full voltage, and the locked rotor current should not exceed 6.5 times the rated current. The protection level of the electrical control cabinet is IP56. and the insulation level of the electrical components and the electrical control cabinet is F level. The motor should be an efficient and energy-saving asynchronous motor, with an energy efficiency level of energy-saving motor, and meet the energy efficiency level of no less than level 2 in GB18613-2020. The space of the motor junction box should meet the wiring requirements, and the terminal posts should be connected with double nuts. The lead connection process for electric motors should preferably use hot melt welding or pressure welding with tin dipping technology.

　　Changzhou Tongdeli Machinery Factory/Jiangsu Tongdeli Technology has a professional team with over 20 years of experience in customizing, designing, researching, and producing rotary arch breaking valves. We provide professional design, material selection, and guidance to tailor integrated conveying equipment for different operating conditions. Automatic precision machining center, equipped with imported automatic equipment and proprietary production fixtures, improves production efficiency and accuracy.
