破拱阀安装于生产线料斗下方下料管部位,通过刮刀使粘结在下料管壁上的物料脱落,防止下料管堵塞。下料管规格：DN200.不锈钢材质。刮刀长度：>1380mm，旋转刮下料管道。上下法兰面高度：237mm。刮刀可拆卸，便于日常清洁和后期更换。密封形式：采用气密封和油封双重密封，保证物料与传动机构的绝 对隔离。物料性质：粉末状金属物料，堆比重3.5 g/cm3～4.5 g/cm3.料仓容积：2.8 m³。与物料接触部位必须耐硝酸腐蚀。工作介质：氮氧化物气体(一氧化氮、二氧化氮)、硝酸溶液、硝酸蒸汽、粉状物料、空气、水蒸气。

　　The arch breaking valve is installed at the lower part of the discharge pipe under the hopper of the production line, and the material adhered to the wall of the discharge pipe is scraped off by a scraper to prevent blockage of the discharge pipe. Discharge pipe specification: DN200. made of stainless steel material. Scraper length: > 1380mm, rotate the scraper to discharge the material pipeline. Height of the upper and lower flange surfaces: 237mm. The scraper is detachable for easy daily cleaning and later replacement. Sealing form: Double sealing with gas seal and oil seal is adopted to ensure absolute isolation between the material and the transmission mechanism. Material properties: Powdered metal material with a bulk density of 3.5 g/cm3 to 4.5 g/cm3. Storage bin capacity: 2.8 m ³. The parts in contact with the material must be resistant to nitric acid corrosion. Working medium: nitrogen oxide gas (nitric oxide, nitrogen dioxide), nitric acid solution, nitric acid vapor, powdered material, air, water vapor.

　　料仓物料为什么会架桥结拱?

　　粉体颗粒形状不规则、粒径不均、易吸潮或表面发粘时，颗粒间摩擦力和粘附力增大，容易“抱团”互相咬合搭桥;细粉和超细粉因空隙率高、空气滞留，也极易在挤压后形成稳定料拱。

　　Why do silo materials form bridges and arches?

　　When the shape of powder particles is irregular, the particle size is uneven, they are prone to moisture absorption, or the surface becomes sticky, the frictional and adhesive forces between particles increase, making it easy for them to "clump" and interlock with each other; Fine powder and ultrafine powder are prone to forming stable material arches after extrusion due to their high porosity and air retention.

　　受潮与结块‌：这是粉体料仓架桥的高发原因。物料吸湿后表面形成水膜，颗粒间产生“液桥力”甚至“晶桥”，把相邻颗粒“焊接”在一起;轻微受潮就会让粉体抱团，加剧架桥。

　　Moisture and clumping: This is a common cause of bridging in powder silos. After the material absorbs moisture, a water film forms on the surface, and "liquid bridge force" or even "crystal bridge" is generated between particles, which "welds" adjacent particles together; Slight moisture can cause the powder to clump together, exacerbating bridging.

　　如何解决物料架桥、结块、堵塞不下料?

　　机械式刮料破拱阀破除架桥效果极 佳。电机带动减速机，输出低速大扭矩，驱动旋转轴或回转支承。刮板/刮片紧贴料仓锥壁或出口段做低速圆周运动(或往复滑动)，贴着仓壁刮擦，剥离粘壁物料。刮板切入料拱内部，破坏拱桥的受力点和物料间的内摩擦，让架桥结构垮塌。物料恢复整体流状态，靠重力顺利排出，不再堵塞。对高粘、高湿、含油、易结块的物料效果明显，仓壁振动器和气动破拱装置对这类物料常常效果甚微。

　　How to solve material bridging, agglomeration, and blockage that prevent material from being discharged?

　　The mechanical scraping arch breaking valve has excellent bridge breaking effect. The motor drives the reducer to output low-speed high torque, driving the rotating shaft or slewing support. Scraper/blade tightly adheres to the cone wall or outlet section of the silo and performs low-speed circular motion (or reciprocating sliding), scraping against the silo wall and peeling off the sticky material. The scraper cuts into the interior of the material arch, damaging the stress points of the arch bridge and the internal friction between the materials, causing the bridge structure to collapse. The material is restored to its overall flow state, smoothly discharged by gravity, and no longer blocked. The effect is obvious for materials with high viscosity, high humidity, oil content, and easy agglomeration, while the wall vibrator and pneumatic arch breaking device often have little effect on such materials.

　　破拱器材质：钛材，不锈钢系列304.316L，2205.904.与物料接触部分衬陶瓷、四氟，喷涂陶瓷、喷涂特氟龙，喷涂碳化钨等，与物料接触部分不锈钢，碳钢等。

　　刮板样式：一字型/直板型，F型刮板样式，双刮板样式以及上下刮板样式，可根据料仓样式定制角度，或客户指定样式。

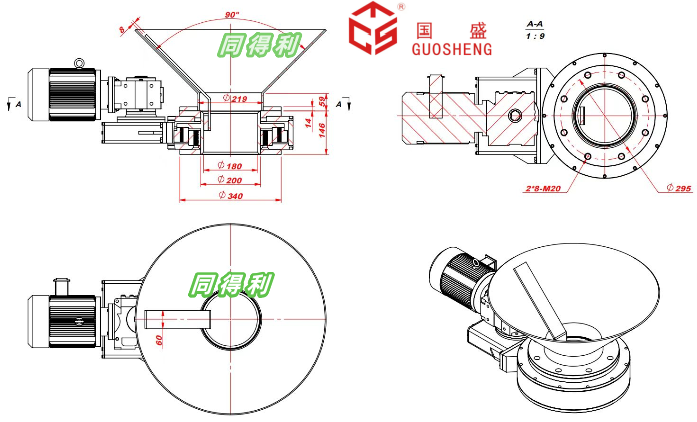

　　破拱器尺寸：DN50~DN1500.或非标定制。

　　密封方式：采用机械密封和气密封多种密封方式，防止物料进入传动装置。

　　Material of arch breaker: titanium, stainless steel series 304.316L, 2205.904. The part in contact with the material is lined with ceramics, PTFE, sprayed with ceramics, sprayed with PTFE, sprayed with tungsten carbide, etc. The part in contact with the material is made of stainless steel, carbon steel, etc.

　　Scraper styles: linear/straight plate, F-shaped scraper styles, double scraper styles, and upper and lower scraper styles. The angle can be customized according to the silo style, or the style can be specified by the customer.

　　Arch breaker size: DN50~DN1500. Or customized non-standard.

　　Sealing method: Multiple sealing methods, including mechanical sealing and gas sealing, are used to prevent materials from entering the transmission device.

　　破拱阀下方配套刮板式旋转阀：

　　旋转阀的核心作用是‌卸料和锁气‌，同时在不同工况下承担定量给料、调节流量和控制流向等功能。‌‌刮板式旋转阀的核心原理是：‌通过阀芯旋转定量给料，同时用随动的刮板把残留在转子料斗内壁的物料刮除，防止粘性、易吸湿物料架桥和积料‌。‌‌

　　刮板与阀芯通过传动机构连接，同步转动，实时刮擦承料槽内壁，把附着的物料清除掉，避免物料粘在槽壁或叶片间空腔里排不下来。‌‌

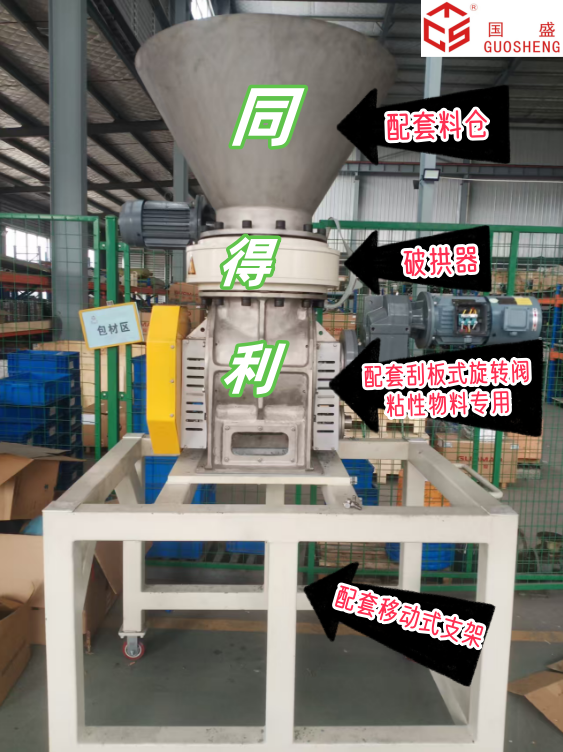

　　Supporting scraper type rotary valve below the arch breaking valve:

　　The core function of a rotary valve is to unload and lock air, while also undertaking functions such as quantitative feeding, flow regulation, and flow control under different operating conditions. The core principle of the scraper rotary valve is to feed the material quantitatively through the rotation of the valve core, and at the same time, use a follow-up scraper to scrape off the material remaining on the inner wall of the rotor hopper, preventing the bridging and accumulation of viscous and moisture absorbing materials. ‌‌

　　The scraper is connected to the valve core through a transmission mechanism and rotates synchronously, scraping the inner wall of the material receiving groove in real time to remove the attached material and avoid it sticking to the groove wall or the cavity between the blades that cannot be discharged. ‌‌

　　部分客户需求：

　　破拱阀+星型卸料器。筒仓材质：接触物料部分S30408.内部抛光Ra:0.4μm。料仓容积8m³，尺寸Φ1900*2270.设计温度0-100℃，设计压力-100Kpa~100Kpa;DN150破拱器，检修门加强，无变形漏气，漏料现场，除尘器顶盖、筒壁加强设计。旋转破拱阀接触物料部分S30408;破拱阀拨杆抛光Ra:0.2.破拱阀下方配备DN150卸料器，叶片抛光Ra0.2.卸料阀下端连接做提供配套法兰:减速机配带硬齿轮减速机，电机变频，防爆等级ExdIIBT4防护等级:IP55.料仓工艺参数接入DCS(压力、行星下料阀和破拱器运行状态)脉冲吹扫配带控制箱。

　　Partial customer requirements:

　　Arch breaking valve+star shaped unloader. Silo material: Contact material part S30408. internal polished Ra: 0.4 μ m. The silo has a capacity of 8m ³, a size of Φ 1900 * 2270. a design temperature of 0-100 ℃, and a design pressure of -100Kpa~100Kpa; DN150 arch breaker, reinforced maintenance door, no deformation or air leakage, leakage on site, dust collector top cover and cylinder wall reinforced design. Rotating arch breaking valve in contact with material part S30408; Polishing Ra: 0.2 for the lever of the arch breaking valve, equipped with a DN150 unloader below the arch breaking valve, polishing Ra: 0.2 for the blades, connecting the lower end of the unloading valve with a matching flange: reducer with hard gear reducer, motor frequency conversion, explosion-proof level ExdIIBT4. protection level IP55. The process parameters of the silo are connected to the DCS (pressure, planetary discharge valve, and arch breaker operating status) pulse blowing control box.

　　化工粉料仓用，旋转式料仓刮料破拱阀，DN500. PN10.材质:316L不锈钢，配电机、减速机及配套法兰，电机为YE5系列。并且配套负压锁风卸料器YCD-HX-6L，转速:60r/min，材质316L，方形法兰内径300mm*300mm高400mm，电机一级能效。

　　For chemical powder silos, a rotary silo scraper arch breaking valve is used, DN500. PN10. Material: 316L stainless steel, equipped with motor, reducer and matching flange, motor is YE5 series. And it is equipped with a negative pressure air lock unloader YCD-HX-6L, with a speed of 60r/min, made of 316L material, square flange inner diameter of 300mm * 300mm, height of 400mm, and motor level one energy efficiency.
