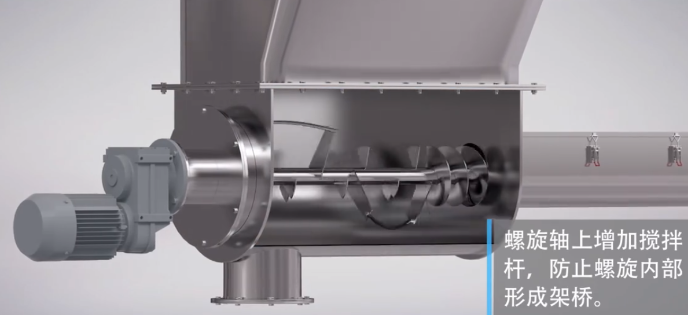

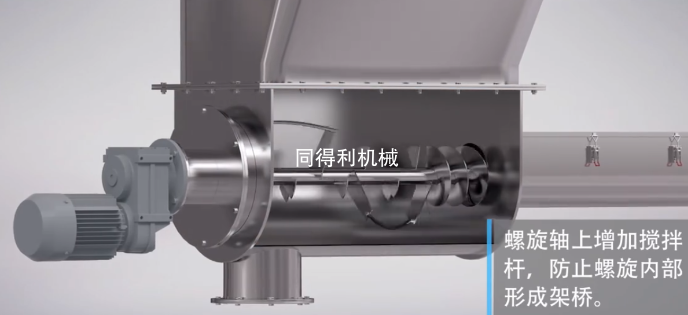

破拱螺旋输送机螺旋轴上增加搅拌杆，防止螺旋内部形成架桥。特殊的螺旋叶片设计(比如齿形、锯齿状、均可按需定制)，在输送的同时不断搅拌物料，把结块料打散，确保物料顺畅流动。广泛应用于食品、制药、锂电、化工等行业。提供专 业非标定制 服务，如材质选择【不锈钢304/316L、碳化钨、钛材(耐腐蚀)、碳钢(经济型)】和功能扩展【支持防爆设计、气体保护(氮气)、多路分料】。

　　Add a stirring rod on the spiral shaft to prevent bridging inside the spiral. Special spiral blade design (such as tooth shape, sawtooth shape, can be customized as needed) continuously stirs the material while conveying, breaks up the clumped material, and ensures smooth material flow. Widely used in industries such as food, pharmaceuticals, lithium batteries, and chemicals. We provide professional non-standard customization services, such as material selection [stainless steel 304/316L, tungsten carbide, titanium (corrosion-resistant), carbon steel (economical)] and functional expansion [supporting explosion-proof design, gas protection (nitrogen), multi-channel separation].

　　破拱螺旋输送机工作原理：

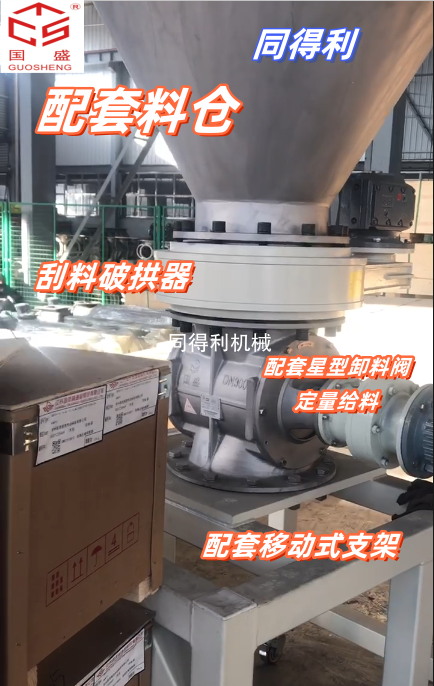

　　破拱环节‌：料仓里流动性差的粉料容易“搭桥”悬空不下料，破拱装置一般用两根旋转破拱轴或机械搅拌，周期性冲击料仓底部，动态破坏结块结构。

　　输送环节‌：电机驱动螺旋轴旋转，螺旋叶片产生推进力，物料靠自身重力和与槽壁的摩擦力，不跟着叶片转，而是沿槽底被连续推着向前移动，直到出料口排出。‌‌支持水平、倾斜或垂直方向作业。

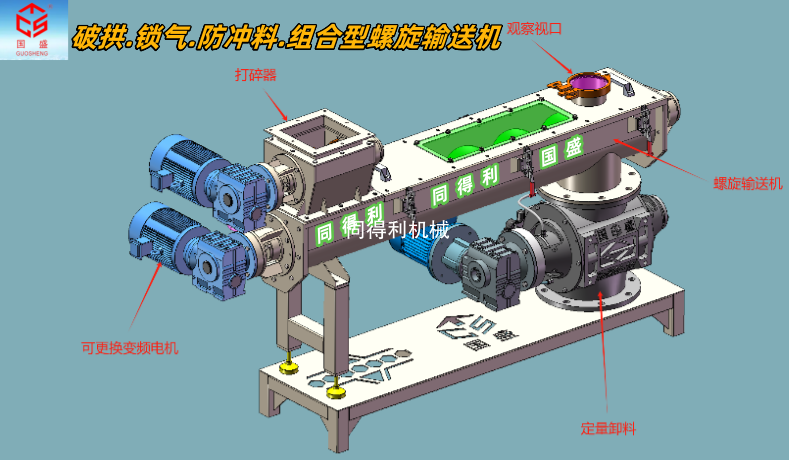

　　模块化组件：包含料仓、螺旋轴、驱动装置、密封结构及辅助破拱部件，支持与分料阀、真空上料机等设备联动。

　　两者配合‌：破拱动作和卸料/输送动作要同时进行，否则前面破了拱、后面不输送，物料很快又会重新压实结拱。‌‌双轴反向旋转，减少物料堆积和结块，适用于高粘度、易板结物料(如锂电池正负极材料)。

　　Working principle of arch breaking screw conveyor:

　　Arch breaking process: Powder materials with poor flowability in the silo are prone to "bridging" and suspended without discharging. The arch breaking device generally uses two rotating arch breaking shafts or mechanical stirring to periodically impact the bottom of the silo and dynamically break the clumping structure.

　　Conveyor link: The motor drives the spiral shaft to rotate, and the spiral blades generate propulsion force. The material relies on its own gravity and friction with the groove wall, and does not rotate with the blades, but is continuously pushed forward along the groove bottom until it is discharged from the discharge port. Support horizontal, inclined, or vertical operations.

　　Modular components: including silos, screw shafts, drive devices, sealing structures, and auxiliary arch breaking components, supporting linkage with equipment such as sorting valves and vacuum feeders.

　　The two should be coordinated: the arch breaking action and the unloading/conveying action should be carried out simultaneously, otherwise if the arch is broken in the front and not conveyed in the back, the material will quickly re compact and form an arch. ‌‌Dual axis reverse rotation reduces material accumulation and clumping, suitable for high viscosity and easy to plate materials (such as lithium battery positive and negative electrode materials).

　　精准控制给料量：

　　变频调节：通过变频电机控制螺旋转速，实现流量无级调节(0.5-60吨/小时)，误差≤±0.5%。

　　失重计量：可选配失重称量系统，实时监测物料重量，动态调整给料量。

　　密封与防污染：

　　气密性设计：耐压0.3MPa，支持正负压输送，防止粉尘泄漏或外部污染。

　　防粘涂层：螺旋轴及槽体表面喷涂PTFE或WC耐磨涂层，减少物料残留。

　　Accurate control of feeding quantity:

　　Variable frequency regulation: The spiral speed is controlled by a variable frequency motor to achieve stepless flow regulation (0.5-60 tons/hour) with an error of ≤± 0.5%.

　　Weight loss measurement: An optional weight loss weighing system can be used to monitor material weight in real-time and dynamically adjust the feeding amount.

　　Sealing and Pollution Prevention:

　　Airtight design: withstand pressure of 0.3MPa, support positive and negative pressure conveying, prevent dust leakage or external pollution.

　　Anti stick coating: PTFE or WC wear-resistant coating is sprayed on the surface of the spiral shaft and groove to reduce material residue.
