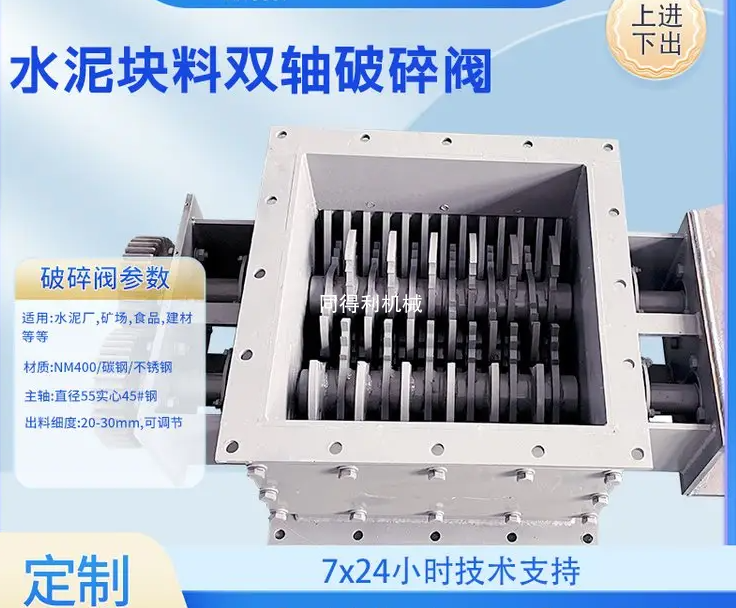

破碎水泥块料，出料细度≤30mm，温度≤120℃，双轴机构，轴承外置，密封机构和轴承底座各自独立，均可单独拆卸;阀体上部设计检修口。电机功率11KW  YE4.皖南电机，电机电压380V，国茂GFAF99减速机，输出转速42rpm。壳体：材质16Mn，壳体四面侧板、进出料口法兰、筋板厚度均大于等于12mm，轴承底座安装位置板厚≥35mm。破碎栅网：栅网板厚12mm，材质handox400.设计结构保证不堵料，耐热处理，增加高温时结构稳定性。轴承底座：铸钢材质，整体铸造，法兰厚度≥30mm，高温隔离涂层。刀片：材质HARDOX 400.厚度12mm，刀片尖 端宽度≥70mm。轴：基础材质40Cr，直径107mm，调质处理，密封机构配合位置镀铬处理，镀层厚度≥0.3mm，磨削抛光至镜面。轴中心打40mm贯穿通用，用以风冷。输出轴密封结构：密封方式采用迷宫密封+机械密封，密封组件可以单独注油润滑。密封底座内部设计径向双层散热腔体，可气冷散热。密封底座为浮动底座结构，用以使用轴在运行中的摆动。齿轮材质及厚度40Cr/95mm。　　水泥在库内受潮或存放时间过长容易结块，破碎阀能将这些大块料打散，避免卡住下方的卸料阀门或输送通道 。它并不是用来粉磨水泥粉的独立破碎机，而是在线破碎打散块料装置。目前水泥厂常用电动破碎阀，可实现远程控制。常见有‌单轴‌和‌双轴‌结构，双轴结构在处理较硬结块时能力更强，输送量更大，但需根据实际工况选择。常见型号包括PSF系列破碎阀(如 PSF300、PSF500、PSF600、PSF1000)和 PKD系列(如PKD400、 PKD500、PKD700、PKD800)，数字通常代表通道尺寸(如 400×400mm、800x800mm)。关键破碎部件常采用‌耐磨锰钢‌或合金钢，以应对高磨损工况。‌‌‌　　双轴破碎阀工作原理：　　物料从进料口进入破碎腔后，由电机或液压马达通过减速机驱动两根刀辊反向旋转，刀片钩住物料进行强力剪切、撕扯和挤压，把大块物料破碎成小块，再通过刀辊间隙或底部筛网排出。‌‌　　双轴系统‌：主动轴与从动轴通过齿轮箱联动，实现同步反向旋转，两轴刀片错位排列。　　定刀配合‌：箱体内壁的梳型齿板(定刀)与旋转刀片之间留有可调剪切间隙(常见0.5-5mm)，形成动刀+定刀的双重剪切结构。　　驱动方式‌：多数采用双电机独立驱动或单电机+齿轮箱联动，破碎时转速较低但扭矩大，剪切力更强。‌‌　　破碎阀刀片材质选择包括不锈钢系列、高碳钢、合金钢、高速钢和硬质合金。这些材质各有其独特的优点，适用于不同的工况。　　水泥破碎阀 块料破碎阀 电动块料破碎器 电动破碎阀  粉煤灰破碎阀  电石渣破碎阀  斜槽水泥块料破碎阀 水泥结块打散卸料阀　　部分客户需求：　　500*500双轴电动破碎阀;规格(内径)500X500.物料：水泥等;通过量(出料能力)≥400t/h;蕞大颗粒15-20mm;物料温度<120℃;出料粒径≤20mm;壳体材质Q235.厚度10mm;皖南电机,YE4;减速机输出转速48;国茂减速机。　　物料：水泥粉末，散装，部分结块，固体颗粒密度3.1t/m³，体积密度1.35/m³，含水率不超过3%，需求：双轴水泥破碎机和回转给料机的替代产品，产能为6立方米/小时。该双轴破碎机和回转给料机安装在水泥仓下方，用于破碎蕞大粒径达35毫米的水泥结块。破碎机进料口需大于100mm。　　我公司专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、YJD型旋转阀，快开清洗阀、防卡旋转阀、偏置防卡、风送直通式旋转阀、高温高压旋转阀、高温水冷式、刮板式自清洁、钛合金陶瓷碳化钨四氟特氟龙尼龙聚氨酯、破拱机、料仓刮料破拱器、打散破碎阀、螺旋输送机等产品。广泛应用于锂电池、食品、石油化工、制药、淀粉、油脂、化工干燥、粮食、饲料、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。　　Crushed cement block material, with a discharge fineness of ≤ 30mm and a temperature of ≤ 120 ℃, equipped with a dual axis mechanism, external bearings, independent sealing mechanism, and bearing base that can be disassembled separately; The upper part of the valve body is designed with a maintenance port. Motor power 11KW YE4. Wannan Motor, motor voltage 380V, Guomao GFAF99 reducer, output speed 42rpm. Shell: Made of 16Mn material, the thickness of the four side plates, inlet and outlet flanges, and rib plates of the shell is greater than or equal to 12mm, and the thickness of the bearing base installation position plate is greater than or equal to 35mm. Crushing grid: The grid plate thickness is 12mm, made of Handox400 material, designed with a structure to ensure no material blockage, heat-resistant treatment, and increased structural stability at high temperatures. Bearing base: made of cast steel material, integral casting, flange thickness ≥ 30mm, high temperature isolation coating. Blade: Material HARDOX 400. thickness 12mm, blade tip width ≥ 70mm. Shaft: Base material 40Cr, diameter 107mm, quenched and tempered, sealing mechanism matching position chrome plated, coating thickness ≥ 0.3mm, ground and polished to mirror finish. 40mm through the center of the shaft for universal use, used for air cooling. Output shaft sealing structure: The sealing method adopts labyrinth seal+mechanical seal, and the sealing components can be separately lubricated with oil. The sealed base is designed with a radial double-layer heat dissipation chamber inside, which can be air-cooled for heat dissipation. The sealing base is a floating base structure used for the swing of the shaft during operation. Gear material and thickness: 40Cr/95mm.　　Cement that is damp or stored for too long in the warehouse is prone to clumping. The crushing valve can break up these large pieces of material and avoid getting stuck in the discharge valve or conveying channel below. It is not an independent crusher used for grinding cement powder, but an online crushing and dispersing block material device. At present, electric crushing valves are commonly used in cement plants, which can achieve remote control. There are commonly single axis and double axis structures. The double axis structure has stronger ability to handle harder lumps and has a larger conveying capacity, but it needs to be selected according to the actual working conditions. Common models include PSF series crushing valves (such as PSF300. PSF500. PSF600. PSF1000) and PKD series (such as PKD400. PKD500. PKD700. PKD800), with numbers typically representing channel sizes (such as 400 × 400mm, 800x800mm). Key crushing components are often made of wear-resistant manganese steel or alloy steel to cope with high wear conditions. ‌‌‌　　Working principle of dual axis crushing valve:　　After the material enters the crushing chamber from the feeding port, it is driven by a motor or hydraulic motor through a reducer to rotate two knife rollers in the opposite direction. The blades hook onto the material for strong shearing, tearing, and squeezing, crushing large pieces of material into small pieces, and then discharging them through the gap between the knife rollers or the bottom screen. ‌‌　　Dual axis system: The driving shaft and the driven shaft are linked through a gearbox to achieve synchronous reverse rotation, with the blades of the two shafts arranged in a staggered manner.　　Fixed blade coordination: There is an adjustable cutting gap (usually 0.5-5mm) between the comb shaped toothed plate (fixed blade) on the inner wall of the box and the rotating blade, forming a dual cutting structure of moving blade and fixed blade.　　Drive mode: Most of them use dual motor independent drive or single motor+gearbox linkage. When crushing, the speed is low but the torque is high, and the shear force is stronger. ‌‌　　The material selection for the crushing valve blade includes stainless steel series, high carbon steel, alloy steel, high-speed steel, and hard alloy. These materials each have their unique advantages and are suitable for different working conditions.　　Cement crushing valve, block material crushing valve, electric block material crusher, electric crushing valve, fly ash crushing valve, electric stone slag crushing valve, inclined groove cement block material crushing valve, cement agglomeration dispersing discharge valve　　Partial customer requirements:　　500 * 500 dual axis electric crushing valve; Specification (inner diameter) 500X500. material: cement, etc; Throughput (discharge capacity) ≥ 400t/h; Maximum particle size 15-20mm; material temperature < 120 ℃; Discharge particle size ≤ 20mm; shell material Q235. thickness 10mm; Wannan Motor, YE4; The output speed of the reducer is 48; Guomao reducer.　　Material: Cement powder, loose, partially agglomerated, solid particle density of 3.1t/m ³, bulk density of 1.35/m ³, moisture content not exceeding 3%, demand: alternative products for dual axis cement crushers and rotary feeders, with a production capacity of 6 cubic meters per hour. The dual axis crusher and rotary feeder are installed below the cement silo for crushing cement lumps with a maximum particle size of 35 millimeters. The feed inlet of the crusher needs to be larger than 100mm.　　Our company specializes in the production of (B) GFY, YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, YJD type rotary valves, quick opening cleaning valves, anti jamming rotary valves, offset anti jamming, air delivery straight through rotary valves, high temperature and high pressure rotary valves, high temperature water-cooled, scraper self-cleaning, titanium alloy ceramic tungsten carbide PTFE PTFE nylon polyurethane, arch breaking machines, silo scraper crushers, fragmentation valves, screw conveyors and other products. Widely used in equipment for industries such as lithium batteries, food, petrochemicals, pharmaceuticals, starch, oils, chemical drying, grain, feed, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.

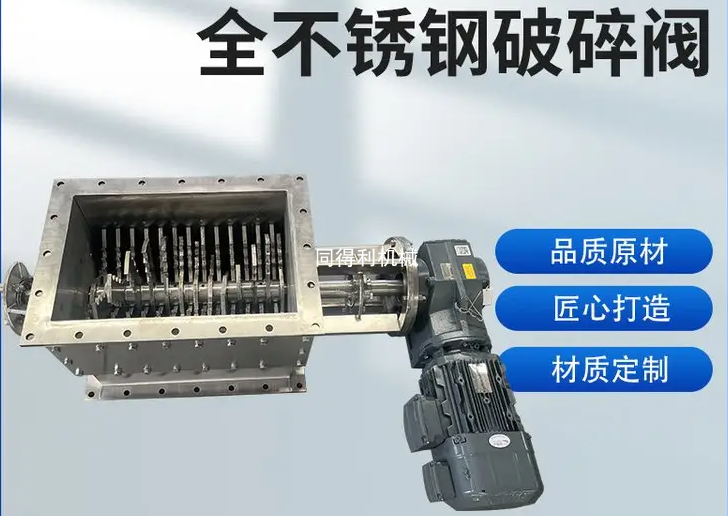

　　化工物料：三氯化锂，需要破碎打散阀，高密封不能进空气，耐腐蚀，破碎至小于30mm，破碎后卸料量10t/h，材质不锈钢，以前用过德国科倍隆的，现在需要换成国产好点的品牌。高纯盐酸(HCl)次氯酸钠(NaClO)合成盐酸(HCl)食品级盐酸，液氯(Cl₂)高品质氢氧化钾。　　什么叫破碎阀打散机?作用是什么?　　破碎阀打散机具备星型卸料阀定量卸料和锁气密封功能+打散破碎大块料功能。物料进入下游设备前，把因受潮、挤压等原因形成的‌结块或大块物料打散、破碎‌，防止堵料，保证卸料和输送通畅。‌‌破碎阀通常‌水平或垂直安装在料仓、库底的卸料出口处‌，也就是流量调节阀或气动切断阀的前部。圆形法兰和方形法兰。　　Chemical material: Lithium trichloride, requires crushing and dispersing valve, high sealing cannot allow air to enter, corrosion-resistant, crushed to less than 30mm, unloading capacity after crushing is 10t/h, made of stainless steel, previously used by German Kobelon, now needs to be replaced with a better domestic brand. High purity hydrochloric acid (HCl) and sodium hypochlorite (NaClO) are used to synthesize food grade hydrochloric acid (HCl) and high-quality potassium hydroxide for liquid chlorine (Cl ₂).　　What is a crushing valve disperser? What is its function?　　The crushing valve disperser has the functions of star shaped discharge valve quantitative discharge and air lock sealing, as well as the function of dispersing and crushing large blocks. Before entering downstream equipment, the clumps or large pieces of material formed due to moisture, compression, etc. should be dispersed and broken to prevent blockage and ensure smooth unloading and transportation. The crushing valve is usually installed horizontally or vertically at the discharge outlet of the silo or at the bottom of the silo, that is, at the front of the flow regulating valve or pneumatic cut-off valve. Circular flange and square flange.　　‌防堵防拱‌：把料仓里因受潮、挤压形成的料拱和结块打碎，让物料能顺畅流出来，避免卸料口堵塞。　　均匀给料‌：打散后的物料松散均匀，能给下游的给料螺旋、称重计量设备等持续稳定供料，避免忽多忽少影响烘干或计量效果。　　锁气密封‌：如气力输送：正压/负压输送系统，可带锁气功能，卸料时能隔绝内外气流，维持除尘系统负压稳定，防止漏风影响效率。‌‌　　Anti blocking and anti arching: smash the material arches and lumps formed by moisture and compression in the material warehouse, so that the materials can flow smoothly and avoid blockage of the discharge port.　　Uniform feeding: After being dispersed, the material is loose and uniform, which can provide continuous and stable feeding to downstream feeding screws, weighing and measuring equipment, etc., avoiding fluctuations that may affect the drying or measuring effect.　　Gas locking seal: such as pneumatic conveying: positive/negative pressure conveying system, can be equipped with gas locking function, can isolate internal and external airflow during unloading, maintain stable negative pressure of the dust removal system, and prevent air leakage from affecting efficiency.　　‌电动破碎阀‌：电机经减速机构驱动破碎主轴，适合处理粉料结块，常用于水泥库底、粉煤灰等卸料系统。　　旋转破碎阀‌：内部旋转叶轮将物料分割到叶片腔室中，边破碎边均匀输送，适合锂电、化工、食品等行业。　　尺寸：圆口DN100~~DN2000.方口100*100~~3000*4000.或非标定制。　　材质：SUS304、SUS316、钛材。　　破碎出料粒度：6mm~10mm，或1cm~3cm，或<6mm定制，均可按需定制。　　Electric crushing valve: The motor drives the crushing spindle through a reduction mechanism, which is suitable for processing powder agglomerates and is commonly used in cement silo bottoms, fly ash and other unloading systems.　　Rotary crushing valve: The internal rotating impeller divides the material into blade chambers and evenly transports it while crushing, suitable for industries such as lithium batteries, chemicals, and food.　　Dimensions: Round mouth DN100~~DN2000. square mouth 100 * 100~~3000 * 4000. or non-standard customization.　　Material: SUS304. SUS316. titanium.　　Crushed material particle size: 6mm~10mm, or 1cm~3cm, or<6mm can be customized according to needs.　　不锈钢打散卸料器，不锈钢破碎阀，不锈钢电动破碎阀，不锈钢破碎卸料器，旋转破碎阀，旋转打散阀，卸料器破碎机，方口破碎阀，方形破碎阀，方形打散阀，管道打散破碎阀，电动打散机破碎阀，不锈钢304破碎阀，不锈钢316L破碎阀，锂电专用破碎阀，锂电池行业专用打散破碎阀，化工破碎卸料器，化工专用破碎打散阀　　Stainless steel breaking unloader, stainless steel crushing valve, stainless steel electric breaking valve, stainless steel breaking unloader, rotary breaking valve, rotary breaking valve, unloader crusher, square mouth breaking valve, square breaking valve, square breaking valve, pipeline breaking valve, electric breaking valve, stainless steel 304 breaking valve, stainless steel 316L breaking valve, lithium battery professional breaking valve, lithium battery industry specific breaking valve, chemical breaking unloader, chemical specific breaking valve　　部分客户需求：　　物料：阳极碳块，原料小颗粒状，经过某工艺结块7~10cm，需要不锈钢破碎阀打散成小块料，下料口尺寸500*500.破碎到2~3cm左右，电机要求一级能效防爆的皖南，减速机国茂，材质不锈钢SUS316.　　破碎粒径:碎前2-5cm，碎后8mm;设计产能:4.5t/h;驱动方式:直连;表面要求:内表面抛光Ra0.4.外表面Sa2;物料：锂电池碳酸锂:4.5t/h，堆密度380kg/cm2.D90=13um。形式:对齿破碎机;规格:DN300;接触物料材质:S30408;密封形式:气密封;电机防护等级:IP55;电机防腐等级:WF2;绝缘等级:F;电源:AC380V/3P/50Hz;禁铜锌，含浮子流量计及气密封电磁阀。　　锂电负极材料结块打散，冷却釜出口不锈钢破碎机：阀体：SUS304.破碎桨叶：SUS304.外表面：喷砂处理，规格：DN200-PN16(PL)，法兰标准：HG/T20592-2009(B)，国茂齿轮减速机，皖南工频电机1.5KW，二级能效，IP55.轴端气密封配B52调压阀，直连传动。　　Partial customer requirements:　　Material: Anode carbon block, small granular raw material, agglomerated by a certain process of 7-10cm, needs to be broken into small pieces by a stainless steel crushing valve, with a discharge port size of 500 * 500. crushed to about 2-3cm. The motor requires first level energy efficiency and explosion-proof in Wannan, and the reducer is Guomao. The material is stainless steel SUS316.　　Crushed particle size: 2-5cm before crushing, 8mm after crushing; design capacity: 4.5t/h; Drive mode: direct connection; Surface requirements: inner surface polished Ra0.4. outer surface Sa2; Material: Lithium battery Lithium carbonate: 4.5t/h, bulk density 380kg/cm2. D90=13um. Form: Tooth crusher; Specification: DN300; Contact material material: S30408; Sealing form: airtight seal; Motor protection level: IP55; Motor anti-corrosion grade: WF2; Insulation Class: F; Power Supply: AC380V/3P/50Hz; Prohibition of copper and zinc, including float flow meters and gas sealed solenoid valves.　　Lithium battery negative electrode material clumping and breaking, cooling kettle outlet stainless steel crusher: valve body: SUS304. crushing blade: SUS304. outer surface: sandblasting treatment, specification: DN200-PN16 (PL), flange standard: HG/T20592-2009 (B), Guomao gear reducer, Wannan power frequency motor 1.5KW, secondary energy efficiency, IP55. Shaft end gas seal with B52 pressure regulating valve, directly connected transmission.　　我公司专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开清洗阀、防卡旋转阀、偏置防卡、风送直通式旋转阀、高温高压旋转阀、高温水冷式、刮板式自清洁、钛合金陶瓷碳化钨四氟特氟龙尼龙聚氨酯、破拱机、料仓刮料破拱器、打散破碎阀、螺旋输送机等产品。广泛应用于锂电池、食品、石油化工、制药、淀粉、油脂、化工干燥、粮食、饲料、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。　　Our company specializes in the production of (B) GFY, YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening cleaning valves, anti jamming rotary valves, offset anti jamming, air delivery straight through rotary valves, high temperature and high pressure rotary valves, high temperature water-cooled, scraper self-cleaning, titanium alloy ceramic tungsten carbide PTFE PTFE nylon polyurethane, arch breaking machines, silo scraper crushers, fragmentation valves, screw conveyors and other products. Widely used in equipment for industries such as lithium batteries, food, petrochemicals, pharmaceuticals, starch, oils, chemical drying, grain, feed, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.

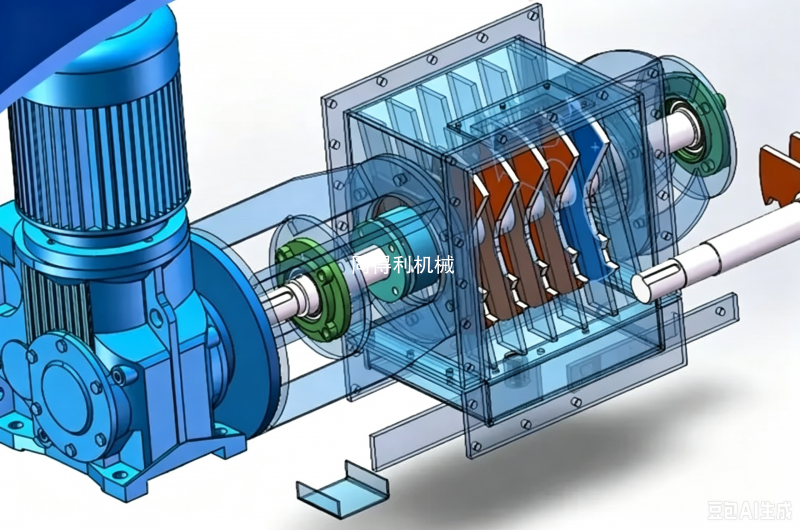

　　The block breaking valve of the silo is usually installed at the discharge port of the silo. When materials fall from the silo, larger clumps first enter the block breaking valve, which is then broken and dispersed by the internal rotating mechanism before being discharged downwards. The silo block breaking valve not only needs to complete block material crushing, but also needs to take into account continuous quantitative feeding.料仓破块阀通常安装在料仓出料口位置。物料从料仓下落时，较大的团块首先进入破块阀，经内部旋转机构破碎打散处理后再向下排出。料仓破块阀不仅需要完成块料破碎，还要兼顾连续定量给料。　　料仓破块阀设备通常安装在料仓、料斗、吨袋拆包机、输送设备或工艺设备的出料位置。当物料因储存、受潮、挤压或长时间堆积形成块状、团状物料时，通过旋转刀齿、破碎转子或打散机构将大块物料打碎，使其恢复到相对松散、均匀的状态，再进入下游输送、称重、配料或包装设备。　　The silo breaking valve equipment is usually installed at the discharge position of the silo, hopper, ton bag unpacking machine, conveying equipment or process equipment. When materials form lumps or clusters due to storage, moisture, compression, or long-term accumulation, the large pieces of materials are crushed by rotating blade teeth, crushing rotors, or dispersing mechanisms to restore them to a relatively loose and uniform state, and then enter downstream conveying, weighing, batching, or packaging equipment.　　该设备主要用于解决：　　物料结块、架桥、堵料、团聚、下料不连续以及大块物料影响后续设备运行等问题。　　适用于耐火材料、环保、新材料、化工、化肥、建材、矿山、食品、饲料等行业。　　This device is mainly used to solve:　　Problems such as material agglomeration, bridging, blockage, agglomeration, discontinuous discharge, and large blocks of material affecting subsequent equipment operation.　　Suitable for industries such as refractory materials, environmental protection, new materials, chemical industry, fertilizer, building materials, mining, food, and feed.　　料仓破块阀破碎块状物料：　　‌拨料进阀‌：转子上装的破碎爪呈放射状布置，转动时把进入阀体的块料拨动、带起来，往栅格方向推。　　‌挤压剪切‌：块料被破碎爪和栅格板之间交错咬合的作用挤压、剪切，大块就这样被撕扯成小颗粒。　　‌过栅排出‌：只有碎到能通过栅格孔的物料才能落下去，继续进入下游设备;碎不了的会卡在栅格上继续被打，直到破碎合格。‌‌　　The silo block breaking valve crushes block shaped materials:　　Material feeding valve: The crushing claws on the rotor are arranged radially, and when rotating, they move and lift the block materials entering the valve body, pushing them towards the grid direction.　　Squeezing and shearing: The block material is squeezed and sheared by the interlocking action between the crushing claw and the grid plate, and the large block is torn into small particles in this way.　　Grid discharge: Only materials that are crushed enough to pass through the grid holes can fall down and continue to enter downstream equipment; Those that cannot be broken will get stuck on the grid and continue to be beaten until they pass the crushing test.　　材质：304.316.2205.Q235.Q355.耐磨400.耐磨500.锰钢ZGMn13、高锰钢(ZG120Mn18Cr2/Mn13)或耐磨合金、双相钢等。　　Material: 304.316.2205. Q235.Q355. Wear resistant 400. wear resistant 500. manganese steel ZGMn13. high manganese steel (ZG120Mn18Cr2/Mn13) or wear-resistant alloys, duplex steel, etc.　　常州同得利机械厂/江苏同得利科技专 业的团队，拥有二十余年经验，定制、设计、研发、生产经验丰富。为您提供专 业的设计、选材和指导，为不同使用工况量身打造一体化的输送设备。自动精加工中心，搭配进口自动设备，专有生产工装，提高生产效率和精度。　　Changzhou Tongdeli Machinery Factory/Jiangsu Tongdeli Technology has a professional team with over 20 years of experience in customization, design, research and development, and production. We provide professional design, material selection, and guidance to tailor integrated conveying equipment for different operating conditions. Automatic precision machining center, equipped with imported automatic equipment and proprietary production fixtures, improves production efficiency and accuracy.　　粉煤灰破碎打散阀、电石渣破碎打散阀、破碎旋转阀、打散卸料器、水泥破碎阀、块料破碎阀、电动块料破碎器、电动破块阀、粉煤灰破碎阀、电动破碎阀、破碎阀、卸料器破碎阀、水泥块料破碎机、可拆卸破碎阀、　　破碎水泥块料，出料细度≤30mm，温度≤120℃，双轴机构，轴承外置，密封机构和轴承底座各自独立，均可单独拆卸;阀体上部设计检修口。电机功率11KW  YE4.皖南电机，电机电压380V，国茂GFAF99减速机，输出转速42rpm。壳体：材质16Mn，壳体四面侧板、进出料口法兰、筋板厚度均大于等于12mm，轴承底座安装位置板厚≥35mm。破碎栅网：栅网板厚12mm，材质handox400.设计结构保证不堵料，耐热处理，增加高温时结构稳定性。轴承底座：铸钢材质，整体铸造，法兰厚度≥30mm，高温隔离涂层。刀片：材质HARDOX 400.厚度12mm，刀片尖 端宽度≥70mm。轴：基础材质40Cr，直径107mm，调质处理，密封机构配合位置镀铬处理，镀层厚度≥0.3mm，磨削抛光至镜面。轴中心打40mm贯穿通用，用以风冷。输出轴密封结构：密封方式采用迷宫密封+机械密封，密封组件可以单独注油润滑。密封底座内部设计径向双层散热腔体，可气冷散热。密封底座为浮动底座结构，用以使用轴在运行中的摆动。齿轮材质及厚度40Cr/95mm。　　Crushed cement block material, with a discharge fineness of ≤ 30mm and a temperature of ≤ 120 ℃, equipped with a dual axis mechanism, external bearings, independent sealing mechanism, and bearing base that can be disassembled separately; The upper part of the valve body is designed with a maintenance port. Motor power 11KW YE4. Wannan Motor, motor voltage 380V, Guomao GFAF99 reducer, output speed 42rpm. Shell: Made of 16Mn material, the thickness of the four side plates, inlet and outlet flanges, and rib plates of the shell is greater than or equal to 12mm, and the thickness of the bearing base installation position plate is greater than or equal to 35mm. Crushing grid: The grid plate thickness is 12mm, made of Handox400 material, designed with a structure to ensure no material blockage, heat-resistant treatment, and increased structural stability at high temperatures. Bearing base: made of cast steel material, integral casting, flange thickness ≥ 30mm, high temperature isolation coating. Blade: Material HARDOX 400. thickness 12mm, blade tip width ≥ 70mm. Shaft: Base material 40Cr, diameter 107mm, quenched and tempered, sealing mechanism matching position chrome plated, coating thickness ≥ 0.3mm, ground and polished to mirror finish. 40mm through the center of the shaft for universal use, used for air cooling. Output shaft sealing structure: The sealing method adopts labyrinth seal+mechanical seal, and the sealing components can be separately lubricated with oil. The sealed base is designed with a radial double-layer heat dissipation chamber inside, which can be air-cooled for heat dissipation. The sealing base is a floating base structure used for the swing of the shaft during operation. Gear material and thickness: 40Cr/95mm.
