化工物料：三氯化锂，需要破碎打散阀，高密封不能进空气，耐腐蚀，破碎至小于30mm，破碎后卸料量10t/h，材质不锈钢，以前用过德国科倍隆的，现在需要换成国产好点的品牌。高纯盐酸(HCl)次氯酸钠(NaClO)合成盐酸(HCl)食品级盐酸，液氯(Cl₂)高品质氢氧化钾。

　　什么叫破碎阀打散机?作用是什么?

　　破碎阀打散机具备星型卸料阀定量卸料和锁气密封功能+打散破碎大块料功能。物料进入下游设备前，把因受潮、挤压等原因形成的‌结块或大块物料打散、破碎‌，防止堵料，保证卸料和输送通畅。‌‌破碎阀通常‌水平或垂直安装在料仓、库底的卸料出口处‌，也就是流量调节阀或气动切断阀的前部。圆形法兰和方形法兰。

　　Chemical material: Lithium trichloride, requires crushing and dispersing valve, high sealing cannot allow air to enter, corrosion-resistant, crushed to less than 30mm, unloading capacity after crushing is 10t/h, made of stainless steel, previously used by German Kobelon, now needs to be replaced with a better domestic brand. High purity hydrochloric acid (HCl) and sodium hypochlorite (NaClO) are used to synthesize food grade hydrochloric acid (HCl) and high-quality potassium hydroxide for liquid chlorine (Cl ₂).

　　What is a crushing valve disperser? What is its function?

　　The crushing valve disperser has the functions of star shaped discharge valve quantitative discharge and air lock sealing, as well as the function of dispersing and crushing large blocks. Before entering downstream equipment, the clumps or large pieces of material formed due to moisture, compression, etc. should be dispersed and broken to prevent blockage and ensure smooth unloading and transportation. The crushing valve is usually installed horizontally or vertically at the discharge outlet of the silo or at the bottom of the silo, that is, at the front of the flow regulating valve or pneumatic cut-off valve. Circular flange and square flange.

　　‌防堵防拱‌：把料仓里因受潮、挤压形成的料拱和结块打碎，让物料能顺畅流出来，避免卸料口堵塞。

　　均匀给料‌：打散后的物料松散均匀，能给下游的给料螺旋、称重计量设备等持续稳定供料，避免忽多忽少影响烘干或计量效果。

　　锁气密封‌：如气力输送：正压/负压输送系统，可带锁气功能，卸料时能隔绝内外气流，维持除尘系统负压稳定，防止漏风影响效率。‌‌

　　Anti blocking and anti arching: smash the material arches and lumps formed by moisture and compression in the material warehouse, so that the materials can flow smoothly and avoid blockage of the discharge port.

　　Uniform feeding: After being dispersed, the material is loose and uniform, which can provide continuous and stable feeding to downstream feeding screws, weighing and measuring equipment, etc., avoiding fluctuations that may affect the drying or measuring effect.

　　Gas locking seal: such as pneumatic conveying: positive/negative pressure conveying system, can be equipped with gas locking function, can isolate internal and external airflow during unloading, maintain stable negative pressure of the dust removal system, and prevent air leakage from affecting efficiency.

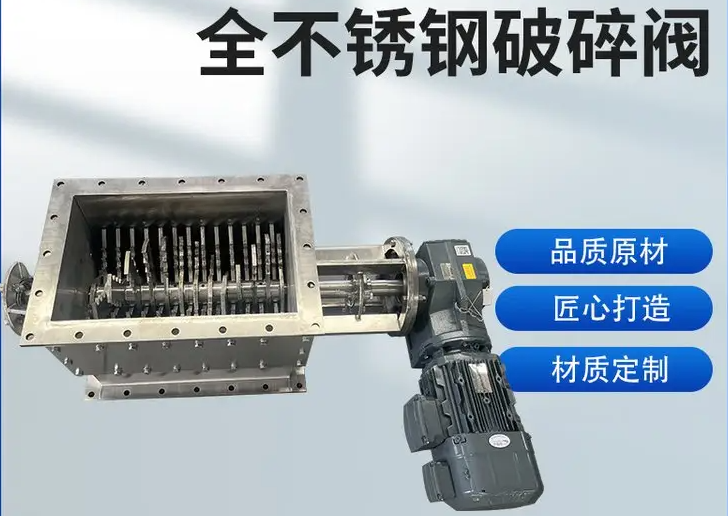

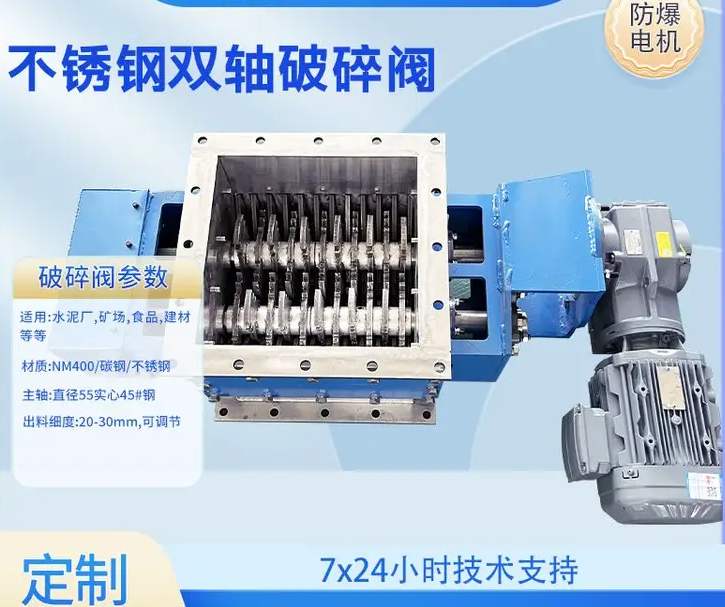

　　‌电动破碎阀‌：电机经减速机构驱动破碎主轴，适合处理粉料结块，常用于水泥库底、粉煤灰等卸料系统。

　　旋转破碎阀‌：内部旋转叶轮将物料分割到叶片腔室中，边破碎边均匀输送，适合锂电、化工、食品等行业。

　　尺寸：圆口DN100~~DN2000.方口100*100~~3000*4000.或非标定制。

　　材质：SUS304、SUS316、钛材。

　　破碎出料粒度：6mm~10mm，或1cm~3cm，或<6mm定制，均可按需定制。

　　Electric crushing valve: The motor drives the crushing spindle through a reduction mechanism, which is suitable for processing powder agglomerates and is commonly used in cement silo bottoms, fly ash and other unloading systems.

　　Rotary crushing valve: The internal rotating impeller divides the material into blade chambers and evenly transports it while crushing, suitable for industries such as lithium batteries, chemicals, and food.

　　Dimensions: Round mouth DN100~~DN2000. square mouth 100 * 100~~3000 * 4000. or non-standard customization.

　　Material: SUS304. SUS316. titanium.

　　Crushed material particle size: 6mm~10mm, or 1cm~3cm, or<6mm can be customized according to needs.

　　不锈钢打散卸料器，不锈钢破碎阀，不锈钢电动破碎阀，不锈钢破碎卸料器，旋转破碎阀，旋转打散阀，卸料器破碎机，方口破碎阀，方形破碎阀，方形打散阀，管道打散破碎阀，电动打散机破碎阀，不锈钢304破碎阀，不锈钢316L破碎阀，锂电专用破碎阀，锂电池行业专用打散破碎阀，化工破碎卸料器，化工专用破碎打散阀

　　Stainless steel breaking unloader, stainless steel crushing valve, stainless steel electric breaking valve, stainless steel breaking unloader, rotary breaking valve, rotary breaking valve, unloader crusher, square mouth breaking valve, square breaking valve, square breaking valve, pipeline breaking valve, electric breaking valve, stainless steel 304 breaking valve, stainless steel 316L breaking valve, lithium battery professional breaking valve, lithium battery industry specific breaking valve, chemical breaking unloader, chemical specific breaking valve

　　部分客户需求：

　　物料：阳极碳块，原料小颗粒状，经过某工艺结块7~10cm，需要不锈钢破碎阀打散成小块料，下料口尺寸500*500.破碎到2~3cm左右，电机要求一级能效防爆的皖南，减速机国茂，材质不锈钢SUS316.

　　破碎粒径:碎前2-5cm，碎后8mm;设计产能:4.5t/h;驱动方式:直连;表面要求:内表面抛光Ra0.4.外表面Sa2;物料：锂电池碳酸锂:4.5t/h，堆密度380kg/cm2.D90=13um。形式:对齿破碎机;规格:DN300;接触物料材质:S30408;密封形式:气密封;电机防护等级:IP55;电机防腐等级:WF2;绝缘等级:F;电源:AC380V/3P/50Hz;禁铜锌，含浮子流量计及气密封电磁阀。

　　锂电负极材料结块打散，冷却釜出口不锈钢破碎机：阀体：SUS304.破碎桨叶：SUS304.外表面：喷砂处理，规格：DN200-PN16(PL)，法兰标准：HG/T20592-2009(B)，国茂齿轮减速机，皖南工频电机1.5KW，二级能效，IP55.轴端气密封配B52调压阀，直连传动。

　　Partial customer requirements:

　　Material: Anode carbon block, small granular raw material, agglomerated by a certain process of 7-10cm, needs to be broken into small pieces by a stainless steel crushing valve, with a discharge port size of 500 * 500. crushed to about 2-3cm. The motor requires first level energy efficiency and explosion-proof in Wannan, and the reducer is Guomao. The material is stainless steel SUS316.

　　Crushed particle size: 2-5cm before crushing, 8mm after crushing; design capacity: 4.5t/h; Drive mode: direct connection; Surface requirements: inner surface polished Ra0.4. outer surface Sa2; Material: Lithium battery Lithium carbonate: 4.5t/h, bulk density 380kg/cm2. D90=13um. Form: Tooth crusher; Specification: DN300; Contact material material: S30408; Sealing form: airtight seal; Motor protection level: IP55; Motor anti-corrosion grade: WF2; Insulation Class: F; Power Supply: AC380V/3P/50Hz; Prohibition of copper and zinc, including float flow meters and gas sealed solenoid valves.

　　Lithium battery negative electrode material clumping and breaking, cooling kettle outlet stainless steel crusher: valve body: SUS304. crushing blade: SUS304. outer surface: sandblasting treatment, specification: DN200-PN16 (PL), flange standard: HG/T20592-2009 (B), Guomao gear reducer, Wannan power frequency motor 1.5KW, secondary energy efficiency, IP55. Shaft end gas seal with B52 pressure regulating valve, directly connected transmission.

　　我公司专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开清洗阀、防卡旋转阀、偏置防卡、风送直通式旋转阀、高温高压旋转阀、高温水冷式、刮板式自清洁、钛合金陶瓷碳化钨四氟特氟龙尼龙聚氨酯、破拱机、料仓刮料破拱器、打散破碎阀、螺旋输送机等产品。广泛应用于锂电池、食品、石油化工、制药、淀粉、油脂、化工干燥、粮食、饲料、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。

　　Our company specializes in the production of (B) GFY, YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening cleaning valves, anti jamming rotary valves, offset anti jamming, air delivery straight through rotary valves, high temperature and high pressure rotary valves, high temperature water-cooled, scraper self-cleaning, titanium alloy ceramic tungsten carbide PTFE PTFE nylon polyurethane, arch breaking machines, silo scraper crushers, fragmentation valves, screw conveyors and other products. Widely used in equipment for industries such as lithium batteries, food, petrochemicals, pharmaceuticals, starch, oils, chemical drying, grain, feed, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.
