The block breaking valve of the silo is usually installed at the discharge port of the silo. When materials fall from the silo, larger clumps first enter the block breaking valve, which is then broken and dispersed by the internal rotating mechanism before being discharged downwards. The silo block breaking valve not only needs to complete block material crushing, but also needs to take into account continuous quantitative feeding.料仓破块阀通常安装在料仓出料口位置。物料从料仓下落时，较大的团块首先进入破块阀，经内部旋转机构破碎打散处理后再向下排出。料仓破块阀不仅需要完成块料破碎，还要兼顾连续定量给料。

　　料仓破块阀设备通常安装在料仓、料斗、吨袋拆包机、输送设备或工艺设备的出料位置。当物料因储存、受潮、挤压或长时间堆积形成块状、团状物料时，通过旋转刀齿、破碎转子或打散机构将大块物料打碎，使其恢复到相对松散、均匀的状态，再进入下游输送、称重、配料或包装设备。

　　The silo breaking valve equipment is usually installed at the discharge position of the silo, hopper, ton bag unpacking machine, conveying equipment or process equipment. When materials form lumps or clusters due to storage, moisture, compression, or long-term accumulation, the large pieces of materials are crushed by rotating blade teeth, crushing rotors, or dispersing mechanisms to restore them to a relatively loose and uniform state, and then enter downstream conveying, weighing, batching, or packaging equipment.

　　该设备主要用于解决：

　　物料结块、架桥、堵料、团聚、下料不连续以及大块物料影响后续设备运行等问题。

　　适用于耐火材料、环保、新材料、化工、化肥、建材、矿山、食品、饲料等行业。

　　This device is mainly used to solve:

　　Problems such as material agglomeration, bridging, blockage, agglomeration, discontinuous discharge, and large blocks of material affecting subsequent equipment operation.

　　Suitable for industries such as refractory materials, environmental protection, new materials, chemical industry, fertilizer, building materials, mining, food, and feed.

　　料仓破块阀破碎块状物料：

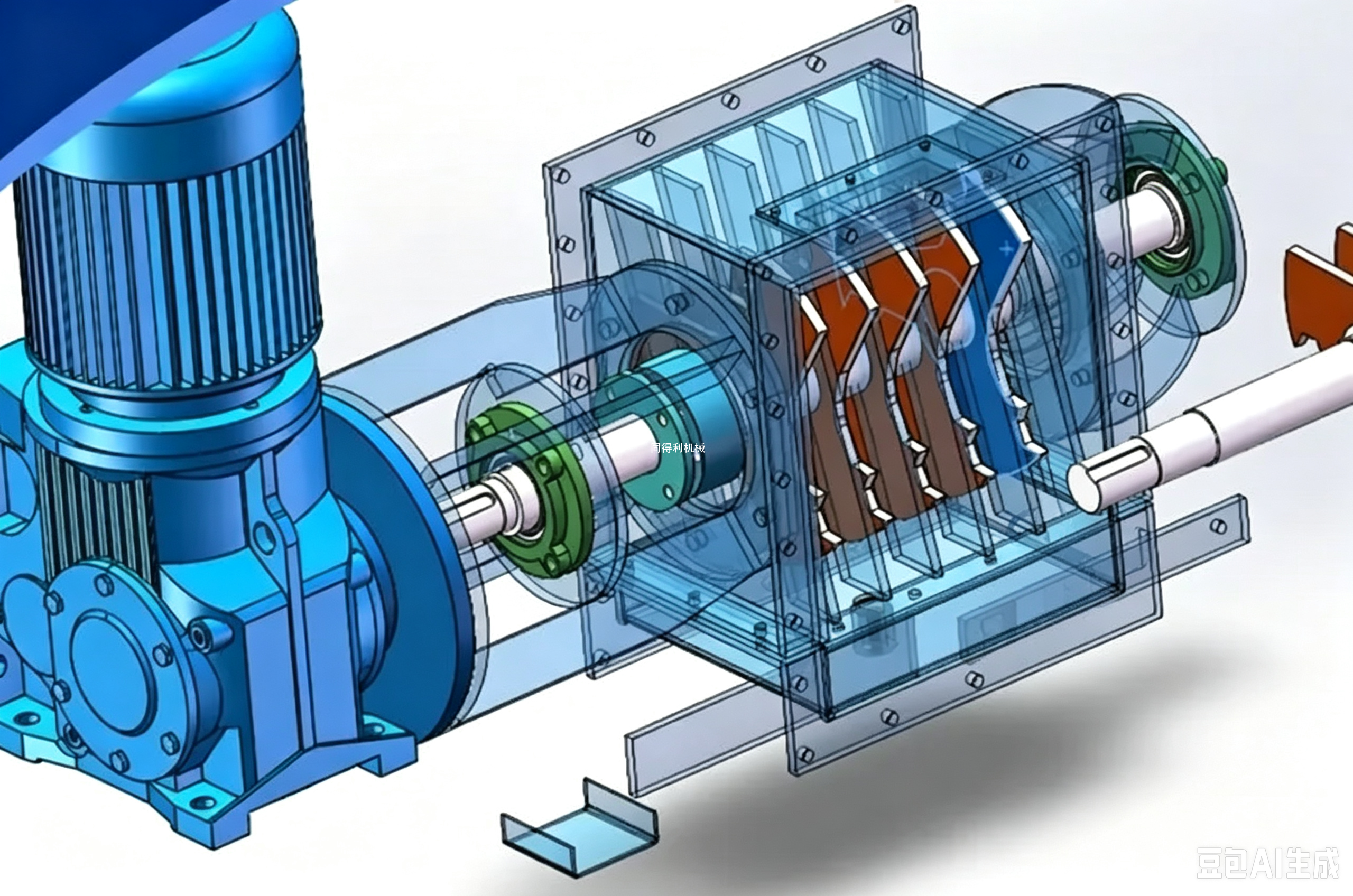

　　‌拨料进阀‌：转子上装的破碎爪呈放射状布置，转动时把进入阀体的块料拨动、带起来，往栅格方向推。

　　‌挤压剪切‌：块料被破碎爪和栅格板之间交错咬合的作用挤压、剪切，大块就这样被撕扯成小颗粒。

　　‌过栅排出‌：只有碎到能通过栅格孔的物料才能落下去，继续进入下游设备;碎不了的会卡在栅格上继续被打，直到破碎合格。‌‌

　　The silo block breaking valve crushes block shaped materials:

　　Material feeding valve: The crushing claws on the rotor are arranged radially, and when rotating, they move and lift the block materials entering the valve body, pushing them towards the grid direction.

　　Squeezing and shearing: The block material is squeezed and sheared by the interlocking action between the crushing claw and the grid plate, and the large block is torn into small particles in this way.

　　Grid discharge: Only materials that are crushed enough to pass through the grid holes can fall down and continue to enter downstream equipment; Those that cannot be broken will get stuck on the grid and continue to be beaten until they pass the crushing test.

　　材质：304.316.2205.Q235.Q355.耐磨400.耐磨500.锰钢ZGMn13、高锰钢(ZG120Mn18Cr2/Mn13)或耐磨合金、双相钢等。

　　Material: 304.316.2205. Q235.Q355. Wear resistant 400. wear resistant 500. manganese steel ZGMn13. high manganese steel (ZG120Mn18Cr2/Mn13) or wear-resistant alloys, duplex steel, etc.

　　常州同得利机械厂/江苏同得利科技专 业的团队，拥有二十余年经验，定制、设计、研发、生产经验丰富。为您提供专 业的设计、选材和指导，为不同使用工况量身打造一体化的输送设备。自动精加工中心，搭配进口自动设备，专有生产工装，提高生产效率和精度。

　　Changzhou Tongdeli Machinery Factory/Jiangsu Tongdeli Technology has a professional team with over 20 years of experience in customization, design, research and development, and production. We provide professional design, material selection, and guidance to tailor integrated conveying equipment for different operating conditions. Automatic precision machining center, equipped with imported automatic equipment and proprietary production fixtures, improves production efficiency and accuracy.

　　粉煤灰破碎打散阀、电石渣破碎打散阀、破碎旋转阀、打散卸料器、水泥破碎阀、块料破碎阀、电动块料破碎器、电动破块阀、粉煤灰破碎阀、电动破碎阀、破碎阀、卸料器破碎阀、水泥块料破碎机、可拆卸破碎阀、

　　破碎水泥块料，出料细度≤30mm，温度≤120℃，双轴机构，轴承外置，密封机构和轴承底座各自独立，均可单独拆卸;阀体上部设计检修口。电机功率11KW  YE4.皖南电机，电机电压380V，国茂GFAF99减速机，输出转速42rpm。壳体：材质16Mn，壳体四面侧板、进出料口法兰、筋板厚度均大于等于12mm，轴承底座安装位置板厚≥35mm。破碎栅网：栅网板厚12mm，材质handox400.设计结构保证不堵料，耐热处理，增加高温时结构稳定性。轴承底座：铸钢材质，整体铸造，法兰厚度≥30mm，高温隔离涂层。刀片：材质HARDOX 400.厚度12mm，刀片尖 端宽度≥70mm。轴：基础材质40Cr，直径107mm，调质处理，密封机构配合位置镀铬处理，镀层厚度≥0.3mm，磨削抛光至镜面。轴中心打40mm贯穿通用，用以风冷。输出轴密封结构：密封方式采用迷宫密封+机械密封，密封组件可以单独注油润滑。密封底座内部设计径向双层散热腔体，可气冷散热。密封底座为浮动底座结构，用以使用轴在运行中的摆动。齿轮材质及厚度40Cr/95mm。

　　Crushed cement block material, with a discharge fineness of ≤ 30mm and a temperature of ≤ 120 ℃, equipped with a dual axis mechanism, external bearings, independent sealing mechanism, and bearing base that can be disassembled separately; The upper part of the valve body is designed with a maintenance port. Motor power 11KW YE4. Wannan Motor, motor voltage 380V, Guomao GFAF99 reducer, output speed 42rpm. Shell: Made of 16Mn material, the thickness of the four side plates, inlet and outlet flanges, and rib plates of the shell is greater than or equal to 12mm, and the thickness of the bearing base installation position plate is greater than or equal to 35mm. Crushing grid: The grid plate thickness is 12mm, made of Handox400 material, designed with a structure to ensure no material blockage, heat-resistant treatment, and increased structural stability at high temperatures. Bearing base: made of cast steel material, integral casting, flange thickness ≥ 30mm, high temperature isolation coating. Blade: Material HARDOX 400. thickness 12mm, blade tip width ≥ 70mm. Shaft: Base material 40Cr, diameter 107mm, quenched and tempered, sealing mechanism matching position chrome plated, coating thickness ≥ 0.3mm, ground and polished to mirror finish. 40mm through the center of the shaft for universal use, used for air cooling. Output shaft sealing structure: The sealing method adopts labyrinth seal+mechanical seal, and the sealing components can be separately lubricated with oil. The sealed base is designed with a radial double-layer heat dissipation chamber inside, which can be air-cooled for heat dissipation. The sealing base is a floating base structure used for the swing of the shaft during operation. Gear material and thickness: 40Cr/95mm.
