不锈钢内衬尼龙快拆式卸料阀

　　采用加厚叶轮设计，与壳体配合间隙小，结构精密，使用过程中不易漏风不易漏料，防堵耐用。

　　密封优越，用感无忧：结构稳定，密封性能良好。可用于粉料、小颗粒物料，在正负极压差吸送过程中将物料分离排出。

　　适用于锂电正极材料输送，高镍三元材料，磷酸铁锂。阀体、端盖外表面采用不锈钢304.物料接触8-10mm氧化铝陶瓷工艺等。都可以满足工况耐磨，耐温尤为突出。

　　可拆卸叶轮：便于快速拆卸清洗旋转阀的物料接触面。

　　驱动方式：链驱动/马达直连驱动。

　　动力配置：摆线针轮减速机，Y系列电机(可按客户指定动力配置)

　　材质：不锈钢系列

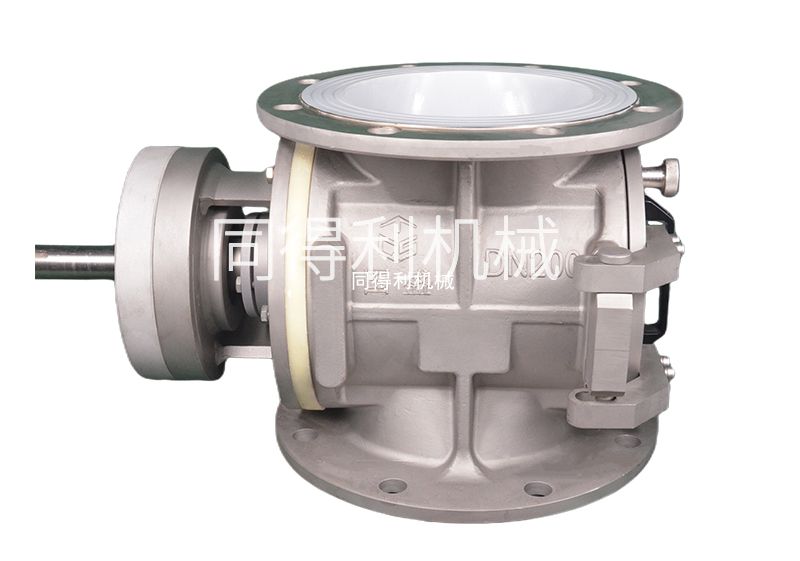

　　Stainless steel lined nylon quick release discharge valve

　　Adopting a thickened impeller design, the clearance between the impeller and the shell is small, the structure is precise, and it is not easy to leak air or materials during use, and it is durable and anti clogging.

　　Superior sealing and worry free use: stable structure and good sealing performance. Can be used for powder and small particle materials, to separate and discharge materials during the positive and negative pressure difference suction process.

　　Suitable for transporting lithium battery cathode materials, high nickel ternary materials, and lithium iron phosphate. The outer surface of the valve body and end cover is made of stainless steel 304. The material is in contact with 8-10mm alumina ceramic technology, etc. Both can meet the wear resistance requirements of working conditions, with outstanding temperature resistance.

　　Detachable impeller: facilitates quick disassembly and cleaning of the material contact surface of the rotary valve.

　　Drive mode: chain drive/motor direct connection drive.

　　Power configuration: cycloidal pinwheel reducer, Y-series motor (can be configured according to customer specifications)

　　Material: Stainless steel series.
