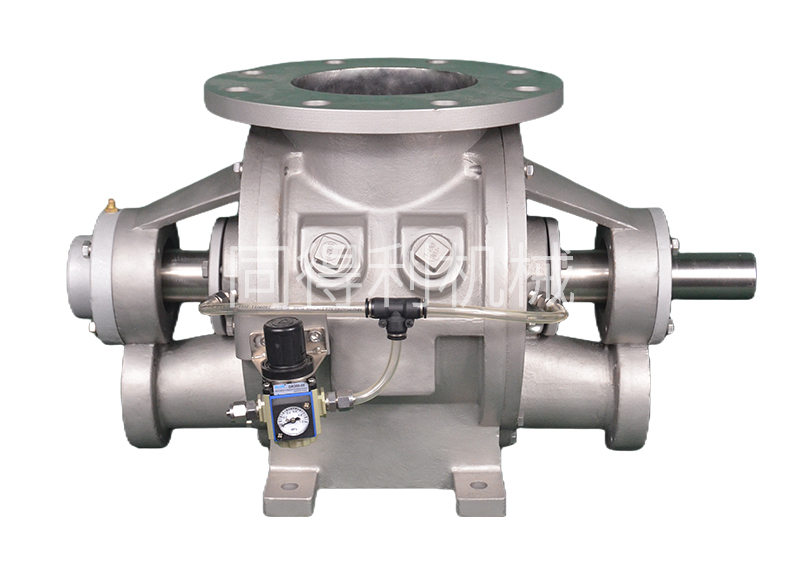

不锈钢风送式旋转阀

  不锈钢风送式旋转阀压力范围:2kg/cm²系统压力或压差。  增大入口/出口:正方形,没有截面尺寸对料流的限 制从而可达高产量。  普通型:结构紧凑,占用空间小。  轴承外置式:有效的防止粉尘侵入轴承,增大设备适应较高温度的使用范围。  驱动方式:链驱动/马达直联驱动。  动力配置:摆线针轮减速机、Y系列电机(可按客户指定动力配置)。  材质选项:不锈钢、铝合金、钛合金、陶瓷、碳钢等。  我公司专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀,快开阀、清洁阀、风送式旋转阀等产品。广泛应用于粮食、饲料、石油化工、制药、淀粉、油脂、化工干燥、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及官网正负压状态下的卸料。  Stainless steel pneumatic rotary valve pressure range: 2kg/cm ² System pressure or differential pressure.  Increase the inlet/outlet: square, with no restrictions on material flow due to cross-sectional size, achieving high production.  Normal type: compact structure, occupying small space.  External bearing type: effectively prevents dust from entering the bearing, increasing the equipment's adaptability to higher temperature usage range.  Drive mode: chain drive/motor direct drive.  Power configuration: cycloidal pinwheel reducer, Y-series motor (can be configured according to customer specifications).  Material options: stainless steel, aluminum alloy, titanium alloy, ceramic, carbon steel, etc.  Our company specializes in the production of (B) GFY, YJD series shut-off fans (shut-off fans), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening valves, cleaning valves, pneumatic rotary valves, and other products. Widely used in industries such as grain, feed, petrochemicals, pharmaceuticals, starch, fats, chemical drying, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid particles, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure on the official website.
    相关产品:
  • 风送式旋转卸料阀

  • 不锈钢风送式旋转阀

  • 铸铁风送式旋转阀

立即咨询
参数名称 参数值
品名 不锈钢风送旋转阀/卸料阀
品牌 常州同得利
压力范围 2kg/cm²系统压力或压差
材质 不锈钢、铝合金、钛合金、陶瓷、碳钢等
驱动方式 链驱动/马达直联驱动

  不锈钢风送式旋转阀压力范围:2kg/cm²系统压力或压差。

  增大入口/出口:正方形,没有截面尺寸对料流的限 制从而可达高产量。

  普通型:结构紧凑,占用空间小。

  轴承外置式:有效的防止粉尘侵入轴承,增大设备适应较高温度的使用范围。

  驱动方式:链驱动/马达直联驱动。

  动力配置:摆线针轮减速机、Y系列电机(可按客户指定动力配置)。

  材质选项:不锈钢、铝合金、钛合金、陶瓷、碳钢等。

  我公司专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀,快开阀、清洁阀、风送式旋转阀等产品。广泛应用于粮食、饲料、石油化工、制药、淀粉、油脂、化工干燥、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及官网正负压状态下的卸料。

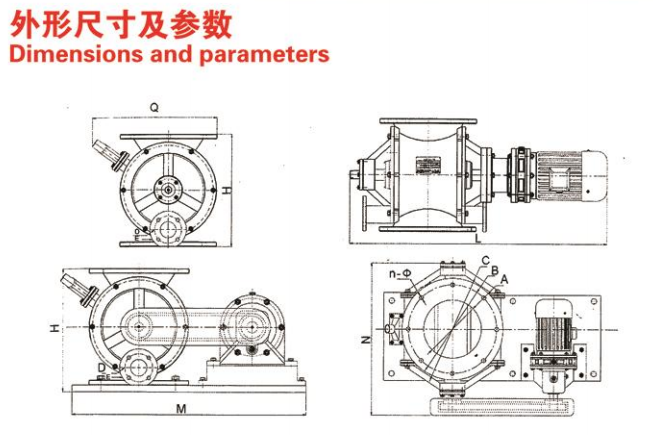

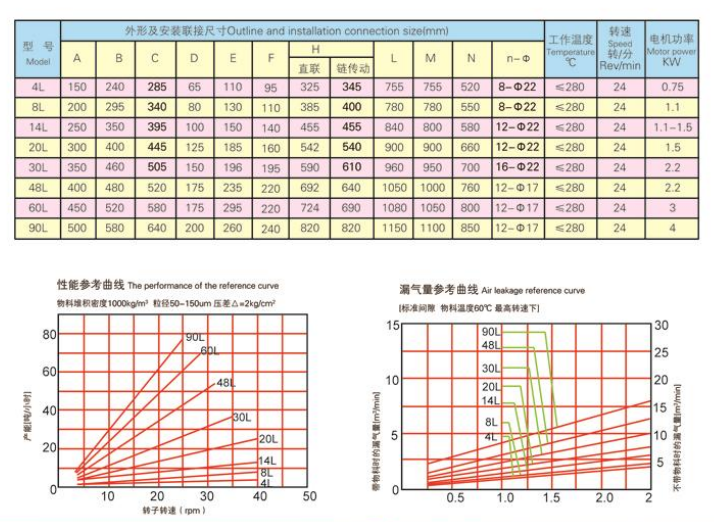

外形尺寸-不锈钢

外形尺寸-不锈钢1

  Stainless steel pneumatic rotary valve pressure range: 2kg/cm ² System pressure or differential pressure.

  Increase the inlet/outlet: square, with no restrictions on material flow due to cross-sectional size, achieving high production.

  Normal type: compact structure, occupying small space.

  External bearing type: effectively prevents dust from entering the bearing, increasing the equipment's adaptability to higher temperature usage range.

  Drive mode: chain drive/motor direct drive.

  Power configuration: cycloidal pinwheel reducer, Y-series motor (can be configured according to customer specifications).

  Material options: stainless steel, aluminum alloy, titanium alloy, ceramic, carbon steel, etc.

  Our company specializes in the production of (B) GFY, YJD series shut-off fans (shut-off fans), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening valves, cleaning valves, pneumatic rotary valves, and other products. Widely used in industries such as grain, feed, petrochemicals, pharmaceuticals, starch, fats, chemical drying, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid particles, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure on the official website.
