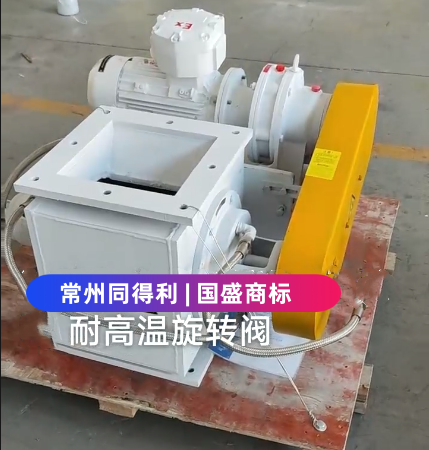

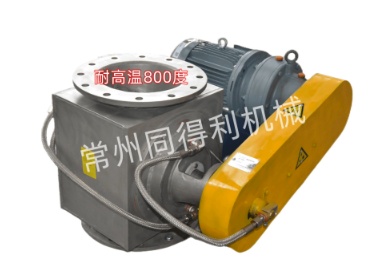

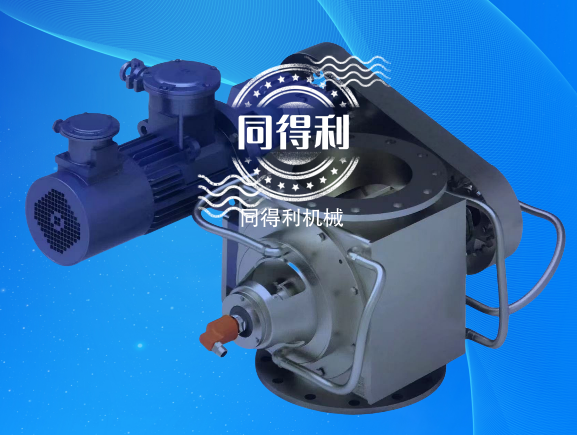

高温旋转阀/水冷式旋转阀/高温卸料阀，其外壳、盖板、转子以及轴承部件都采用循环水冷却，密封材料和轴承部分能承受在高温下正常运转，适用于钢厂、电厂、矿山、水泥、锅炉、锂电、化工、污泥逢烧、桔杆逢烧、窑底出料、锅炉排料、真空杀菌等行业。也可根据用户要求进行结构设计制造，确保安全正常工作。叶轮主轴采用全 面通水降温，避免高温形变，影响同心度。【电话/微信咨询：陈经理18068546632】

　　需求1：变频给料阀/高温旋转阀：焙烧车间，用途：控制硫磺仓内硫磺的供给量。物料堆密度 t/m³：1.5.输送量 t/h：5.尺寸：DN200.阀门高度/mm：H≈420.阀体(上下壳体)材质：304.叶轮：304.物料温度：200~400℃，等级：10kv，380V/220V，50Hz。

　　需求2：粉体旋转阀，4英寸卡接口，DN100 316L材质 手动 物料是有制药用粉末，高温度200℃蒸汽灭菌。

　　需求3：物料：脱硫灰粉料，耐高温:400-500度，目前用的不锈钢材质。【电话/微信咨询：陈经理18068546632】

        《扫二维码-添加 陈经理 微信-咨询链驱动高温旋转阀》

　　High temperature rotary valve/water-cooled rotary valve/high temperature discharge valve, its shell, cover plate, rotor, and bearing components are all cooled by circulating water. The sealing material and bearing parts can withstand normal operation at high temperatures, and are suitable for industries such as steel mills, power plants, mines, cement, boilers, lithium batteries, chemical engineering, sludge co firing, orange rod co firing, kiln bottom discharge, boiler discharge, vacuum sterilization, etc. Structural design and manufacturing can also be carried out according to user requirements to ensure safe and normal operation. The impeller spindle adopts comprehensive water cooling to avoid high-temperature deformation and affect concentricity.

　　Variable frequency feeding valve/high-temperature rotary valve: used in the roasting workshop to control the supply of sulfur in the sulfur silo. Material bulk density t/m ³: 1.5. Conveying capacity t/h: 5. Size: DN200. Valve height/mm: H ≈ 420. Valve body (upper and lower shells) material: 304. Impeller: 304. Material temperature: 200~400 ℃, grade: 10kV, 380V/220V, 50Hz.

　　Powder rotary valve, 4-inch card interface, DN100 316L material manual material is pharmaceutical powder, high temperature 200 ℃ steam sterilization.

　　Material: desulfurization ash powder, high temperature resistance: 400-500 degrees, currently using stainless steel material.
