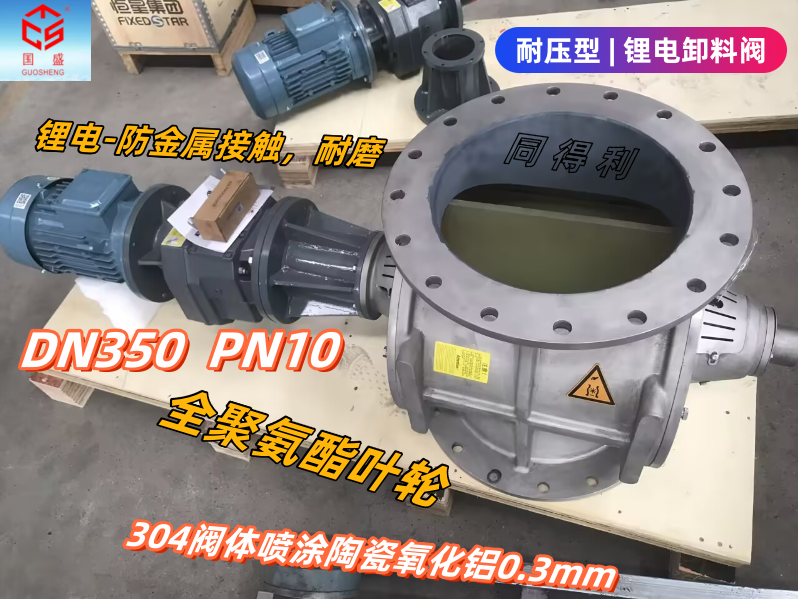

【TGZ-DN350-PN10-40L-喷涂氧化铝陶瓷-聚氨酯叶轮】

　　旋转阀类型：不含铜锌

　　容积(升/转)：40L

　　处理量：10t/h

　　物料介质：锂电原材料

　　物料比重：1.2g/cm3

　　物料温度：≤60℃

　　输送场合：负压

　　填充系数：0.8

　　进/出口法兰尺寸(mm)：DN350-PN10

　　阀体高度：550mm

　　阀体/端盖材质：304.喷涂氧化铝陶瓷0.3mm

　　叶轮材质：全聚氨酯

　　叶轮结构：6片

　　叶轮与外壳间隙(mm)：0.4mm

　　主轴硬度：HRC10

　　两轴端密封形式：迷宫气密封

　　轴承密封形式：油封

　　轴端密封处：需要保护

　　传动方式：直连

　　旋转阀转速(r/min)：40转

　　电机：ABB，3KW-380V-50Hz-CE，不含铜锌

　　减速机：国茂，不含铜锌

　　旋转阀喷涂陶瓷防金属接触：锂电正负极原料输送中禁铜锌。

　　高耐磨性‌：陶瓷材料硬度极高(氧化锆可达HRC87~90)，能有效抵抗干灰、粉煤、矿渣、矿浆等高磨损介质的冲刷，使用寿命可达普通金属阀门的2~4倍。

　　耐高温：喷涂氧化铝陶瓷阀适用温度范围≤400℃‌，更高温度需要选择其他陶瓷材质。

　　强耐腐蚀‌：陶瓷化学性质稳定，适用于酸碱及高氯离子等腐蚀性介质，解决金属阀门易被腐蚀失效的问题。

　　TGZ-DN350-PN10-40L-Spray alumina ceramic polyurethane impeller

　　Rotary valve type: copper zinc free

　　Capacity (liters/revolutions): 40L

　　Processing capacity: 10t/h

　　Material medium: Lithium battery material

　　Material specific gravity: 1.2g/cm3

　　Material temperature: ≤ 60 ℃

　　Delivery occasion: Negative pressure

　　Fill factor: 0.8

　　Inlet/outlet flange size (mm): DN350-PN10

　　Valve body height: 550mm

　　Valve body/end cap material: 304. sprayed with 0.3mm alumina ceramic

　　Impeller material: Full polyurethane

　　Impeller structure: 6 pieces

　　Clearance between impeller and casing (mm): 0.4mm

　　Spindle hardness: HRC10

　　Two axis end sealing form: labyrinth gas seal

　　Bearing sealing form: oil seal

　　Shaft end seal: requires protection

　　Transmission mode: direct connection

　　Rotating valve speed (r/min): 40 revolutions per minute

　　Motor: ABB, 3KW-380V-50Hz-CE, without copper or zinc

　　Gearbox: Guomao, free of copper and zinc

　　Anti metal contact: Copper and zinc are prohibited during the transportation of lithium battery positive and negative electrode materials.

　　High wear resistance: Ceramic materials have extremely high hardness (zirconia can reach HRC87-90), which can effectively resist the erosion of high wear media such as dry ash, coal powder, slag, and slurry. The service life can reach 2-4 times that of ordinary metal valves.

　　High temperature resistance: Spray coated alumina ceramic valve is suitable for temperature range ≤ 400 ℃, and other ceramic materials need to be selected for higher temperatures.

　　Strong corrosion resistance: Ceramics have stable chemical properties and are suitable for corrosive media such as acids, bases, and high chloride ions, solving the problem of metal valves being easily corroded and failing.
