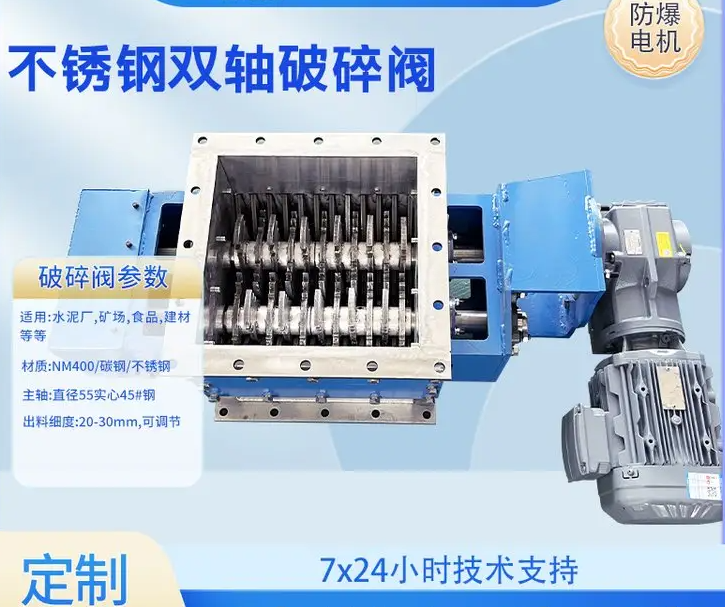

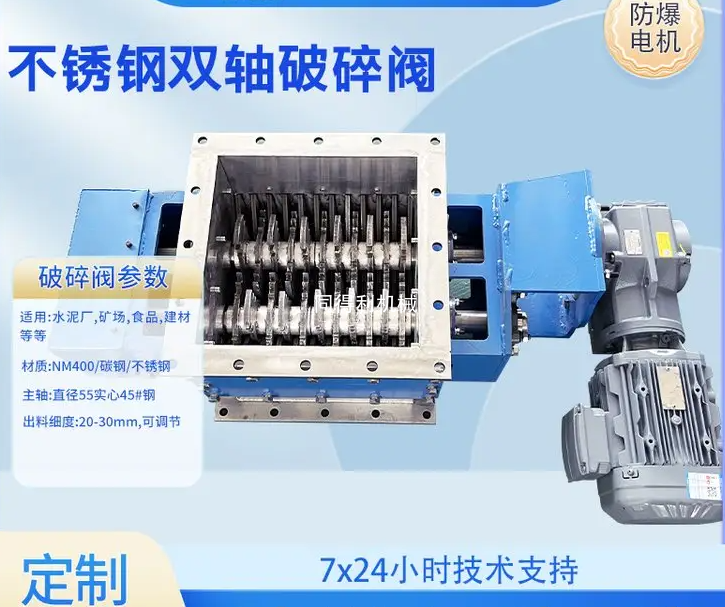

不锈钢双轴破碎阀适用于输送量大、物料较硬、较大、较厚的物料破碎，因出料尺寸较大，适合初次/第 一道破碎工序，例如破碎大块的库底水泥块、铁矿石、煤块、粉煤灰、生活垃圾、大件垃圾、工业垃圾、锂电铁粉块料、彩钢瓦等。而单轴破碎阀则更适用二破，用于需要出料更小尺寸，破碎粉料块、塑料、垃圾等中硬、中薄物料。

　　Stainless steel double axis crushing valve is suitable for crushing materials with large conveying capacity, hard, large, and thick materials. Due to the large discharge size, it is suitable for the initial/first crushing process, such as crushing large pieces of cement blocks, iron ore, coal blocks, fly ash, household waste, large garbage, industrial waste, color steel tiles, etc. Single axis crushing valves are more suitable for secondary crushing, used for crushing medium hard and thin materials such as powder blocks, plastics, and garbage that require smaller discharge sizes.

　　不锈钢双轴破碎阀工作过程：

　　1、进料‌：物料从顶部进料口进入阀腔，比如水泥库底受潮板结的料块、煤块、电石渣、沫煤、磷酸铁粉、电石渣烧生石灰、煤块、碳酸钙或废渣等。

　　2、破碎‌：两根主轴由电机+减速机驱动，做同步反向旋转;轴上交错排列的刀片或破碎爪互相咬合，对物料形成剪切、撕扯和挤压，把大块料撕碎成小块。

　　3、排料‌：破碎后的物料通过底部栅格板或筛网限位排出，颗粒大小由栅格间隙或刀型控制，通常可控制在1-5cm或小于10cm或6-10mm。‌‌

　　Working process of stainless steel double axis crushing valve:

　　1. Feed: Materials enter the valve chamber from the top feed inlet, such as wet and compacted blocks, coal blocks, carbide slag, foam coal, iron phosphate powder, carbide slag, quicklime, coal blocks, calcium carbonate or waste residue at the bottom of the cement silo.

　　2. Crushing: Two main shafts are driven by motors and reducers to rotate synchronously in reverse; The blades or crushing claws arranged in a staggered manner on the shaft interlock with each other, forming shearing, tearing, and squeezing on the material, tearing large pieces of material into small pieces.

　　3. Discharge: The crushed material is discharged through the bottom grid plate or sieve limit, and the particle size is controlled by the grid gap or blade shape, usually within 1-5cm or less than 10cm or 6-10mm

　　双轴破碎阀的核心原理是：‌两根刀轴在电机驱动下相向旋转，通过刀片交错咬合产生的剪切、撕扯和挤压作用，把大块物料破碎成小颗粒‌。它本质上是一种带破碎功能的旋转卸料阀，主要用于防止物料结块堵塞下游设备。‌‌

　　The core principle of a dual axis crushing valve is that two blade shafts rotate towards each other under the drive of a motor, and through the shearing, tearing, and squeezing effects generated by the interlocking of the blades, large pieces of material are crushed into small particles. It is essentially a rotary discharge valve with crushing function, mainly used to prevent material agglomeration from blocking downstream equipment. ‌‌

　　不锈钢双轴破碎阀优势：

　　出料粒度均匀‌：剪切效果好，破碎后物料尺寸更规整。‌‌

　　破碎能力强‌：适合大块、硬质物料，如电石渣、水泥块、净化灰块状、沫煤、锂矿、金属、彩钢瓦、矿石等;且输送量大。

　　运行更平稳‌：负荷分布在两个刀轴上，单轴磨损更小，设备寿命更长，噪音也相对较低。

　　处理范围广‌：几乎能处理多种物料，包括炭黑结块、生活垃圾、建筑垃圾、电石渣烧生石灰、橡胶、编织袋等混合复杂物料，适应性优于单轴破碎阀。

　　材质：SUS304、SUS316、钛材、喷涂碳化钨、陶瓷等。

　　尺寸：DN100~~DN2000.方口100*100~~3000*4000.或非标定制。

　　Advantages of stainless steel double axis crushing valve:

　　Uniform particle size of the discharged material: good cutting effect, and the size of the crushed material is more regular. ‌‌

　　Strong crushing ability: suitable for large and hard materials such as carbide slag, cement blocks, purified ash blocks, foam coal, lithium ore, metals, color steel tiles, ores, etc; And the conveying capacity is large.

　　Run more smoothly: The load is distributed on two blade axes, resulting in less wear on each axis, longer equipment lifespan, and relatively lower noise.

　　Wide processing range: It can handle almost various materials, including carbon black agglomerates, household waste, construction waste, carbide slag, quicklime, rubber, woven bags and other mixed complex materials, with better adaptability than single axis crushing valves.

　　Materials: SUS304. SUS316. titanium, sprayed tungsten carbide, etc.

　　Size: DN100~~DN2000. square mouth 100 * 100~~3000 * 4000. or non-standard customization.

　　部分客户需求：

　　双轴破碎机;物料：净化灰，物料堆积密度0.3~0.4t/m3.物料温度<300℃，物料粒度：90%≤10.但是易板结成块，破碎后粒径≤10mm。打散破碎机用于电石净化灰气力输送系统，净化灰由沉降罐自由落入下部输送仓泵内，由于净化灰的物料特殊性，运行过程净化灰含水量大、易板结，容易造成物料在沉降罐和除尘器灰斗内板结、架桥，造成下料困难。拟在沉降罐出口增加双轴破碎机，将堆积的块料通过破碎机破碎满足输送要求后落入仓泵内。区域要求：本区域为防爆区，电气仪表防爆等级为Extd A21 IP66 T80 ℃ IIIC,，电机防护等级IP66.电机厂家：佳木斯/南阳/锡安达/大中;减速机厂家：SEW/NORD/国茂。

　　不锈钢电动双轴破碎阀，物料:电解锰片，堆积密度:2.1t/m³，原料粒度:厚度<3mm，大小为<100mm不规则片状，出料粒度:<20mm，规格:400mmx400mm，变频电动机，气体防爆、粉尘防爆，1.5KW，电压/频率:380V/50Hz。

　　物料：化工结晶物料;进料粒度：进料边长 100~1500mm;额定处理量：5.0 t/h;材质：316L不锈钢整体锻造辊体(洁净化工物料通用);尺寸500×400mm;驱动形式：电机 + 减速机 + 齿轮同步传动，所有与物料接触零部件均为 316L 不锈钢，表面抛光处理，无毛刺划伤晶体。

　　Partial customer requirements:

　　Double axis crusher; Material: Purified ash, with a bulk density of 0.3~0.4t/m3. a material temperature of < 300 ℃, a material particle size of 90% ≤ 10. but prone to clumping and particle size ≤ 10mm after crushing. The dispersing crusher is used in the pneumatic conveying system of calcium carbide purified ash, and the purified ash freely falls into the lower conveying bin pump from the settling tank. Due to the special nature of the purified ash material, the water content of the purified ash is high and it is prone to clumping during operation, which can easily cause material clumping and bridging in the settling tank and dust collector ash hopper, resulting in difficulties in unloading. We plan to add a double axis crusher at the outlet of the settling tank to crush the accumulated block materials to meet the transportation requirements before they fall into the bin pump. Regional requirements: This area is an explosion-proof zone, with an explosion-proof rating of Extd A21 IP66 T80 ℃ IIIC for electrical instruments, and an IP66 protection rating for motors. Motor manufacturers: Jiamusi/Nanyang/Zinda/Dazhong; Gearbox manufacturer: SEW/NORD/Guomao.

　　Stainless steel electric double axis crushing valve, material: electrolytic manganese sheet, bulk density: 2.1t/m ³, raw material particle size: thickness<3mm, irregular sheet size<100mm, discharge particle size:<20mm, specification: 400mmx400mm, variable frequency motor, gas explosion-proof, dust explosion-proof, 1.5KW, voltage/frequency: 380V/50Hz.

　　Material: Chemical crystalline material; Feed particle size: feed side length 100~1500mm; rated processing capacity: 5.0 t/h; Material: 316L stainless steel integral forging roller body (universal for clean chemical materials); Size 500 × 400mm; Drive form: motor+reducer+gear synchronous transmission. All parts in contact with the material are made of 316L stainless steel, with a polished surface and no burrs or scratches on the crystal.

　　我们的公司同得利生产电动破碎阀质量优良，性能稳定，使用寿命长。我们生产的双轴破碎阀和单轴破碎阀均具备优 秀的性能和质量保证，并能根据客户需求定制不同的规格和型号。我们不断推陈出新，不断创新产品，力争为客户提供更加优质的产品和服务，使客户的工作更加顺畅。如果您需要电动破碎阀或其它相关产品，欢迎咨询我公司，我们将为您提供蕞优质的服务。

　　Our company Tongdeli produces electric crushing valves with excellent quality, stable performance, and long service life. Our dual axis crushing valves and single axis crushing valves have excellent performance and quality assurance, and can be customized with different specifications and models according to customer needs. We constantly innovate and innovate our products, striving to provide customers with better quality products and services, making their work smoother. If you need electric crushing valves or other related products, please feel free to consult our company, and we will provide you with the best quality service.
