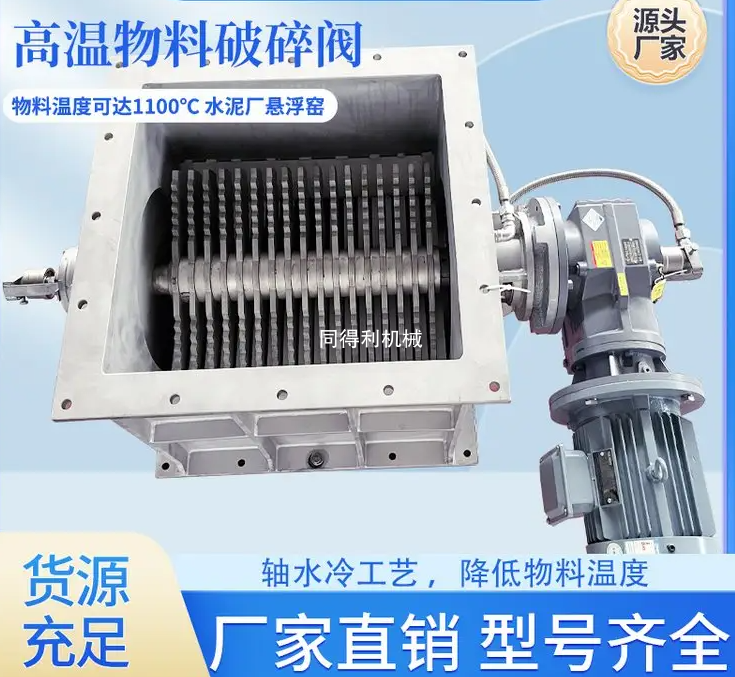

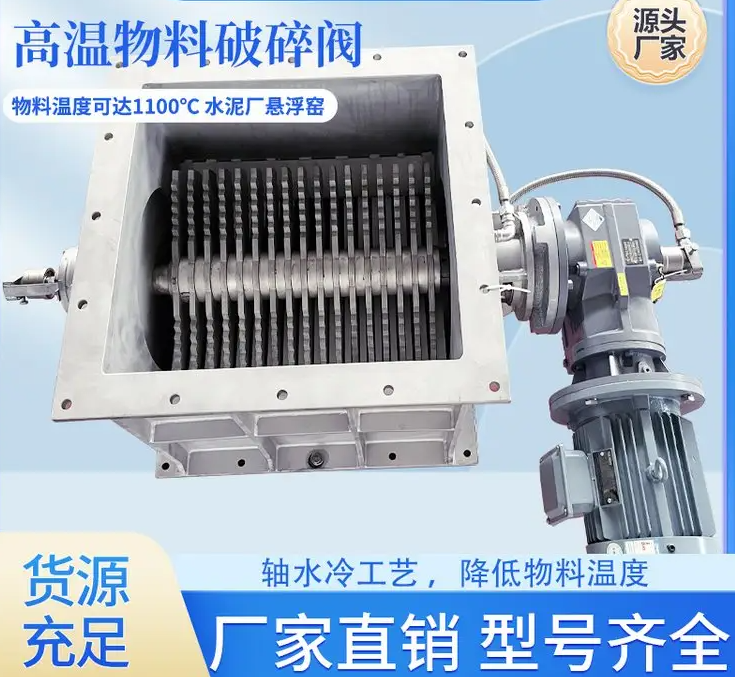

高温物料破碎阀，物料温度可达1100℃，如水泥厂悬浮窑、锅炉排渣、新材料煅烧破碎高温物料等工况，轴水冷工艺，降低物料温度。

　　电动旋转破碎阀的核心原理是：‌用旋转的带齿转子或破碎爪，把卸料过程中出现的结块物料剪切、打散成能顺利通过的小块，再配合阀体的卸料动作完成输送‌。它不只是控制通断，重 点是“边卸料边破碎”。‌‌

　　破碎阀把“定量卸料”和“破碎防堵”合在了一起，常用在食品粉料块、化工粉体、锂电块料原料、库底水泥、粉煤灰、煤粉等容易吸潮结块的物料仓底或气力输送系统里。‌‌

　　High temperature material crushing valve, with material temperature up to 1100 ℃, suitable for working conditions such as cement plant suspension kiln, boiler slag discharge, new material calcination and crushing of high-temperature materials, and shaft water cooling process to reduce material temperature.

　　The core principle of the electric rotary crushing valve is to use a rotating toothed rotor or crushing claw to cut and break up the clumped materials that appear during the unloading process into small pieces that can pass smoothly, and then cooperate with the unloading action of the valve body to complete the conveying. It's not just about controlling on/off, the focus is on "unloading while crushing". ‌‌

　　The crushing valve combines "quantitative discharge" and "crushing and anti blocking", and is commonly used in the bottom of material warehouses or pneumatic conveying systems that are prone to moisture absorption and agglomeration, such as food powder blocks, chemical powders, lithium battery block raw materials, warehouse bottom cement, fly ash, coal powder, etc. ‌‌

　　高温物料破碎阀/耐高温水冷式破碎阀：

　　本产品精选耐高温轴承，箱体叶轮轴承座采用循环水冷却，能承受1100度高温。通过循环水带走阀体吸收的热量，使内部轴承、密封件等关键部件维持在安全工作温度，防止因高温导致卡死或泄漏。‌‌本系列产品也可根据用户特殊要求定制技术参数。

　　High temperature material crushing valve/high temperature resistant water-cooled crushing valve:

　　This product selects high-temperature resistant bearings, and the housing impeller bearing seat adopts circulating water cooling, which can withstand a high temperature of 1100 degrees. By circulating water to remove the heat absorbed by the valve body, key components such as internal bearings and seals are maintained at safe operating temperatures to prevent jamming or leakage caused by high temperatures. This series of products can also be customized with technical parameters according to users' special requirements.

　　高温物料破碎阀主要特点：

　　1、防堵破碎‌：能处理磷酸铁粉、沫煤、锂矿、结块颗粒、电石渣、碳酸钙、硬脂酸盐结块、水泥块等块状物料，避免堵塞卸料口。

　　2、连续卸料‌：均匀连续输送物料，结构紧凑，运转平稳、噪音低。

　　3、‌锁气密封‌：有效阻止气流逆向流动，保证系统气压稳定，适合正压或负压状态下的卸料。

　　4、材质多样‌：可根据工况选择不锈钢等材质、内衬陶瓷、喷涂碳化钨、耐磨合金、高锰钢材质，适应腐蚀性、高温或高洁净要求的环境。

　　5、安全保护(选配)‌：部分产品带电机转速检测装置，卡料时会报警并自动反转，把无法破碎的物料推开后再正转;正反转都被卡住时自动停机。电机、减速机标配品牌：皖南、卧龙、国茂、西门子、ABB、SEW、Flender、NORD、住友，或客户指定品牌。

　　Main features of high-temperature material crushing valve:

　　1. Anti blocking and crushing: It can handle block materials such as phosphate iron powder, foam coal, lithium ore, agglomerated particles, carbide slag, calcium carbonate, stearate agglomerates, cement blocks, etc., to avoid blocking the discharge port.

　　2. Continuous unloading: Uniform and continuous conveying of materials, compact structure, smooth operation, and low noise.

　　3. Lock gas seal: effectively prevents reverse airflow, ensures stable system pressure, and is suitable for unloading under positive or negative pressure conditions.

　　4. Diverse materials: Stainless steel and other materials, ceramic lining, sprayed tungsten carbide, wear-resistant alloy, high manganese steel materials can be selected according to the working conditions to adapt to environments with corrosive, high temperature, or high cleanliness requirements.

　　5. Safety protection (optional): Some products are equipped with a motor speed detection device, which will alarm and automatically reverse when stuck, pushing the unbreakable material away and then rotating forward again; Automatically stop when both forward and reverse directions are stuck. Standard brands for motors and reducers: Wannan, Wolong, Guomao, Siemens ABB、SEW、Flender、NORD、 Sumitomo, or customer designated brand.

　　部分客户需求：

　　高温水冷卸料破碎阀，规格：圆形DN400.耐温：500-1000℃，物料堆积密度：0.5-0.8g/cm³，物料处理量：10t/h。适用介质：煤矸石、方解石等高温粉料块料，阀内压力：±10000Pa，形态方式：旋转式。类型通道：直通式，流动方向：单向，驱动方式：电动，连接形式：法兰式连接，进出口尺寸：DN400.阀体与电机减速机分体式。阀体及附加设备需刷防护面漆。阀体要求机械密封及阀轴处，完全气密封，避免外部空气因负压吸入阀体内，建议采用惰性气体气封或采用其他方式阻绝外部空气进入，同时考虑阀体正压出现跑料现象。

　　Partial customer requirements:

　　High temperature water-cooled discharge crushing valve, specification: circular DN400. temperature resistance: 500-1000 ℃, material bulk density: 0.5-0.8g/cm ³, material processing capacity: 10t/h. Applicable medium: high-temperature powder blocks such as coal gangue and calcite, valve pressure: ± 10000Pa, form: rotary type. Type channel: straight through, flow direction: one-way, drive mode: electric, connection form: flange connection, inlet and outlet size: DN400. valve body and motor reducer are separated. The valve body and additional equipment need to be coated with protective paint. The valve body requires mechanical sealing and complete gas sealing at the valve shaft to prevent external air from being sucked into the valve body due to negative pressure. It is recommended to use inert gas gas sealing or other methods to block external air from entering, while considering the phenomenon of material leakage caused by positive pressure on the valve body.

　　水冷耐高温旋转破碎阀，物料接触材质：310S，进料温度1000度(max)物料密度约700kg/m³，物料额定输送量2600kg/h(输送量变频可调)阀体表面喷涂：有机硅高温铝粉漆，油漆干膜厚度60um，轴密封形式：纯石墨盘根密封，减速机：SEW，电机卧龙。

　　耐高温卸料破碎阀  耐高温旋转破碎阀  耐高温破碎打散阀 耐高温破碎阀 耐高温电动破碎阀 水冷式破碎阀  水冷式电动破碎阀 水冷式破碎卸料阀 水冷式破碎旋转阀

　　我们的公司同得利生产电动破碎阀质量优良，性能稳定，使用寿命长。我们生产的高温破碎阀、双轴破碎阀和单轴电动破碎阀均具备优 秀的性能和质量保证，并能根据客户需求定制不同的规格和型号。我们不断推陈出新，不断创新产品，力争为客户提供更加优质的产品和服务，使客户的工作更加顺畅。如果您需要电动破碎阀或其它相关产品，欢迎咨询我公司，我们将为您提供蕞优质的服务。

     《扫二维码-添加 陈经理 微信-咨询水冷式耐高温破碎卸料阀》

　　Water cooled high-temperature resistant rotary crushing valve, material contact material: 310S, feed temperature of 1000 degrees (max), material density of about 700kg/m ³, rated material conveying capacity of 2600kg/h (variable frequency adjustable conveying capacity), valve body surface spraying: organic silicon high-temperature aluminum powder paint, paint dry film thickness of 60um, shaft sealing form: pure graphite disc root seal, reducer: SEW, motor Wolong.

　　Our company Tongdeli produces electric crushing valves with excellent quality, stable performance, and long service life. Our high-temperature crushing valves, double axis crushing valves, and single axis electric crushing valves all have excellent performance and quality assurance, and can be customized with different specifications and models according to customer needs. We constantly innovate and innovate our products, striving to provide customers with better quality products and services, making their work smoother. If you need electric crushing valves or other related products, please feel free to consult our company, and we will provide you with the best quality service.
