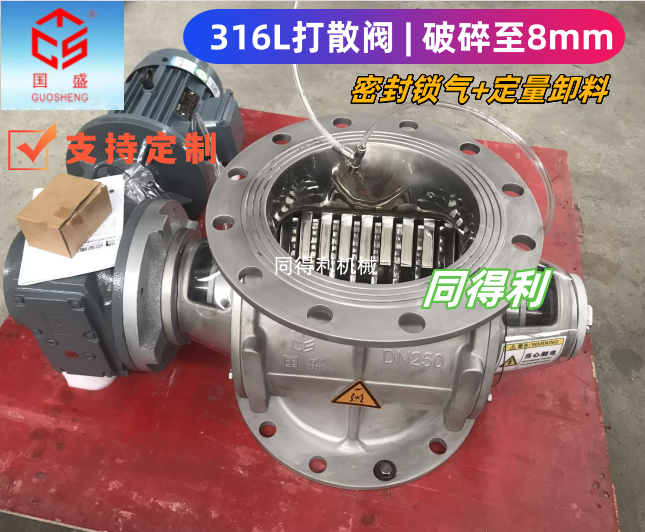

锂电、食品、制药、化工行业打散破碎大块料物料(介质)的电动破碎阀，常用‌不锈钢 304/316L‌材质，以满足高卫生要求和耐腐蚀工况。不锈钢破碎阀集结星型卸料阀定量卸料及密封锁气功能，还有蕞大特点为打散破碎块料功能，常规破碎至6mm~10mm，<6mm按需定制生产。

　　The electric crushing valve for breaking and crushing large block materials (media) in the lithium battery, food, pharmaceutical, and chemical industries is commonly made of stainless steel 304/316L material to meet high hygiene requirements and corrosion-resistant working conditions. The stainless steel crushing valve is equipped with a star shaped discharge valve for quantitative discharge and sealing and air locking functions. Its biggest feature is the ability to break up and crush block materials. It is commonly used for crushing to 6mm~10mm, and can be customized for production when it is less than 6mm.

　　‌‌‌

　　锂电池经绝缘仓进活动阀真空给料，破室进出料闭氧抽空充惰性气体(常规用氮气和二氧化碳);惰性气体作用为提高电解液闪点和挥发点，同时抑制锂离子从负极到正极几率，防止放电发热和爆燃;锂电破碎时转子刀与底刀相切破，并起摩擦打散防止金属壳体包裹正负极片，碎后物料通过真空排料进行外排。

　　Lithium batteries are vacuum fed into the movable valve through the insulation compartment, and the inlet and outlet of the broken chamber are closed and oxygen is evacuated to fill with inert gas (usually nitrogen and carbon dioxide); The role of inert gas is to increase the flash point and volatilization point of the electrolyte, while suppressing the probability of lithium ions from the negative electrode to the positive electrode, preventing discharge heating and explosion; When the lithium battery is broken, the rotor blade and the bottom blade are tangent and broken, and friction is generated to break and prevent the metal shell from wrapping the positive and negative electrode pieces. After the breakage, the material is discharged through vacuum discharge.

　　物料：氧化铝粉末从烘干设备出来可能会成团，需打散，块料硬度一般，蕞大块料大致8cm，一小时输送量5t，气密封，尺寸DN300.材质316L。导热粉体材料(球形氧化铝、类球形氧化铝、氮化铝、氮化硼)、电磁屏蔽粉体材料(镍包石墨)，以及锂电极片涂覆及隔膜涂层材料等。

　　物料：可可饼，榨过油的，卸料量200kg/h，物料状况2*2cm，破碎后小于10mm，材质不锈钢304.破碎尺寸300*300.

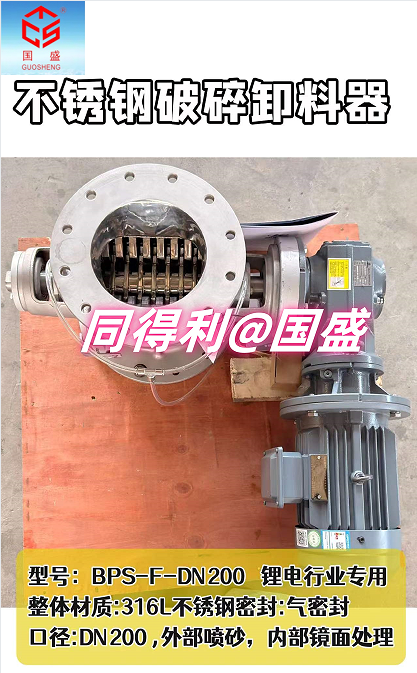

　　生物医药管道破碎机设备(BPSF-DN200)，物料名称：名称： 度洛西汀单甲基;物料体积：1200L/650kg，进料参数要求：200kg/h，出料参数要求： 粒径<8mm，材质316L。电机采用气体粉尘双防爆，能效等级2级，ExdIIBT4Gb/ExtDA211P65T130°。

　　Materials: Aluminum oxide powder may form clusters when coming out of the drying equipment and needs to be dispersed. The hardness of the blocks is generally average, with a maximum block size of about 8cm and a conveying capacity of 5t per hour. It is airtight, with a size of DN300 and made of 316L material. Thermal conductive powder materials (spherical aluminum oxide, quasi spherical aluminum oxide, aluminum nitride, boron nitride), electromagnetic shielding powder materials (nickel coated graphite), as well as lithium electrode sheet coating and diaphragm coating materials, etc.

　　Material: Cocoa cake, pressed with oil, discharge capacity 200kg/h, material condition 2 * 2cm, crushed to less than 10mm, material 304 stainless steel, crushing size 300 * 300.

　　Biomedical Pipeline Crusher Equipment (BPSF-DN200), Material Name: Duloxetine Monomethyl; Material volume: 1200L/650kg, feed parameter requirement: 200kg/h, discharge parameter requirement: particle size<8mm, material 316L. The motor adopts gas dust dual explosion-proof, energy efficiency level 2. ExdIIBT4Gb/ExtDA211P65T130 °.

　　不锈钢破碎阀原理：

　　电机驱动带放射状破碎爪的转子转动，把块料拨进阀体并压向栅格，靠挤压和剪切把块料打碎‌。‌‌

　　经过打散后的物料从设备下方排出，再进入螺旋输送机、皮带输送机、称重设备、包装机或其他工艺设备。

　　Principle of stainless steel crushing valve:

　　The motor drives the rotor with radial crushing claws to rotate, pushing the block material into the valve body and pressing it against the grid. The block material is crushed by squeezing and shearing. ‌‌

　　After being dispersed, the material is discharged from below the equipment and then enters the screw conveyor, belt conveyor, weighing equipment, packaging machine or other process equipment.

　　其基本工作流程为：

　　结块物料进入 → 旋转破碎 → 剪切打散 → 块料变小 → 均匀排出 → 下游输送

　　不锈钢破碎阀结构：

　　阀体、破碎刀齿、轴承组件、旋转轴、减速电机、密封结构及出料接口组成。

　　可根据客户要求选择多种材质：不锈钢(SS304、SS304L、SS316、SS316L)

　　破碎出料粒度：6mm~10mm，或1cm~3cm，或<6mm定制，均可按需定制。

　　The basic workflow is as follows:

　　Agglomerated materials enter → rotate and crush → shear and disperse → block material becomes smaller → evenly discharged → downstream transportation

　　Stainless steel crushing valve structure:

　　The valve body, crushing blade teeth, bearing components, rotating shaft, reduction motor, sealing structure, and discharge interface are composed of.

　　Multiple materials can be selected according to customer requirements: stainless steel (SS304. SS304L, SS316. SS316L)

　　Crushed material particle size: 6mm~10mm, or 1cm~3cm, or<6mm can be customized according to needs.

　　常州同得利机械厂/江苏同得利科技专 业的团队，拥有二十余年经验，定制、设计、研发、生产经验丰富。为您提供专 业的设计、选材和指导，为不同使用工况量身打造一体化的输送设备。自动精加工中心，搭配进口自动设备，专有生产工装，提高生产效率和精度。

　　Changzhou Tongdeli Machinery Factory/Jiangsu Tongdeli Technology has a professional team with over 20 years of experience in customization, design, research and development, and production. We provide professional design, material selection, and guidance to tailor integrated conveying equipment for different operating conditions. Automatic precision machining center, equipped with imported automatic equipment and proprietary production fixtures, improves production efficiency and accuracy.

　　部分客户需求：

　　物料：阳极碳块，原料小颗粒状，经过某工艺结块后需要破碎打散一下，下料口500*500.破碎到2~3cm左右即可，电机要求一级能效防爆的，减速机国茂，材质不锈钢316.

　　小型低速双齿辊结块打散机，物料：化工结晶物料;物料特性：不易燃、无吸潮、干燥固态;脆性结晶，能敲击、强挤压破碎原生晶粒，只拆散堆积结块;进料粒度：蕞大进料边长 100~500mm;额定处理量：5.0 t/h，尺寸500*500.材质304不锈钢，防爆：隔爆 EXdⅡCT4.电机采用SEW/诺德/住友/国茂减速电机。

　　Partial customer requirements:

　　Material: Anode carbon block, small granular raw material, needs to be crushed and dispersed after a certain process of agglomeration. The feeding port is 500 * 500. and it can be crushed to about 2-3cm. The motor requires first level energy efficiency and explosion-proof. The reducer is made of Guomao stainless steel 316.

　　Small low-speed double toothed roller clumping and breaking machine, material: chemical crystalline material; Material characteristics: non flammable, non hygroscopic, dry solid; Brittle crystallization, capable of knocking and forcefully crushing primary grains, only disassembling accumulated lumps; Feed particle size: maximum feed side length 100-500mm; rated processing capacity: 5.0 t/h, size 500 * 500. material 304 stainless steel, explosion-proof: explosion-proof EXd Ⅱ CT4. motor adopts SEW/Nord/Sumitomo/Guomao reduction motor.
