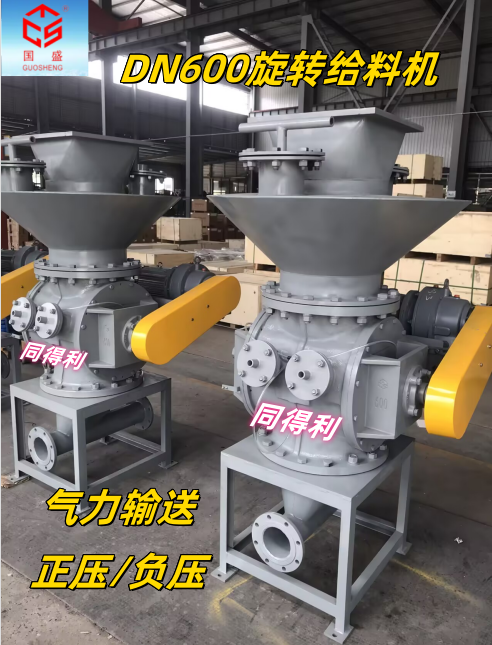

常州同得利旋转供料器常规尺寸+非标定制，DN50 ~ DN4000.方口150*150 ~ 5000*4000.高精度密封性能，平衡气压稳定。

　　Changzhou Tongdeli rotary feeder standard size+non-standard customization, DN50 ~ DN4000. Square mouth 150 * 150~5000 * 4000. high-precision sealing performance, stable balanced air pressure.

　　粉体/颗粒气力输送(正压/负压)特性优化，转子与阀体间隙控制在0.1-0.25mm，起到部分锁气功能及减少物料残留;转子转速可调(15-50转/分钟)，以匹配不同物料的流动性和输送量。例如，在烟道脱硫脱硝系统中，其能稳定输送石灰石粉，避免因供料不均导致的反应效率波动。

　　Optimization of powder/particle pneumatic conveying (positive/negative pressure) characteristics, with a gap between the rotor and valve body controlled at 0.1-0.25mm, providing partial air locking function and reducing material residue; The rotor speed can be adjusted (15-50 revolutions per minute) to match the flowability and conveying capacity of different materials. For example, in flue gas desulfurization and denitrification systems, it can stably transport limestone powder and avoid fluctuations in reaction efficiency caused by uneven feeding.

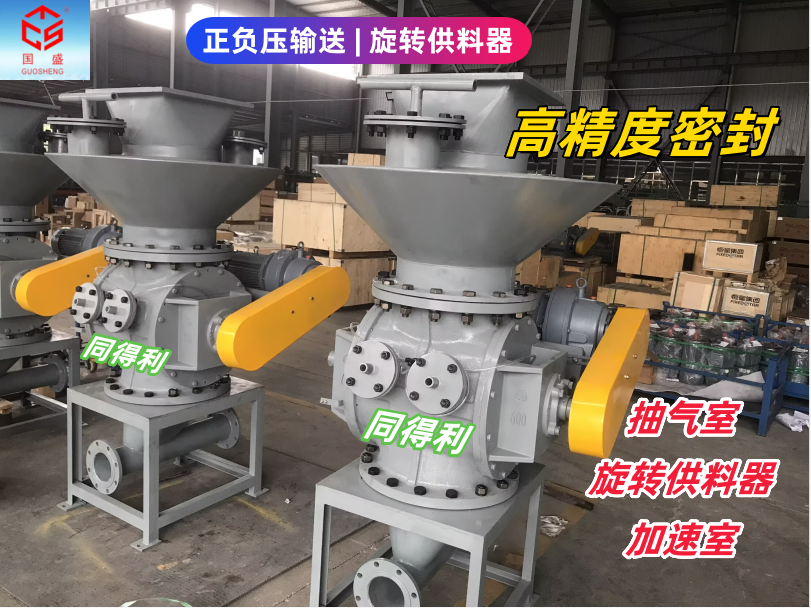

　　旋转供料器是气力输送系统(正压/负压)的核心枢纽，精准定量给料的同时实现高压气密封，转子与阀体的精密配合让物料输送更稳定高 效。搭配抽气室平衡压差、加速室提升混合效率，配合金属补偿器吸收管路位移，整套系统犹如精密齿轮协同运转，确保粉末颗粒输送流畅无阻。

　　The rotary feeder is the core hub of the pneumatic conveying system (positive/negative pressure), which accurately quantifies the material while achieving high-pressure gas sealing. The precise fit between the rotor and valve body makes the material conveying more stable and efficient. Paired with an exhaust chamber to balance pressure difference and an acceleration chamber to improve mixing efficiency, and a metal compensator to absorb pipeline displacement, the entire system operates like a precision gear to ensure smooth and unobstructed transportation of powder particles.

　　高精度密封旋转供料器作用：

　　气密封(闭风锁气)：叶轮与壳体间的精密配合，能有效阻止输送管路内的高压或正负压气流反向窜入料仓，维持系统内的压力平衡，减少气流损失。

　　定量卸料：通过旋转的叶轮将料仓内的物料均匀、连续地输送至下方的加速室或输送管路，控制物料的输送量。

　　卸料排灰‌：作为除尘器或料仓底部设备，将收集的粉尘或物料顺畅排出，防止搭桥堵料。

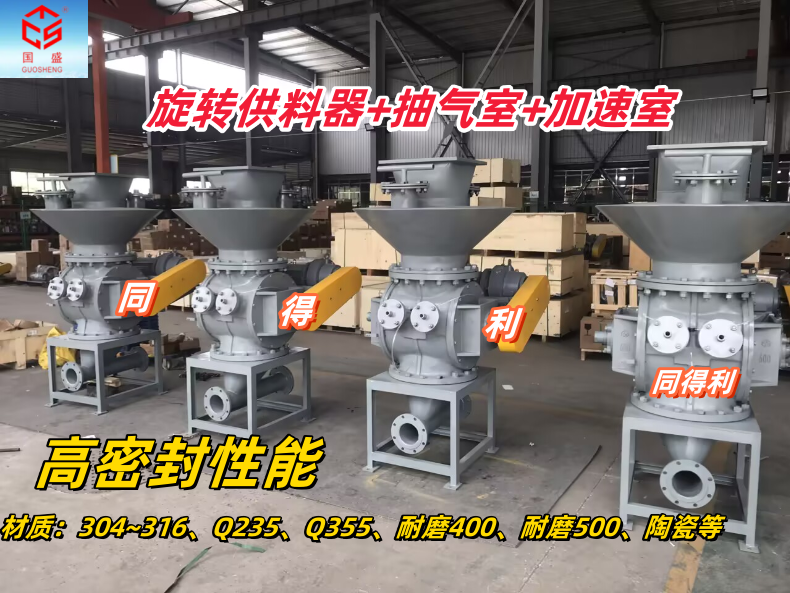

　　材质：304~316.Q235.Q355.耐磨400.耐磨500.陶瓷等。

　　旋转供料器抽气室作用：

　　泄压防顶料‌：将正压/负压输送侧通过叶轮间隙泄漏至进料侧的高压气体及时抽走，避免气体向上顶托粉料导致下料中断或波动 。

　　提升密封效果：减少气流对旋转叶轮与壳体间隙密封的冲击，降低物料被气流反吹或吹散的概率，增强供料器的锁气和给料能力。

　　稳定输送状态：避免因压力失衡导致的供料量波动，确保物料连续、均匀地进入输送管路，维持系统整体输送效率。

　　旋转供料器加速室作用：

　　稳定输送工况：通过优化物料与气流的混合比例和速度，减少物料在管路内的运动阻力，保障后续输送过程连续、顺畅，避免因物料速度不均导致的输送波动。

　　物料加速‌：接收从转子叶轮流出的静止或低速物料，通过底部通入的罗茨风机高压气流，使物料在极短距离内达到悬浮输送所需速度，避免因初速度不足在管口堆积。

　　气固混合‌：提供湍流空间让输送空气与粉体/颗粒充分掺混，形成稳定的稀相或浓相流态，确保物料顺利进入水平或垂直管道。

　　金属补偿器作用：

　　安装在连接管道上(如旋转供料器进出口管路)，利用金属波纹管弹性变形‌吸收热胀冷缩位移、补偿安装误差、减震降噪‌，保护旋转供料器及管道接口不因应力变形而泄漏或损坏 。‌‌旋转供料器本身‌不包含‌“金属补偿器”这一核心部件;两者是气力输送系统中‌独立安装、功能不同‌的组件：旋转供料器负责‌定量锁气喂料‌，金属补偿器(通常指波纹补偿器)负责‌吸收管道热位移与振动‌。‌‌

　　我公司专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开清洗阀、防卡旋转阀、偏置防卡、风送直通式旋转阀、高温高压旋转阀、高温水冷式、刮板式自清洁、钛合金陶瓷碳化钨四氟特氟龙尼龙聚氨酯、破拱机、料仓刮料破拱器、打散破碎阀、螺旋输送机等产品。广泛应用于锂电池、食品、石油化工、制药、淀粉、油脂、化工干燥、粮食、饲料、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。

　　部分客户需求：

　　化工：物料生物质粉末，粉碎除尘器灰斗下料旋转密封给料阀(变频)，物料堆积密度320~420kg/m3.给料机入口管道规格(DN700)，上下游设备情况：粉碎除尘器灰斗落灰口-手动检修阀-螺旋机-抽气室-旋转给料阀-输送管道，气压：975hPa，按气体+粉尘防爆进行设计，防爆等级为ExdeIICT3 Gb & Extb IIICT153℃ Db;布袋除尘器下料旋转密封给料阀，物料堆积密度320~420kg/m3.给料机入口管道规格(DN800)，上下游设备情况：布袋除尘器灰斗落灰口-手动检修阀-旋转给料阀-螺旋机-密闭料仓，气压975hPa;叶片式，120t/h，给料机填充率<0.8.灰斗下料旋转密封给料阀电机：变频电机，防爆等级为ExdeIICT3 Gb & Extb IIICT153℃ Db，品牌：佳木斯/卧龙电气，电动机接线盒配不锈钢304材质的防爆密封接头。

　　下料旋转阀 (正压输送+加速室)产品咖啡生豆，比重0.65T/m3.咖啡生豆仓下料正压稀相吹送，产能3-5T/H; 吹送管路外径Φ88.9mm,T=3mm。以前用过意大利威埃姆WAMGROUP，现在换成国产品质级别好的品牌。

　　介质是三元前驱体，锂电池行业用。电池材料温度150℃，不锈钢内衬0.3mm氧化锆陶瓷，DN150.正压输送，做设备要配套，还要配套三通分料阀。

　　需求：旋转供料器，物料：脱硫脱硝-氢氧化钙粉料，正压输送压力1bar，温度150度以下，输送量5吨~20吨/h，变频电机，需要密封性能好的，且耐磨，下面配三通，加速室。

　　需求：DN250旋转供料器，氧化铁、氯化铁项目，气力输送旋转供料器的内部压力：表压0.2MPa，上部连接设备氯化铁料仓，下部连接设备三通管件，堆积密度1.0g/cm3.温度250°C，输送量10t/h。

         《扫二维码-添加 陈经理 微信-咨询正负压输送旋转供料器》

　　Function of high-precision sealed rotary feeder:

　　Airtight seal (closed air lock): The precise fit between the impeller and the shell can effectively prevent high-pressure or positive/negative pressure airflow in the conveying pipeline from entering the silo in the opposite direction, maintain pressure balance in the system, and reduce airflow loss.

　　Quantitative unloading: The material in the silo is uniformly and continuously conveyed to the acceleration chamber or conveying pipeline below through a rotating impeller, controlling the amount of material conveyed.

　　Unloading and ash discharge: As a dust collector or bottom equipment of the silo, it smoothly discharges the collected dust or materials to prevent bridge blockage.

　　Function of the rotary feeder suction chamber:

　　Pressure relief and anti toppling material: Timely extract the high-pressure gas leaked from the positive/negative pressure conveying side through the impeller gap to the feeding side, to avoid the interruption or fluctuation of feeding caused by the gas lifting the powder upward.

　　Improve sealing effect: reduce the impact of airflow on the gap seal between the rotating impeller and the shell, reduce the probability of material being blown back or dispersed by the airflow, and enhance the air locking and feeding capacity of the feeder.

　　Stable conveying state: To avoid fluctuations in the feeding amount caused by pressure imbalance, ensure that materials enter the conveying pipeline continuously and evenly, and maintain the overall conveying efficiency of the system.

　　Rotating feeder acceleration chamber function:

　　Stable conveying conditions: By optimizing the mixing ratio and speed of materials and airflow, the movement resistance of materials in the pipeline is reduced, ensuring continuous and smooth subsequent conveying processes and avoiding conveying fluctuations caused by uneven material speeds.

　　Material acceleration: Receive static or low-speed materials flowing out of the rotor impeller, and use the high-pressure airflow of the Roots blower introduced from the bottom to achieve the required speed for suspended transportation in a very short distance, avoiding accumulation at the pipe mouth due to insufficient initial velocity.

　　Gas solid mixing: Provides turbulent space for the conveying air to fully mix with powder/particles, forming a stable dilute or dense phase flow state, ensuring smooth entry of materials into horizontal or vertical pipelines.

　　Function of metal compensator:

　　Installed on the connecting pipeline (such as the inlet and outlet pipelines of the rotary feeder), utilizing the elastic deformation of metal corrugated pipes to absorb thermal expansion and contraction displacement, compensate for installation errors, reduce vibration and noise, and protect the rotary feeder and pipeline interface from leakage or damage due to stress deformation. The rotary feeder itself does not include the core component of "metal compensator"; The two are independently installed components with different functions in the pneumatic conveying system: the rotary feeder is responsible for quantitatively locking the air feeding, and the metal compensator (usually referring to the corrugated compensator) is responsible for absorbing the thermal displacement and vibration of the pipeline. ‌‌

　　Our company specializes in the production of (B) GFY, YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening cleaning valves, anti jamming rotary valves, offset anti jamming, air delivery straight through rotary valves, high temperature and high pressure rotary valves, high temperature water-cooled, scraper self-cleaning, titanium alloy ceramic tungsten carbide PTFE PTFE nylon polyurethane, arch breaking machines, silo scraper crushers, fragmentation valves, screw conveyors and other products. Widely used in equipment for industries such as lithium batteries, food, petrochemicals, pharmaceuticals, starch, oils, chemical drying, grain, feed, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.

Partial customer requirements:

Chemical industry: Material biomass powder, crushing dust collector ash hopper discharge rotary sealed feeding valve (frequency conversion), material bulk density 320-420kg/m3. feeder inlet pipeline specification (DN700), upstream and downstream equipment situation: crushing dust collector ash hopper ash outlet - manual maintenance valve - screw machine - suction chamber - rotary feeding valve - conveying pipeline, air pressure: 975hPa, designed for gas+dust explosion protection, explosion-proof level ExdeIICT3 Gb&Extb IIICT153 ℃ Db; bag dust collector discharge rotary sealed feeding valve, material bulk density 320-420kg/m3. feeder inlet pipeline specification (DN800), upstream and downstream equipment situation: bag dust collector ash hopper ash outlet - Manual maintenance valve - Rotary feeding valve - Spiral machine - Closed silo, air pressure 975hPa; Blade type, 120t/h, feeder filling rate<0.8. ash hopper feeding rotary seal feeding valve motor: variable frequency motor, explosion-proof rating ExdeIICT3 Gb&Extb IIICT153 ℃ Db, brand: Jiamusi/Wolong Electric, motor junction box with stainless steel 304 material explosion-proof sealing joint.

Feeding rotary valve (positive pressure conveying+acceleration chamber) for coffee green beans, with a specific gravity of 0.65T/m3. The coffee green bean bin is fed with positive pressure dilute phase blowing, with a production capacity of 3-5 T/H; The outer diameter of the blowing pipeline is Φ 88.9mm, T=3mm. I used to use WAMGROUP from Italy before, but now I have switched to a high-quality domestic brand.

The medium is a ternary precursor used in the lithium battery industry. The temperature of the battery material is 150 ℃, with a 0.3mm zirconia ceramic lining made of stainless steel, DN150. Positive pressure conveying requires supporting equipment and three-way material distribution valves.

Requirement: Rotary feeder, material: desulfurization and denitrification calcium hydroxide powder, positive pressure conveying pressure of 1 bar, temperature below 150 degrees, conveying capacity of 5 tons~20 tons/h, variable frequency motor, requiring good sealing performance and wear resistance, equipped with three-way and acceleration chamber below.

Requirement: DN250 rotary feeder, iron oxide and ferric chloride project, internal pressure of pneumatic conveying rotary feeder: gauge pressure 0.2MPa, upper connected to equipment ferric chloride silo, lower connected to equipment tee fittings, bulk density 1.0g/cm3. temperature 250 ° C, conveying capacity 10t/h.
