三氯化锂，硫酸盐，聚合物颗粒，催化剂，消毒粉，三氯异氰尿酸、二氯异氰尿酸钠、次氯酸钙、次氯酸钠，石灰粉，含有氯、硫等腐蚀性成分等的物料，如何选择耐腐蚀旋转阀?同得利推荐材质：钛合金、陶瓷、碳化钨、四氟、特氟龙、316L等。旋转阀内衬四氟(PTFE)核心特点为：‌极 致耐强腐蚀、宽温适用(-180℃~260℃)、零粘附防堵、软密封不泄漏‌，专用于反应釜/储罐底部排放强酸、强碱、有机物料及粘稠浆料 。‌‌

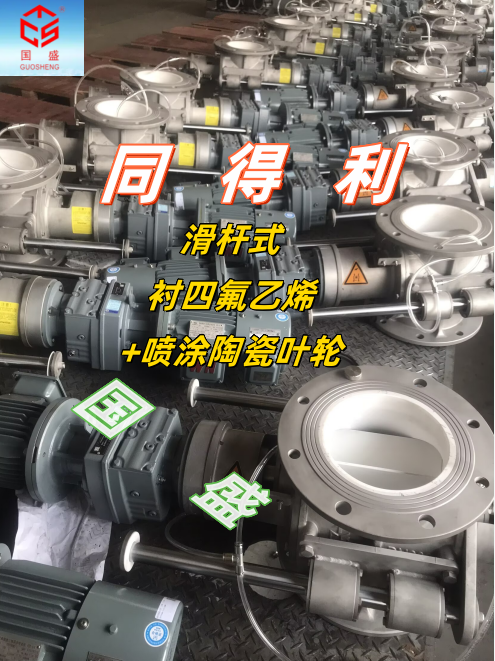

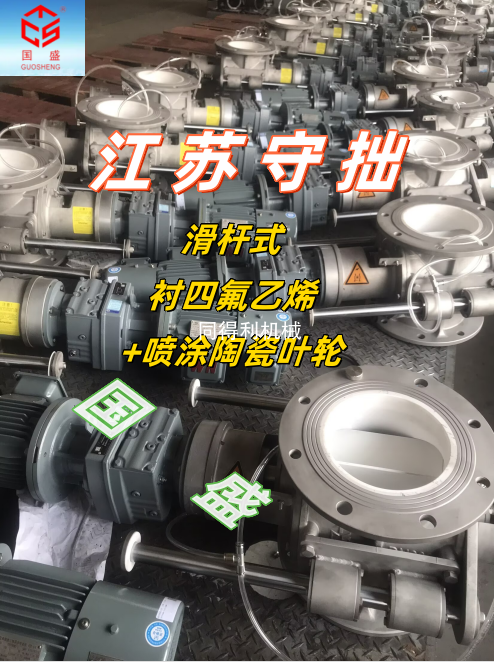

　　内衬PTFE四氟滑杆式旋转阀结构：

　　尺寸：DN200

　　主要结构：304阀体;物料接触部分：内衬四氟，喷涂陶瓷转子。

　　主要用于输送锂电池正极材料、磷酸铁锂、三元材料、化工原料、医药等。

　　特点：耐腐蚀，物料粘接设备，可以快速清理，快速复位。

　　稳定性优于其他开拆式阀门，可原地抽出转子。

　　防粘自润滑‌：表面摩擦系数极低，物料不易粘附堆积，特别适合高粘度、易结晶或含颗粒浆料排放，杜绝“挂料”导致的堵塞或垢下腐蚀 。

　　结构保护机制‌：金属阀体提供承压强度，四氟内衬隔离腐蚀介质，实现“以钢承重、以氟防腐”的复合优势 。‌‌

　　超强耐腐蚀性‌：除熔融碱金属和元素氟外，可耐受有浓度强酸、强碱、强氧化剂及有机溶剂，隔离介质与金属阀体接触。

　　部分客户需求：

　　内衬四氟PTFE星型给料阀：介质：AIBN、二氯乙烷，碳酸氢钠，碳酸钾。DN150 转速：24r/min 下料量150Kg/h ，材质：S30408衬四氟，配变频器调速，配变频电机。星型给料器(DN200)，容积：8~10L/转，转速25~30r/min，材质：S30408衬四氟，电机功率：1.5KW，星型给料器变频调速，所有电气、仪表设施均需考虑气体和粉尘复合防爆。

　　物料：粉料，涂料中增加的粉料，干粉喂料量 [m³/h] 0.3.有腐蚀性，尺寸DN250.与物料接触部分四氟，壳体304.

　　星型卸料器，400*400尺寸，卸料量>35m³/h，工厂压缩空气:0.45-0.7MPa;存在部分肥料扬尘，有一定腐蚀性;材质:304内衬四氟;电机:能效等级符合(GB18613-2020)2级能效标准。

　　腐蚀性颗粒接近粉体，往常压反应釜投料，常温30~40度，叶轮也要防腐，间隙要小，材质不锈钢内衬四氟，需要能耐有机溶剂：甲苯和二氯乙烷、乙酸甲酯，和物料接触部分全部按四氟。QJW、BZ投料星型卸料阀600-700Kg/批/h，材质S31603.内衬四氟，DN250;XL投料星型卸料阀 300-400Kg/批/h，钢衬四氟，DN200.

　　物料性质：化工物料，堆比重3.5 g/cm3～4.5 g/cm3.法兰连接，DN200.与物料接触部位耐硝酸腐蚀。密封形式：采用气密封和油封双重密封。

　　衬四氟卸料阀，过流介质：铝粉，输送量20-30公斤/小时，装在反应釜顶部料仓下，釜内有盐酸和水汽腐蚀，常温常压，间歇式加料。目前用了球阀和蝶阀，都不合适，铝粉遇到水汽容易粘壁卡死，需要换成内衬四氟旋转给料器，且防卡。

　　我公司专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开清洗阀、防卡旋转阀、偏置防卡、风送直通式旋转阀、高温高压旋转阀、高温水冷式、刮板式自清洁、钛合金陶瓷碳化钨四氟特氟龙尼龙聚氨酯、破拱机、料仓刮料破拱器、打散破碎阀、螺旋输送机等产品。广泛应用于锂电池、食品、石油化工、制药、淀粉、油脂、化工干燥、粮食、饲料、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。

    《扫二维码-添加 陈经理 微信-咨询耐腐蚀四氟旋转阀》

　　How to choose corrosion-resistant rotary valves for materials such as lithium trichloride, sulfate, polymer particles, catalysts, disinfectant powders, trichloroisocyanuric acid, sodium dichloroisocyanurate, calcium hypochlorite, sodium hypochlorite, lime powder, and materials containing corrosive components such as chlorine and sulfur? Tongdeli recommends materials such as titanium alloy, ceramic, tungsten carbide, PTFE, PTFE, 316L, etc. The core characteristics of PTFE lining for rotary valves are: extreme corrosion resistance, wide temperature applicability (-180 ℃~260 ℃), zero adhesion and anti blocking, soft seal and no leakage. It is specially used for discharging strong acids, strong alkalis, organic materials and viscous slurries at the bottom of reaction vessels/storage tanks. ‌‌

　　Structure of PTFE lined sliding rod rotary valve:

　　Size: DN200

　　Main structure: 304 valve body; Material contact part: lined with PTFE and sprayed with ceramic rotor.

　　Mainly used for transporting lithium battery cathode materials, lithium iron phosphate, ternary materials, chemical raw materials, pharmaceuticals, etc.

　　Partial customer requirements:

　　Lined PTFE star shaped feeding valve: media: AIBN, dichloroethane, sodium bicarbonate, potassium carbonate. DN150 speed: 24r/min, feeding capacity 150Kg/h, material: S30408 lined with PTFE, equipped with frequency converter speed regulation, equipped with frequency converter motor. Star feeder (DN200), volume: 8~10L/rev, speed: 25~30r/min, material: S30408 lined with PTFE, motor power: 1.5KW, star feeder variable frequency speed regulation, all electrical and instrumentation facilities need to consider gas and dust composite explosion-proof.

　　Material: Powder, powder added to the coating, dry powder feeding rate [m ³/h] 0.3. Corrosive, size DN250. PTFE in contact with the material, shell 304.

　　Features: Corrosion resistant, material bonding equipment, can be quickly cleaned and reset.

　　Stability is superior to other detachable valves, and the rotor can be pulled out in place.

　　Anti sticking and self-lubricating: The surface friction coefficient is extremely low, and the material is not easy to adhere and accumulate. It is particularly suitable for high viscosity, easy crystallization, or particle containing slurry discharge, to prevent blockage or corrosion under scale caused by "hanging materials".

　　Structural protection mechanism: The metal valve body provides compressive strength, and the PTFE lining isolates corrosive media, achieving the composite advantage of "steel load-bearing and fluorine anti-corrosion". ‌‌

　　Super corrosion resistance: In addition to molten alkali metals and elemental fluorine, it can withstand concentrations of strong acids, strong bases, strong oxidants, and organic solvents, and isolate the medium from contact with the metal valve body.

　　Star shaped unloader, 400 * 400 size, discharge capacity>35m ³/h, factory compressed air: 0.45-0.7MPa; There is some fertilizer dust, which has a certain degree of corrosiveness; Material: 304 lined with PTFE; Motor: The energy efficiency level meets the Level 2 energy efficiency standard of GB18613-2020.

　　Corrosive particles are close to the powder, and are fed into the atmospheric pressure reaction kettle at room temperature of 30-40 degrees. The impeller should also be corrosion-resistant with small gaps. The material should be stainless steel lined with PTFE and resistant to organic solvents such as toluene, dichloroethane, and methyl acetate. All parts in contact with the material should be treated with PTFE. QJW, BZ feeding star shaped discharge valve 600-700Kg/batch/h, material S31603. lined with PTFE, DN250; XL feeding star shaped discharge valve 300-400Kg/batch/h, steel lined PTFE, DN200.

　　Material properties: Chemical material, with a bulk density of 3.5 g/cm3 to 4.5 g/cm3. Flange connection, DN200. The parts in contact with the material are resistant to nitric acid corrosion. Sealing form: Adopting dual sealing of gas seal and oil seal.

　　PTFE lined discharge valve, overcurrent medium: aluminum powder, conveying capacity of 20-30 kg/h, installed under the top material bin of the reaction kettle, corroded by hydrochloric acid and water vapor inside the kettle, at room temperature and pressure, intermittent feeding. At present, ball valves and butterfly valves are not suitable. Aluminum powder is prone to sticking to the wall and getting stuck when exposed to water vapor. It needs to be replaced with a PTFE lined rotary feeder to prevent sticking.

　　Our company specializes in the production of (B) GFY, YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening cleaning valves, anti jamming rotary valves, offset anti jamming, air delivery straight through rotary valves, high temperature and high pressure rotary valves, high temperature water-cooled, scraper self-cleaning, titanium alloy ceramic tungsten carbide PTFE PTFE nylon polyurethane, arch breaking machines, silo scraper crushers, fragmentation valves, screw conveyors and other products. Widely used in equipment for industries such as lithium batteries, food, petrochemicals, pharmaceuticals, starch, oils, chemical drying, grain, feed, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.
