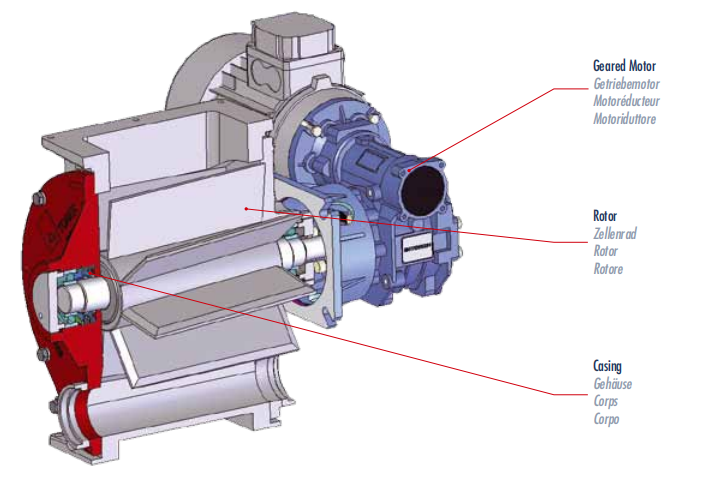

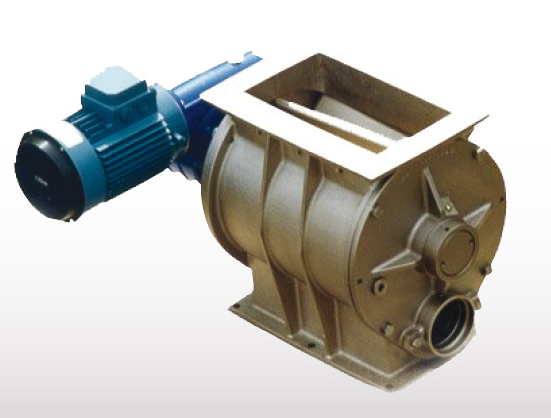

WAMGROUP意大利威埃姆RVS-RVC直通式旋转阀由管状铸铁或不锈钢壳体 、水平安装的转子(该转子上设有若干个斜V形横截面隔室) 、驱动单元以及两端的壳体盖组成。进给速率： 5 – 9 – 14 – 20 – 38升/转(0.17 – 0.3 – 0.5 – 0.7 – 1.3立方英尺/转)。威埃姆RVS-RVC直通式旋转阀损坏或者磨损怎么办?同得利可替代可维修。

　　RVS直通式旋转阀在连续旋转的转子上， 两个分仓通过旋转型阀顶部的进料口填充物料; 当转子转过不到半圈时，物料便从底部开口落入一股气流中， 该气流经由与旋转型阀底部相连的气动输送管道输送。

　　转子： 采用带斜面叶片的整体式结构， 并配备刮刀 (Viton ® 、Vulkolan 、Teflon ® )

　　-  固定转子转速： 10/20/30 转/分钟

　　- 转子转速可调：4 – 22 转/分钟

　　- 转子表面处理： 镀镍 、聚四氟乙烯®涂层 、硬化叶片

　　- 套管：铸铁或304/316不锈钢

　　- 套管表面处理： 镀镍 、聚四氟乙烯®涂层

　　- 驱动方式： 直驱式 (配齿轮电机) 、变速齿轮电机 、 同轴链传动 、无驱动装置的裸轴式

　　- 可轻松触及所有内部机械部件

　　RVS 系列旋转卸料机专为用于气动输送系统而设计与规划，符合市场对质量标准的严苛要求。凭借独特的技术手段，对有机物、无机物及塑料(即使粒度各异)进行精确计量与卸料，实为这些设备的蕞佳应用方式。

　　与 RVS 系列相同， RVC 系列也适用于相同的工况领域。与 RVS 系列不同， RVC 系列旋转阀属于下落式旋转阀类型。这一新系列的推出，通过增强其性能特点与多功能性，进一步拓展了广为人知的RV阀系列的应用范围。

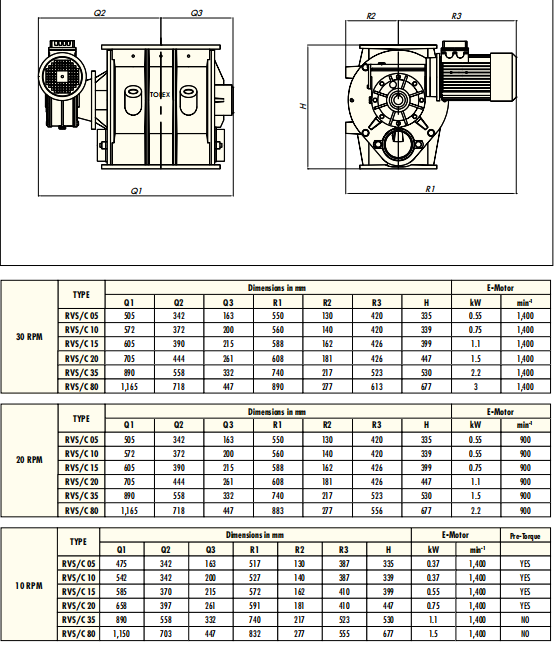

　　TYPE

　　RVS/C 05

　　RVS/C 10

　　RVS/C 15

　　RVS/C 20

　　RVS/C 35

　　RVS/C 80

　　The WAMGROUP Italy RVS-RVC straight through rotary valve consists of a tubular cast iron or stainless steel housing, a horizontally installed rotor (with several inclined V-shaped cross-sectional compartments), a drive unit, and housing covers at both ends. Feed rate: 5-9-14-20-38 liters per revolution (0.17-0.3-0.5-0.7-1.3 cubic feet per revolution). What should I do if the WAM RVS-RVC straight through rotary valve is damaged or worn? Tongdeli is replaceable and repairable.

　　The RVS series of rotary valves are conceived and designed for use in pneumatic conveyor systems,in accordance with the quality standards required

　　by the market.Thanks to the special techniques adopted, these machines find their ideal use in controlled batching and unloading of organic,inorganic, plastic materials, having different grain size.

　　The same fields of application are also valid for the RVC series of rotary valves. Unlike the RVS series, the RVC series consists of gravity rotary valves; the production of this new series is aimed at extending the well-known RV series as regards both features and versatility.

　　Features and Benefits

　　- Feed rate: 5 - 9 - 14 - 20 - 38 litres per

　　revolution (0.17 - 0.3 - 0.5 - 0.7 - 1.3 cu ft

　　per revolution)

　　- Available in ATEX zone 22 version

　　- Robust and compact design

　　- Rotor: integral with beveled blades, with

　　scrapers (Viton®, Vulkolan, Teflon®)

　　- Fixed rotor speed: 10 / 20 / 30 r.p.m.

　　- Variable rotor speed: 4 - 22 r.p.m.

　　- Rotor surface treatment: nickel plating,

　　Teflon® coating, hardened blades

　　- Casing: cast iron or 304 / 316 stainles steel

　　- Casing surface treatment: nickel plating,

　　Teflon® coating

　　- Drives: direct with gear motor, with variable

　　speed gear motor, coaxial with chain

　　transmission, bare shafted without drive

　　- Easy access to all internal mechanical

　　components
