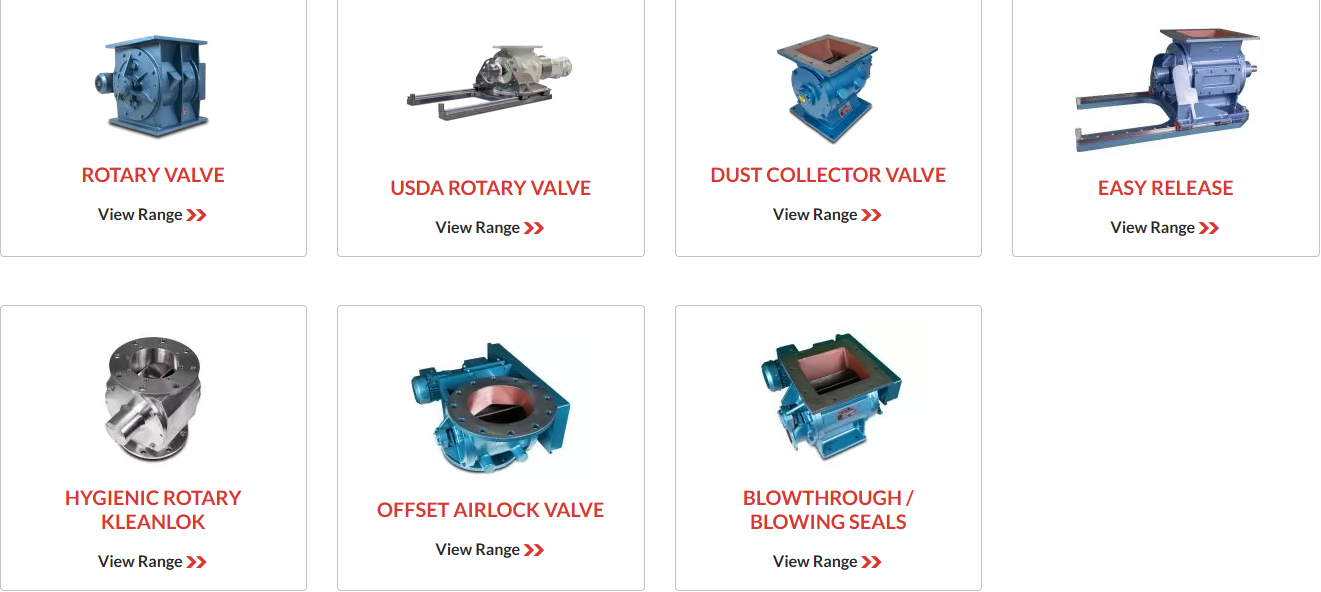

新加坡rotolok罗托洛克是制造散装固体物料处理设备的公司，涵盖了旋转阀门与气闸，分流器，滑阀与控制阀等。罗托洛克rotolok旋转阀(快拆清洗型，袋式除尘器用，旋风分离器用，风送直通型，卫生级，防卡偏置式)磨损/损坏/停产怎么处理?同得利可维修可替代对标。

　　The prime function of a rotary valve is to regulate the flow from one chamber to another while maintaining a good airlock condition. The product is mainly in dry powder or granular form.

　　In the dust filtration field good airlocks are essential on cyclone and bag filter applications in order that the manufacturer's quoted high dust collection efficiencies can be maintained. Airlocks are also important in the pneumatic conveying industry, where product is regulated into a high pressure conveying line while minimising air leakage.

　　旋转阀在许多散料输送和进料应用中至关重要，并发挥着多种功能。

　　当产品在系统或容器的不同部分之间移动时，无论是重力输送、真空输送还是用于过滤的压力输送，保持对过程的控制至关重要，而旋转阀门可以：

　　蕞小化压力或气流损失

　　提供计量和音量控制

　　调节进料速率

　　充当火焰或爆炸屏障

　　旋转阀可以提高生产效率、减少浪费，并保护产品免受通常可能存在的恶劣加工条件的影响。

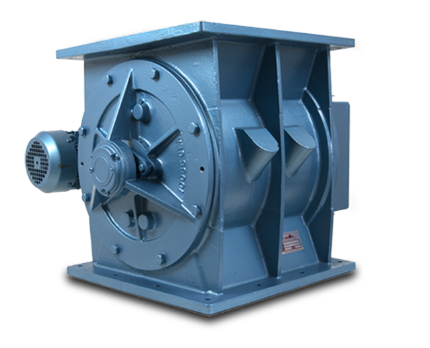

　　方口/圆口规格：

　　Bodies

　　Cast Iron, Stainless Steel or Aluminium precision bored.

　　End Covers

　　Cast Iron, Stainless Steel or Aluminium spigot located inbody for concentricity.

　　Rotor

　　Fabricated Mild or Stainless Steel.

　　Bearings

　　Sealed-for-life ball type rigged outboard.

　　Shaft Seal

　　Gland type with PTFE packing.

　　Drive

　　TEFC geared motor unit side wall mounted to valve body and complete with taper lock sprockets and chain drive all in an enclosed guard.

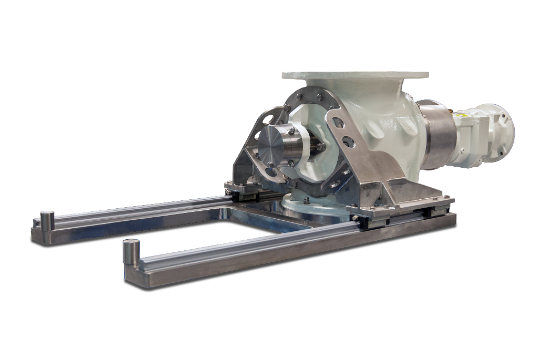

　　滑杆式清洗型旋转阀：

　　Clean out of place configuration

　　Smooth product contact surfaces in food grade material

　　Rotor pockets scalloped and polished to Ra=0.8 μm (150 grit)

　　Shock resistant

　　The product contact surfaces of the valve are manufactured in 316 Stainless Steel and polished to a 150 grit finish, ensuring that there are no lodgement points allowing the product to flow smoothly. Furthermore, the valve is equipped with a slide rail mechanism allowing for the quick and easy removal of the rotor from the valve body. This addition substantially reduces the amount of downtime and the number of man hours required for the cleaning and maintenance of the rotor and valve internals.

　　Bodies

　　316 Stainless Steel

　　End Covers

　　316 Stainless Steel

　　Rotor

　　Fabricated Stainless Steel with Scalloped pockets

　　Sizes range up to 600mm

　　Bearings

　　Sealed-for-life ball type rigged outboard

　　Shaft Seal

　　Cartridge style shaft seal

　　Drive

　　Direct drive coupled

　　袋式除尘器用旋转阀：

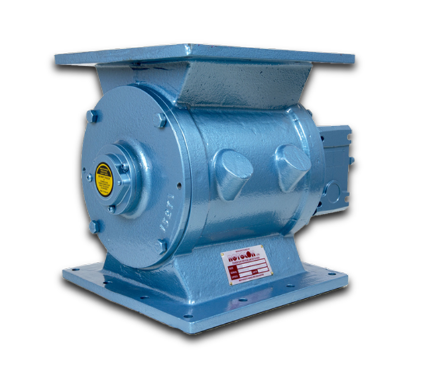

　　Dust Collector Valve

　　Rotolok introduced a low cost solution to dust collector valve needs. The Dust Collector Valve is a lighter duty option for standard dust collection applications.

　　Constructed with a robust cast iron body and cast iron end covers. Bearings are inboard and shafts are sealed with lip seals. All valves are direct driven with a right angle gearbox and motor.

　　The general market place covers Cyclones, Bag Houses and Gravity Feed applications with pressures around +/- 3 psi

　　Body

　　Cast Iron Precision Bored

　　Standard: Universal flanges to match Square or Circular connections

　　Heavy Duty: Robust with either Square or Circular flanges

　　End Covers

　　Cast Iron Precision Machined and Spigot Located into Valve Body

　　Rotor

　　Fabricated Mild Steel Closed (Shrouded) Type Fully Machined

　　Bearings

　　Ball Type Rigged Inboard Sealed for Life

　　Seal

　　Shaft Seals Rubber Lip Type

　　Drive

　　Motorised Worm Box Shaft Mounted on Rotor and Fitted with Standard I.E.C. Motor TEFC 3PH/50Hz Flange Mounted to Worm Box

　　Valve Speed

　　Standard – 28 RPM with 50Hz supply

　　Heavy Duty – 23 RPM with 50Hz supply

　　快拆清洗型旋转阀：

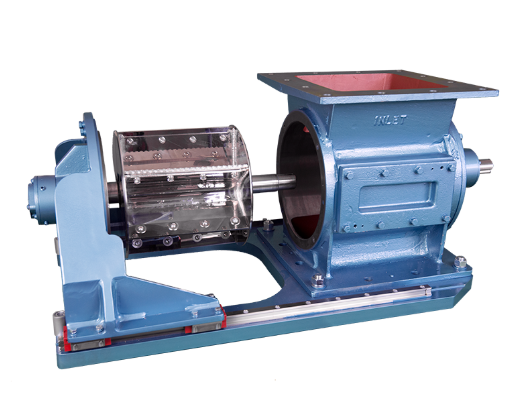

　　Easy Release

　　Rotolok offer an Easy Release rotary valve designed to allow just one person to maintain and easily clean the rotor. Being on rails saves on production downtime and reduces man hours. An inspection door can also be fitted in the valve body that provides access and surveying of the valve internals to check for wear.

　　Construction

　　Robust bodies and end covers can be manufactured from cast iron to stainless steel with open or closed rotors built to suit industry needs. Typical sizes range from 85mm (3.4 in) to 500mm (20 in) with other sizes made to order.

　　The general market place covers Cyclones, Bag Houses and Gravity Feed applications with pressures around +/- 3 psi

　　Bodies

　　Cast Iron, Stainless Steel or Aluminium precision bored.

　　End Covers

　　Cast Iron, Stainless Steel or Aluminium spigot located in body for concentricity.

　　Rotor

　　Fabricated Mild or Stainless Steel.

　　Bearings

　　Sealed-for-life ball type rigged outboard.

　　Shaft Seal

　　Gland type with PTFE packing.

　　Drive

　　MTEFC geared motor unit side wall mounted to valve body and complete with taper lock sprockets and chain drive all in an enclosed guard.

　　Valve Speed

　　Sizes 150 & 200 – 23 RPM

　　Sizes 250 & 300 – 23 RPM

　　卫生级旋转阀：

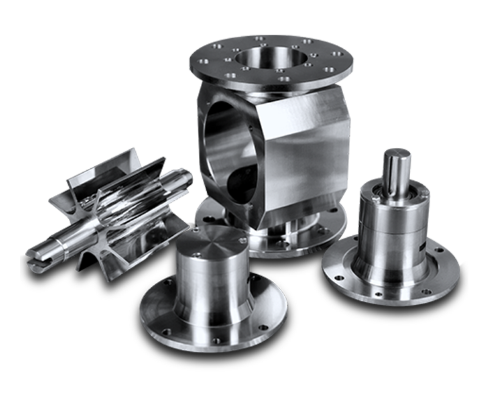

　　Hygienic Rotary Kleanlok

　　Fully machined externals for clean form and function

　　Compact assembly accommodates installation space constraints

　　Easy to clean both internally and externally with easily removable rotor

　　Hygienic all stainless steel design with minimal cracks and crevices

　　Smooth internal surfaces reduces product pick-up and aids pocket emptying efficiency

　　Direct drive with enclosed coupling eliminates problems with cleaning and maintaining a chain and sprocket drive

　　Minimum clearance between rotor tips and body

　　Lip seals provide effective containment with reduced maintenance requirements

　　Precision machining of components

　　吹气密封型旋转阀/风送式旋转阀/直通型旋转阀：

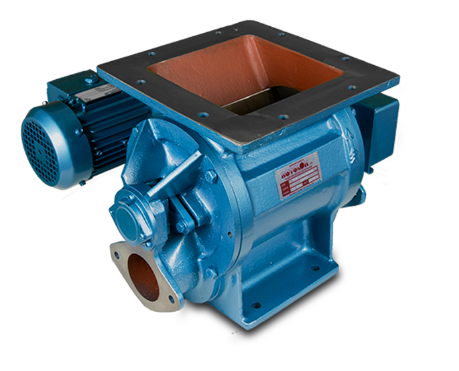

　　Blowthrough / Blowing Seals

　　Blowthrough/blowing seals meet the specific needs of the pneumatic conveying industry, a natural extension to the Rotary Airlock; both products are used to regulate the flow of dry powder, dust or granular product, while maintaining an airlock.

　　The blowthrough/blowing seal has distinct advantages for the specialist as it introduces high pressure conveying air through the valve body and rotor pocket ensuring – HIGH EFFICIENCY THROUGHPUT WITH LOW EFFECTIVE PRESSURE DROP.

　　This is achieved by the fact that more blades are in contact for longer periods with the valve body resulting in less air leakage – and by blowing through the rotor each rotor pocket is efficiently emptied.

　　The Rotolok range of seals is robustly constructed with an emphasis on close tolerances and minimal eccentricities, making the unit suitable for the majority of pneumatic conveying applications.

　　The general market place covers Cyclones, Bag Houses and Gravity Feed applications with pressures around +/- 3 psi

　　Body

　　Cast Iron or Stainless Steel precision machined

　　End Covers

　　Cast Iron or Stainless Steel spigot located in body

　　Rotor

　　Fabricated Mild or Stainless Steel fixed bladed open type

　　Bearings

　　Ball type sealed for life – alternative high temperature to 400°C

　　Seal

　　PTFE packing gland

　　Drive

　　TEFC geared motor unit side wall mounted to valve body and complete with taper lock chain drive in an enclosed guard. Option: flameproof, variable speed etc.

　　防卡偏置式旋转阀：

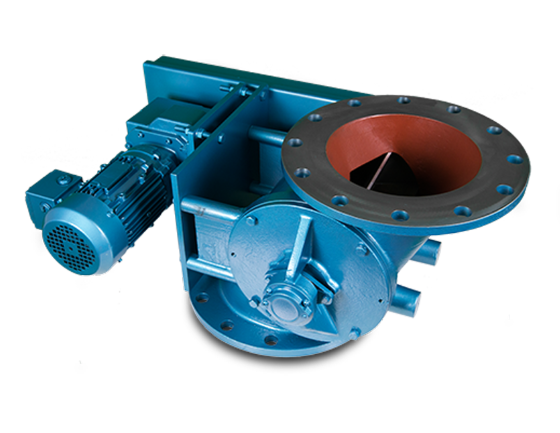

　　Offset Airlock Valve

　　The prime function of a Rotary Valve is to regulate the flow of dust, powder and granular products from one chamber to another whilst maintaining a good airlock.

　　The granule type of product, especially if it is a plastic type, polythene or nylon etc., does not shear easily and consequently, without considerable care the standard drop-through type of valve leads to valve seizure and also considerable shock loadings.

　　To minimize these problems the Offset Rotary Valve ensures lower pocket fillage as its design means that the rotor is still being filled in the upward cycle with the pellets falling away at the shear point. Similarly, the pelican beak distributes the product across the full width of the rotor.

　　Bodies

　　Cast Iron, Stainless Steel or Aluminium precision bored.

　　End Covers

　　Cast Iron, Stainless Steel or Aluminium spigot located inbody for concentricity.

　　Rotor

　　Fabricated Mild or Stainless Steel.

　　Bearings

　　Generally sealed-for-life-ball type rigged outboard or high temperature above 250ºC

　　Shaft Seal

　　Gland type with PTFE packing.

　　Drive

　　TEFC geared motor unit side wall mounted to valve body and complete with taper lock sprockets chain drive all in an enclosed guard
