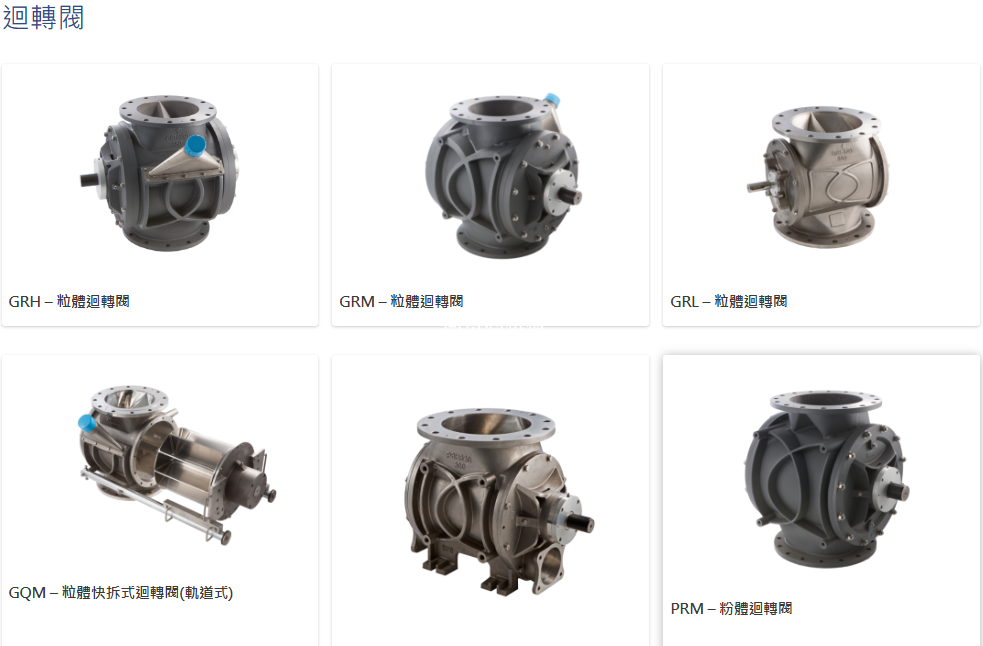

台湾控制阀股份回转阀磨损或损坏可维修可替代-常州同得利。GRH回转阀高壓/粒體應用，適用於控量系統，可搭配在空輸系統之進料量控制。GRM回转阀中壓/粒體應用 適用於控量系統 可搭配在空輸系統之進料量控制。GRL回转阀重力下料應用 適用於控量系統 可搭配在空輸系統之進料量控制。GQM回转阀中壓 粒體應用 適用於需頻繁更換輸送物料時使用 適用於控量系統 可搭配在空輸系統之進料量控制。

　　Taiwan Control Valve Co., Ltd. rotary valve wear or damage can be repaired or replaced - Changzhou Tongdeli. GRH rotary valve is suitable for high-pressure/granular applications in control systems and can be paired with feed control in air transportation systems. The GRM rotary valve is suitable for medium pressure/granular applications and can be paired with feed rate control in air transport systems. The GRL rotary valve gravity feeding application is suitable for controlling the feeding amount of control systems that can be combined with air transportation systems. GQM rotary valve is suitable for use when frequent replacement of conveyed materials is required. It is suitable for controlling the feed volume of control systems and can be used in conjunction with air transport systems.

　　GRH回转阀：

　　強化軸承支撐設計， 提升轉子和閥體配合精度。軸心採雙唇軸封止漏設計，降低洩漏。外殼與輪葉間低間隙，提高輸送效率。

　　尺吋範圍 : 4”~24”

　　法蘭規格 : ANSI 150#， DIN PN10.JIS

　　使用壓力範圍 : <=3.5bar

　　使用溫度範圍 : -10oC ~ 200oC

　　材質 : CF8 / CF8M / Aluminum

　　GRH rotary valve:

　　Strengthen the bearing support design to improve the precision of the rotor and valve body fit. The shaft adopts a double lip shaft seal design to prevent leakage and reduce it. Low clearance between the shell and the impeller improves conveying efficiency.

　　Size range: 4 "~24"

　　Flange specifications: ANSI 150 #, DIN PN10. JIS

　　Pressure range:<=3.5bar

　　Temperature range for use: -10oC~200oC

　　Material: CF8/CF8M/Aluminum

　　GRM回转阀：

　　防咬料設計，避免運轉中發生粒子剪斷現象，降低設備振動及故障風險，減少粒子破損，維護輸送質量。Air Lock 氣鎖設計， 節省耗能。

　　尺吋範圍 : 4”~24”

　　法蘭規格 : ANSI 150#， DIN PN10.JIS

　　使用壓力範圍 : <=1.5bar

　　使用溫度範圍 : -10oC ~ 200oC

　　材質 : CF8 / CF8M / Aluminum

　　GRM rotary valve:

　　Anti biting material design prevents particle shearing during operation, reduces equipment vibration and failure risks, minimizes particle damage, and maintains conveying quality. Air Lock design saves energy.

　　Size range: 4 "~24"

　　Flange specifications: ANSI 150 #, DIN PN10. JIS

　　Pressure range:<=1.5 bar

　　Temperature range for use: -10oC~200oC

　　Material: CF8/CF8M/Aluminum

　　GRL回转阀：

　　專利防咬料設計，避免運轉中發生粒子剪斷現象，降低設備振動及故障風險。強化軸承支撐設計， 提升轉子和閥體配合精度。

　　尺吋範圍 : 4”~12”

　　法蘭規格 : ANSI 150#， DIN PN10.JIS

　　使用壓力範圍 : <=0.2bar

　　使用溫度範圍 : -10oC ~ 200oC

　　材質 : CF8 / CF8M / Aluminum

　　GRL rotary valve:

　　The patented anti bite material design prevents particle shearing during operation, reducing equipment vibration and failure risks. Strengthen the bearing support design to improve the precision of the rotor and valve body fit.

　　Size range: 4 "~12"

　　Flange specifications: ANSI 150 #, DIN PN10. JIS

　　Pressure range:<=0.2 bar

　　Temperature range for use: -10oC~200oC

　　Material: CF8/CF8M/Aluminum

　　GQM粒體快拆式迴轉閥(軌道式)：

　　閥體排氣口設計提升填充效率，軸心採雙唇軸封止漏設計，降低洩漏，簡捷拆卸方式，換料清潔時更加便利，防咬料設計，避免運轉中發生粒子剪斷現象，降低設備振動及故障風險，減少粒子破損，維護輸送質量。

　　尺吋範圍 : 4”~24”

　　法蘭規格 : ANSI 150#， DIN PN10.JIS

　　使用壓力範圍 : <=1.5bar

　　使用溫度範圍 : -10oC ~ 200oC

　　材質 : CF8 / CF8M

　　GQM particle quick release rotary valve (rail type):

　　The design of the valve body exhaust port improves filling efficiency, and the shaft adopts a double lip shaft seal design to prevent leakage. It is easy to disassemble and convenient for material replacement and cleaning. The anti biting material design avoids particle shearing during operation, reduces equipment vibration and failure risks, reduces particle damage, and maintains conveying quality.

　　Size range: 4 "~24"

　　Flange specifications: ANSI 150 #, DIN PN10. JIS

　　Pressure range:<=1.5 bar

　　Temperature range for use: -10oC~200oC

　　Material: CF8/CF8M
