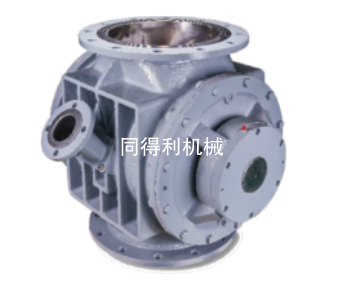

台湾控制阀股份RVH高压粉体回转阀磨损或损坏可维修可替代-常州同得利。

　　Taiwan Control Valve Co., Ltd. RVH high-pressure powder rotary valve can be repaired or replaced if worn or damaged - Changzhou Tongdeli.

　　高壓/粉體應用 適用於計量系統 可搭配在空輸系統之送料控制。

　　High pressure/powder applications are suitable for the feeding control of metering systems that can be combined with air transportation systems.

　　RVH高压粉体回转阀產品功能特點

　　*內部拋光處理，加強物料流動性

　　*強化軸承支撐設計， 提升轉子和閥體配合精度

　　*閥體排氣口設計提升填充效率

　　Functional characteristics of RVH high-pressure powder rotary valve product

　　*Internal polishing treatment to enhance material fluidity

　　*Strengthen bearing support design to improve the precision of rotor and valve body fit

　　*Valve body exhaust port design improves filling efficiency

　　RVH高压粉体回转阀產品規格

　　尺吋範圍 : 4”~20”

　　法蘭規格 : ANSI 150#， DIN PN10.JIS

　　使用壓力範圍 : <=3.5bar

　　使用溫度範圍 : -10oC ~ 200oC

　　材質 : CF8 / CF8M / Aluminum

　　Product specifications for RVH high-pressure powder rotary valve

　　Size range: 4 "~20"

　　Flange specifications: ANSI 150 #, DIN PN10. JIS

　　Pressure range:<=3.5bar

　　Temperature range for use: -10oC~200oC

　　Material: CF8/CF8M/Aluminum
