Taiwan Control Valve Co.,Ltd. In 2003. another alliance has been concluded with the pneumatic conveying giant, Pelletron, from the USA. 台湾控制阀股份GQM快拆式回转阀磨损或损坏可维修可替代-常州同得利。GQM清洗型快拆式卸料回转阀中压，颗粒粉体应用，适用于需频繁更换输送物料时使用，适用于控量系统，可搭配在气力输送系统中进料控制。

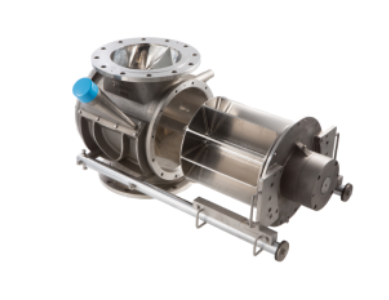

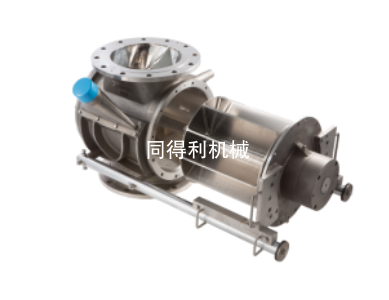

　　Taiwan Control Valve Co., Ltd. GQM quick release rotary valve can be repaired or replaced if worn or damaged - Changzhou Tongdeli. GQM cleaning type quick release discharge rotary valve is suitable for medium pressure and granular powder applications, and is suitable for frequent replacement of conveyed materials. It is suitable for control systems and can be used in pneumatic conveying systems for feeding control.

　　GQM快拆式回转阀產品規格

　　尺吋範圍 : 4”~24”

　　法蘭規格 : ANSI 150#， DIN PN10.JIS

　　使用壓力範圍 : <=1.5bar

　　使用溫度範圍 : -10oC ~ 200oC

　　材質 : CF8 / CF8M

　　GQM quick release rotary valve product specifications

　　Size range: 4 "~24"

　　Flange specifications: ANSI 150 #, DIN PN10. JIS

　　Pressure range:<=1.5 bar

　　Temperature range for use: -10oC~200oC

　　Material: CF8/CF8M

　　產品功能特點

　　*防咬料設計，避免運轉中發生粒子剪斷現象，

　　降低設備振動及故障風險，減少粒子破損，維護輸送質量

　　*強化軸承支撐設計， 提升轉子和閥體配合精度

　　*閥體排氣口設計提升填充效率

　　*軸心採雙唇軸封止漏設計，降低洩漏

　　*簡捷拆卸方式，換料清潔時更加便利

　　Product functional features

　　*The patented anti bite material design prevents particle shearing during operation,

　　Reduce equipment vibration and failure risks, minimize particle damage, and maintain conveying quality

　　*Strengthen bearing support design to improve the precision of rotor and valve body fit

　　*Valve body exhaust port design improves filling efficiency

　　*The shaft adopts a double lip shaft seal design to prevent leakage and reduce it

　　*Simple disassembly method, more convenient for material replacement and cleaning
