比利时Carmeuse Systems的工业旋转阀/旋转给料器如何维修或对标更换?旋转阀在您的散料输送和气力输送系统的性能中起着至关重要的作用。选择正确的旋转气闸阀是保持生产高 效和设备可靠运行的关键。RV系列旋转阀适合用于干燥、自由流动、非粘结性散装密度产品或粉末的气动输送。RV系列旋转气锁阀提供6英寸至14英寸的尺寸。RVS系列旋转阀方形法兰式落料阀通过六个旋转叶片输送物料，使其通过重力从底部出料法兰排出。RVS系列旋转气锁阀门提供12英寸规格。CV系列输送旋转阀专为处理大多数类型的干颗粒物而设计，包括在输送压力高达15 psi的气动输送系统中难以处理的粘性产品。CV系列输送式旋转气闸阀提供8英寸和12英寸两种尺寸。

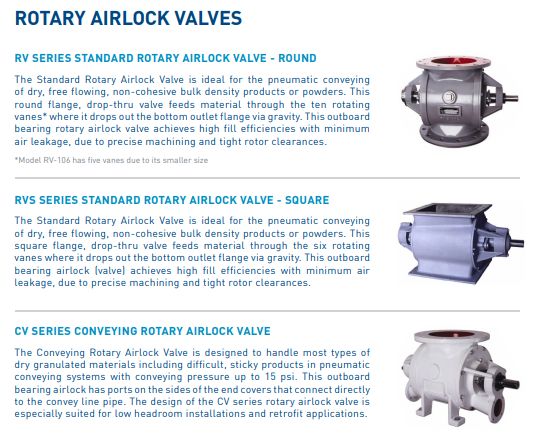

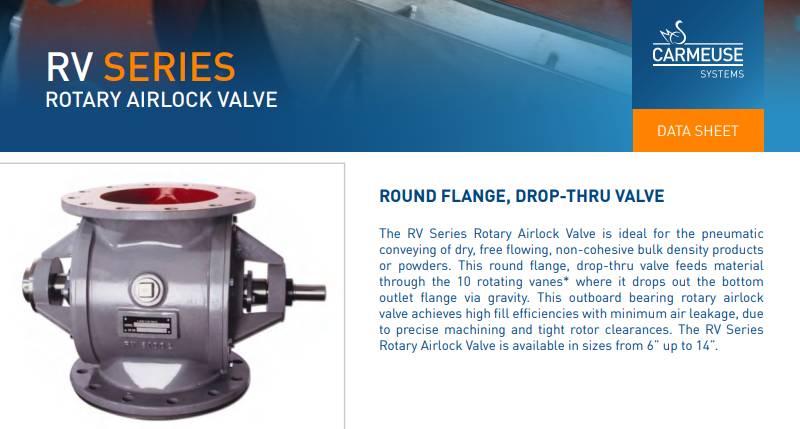

　　RV SERIES STANDARD ROTARY AIRLOCK VALVE - ROUND

　　The Standard Rotary Airlock Valve is ideal for the pneumatic conveying of dry, free flowing, non-cohesive bulk density products or powders. This round flange, drop-thru valve feeds material through the ten rotating vanes* where it drops out the bottom outlet flange via gravity. This outboard bearing rotary airlock valve achieves high fill efficiencies with minimum air leakage, due to precise machining and tight rotor clearances.

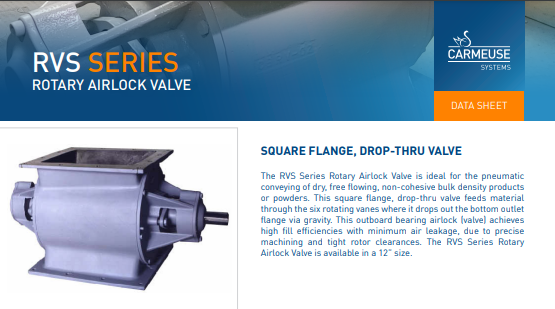

　　RVS SERIES STANDARD ROTARY AIRLOCK VALVE - SQUARE

　　The Standard Rotary Airlock Valve is ideal for the pneumatic conveying of dry, free flowing, non-cohesive bulk density products or powders. This square flange, drop-thru valve feeds material through the six rotating vanes where it drops out the bottom outlet flange via gravity. This outboard bearing airlock (valve) achieves high fill efficiencies with minimum air leakage, due to precise machining and tight rotor clearances.

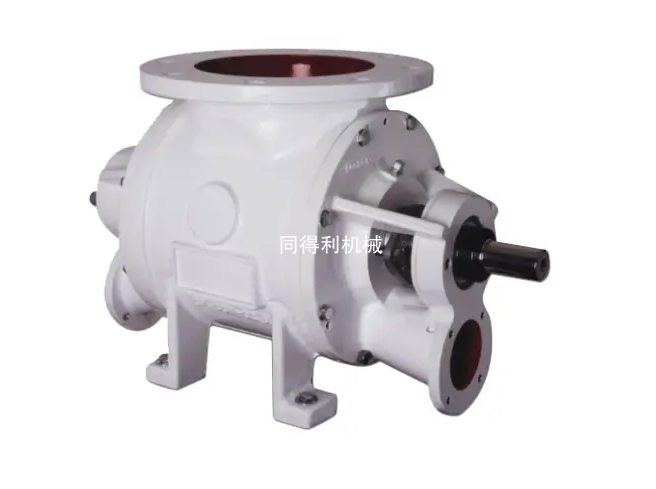

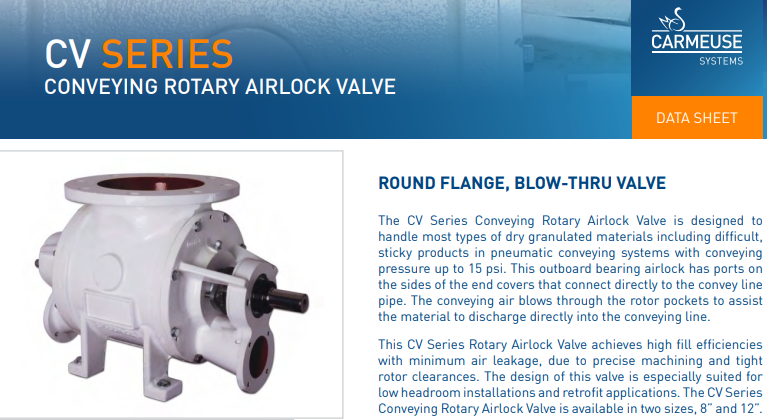

　　CV SERIES CONVEYING ROTARY AIRLOCK VALVE

　　The Conveying Rotary Airlock Valve is designed to handle most types of dry granulated materials including difficult, sticky products in pneumatic conveying systems with conveying pressure up to 15 psi. This outboard bearing airlock has ports on the sides of the end covers that connect directly to the convey line pipe. The design of the CV series rotary airlock valve is especially suited for low headroom installations and retrofit applications.

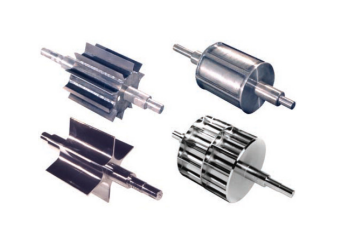

　　ROTORS

　　SPECIAL ROTORS

　　Designed for a wide variety of materials and applications, our options include rotors with filled pockets, a scalloped design or a polished finish.Our abrasion resistant rotors include specialized hardened materials and rotors with replaceable and adjustable rotor tips made from materials such as Domite.
