两端出料螺旋输送机是一种‌单点进料、双向分流‌的专用输送设备，核心作用是将中间投入的物料通过‌反向螺旋叶片‌同时向机头、机尾两个方向推送，实现‌一机两向分流供料‌或‌均衡配给‌。‌‌

　　The two end discharge screw conveyor is a specialized conveying equipment with single point feeding and bidirectional diversion. Its core function is to push the materials put in the middle towards the head and tail of the machine simultaneously through reverse spiral blades, achieving one machine two-way diversion feeding or balanced distribution. ‌‌

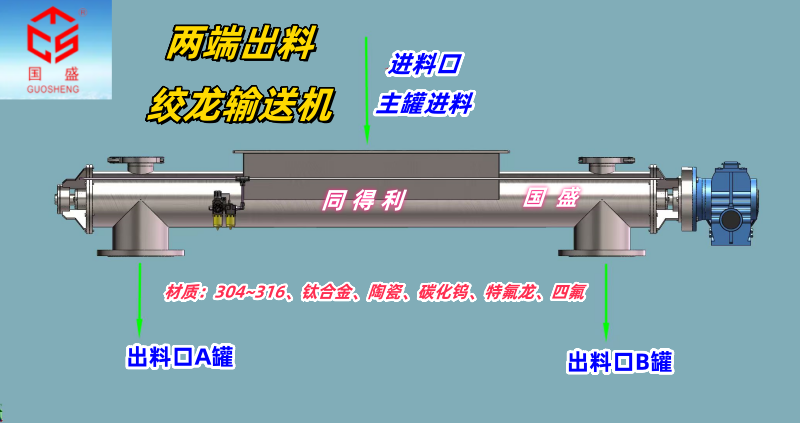

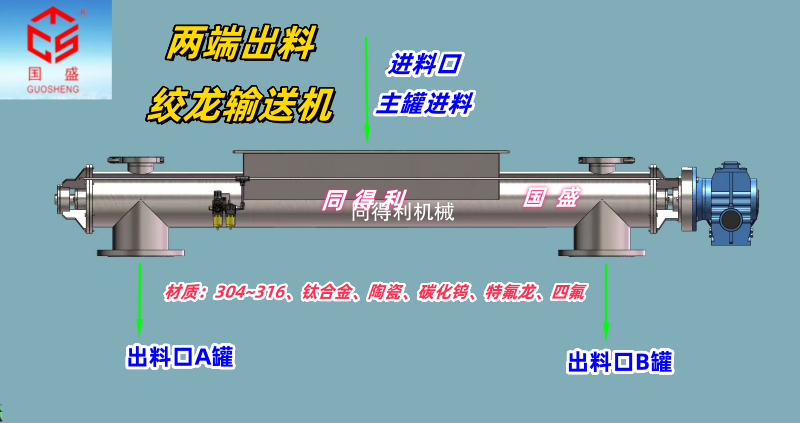

　　两端出料螺旋输送机常见采用双轴螺旋旋转产生轴向推力‌，配合‌机壳内多点卸料口与闸门控制‌，实现物料从中间进料、向‌两端同时或选择性排出‌的连续推移输送。

　　Two end discharge screw conveyors commonly use dual axis spiral rotation to generate axial thrust, combined with multi-point discharge ports and gate control inside the casing, to achieve continuous pushing and conveying of materials from the middle to both ends simultaneously or selectively.

　　两端出料螺旋输送机核心工作原理：

　　‌动力驱动‌：电机经减速机带动螺旋轴(有轴或无轴)旋转，螺旋叶片对物料施加法向推力。

　　‌轴向移动‌：物料受重力及机壳壁摩擦阻力约束，不随叶片旋转，仅在叶片轴向分力作用下沿槽底向前滑移(类似螺母沿螺杆运动)。

　　‌双向分流‌：进料口通常位于机槽中部或特定位置，物料被旋转叶片同时推向左右两侧;两端出料口设有‌调节闸门或挡板‌，通过开闭控制单端出料、双端同时出料或比例分配 。

　　‌连续推移‌：后续物料持续推动前方物料形成“推挤流”，直至从选定出料口排出 。‌‌

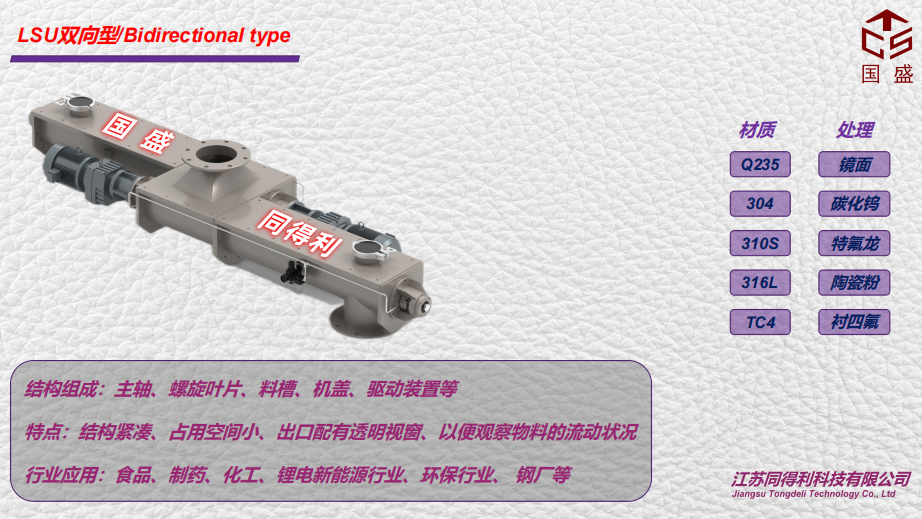

　　两端出料螺旋输送机关键结构及材质：

　　结构组成：主轴、螺旋叶片、料槽、机盖、驱动装置等。

　　特点：中间进料，两端出料。结构紧凑，占用空间小;出口配有透明视窗，以便观察物料的流动状况。

　　行业应用：锂电新能源、制药、化工、食品、环保行业、钢厂等。

　　材质：Q235、304、310S、316L、TC4等。

　　处理：镜面、碳化钨、特氟龙、陶瓷粉、衬四氟等。

　　两端出料螺旋输送机适用场景：

　　‌适用物料‌：粉状、颗粒状及小块状散料，温度 -20℃~250℃，不宜输送粘性大、易结块或易变质物料 。

　　应用行业：锂电池、化工、医药、食品、塑胶、环保、水泥、矿山、电厂、钢厂等。

　　‌优势‌：密封性好、可多点装卸、结构紧凑、支持双向灵活卸料。

　　‌注意‌：反向输送或长期单侧满载可能影响轴承寿命，需按设计工况操作 。‌‌

　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机，卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机/旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。

　　部分客户需求：

　　储罐粉料通过利用螺旋输送机输送，把粉料输送到A罐子，当A罐子满了，再把料输送到B罐子，物料是生物质粉，8t/h的输送量，堆密度在400左右，粒径在1mm，DN300.接触物料部分2205双向钢材质或者哈氏合金。

　　物料：三水合氟化铝AlF3·3H2O，氢氧化铝，密度1.0t/m³，双向给料螺栓输送机(一个入口， 两个出口)，主要是把物料输送到两边罐子。尺寸DN300.每端距离2米，材质不锈钢304.

　　物料化肥，DN500.304材质。与物料接触部分为06Cr19Ni10不锈钢，其它部分碳钢，把化肥输送到两端分流罐子，中间进料。

　　物料：不到1mm化工产品有腐蚀性，料仓下料易结块堵塞，严重影响称重计量包装，需要加装破碎卸料阀，DN300接口，316L材质，破碎阀下面接双向螺旋给料机，两端出料到各自对应的储罐。

　　Core working principle of two end discharge screw conveyor:

　　Power drive: The motor drives the spiral shaft (with or without shaft) to rotate through the reducer, and the spiral blades apply normal thrust to the material.

　　Axial movement: The material is constrained by gravity and frictional resistance of the casing wall, and does not rotate with the blades. It only slides forward along the groove bottom under the axial force of the blades (similar to a nut moving along a screw).

　　Bidirectional diversion: The feed inlet is usually located in the middle of the machine slot or at a specific position, and the material is pushed to the left and right sides simultaneously by the rotating blades; Both ends of the discharge port are equipped with adjustable gates or baffles, which control the discharge of single end, simultaneous discharge of both ends, or proportional distribution through opening and closing.

　　Continuous pushing: The subsequent material continues to push the material ahead to form a "pushing flow" until it is discharged from the selected discharge port. ‌‌

　　Key structures and materials of the two end discharge screw conveyor:

　　Structural composition: spindle, spiral blades, material trough, machine cover, driving device, etc.

　　Features: Feed in the middle and discharge at both ends. Compact structure and small space occupation; The exit is equipped with a transparent window for observing the flow of materials.

　　Industry applications: lithium battery new energy, pharmaceutical, chemical, food, environmental protection industries, steel mills, etc.

　　Materials: Q235. 304. 310S, 316L, TC4. etc.

　　Processing: mirror, tungsten carbide, PTFE, ceramic powder, PTFE lining, etc.

　　Applicable scenarios for two end discharge screw conveyor:

　　Applicable materials: Powder, granular, and small block shaped bulk materials, temperature -20 ℃~250 ℃, not suitable for conveying materials with high viscosity, easy agglomeration, or easy deterioration.

　　Application industries: lithium batteries, chemicals, pharmaceuticals, food, plastics, environmental protection, cement, mining, power plants, steel mills, etc.

　　Advantages: Good sealing, multi-point loading and unloading, compact structure, and support for bi-directional flexible unloading.

　　Attention: Reverse conveying or long-term one-sided full load may affect the bearing life, and should be operated according to the design conditions. ‌‌

　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of screw conveyors and discharge valve rotary valves, adhering to the principle of quality first and customer first. Our spiral conveyor/rotary valve is capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.

　　Partial customer requirements:

　　The storage tank powder is transported by a screw conveyor to tank A. When tank A is full, the material is then transported to tank B. The material is biomass powder with a conveying capacity of 8t/h, a bulk density of around 400. a particle size of 1mm, DN300. and a contact material of 2205 bidirectional steel or Hastelloy alloy.

　　Material: AlF3 · 3H2O trihydrate aluminum fluoride, aluminum hydroxide, density 1.0t/m ³, bidirectional feeding bolt conveyor (one inlet, two outlets), mainly used to transport materials to the two tanks. Size DN300. distance of 2 meters from each end, made of stainless steel 304.

　　Material fertilizers, DN500. 304 material. The part in contact with the material is made of 06Cr19Ni10 stainless steel, while the other part is made of carbon steel. The fertilizer is transported to the two ends of the diversion tank and fed into the middle.

　　Material: Chemical products with a diameter of less than 1mm are corrosive, and the material stored in the silo is prone to clumping and blockage, which seriously affects weighing and measuring packaging. It is necessary to install a crushing discharge valve with a DN300 interface and 316L material. The crushing valve should be connected to a two-way spiral feeder under it, and the two ends should be discharged to their corresponding storage tanks.
