水冷螺旋输送机通常配备有冷却水循环系统，包括水泵、水箱、冷却器等设备。冷却水从水箱中被抽取出来，通过冷却器降温后再回流到输送机中进行循环使用。这样可以保证冷却水的供应和循环，提高降温效果。

　　水冷螺旋输送机配备有专门的控制系统，用于监测和控制冷却水的供应和温度。控制系统可以根据物料的温度变化来自动调节冷却水的流量和温度，以达到降温效果。同时，控制系统还可以监测输送机的运行状态和冷却水循环系统的工作情况，确保整个设备的正常运行。

　　Water cooled screw conveyors are usually equipped with cooling water circulation systems, including water pumps, water tanks, coolers, and other equipment. Cooling water is extracted from the water tank, cooled by the cooler, and then returned to the conveyor for recycling. This can ensure the supply and circulation of cooling water, and improve the cooling effect.

　　The water-cooled screw conveyor is equipped with a dedicated control system for monitoring and controlling the supply and temperature of cooling water. The control system can automatically adjust the flow rate and temperature of the cooling water according to the temperature changes of the materials to achieve the cooling effect. At the same time, the control system can also monitor the operating status of the conveyor and the working condition of the cooling water circulation system to ensure the normal operation of the entire equipment.

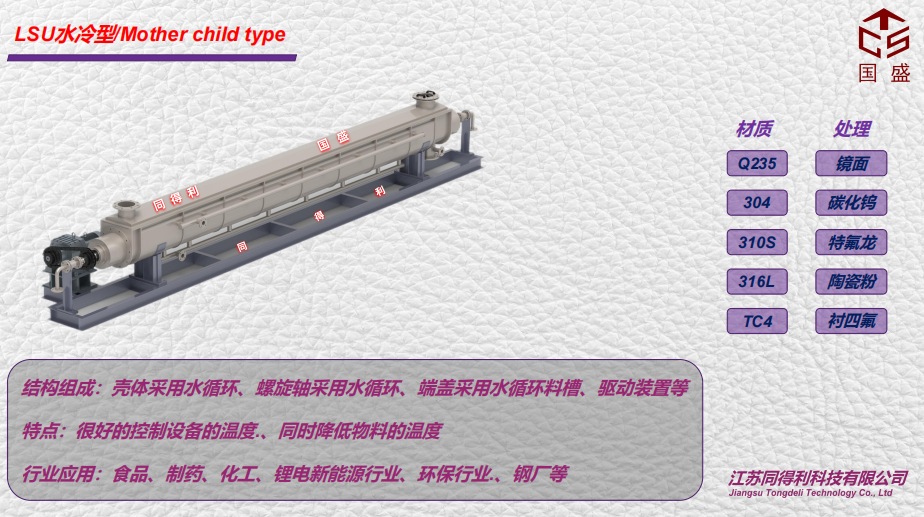

　　LSU水冷型螺旋输送机：

　　结构组成：壳体采用水循环、螺旋轴采用水循环、端盖采用水循环料槽、驱动装置等。

　　特点：很好的控制设备温度、同时降低物料的温度。1000℃以上按需定制。

　　行业应用：钢厂、电厂、冶金、化工、锂电新能源行业、水泥、矿山、环保、食品、制药等。

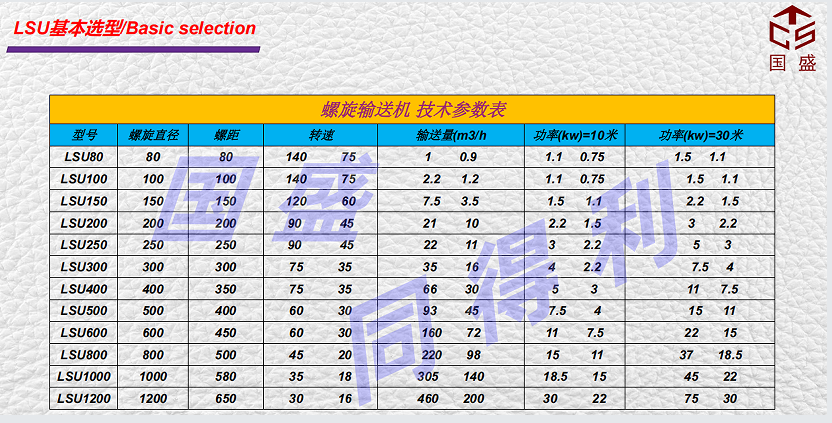

　　规格参考‌：螺旋直径有LSU1200、LSU1000、LSU800、LSU600、LSU500、LSU400、LSU300、LSU250、LSU200、LSU150、LSU100、LSU80等规格，或者非标定制;输送量1m³/h~450m³/h。【电话/微信咨询：陈经理18068546632】

　　材质：陶瓷、碳化钨、钛合金、不锈钢、304(06Cr19Ni10)、310S(06Cr25Ni20)、316(06Cr17Ni12Mo2)。

　　LSU water-cooled screw conveyor:

　　Structural composition: The shell adopts water circulation, the spiral shaft adopts water circulation, the end cover adopts water circulation material trough, the driving device, etc.

　　Features: Material positioning and conveying; View material flow through a transparent window.

　　Industry applications: steel mills, power plants, metallurgy, chemical industry, lithium-ion new energy industry, cement, mining, environmental protection, food, pharmaceuticals, etc.

　　水冷螺旋上料机降温机制：

　　双层夹套水冷结构：

　　输送槽体设计：采用内外双层壳体，中间形成5-15cm的水流通道。

　　冷却水循环：冷水从进水口进入夹套，环绕输送槽流动后从出水口排出。

　　热交换效率：通过304不锈钢材质的高导热性，可将物料温度从1000℃降至200℃以下。

　　中空螺旋轴冷却：

　　螺旋轴设计为空心管道，内部通入冷却水。

　　旋转接头连接进出水管，实现动态密封供水。

　　可配合槽体夹套形成"双通道冷却"系统。【电话/微信咨询：陈经理18068546632】

　　Cooling mechanism of water-cooled spiral feeder:

　　Double layer jacket water-cooled structure:

　　Conveyor tank design: Adopting an inner and outer double-layer shell, forming a 5-15cm water flow channel in the middle.

　　Cooling water circulation: Cold water enters the jacket from the inlet, flows around the conveyor trough, and is discharged from the outlet.

　　Heat exchange efficiency: With the high thermal conductivity of 304 stainless steel material, the material temperature can be reduced from 1000 ℃ to below 200 ℃.

　　Hollow spiral shaft cooling:

　　The spiral shaft is designed as a hollow pipe with cooling water flowing inside.

　　The rotary joint connects the inlet and outlet pipes to achieve dynamic sealing water supply.

　　Can be combined with the groove jacket to form a "dual channel cooling" system.

　　部分客户需求：

　　负极材料一体化项目，水冷管式螺旋输送机：Q=0.2t/h;L=～4m(水平);α=～30°。物料：锂电负极材料;堆积密度：~900kg/m³;粒度≤2mm;物料温度~1000℃;排料温度：60~70℃，冷却介质：循环水;接口尺寸：670×670.

　　水冷式螺旋给料机(带夹套水冷却)处理能力：0-5t/h;物料：粉尘(三元正极材料，纯粉末)物料温度：不超过300℃;松比：1.1-1.2kg/L;输送距离2000mm;使用电压：380VAC 50Hz;在输送物料的管上增加夹套，管内能输送物料，输送管外壁和夹套之间能通20℃的水，需要保证水不能和粉尘接触。用于粉尘冷却;输送管材质SUS304.内壁需要喷涂碳化钨或氧化铝陶瓷，防止物料直接和金属接触，喷涂物料要牢固，并且能耐温300℃。

　　高温螺旋绞龙输送机，物料及粒度:高温煤粉≤1mm，干基物料堆密度:0.46t/m³，输送物料温度:400℃，螺旋机壳体材质15CrMo;螺旋轴材质:15CrMo;叶片材质:15CrMoR;使用变频电机(采用强制风冷)，电机功率5.5KW，电机防爆等级为ExdIICT3 Gb，防护等级为 IP55.电气接口采用不锈钢双密封防爆格兰头。电机厂家:上海电机、南阳防爆苏州特装、佳木斯;减速机厂家:国茂、泰隆。轴 承:哈、瓦、洛轴承。

　　水冷螺旋输送机，600度，输送锂电池石墨粉，距离3米，水平输送，输送量2.5t/h，通水冷却。

　　水冷绞龙输送机，活性炭，物料温度700~800℃，输送量0.5t/h，比重0.5.物料30-60目，进口口径DN200.输送距离2米，下方配星型卸料阀定量卸料。

　　DN200.长度3500mm  物料炉渣  蕞高温度900度，水冷型螺旋输送机，一小时输送1吨。

　　要水冷型螺旋给料机，环保设备，焚烧炉/锅炉卸灰，进料温度1000度(max)物料密度约700kg/m³，蕞大卸料量0.8立方米/h，材质：310S，输送距离2米，螺旋输送机下面装星型卸料器也需要水冷型。

　　水冷型螺旋输送机，烟气和介质温度：~700-800℃;介质：NaCl;颗粒状，输送量：250kg/h;结构型式：水冷(壳体，螺旋轴和端盖);电机防护等级P55.马达绝缘等级F级，防爆等级:DIIBT4;减速机：国茂。

　　旋转阀+冷却螺旋输送机+破碎阀，客户现在用的德国某品牌，输送pta,输送压力40kpa，下料速度太慢，影响输送速度，只有3吨/h，需要提高产能，水冷式冷却螺旋输送机水平输送，距离大致2~3米，物料高温，容易变性，且配合破碎阀打散破碎，破碎阀材质需要合金钢，法兰直径DN350.

　　耐高温水冷螺旋输送机，物料温度七八百度，DN300.物料：烧出来的氧化镁，水平输送，短距离。

　　水冷式螺旋上料机，物料：氧化钙粉末，800度，压力正常，5吨/h，输送距离3.5米，下方配套旋转阀。

　　水冷却螺旋给料机，输送的碳材料，密度0.3.温度大概500度，一个进料螺旋，一个出料水冷却螺旋输送机，进料螺旋温度大概250度，输送距离3米。

　　水冷型螺旋绞龙输送机+旋转阀，两款，一款常规304.一款需要耐高温600~700度，需要水冷却，物料秸秆，卸料量0.5吨~1吨，变频调速。旋转阀距离绞龙有段距离，但也需要耐高温型水冷式，通水冷却降温。

　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机、卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机、旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。

   《扫二维码-添加 陈经理 微信-咨询水冷型螺旋上料机》

　　Partial customer requirements:

　　Negative electrode material integration project, water-cooled tube screw conveyor: Q=0.2t/h; L=~4m (horizontal); α=~30 °. Material: Lithium battery negative electrode material; Bulk density:~900kg/m ³; Particle size ≤ 2mm; material temperature~1000 ℃; Discharge temperature: 60-70 ℃, cooling medium: circulating water; Interface size: 670 × 670.

　　Water cooled spiral feeder (with jacket water cooling) processing capacity: 0-5t/h; Material: Dust (ternary positive electrode material, pure powder) Material temperature: not exceeding 300 ℃; Pine ratio: 1.1-1.2kg/L; Conveying distance 2000mm; operating voltage: 380VAC 50Hz; Add a jacket on the pipe for conveying materials, which can transport materials inside the pipe. Water at 20 ℃ can be passed between the outer wall of the conveying pipe and the jacket, ensuring that the water does not come into contact with dust. Used for dust cooling; The material of the conveying pipe is SUS304. and the inner wall needs to be sprayed with tungsten carbide or alumina ceramic to prevent direct contact between the material and the metal. The sprayed material should be firm and able to withstand temperatures up to 300 ℃.

　　High temperature spiral screw conveyor, material and particle size: high temperature coal powder ≤ 1mm, dry material bulk density: 0.46t/m ³, conveying material temperature: 400 ℃, spiral housing material 15CrMo; Spiral shaft material: 15CrMo; Blade material: 15CrMoR; Use a variable frequency motor (using forced air cooling) with a power of 5.5KW, an explosion-proof rating of ExdIICT3 Gb, a protection rating of IP55. and a stainless steel double sealed explosion-proof gland head for the electrical interface. Motor manufacturers: Shanghai Electric, Nanyang Explosion proof Suzhou Special Installation, Jiamusi; Gearbox manufacturers: Guomao, Tailong. Bearings: Ha, Wa, Luo bearings.

　　Water cooled screw conveyor, 600 degrees, conveying lithium battery graphite powder, distance of 3 meters, horizontal conveying, conveying capacity of 2.5t/h, water-cooled.

　　Water cooled screw conveyor, activated carbon, material temperature 700~800 ℃, conveying capacity 0.5t/h, specific gravity 0.5. material 30-60 mesh, inlet diameter DN200. conveying distance 2 meters, equipped with a star shaped discharge valve below for quantitative discharge.

　　DN200. The maximum temperature of slag for a material with a length of 3500mm is 900 degrees. It is a water-cooled screw conveyor that can transport 1 ton per hour.

　　We need a water-cooled spiral feeder, environmentally friendly equipment, incinerator/boiler ash discharge, with a feed temperature of 1000 degrees (max), a material density of about 700kg/m ³, a maximum discharge capacity of 0.8 cubic meters/h, a material of 310S, a conveying distance of 2 meters, and a star shaped unloader installed under the spiral conveyor that also needs to be water-cooled.

　　Water cooled screw conveyor, flue gas and medium temperature:~700-800 ℃; Medium: NaCl; Granular, conveying capacity: 250kg/h; Structural type: water-cooled (shell, spiral shaft, and end cap); Motor protection level P55. motor insulation level F, explosion-proof level DIIBT4; Gearbox: Guomao.

　　Rotary valve+cooling screw conveyor+crushing valve, the customer is currently using a German brand for conveying PTA, with a conveying pressure of 40kpa. The feeding speed is too slow, affecting the conveying speed, only 3 tons/h. It is necessary to increase production capacity. The water-cooled cooling screw conveyor is used for horizontal conveying, with a distance of approximately 2-3 meters. The material is hot and prone to denaturation, and it needs to be broken with a crushing valve. The material of the crushing valve needs alloy steel with a flange diameter of DN350.

　　High temperature resistant water-cooled screw conveyor, material temperature of 70-80 degrees Celsius, DN300. Material: Burnt magnesium oxide, horizontally transported, short distance.

　　Water cooled spiral feeder, material: calcium oxide powder, 800 degrees, normal pressure, 5 tons/h, conveying distance of 3.5 meters, equipped with a rotary valve below.

　　Water cooled screw feeder, conveying carbon material with a density of 0.3 and a temperature of approximately 500 degrees. There is one feeding screw and one discharging water cooled screw conveyor, with a feeding screw temperature of approximately 250 degrees and a conveying distance of 3 meters.

　　Water cooled spiral screw conveyor with rotary valve, two types, one is conventional 304. and the other requires high temperature resistance of 600-700 degrees and water cooling. The material is straw, with a discharge capacity of 0.5 tons to 1 ton and variable frequency speed regulation. The rotary valve is located at a certain distance from the winch, but it also requires a high-temperature resistant water-cooled type with water cooling for cooling.

　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of screw conveyors and discharge valve rotary valves, adhering to the principle of quality first and customer first. Our screw conveyors and rotary valves are capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.
