管式螺旋输送机‌俗称“绞龙输送机”，是一种利用旋转螺旋叶片在密闭圆管内推移物料的连续输送设备，核心特点是‌全封闭防尘‌且能‌水平或小倾角输送‌粉末、颗粒状物料 。螺旋轴转动时，物料因自身重力和与管壁的摩擦力不会跟着转，而是被叶片沿着管道轴线方向向前推移 。整个过程属于容积式输送，只要螺旋轴保持旋转，物料流就会持续 稳定，特别适合定量给料工况 。

　　Pipe spiral conveyor, commonly known as "screw conveyor", is a continuous conveying equipment that uses rotating spiral blades to push materials inside a closed circular pipe. Its core feature is fully enclosed dust prevention and the ability to transport powder and granular materials horizontally or at a small angle. When the spiral shaft rotates, the material will not follow the rotation due to its own gravity and friction with the pipe wall, but will be pushed forward along the axis of the pipeline by the blades. The entire process belongs to volumetric conveying, as long as the spiral shaft keeps rotating, the material flow will continue to be stable, especially suitable for quantitative feeding conditions.

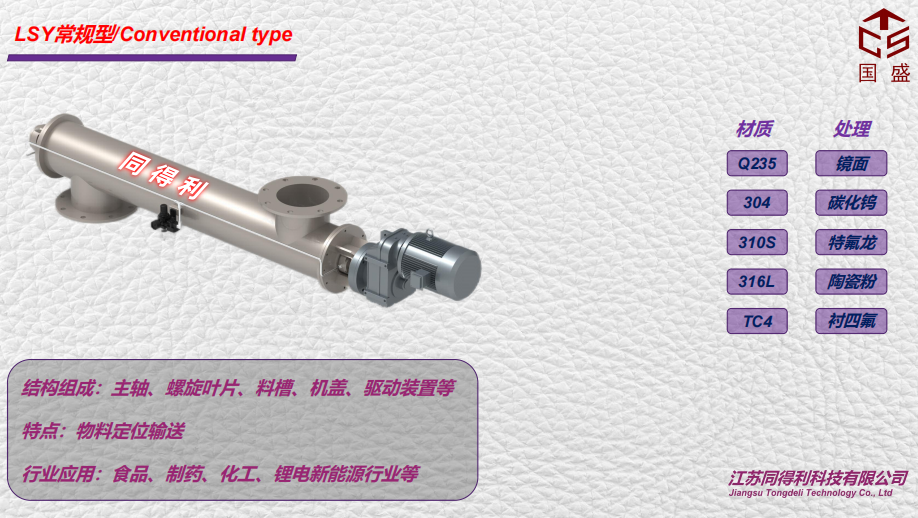

　　LSY常规型管式螺旋输送机：

　　结构组成：主轴、螺旋叶片、料槽、机盖、驱动装置等。

　　特点：物料定位输送;透明视窗查看物料流动。

　　行业应用：食品、制药、化工、锂电新能源行业、水泥、冶金、矿山、环保、钢厂、电厂等。

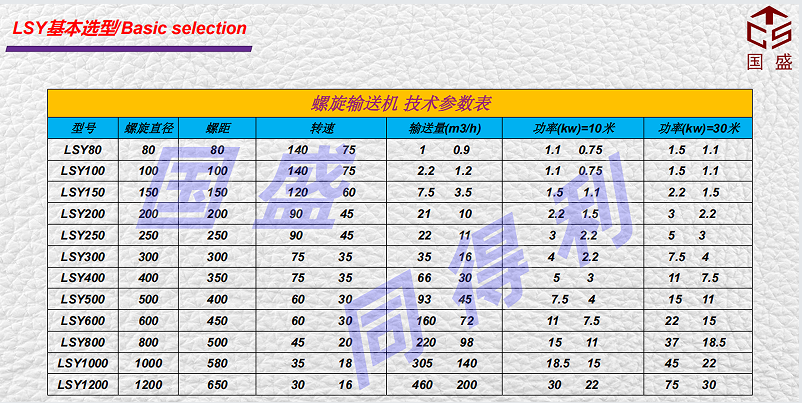

　　规格参考‌：螺旋直径有LSY80、LSY100、LSY150、LSY200、LSY250、LSY300、LSY400、LSY500、LSY600、LSY800、LSY1000、LSY1200等规格，或者非标定制;输送量1m³/h~500m³/h。【电话/微信咨询：陈经理18068546632】

　　材质：陶瓷、碳化钨、尼龙、四氟、特氟龙、钛合金、铝合金、不锈钢、碳钢等。

　　304(06Cr19Ni10)、316(06Cr17Ni12Mo2)、321(06Cr18Ni11Ti)、310S(06Cr25Ni20)、双相不锈钢2205(022Cr23Ni5Mo3N)、2507(022Cr25Ni7Mo4N)

　　LSY Conventional Pipe Spiral Conveyor:

　　Structural composition: spindle, spiral blades, material trough, machine cover, driving device, etc.

　　Features: Material positioning and conveying; View material flow through a transparent window.

　　Industry applications: food, pharmaceutical, chemical, lithium-ion new energy industry, cement, metallurgy, mining, environmental protection, steel mills, power plants, etc.

　　Specification reference: Spiral diameter available LSY80、LSY100、LSY150、LSY200、LSY250、LSY300、LSY400、LSY500、LSY600、LSY800、LSY1000、LSY1200 Equal specifications or non-standard customization; The conveying capacity is 1m ³/h~500m ³/h.

　　Materials: ceramics, tungsten carbide, nylon, PTFE, PTFE, titanium alloy, aluminum alloy, stainless steel, carbon steel, etc.

　　部分客户需求：

　　物料为磷酸铁锂锂电使用，DN300.产能3.6t/h，易清理型螺旋输送机：材质：壳体材质 304 ，与物料接触部分喷涂非金属材质(首 选陶瓷氧化铝)，喂料产能 1~3.6t/h，驱动选用SEW、FLENDER、住友等外资品牌。

　　输送物料名称：三聚氯氰粉末，堆积密度(kg/m³)：800;粒度/粒径范围(mm)：≤1cm;物料温度(℃)：70℃(粉碎后物料温度，预估值);物料湿度/含水量(%)：<1%;物料流动性：良好;磨琢性：中等;腐蚀性：遇水分解产物为盐酸，腐蚀性较强。其他特性：易吸潮;输送能力：设计蕞大输送量(Qmax)：800kg/h，即 1m³/h;设计蕞小输送量(Qmin)：250kg/h，即 0.32m³/h;正常操作范围：500kg/h，即 0.625m³/h;输送距离/长度(L)：4m 。输送方向：水平;进料口位置：顶部中心 法兰型式 HG/T 20592 2009 B 系列 PN16 WN-RF 密封面;出料口位置：底部中心 法兰型式 HG/T 20592 2009 B 系列 PN16 WN-RF 密封面;料仓接口法兰尺寸/标准：DN100 PN16.

　　输送产能20~25t/h;输送距离约为5m，壳体和叶片为304不锈钢，厚度>3mm;粉尘防爆电机(含适配减速机)，不低于21区防爆等级，功率>3KW，不低于二级能效，防护等级>IP65.电机参考品牌:SEW、ABB、茵梦达;下料斗为304不锈钢，厚度>3mm，高度和宽度尺寸与卸粮车适配，配可拆式不锈钢筛网;参考尺寸:下料斗高度<800mm，长度>1600mm，宽度>1000mm;下料斗有完全遮挡的盖板，304不锈钢材质，厚度>2mm，配置把手;螺旋轴整轴安装，304不锈钢材质;螺旋盖板便捷式开始，螺旋盖板304不锈钢材质，厚度>2mm。

　　替代意大利威埃姆WAMGROUP：型号：.SCR_TP螺旋输送机 直径 400 毫米，长度 9000 毫米，TE 400_CI-CO 型管状螺旋给料机，长度 9000 毫米。重型螺旋应用类型：标准型螺旋直径：400 毫米;螺旋类型：管状截面输送螺旋;螺旋材质：全碳钢;进出口长度：9000 毫米圆形 XBC;进料口 直径 457 毫米，带法兰 螺旋倾角：20°圆形 XBC ;出料口 直径 457 毫米，带法兰 ;螺旋叶片材质：全软钢(低碳钢);螺旋叶片螺距：2/3 螺距 + 等螺距2/3 ;螺距段长度：4000 毫米;内管直径：114 毫米;电机位置：进料口端;电机极数：4 极;传动方式：联轴器;联轴器类型：链条驱动;功率：22 千瓦;供电频率：50 赫兹;配置 WAM。

　　替代意大利威埃姆WAMGROUP：型号：.SCR_TP螺旋输送机，直径 400 毫米，长度 4100 毫米，TE 400_CI-CO 型管状螺旋给料机，长度 4100 毫米，重型螺旋应用类型：标准型螺旋，直径：400 毫米，螺旋类型：管状截面输送螺旋，螺旋材质：全碳钢，进出口长度：4100 毫米圆形 XBC。进料口 直径 457 毫米，带法兰;螺旋倾角：20°圆形 XBC;出料口 直径 457 毫米，带法兰;螺旋叶片材质：全软钢(低碳钢);螺旋叶片螺距：2/3 螺距 + 等螺距2/3;螺距段长度：4000 毫米。轴承进料口端轴承密封：XUC;表面处理：300TA;底漆理论输送量：141 立方米/小时。

　　输送煤粉，螺旋接触物料材质310S，数量2台，螺旋外管Ø377*6MM 轴管Ø159*12mm;叶片厚8mm，进出料口500*400.出料口上方开方口240*300.配盖板。盖板中心焊接DN50内丝堵头排气管，电机7.5KW变频 减速机BLD4-23r/min。

　　物料：化工粉料，DN100.DN150.材质304.长度2米。螺旋上料机DN100内抛光,物料接触材质SS304.物料五氯化磷;DN100 内抛光-SS304-物料活性炭,活性自土;DN100 内抛光-SS304-物料氢氧化钠+氢氧化钾;DN150 内抛光-SS304-物料六苯氧基环三磷腈;DN150 内抛光-SS304-六氯环三磷腈，水平输送，长度4米。

　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机、卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机、旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。

《扫二维码-添加 陈经理 微信-咨询管式螺旋输送机》

　　Partial customer requirements:

　　The material is used for lithium iron phosphate batteries, DN300. Capacity of 3.6t/h, easy to clean screw conveyor: Material: shell material 304. non-metallic material sprayed on the part in contact with the material (ceramic alumina is preferred), feeding capacity of 1-3.6t/h, drive selected from foreign brands such as SEW, FLENDER, Sumitomo, etc.

　　Material name: Cyanuric chloride powder, bulk density (kg/m ³): 800; Particle size/particle size range (mm): ≤ 1cm; Material temperature (℃): 70 ℃ (estimated value of material temperature after crushing); Material humidity/moisture content (%):<1%; Material fluidity: good; Grinding ability: moderate; Corrosivity: When in contact with water, the decomposition product is hydrochloric acid, which has strong corrosiveness. Other characteristics: easy to absorb moisture; Conveying capacity: Design maximum conveying capacity (Qmax): 800kg/h, which is 1m ³/h; Design minimum conveying capacity (Qmin): 250kg/h, which is 0.32m ³/h; Normal operating range: 500kg/h, which is 0.625m ³/h; Conveying distance/length (L): 4m. Transport direction: horizontal; Inlet position: Top center flange type HG/T 20592 2009 B series PN16 WN-RF sealing surface; Discharge outlet position: Bottom center flange type HG/T 20592 2009 B series PN16 WN-RF sealing surface; Warehouse interface flange size/standard: DN100 PN16.

　　Conveying capacity of 20-25t/h; The conveying distance is about 5m, the shell and blades are made of 304 stainless steel, with a thickness of>3mm; the dust explosion-proof motor (including compatible reducer) has an explosion-proof rating of not less than Zone 21. a power of>3KW, not less than Level 2 energy efficiency, and a protection level of>IP65. The motor reference brands are SEW, ABB, and Innovent; The feeding hopper is made of 304 stainless steel, with a thickness greater than 3mm, and its height and width dimensions are compatible with the unloading truck. It is equipped with a detachable stainless steel screen mesh; Reference dimensions: The height of the hopper is less than 800mm, the length is greater than 1600mm, and the width is greater than 1000mm; the hopper has a completely covered cover plate, made of 304 stainless steel, with a thickness greater than 2mm, and equipped with a handle; Spiral shaft installation, made of 304 stainless steel material; Spiral cover plate convenient start, spiral cover plate made of 304 stainless steel material, thickness>2mm.

　　Alternative to WAMGROUP Italy: Model: SCR_TP screw conveyor with a diameter of 400 millimeters and a length of 9000 millimeters, TE 400_CI-CO tubular screw feeder with a length of 9000 millimeters. Heavy duty spiral application type: Standard spiral diameter: 400 millimeters; Spiral type: tubular cross-section conveying spiral; Spiral material: all carbon steel; Import and export length: 9000 millimeters circular XBC; Inlet diameter 457mm, with flange spiral inclination angle: 20 ° circular XBC; Discharge port diameter 457mm, with flange; Spiral blade material: all soft steel (low carbon steel); Spiral blade pitch: 2/3 pitch+equal pitch 2/3; Pitch segment length: 4000 millimeters; Inner tube diameter: 114 millimeters; Motor position: feed inlet end; Number of motor poles: 4 poles; Transmission mode: coupling; Coupling type: chain drive; Power: 22 kilowatts; Power supply frequency: 50 Hz; Configure WAM.

　　Alternative to WAMGROUP Italy: Model: SCR_TP screw conveyor, diameter 400mm, length 4100mm, TE 400_CI-CO tubular screw feeder, length 4100mm, heavy-duty screw application type: standard screw, diameter 400mm, screw type: tubular section conveying screw, screw material: all carbon steel, inlet and outlet length: 4100mm circular XBC. Inlet diameter 457mm, with flange; Spiral inclination angle: 20 ° circular XBC; Discharge port diameter 457mm, with flange; Spiral blade material: all soft steel (low carbon steel); Spiral blade pitch: 2/3 pitch+equal pitch 2/3; Pitch segment length: 4000 millimeters. Bearing inlet end bearing seal: XUC; Surface treatment: 300TA; Theoretical delivery capacity of primer: 141 cubic meters per hour.

　　Conveying coal powder, spiral contact material material 310S, quantity 2. spiral outer tube Ø 377 * 6MM shaft tube Ø 159 * 12mm; blade thickness 8mm, inlet and outlet 500 * 400. square outlet above outlet 240 * 300. equipped with cover plate. The center of the cover plate is welded with a DN50 internal plug exhaust pipe, and the motor is 7.5KW variable frequency reducer BLD4-23r/min.

　　Material: Chemical powder, DN100.DN150. Material 304. length 2 meters. Spiral feeder DN100 internal polishing, material contact material SS304. Material phosphorus pentachloride; DN100 internally polished SS304 material activated carbon, activated from soil; DN100 internal polishing - SS304- material sodium hydroxide+potassium hydroxide; DN150 internal polishing SS304 material hexaphenoxycyclotriphosphazene; DN150 internally polished SS304 hexachlorocyclotriphosphazene, horizontally transported, length 4 meters.

　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of screw conveyors and discharge valve rotary valves, adhering to the principle of quality first and customer first. Our screw conveyors and rotary valves are capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.
