子母螺旋输送机(又称精称型螺旋输送机)的核心工作原理是通过‌“主机快速喂料 + 子机微量精补”‌的双阶段协同控制，实现物料输送与高精度称量的完 美结合 。‌‌

　　The core working principle of the mother-daughter screw conveyor (also known as the precision weighing screw conveyor) is to achieve a perfect combination of material conveying and high-precision weighing through a two-stage collaborative control of "rapid feeding by the main machine + precise fine replenishment by the daughter machine".

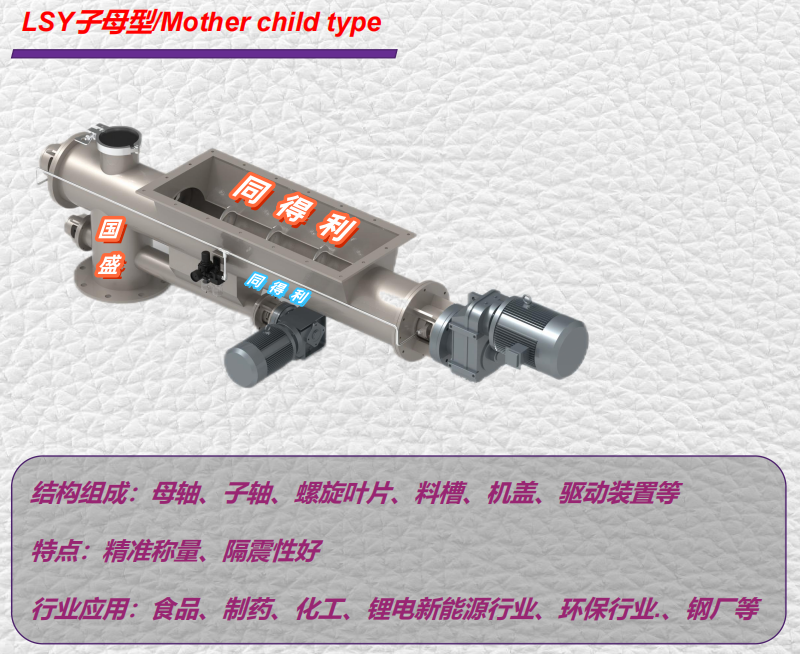

　　LSY子母型螺旋输送机：

　　结构组成：母轴、子轴、螺旋叶片、料槽、机盖、驱动装置等。

　　特点：精准称量，隔振性能好。

　　行业应用：锂电新能源、制药、化工、食品、环保行业、电厂、钢厂等。

　　材质：Q235、304、310S、316L、TC4等。

　　处理：镜面、碳化钨、特氟龙、陶瓷粉、衬四氟等。【电话/微信咨询：陈经理18068546632】

　　LSY sub-type screw conveyor:

　　Structural composition: main shaft, sub-shaft, spiral blade, material chute, machine cover, drive device, etc.

　　Features: Precise weighing, good vibration isolation performance.

　　Industry applications: lithium-ion new energy, pharmaceuticals, chemical industry, food, environmental protection industry, power plants, steel mills, etc.

　　Material: Q235. 304. 310S, 316L, TC4. etc.

　　Treatment: mirror surface, tungsten carbide, Teflon, ceramic powder, PTFE lining, etc.

　　模块化组合‌：“子”与“母”可根据工艺需求灵活配置转速、转向及螺旋叶片形式。

　　子母螺旋输送机由‌母轴‌和‌子轴组成，两者共用或独立驱动，通过时序控制完成一个完整的称量周期：

　　快速喂料阶段（母轴主导）‌

　　在称量周期初期，‌母轴全速运转，利用大螺距或高转速产生强大的轴向推力，将物料快速输送至计量仓 。

　　此阶段目标是缩短非称量时间，提高整体生产效率，此时子机通常处于关闭或待机状态 。

　　‌精确补料阶段（子轴主导）‌

　　当物料接近目标重量时，‌母轴关闭‌停止进料，防止过量 。

　　‌子轴启动(或单独低速运行)，利用小直径、小螺距或低转速特性，对物料进行‌微量、平稳‌的推送 。

　　此阶段依靠子轴的精细推力克服物料惯性，确保蕞终落料重量精准落在允许误差范围内，满足高精度称量需求 。‌‌精度±1g，±10g，±50g，±100g，±200g，±500g以内等，按需定制。

　　精确称量场合‌：适用于需周期性精确称量场合物料的输送，又称精称型螺旋输送机。‌‌‌

　　行业应用：

　　锂电行业：精准称重计量、小型螺旋绞龙喂料装置。

　　化工制药：粉状、粒状物料的精确给料。‌‌‌

　　食品行业：粉体、小颗粒的精确配比卸料给料。

　　水泥行业：粉状外加剂配料系统、水泥螺旋输送。

　　物料类型‌：主要用于粉状外加剂等松散物料的输送，不宜输送易变质、粘性大、易结块的物料。‌‌

　　部分客户需求：

　　精确计量型螺旋输送机，物料：锂电负极材料;堆积密度：~900kg/m³;粒度≤2mm;物料温度~100℃;排料温度：60~70℃，螺旋接口尺寸：670×670mm，需精确给料。

　　物料：活性钙粉，DN200.给料量0.2-2m3/h，304材质，变频，需要精确给，水平输送，输送距离3~4米。

　　物料：粉料，需要精确计量的，误差±100g，比重1.2.15分钟100公斤料卸完，然后卸另一种料，气力输送，真空上料机，下面是粉料称，称重的，输送距离1.5m，需要推荐一款合适的子母型螺旋输送机。

　　自重下料，需要与称重台秤配合，精确控制供料重量，精准给料±100g，有哪些尺寸?选型推荐，与粉料接触的零部件材料用不锈钢316或者陶瓷之类的，水平输送距离2m。

　　精确给料螺旋输送机连接料仓，通过变频调节，均匀定量的将粉末活性炭投加到溶解罐中，给料能力:3m3/h，尺寸DN250.材质316.

　　输送石膏粉物料，25分钟完成精确计量，要求进料量6吨，输送距离5米，材质不锈钢304.

　　破拱器+计量螺旋输送机，物料石灰，碳酸钠，比重1~1.2.无腐蚀性，干粉，料仓50立方，输送量300~500kg/h，料仓下面接破拱≥DN350.和螺旋输送机，螺旋出料口精确计量，称重装置，螺旋到反应釜5米，材质碳钢。

　　绞龙螺旋输送机生产厂家采购指南：

　　在采购该螺旋输送机设备时需将物料的颗粒度大小、物料密度、输送量、输送距离与输送角度告知生产厂家--常州同得利，由同得利帮您选型，如果您对该参数不了解时，应由同得利委派技术人员现场实际测量、设计生产。

　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机、卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机、旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。

  《扫二维码-添加 陈经理 微信-咨询子母型螺旋输送机》

　　Modular combination: The "child" and "parent" can be flexibly configured in terms of speed, direction, and spiral blade form according to process requirements.

　　The sub-master screw conveyor consists of a master shaft and a sub-shaft, which can be driven together or independently. It completes a complete weighing cycle through timing control:

　　Rapid feeding stage (driven by the main shaft)

　　At the beginning of the weighing cycle, the main shaft rotates at full speed, utilizing a large pitch or high rotational speed to generate strong axial thrust, rapidly conveying the material to the metering bin.

　　The goal of this stage is to shorten non-weighing time and improve overall production efficiency. At this time, the sub-machine is usually in a closed or standby state.

　　Precise feeding stage (sub-axis-driven)

　　When the material approaches the target weight, the main shaft closes to stop feeding to prevent excess.

　　The sub-shaft is activated (or operated at low speed independently), utilizing its small diameter, small thread pitch, or low rotational speed characteristics to gently and steadily push the material in small amounts.

　　At this stage, the fine thrust of the sub-axis is relied upon to overcome the inertia of the material, ensuring that the final material weight falls within the allowable error range and meets the high-precision weighing requirements. Accuracy within ±1g, ±10g, ±50g, ±100g, ±200g, ±500g, etc., can be customized as needed.

　　Precision weighing application: It is suitable for conveying materials that require periodic precise weighing, also known as precision weighing screw conveyor. ‌‌‌

　　Industry applications:

　　Lithium battery industry: precise weighing and metering, small spiral auger feeding device.

　　Chemical and pharmaceutical industry: precise feeding of powdered and granular materials. ‌‌‌

　　Food industry: precise proportioning, unloading, and feeding of powder and small particles.

　　Cement industry: powder admixture batching system, cement screw conveyor.

　　Material type: Primarily used for conveying loose materials such as powdered admixtures. Not suitable for conveying materials that are prone to deterioration, have high viscosity, or tend to agglomerate.

　　Some customer requirements:

　　Precision metering screw conveyor, material: lithium battery anode material; bulk density: ~900kg/m³; particle size ≤2mm; material temperature ~100℃; discharge temperature: 60~70℃, screw interface size: 670×670mm, requiring precise feeding.

　　Material: active calcium powder, DN200. feeding rate 0.2-2m3/h, 304 material, variable frequency, precise feeding required, horizontal conveying, conveying distance 3~4 meters.

　　Material: powder material, requiring precise measurement with an error margin of ±100g, specific gravity of 1.2. capable of unloading 100 kilograms of material in 15 minutes, followed by unloading another type of material. It is pneumatically conveyed using a vacuum feeder. Below is a powder material scale for weighing. The conveying distance is 1.5m. A suitable mother-daughter type screw conveyor is recommended.

　　For self-weight feeding, it is necessary to cooperate with a weighing platform scale to precisely control the feeding weight, achieving an accuracy of ±100g. What are the available sizes? Regarding model selection recommendations, the materials for parts that come into contact with powdered materials should be stainless steel 316 or ceramics. The horizontal conveying distance is 2m.

　　The precise feeding screw conveyor is connected to the material silo, and through frequency control, it evenly and quantitatively dispenses powdered activated carbon into the dissolving tank. The feeding capacity is 3m3/h, the size is DN250. and the material is 316.

　　Transport gypsum powder material, complete precise metering in 25 minutes, requiring a feeding capacity of 6 tons, a conveying distance of 5 meters, and a material of stainless steel 304.

　　The combination of an arch breaker and a metering screw conveyor is used to transport materials such as lime and sodium carbonate, with a specific gravity ranging from 1 to 1.2. These materials are non-corrosive, dry powder, stored in a 50 cubic meter silo, with a conveying capacity of 300 to 500 kg/h. The silo is connected to an arch breaker with a diameter of ≥DN350. and to the screw conveyor. The screw discharge port features precise metering and a weighing device. The screw conveyor is 5 meters away from the reaction kettle, and is made of carbon steel.

　　For self-weight feeding, it is necessary to cooperate with a weighing platform scale to precisely control the feeding weight, achieving an accuracy of ±100g. What are the available sizes? Regarding model selection recommendations, the materials for parts that come into contact with powdered materials should be stainless steel 316 or ceramics. The horizontal conveying distance is 2m.

　　The precise feeding screw conveyor is connected to the material silo, and through frequency control, it evenly and quantitatively dispenses powdered activated carbon into the dissolving tank. The feeding capacity is 3m3/h, the size is DN250. and the material is 316.

　　Transport gypsum powder material, complete precise metering in 25 minutes, requiring a feeding capacity of 6 tons, a conveying distance of 5 meters, and a material of stainless steel 304.

　　The combination of an arch breaker and a metering screw conveyor is used to transport materials such as lime and sodium carbonate, with a specific gravity ranging from 1 to 1.2. These materials are non-corrosive, dry powder, stored in a 50 cubic meter silo, with a conveying capacity of 300 to 500 kg/h. The silo is connected to an arch breaker with a diameter of ≥DN350. and to the screw conveyor. The screw discharge port features precise metering and a weighing device. The screw conveyor is 5 meters away from the reaction kettle, and is made of carbon steel.

　　Procurement Guide for Spiral Conveyor Manufacturers:

　　When purchasing the spiral conveyor equipment, it is necessary to inform the manufacturer - Changzhou Tongdeli - of the particle size, material density, conveying capacity, conveying distance, and conveying angle of the material. Tongdeli will help you select the appropriate parameters. If you are not familiar with these parameters, Tongdeli should assign technicians to measure, design, and produce on site.

　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of screw conveyors and discharge valve rotary valves, adhering to the principle of quality first and customer first. Our screw conveyors and rotary valves are capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.
