具有双向输送功能的设备‌：

　　‌功能‌：指输送方向可以改变(可逆)，或者一个进料口能向两个方向出料(一机二用)。

　　‌场景‌：适合需要灵活分料或空间受限的产线，比如单入口双向独立输送。‌‌‌

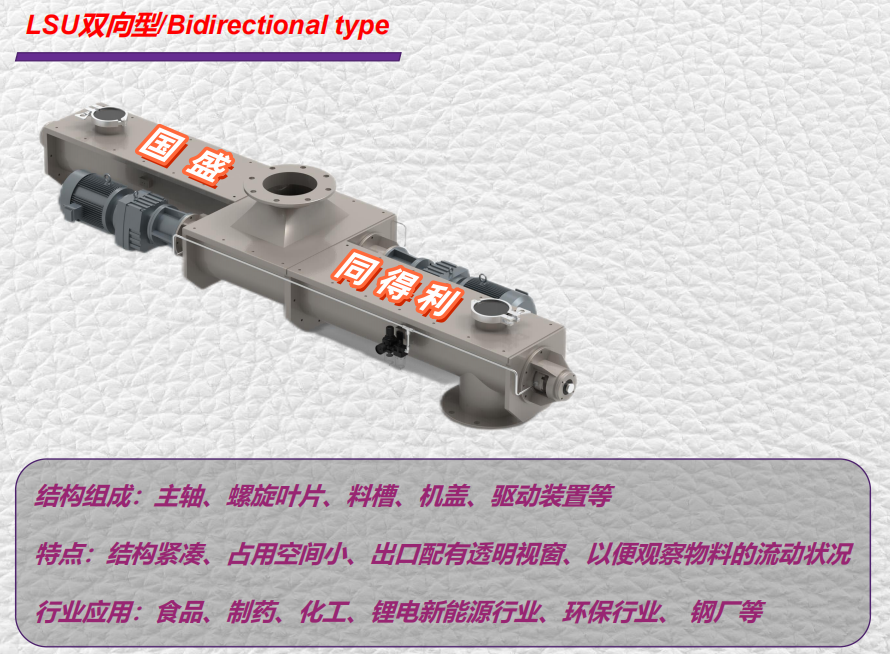

　　LSU双向型螺旋输送机：

　　结构组成：主轴、螺旋叶片、料槽、机盖、驱动装置等。

　　特点：中间进料，两端出料。结构紧凑，占用空间小;出口配有透明视窗，以便观察物料的流动状况。

　　行业应用：锂电新能源、制药、化工、食品、环保行业、钢厂等。

　　材质：Q235、304、310S、316L、TC4等。

　　处理：镜面、碳化钨、特氟龙、陶瓷粉、衬四氟等。

　　部分客户需求：

　　双向螺杆给料机型号：159 ，输送能力：1000-2000KG/H，中间进料，正反螺旋，前后双向出料，进料口DN300.不锈钢材质，下料口DN200;螺旋管直径DN150 ;电机：工频电机、二级能耗 N=2.2KW，电压：380V;电机品牌：西玛、上海电机或厂家自行配套等同品牌;减速机：1：11.

　　双向螺旋给料机，工艺流程：储罐把粉落到螺旋给料机上，给料机先正转，把料输送到A罐子，当A罐子满了后又反转，把料输送到B罐子，物料是生物质粉，15t/h的输送量，堆密度在400左右，粒径在1mm。

　　双向螺旋输送机，物料：颗粒料，螺旋DLS250.处理量5000kg/h，密度0.6t/m3.N=7.5KW,进口尺寸：1600x250mm，带进口配对方法兰，螺旋输送机杆长度：L=3000mm，两端出料。

　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机，卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机/旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。

《扫二维码-添加 陈经理 微信-咨询双向型螺旋输送机》

　　Equipment with bidirectional conveying function:

　　Function: Refers to the ability to change the direction of conveyance (reversibility), or the capability of one feed inlet to discharge material in two directions (one machine for dual purposes).

　　Scenario: Suitable for production lines that require flexible material distribution or are space-constrained, such as single-entry bidirectional independent conveying.

　　LSU bidirectional screw conveyor:

　　Structural components: main shaft, spiral blade, material chute, machine cover, drive device, etc.

　　Features: Material is fed from the middle and discharged from both ends. The structure is compact, occupying little space; the outlet is equipped with a transparent window to observe the flow of materials.

　　Industry applications: lithium-ion new energy, pharmaceuticals, chemical industry, food, environmental protection industry, steel mills, etc.

　　Materials: Q235. 304. 310S, 316L, TC4. etc.

　　Treatment: mirror finish, tungsten carbide, Teflon, ceramic powder, PTFE lining, etc.

　　Some customer requirements:

　　Bidirectional screw feeder model: 159. conveying capacity: 1000-2000KG/H, intermediate feeding, forward and reverse spiral, front and rear bidirectional discharge, inlet DN300. stainless steel material, discharge outlet DN200; spiral tube diameter DN150; motor: mains frequency motor, second-level energy consumption N=2.2KW, voltage: 380V; motor brand: Sima, Shanghai Motor or equivalent brands provided by the manufacturer; reducer: 1:11.

　　Bidirectional spiral feeder, process flow: The powder is discharged from the storage tank onto the spiral feeder, which rotates in a forward direction first to convey the material to tank A. When tank A is full, it rotates in a reverse direction to convey the material to tank B. The material is biomass powder, with a conveying capacity of 15 t/h, a bulk density of around 400. and a particle size of 1 mm.

　　Bidirectional screw conveyor, material: granular material, screw DLS250. processing capacity 5000kg/h, density 0.6t/m3. N=7.5KW, inlet size: 1600x250mm, with inlet companion flange, screw conveyor rod length: L=3000mm, discharging at both ends.

　　Changzhou Tongdeli Machinery Factory boasts many years of experience in the research, development, and production/customization of screw conveyors and discharge valves/rotary valves. We adhere to the principle of quality first and customer supreme. Our screw conveyors/rotary valves are capable of handling various granular, flaky, lumpy materials, viscous materials, powders, ultrafine powders, etc., in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemicals, food, and pharmaceuticals.
