防卡型旋转阀主要用于颗粒料、块状料、片状料和重力下料和气力输送卸料，配备特殊防卡结构的导流槽。一般采用V型进料口，叶片顶端倒角;一体式阀体排气口。

　　法兰形式：圆形、方形、偏置式。

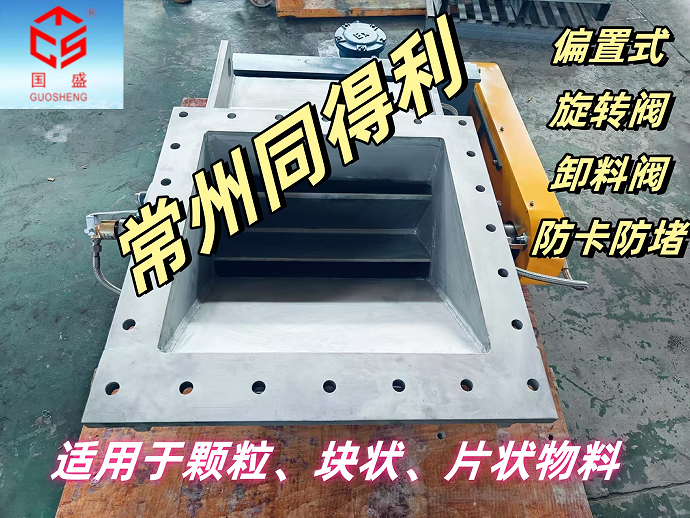

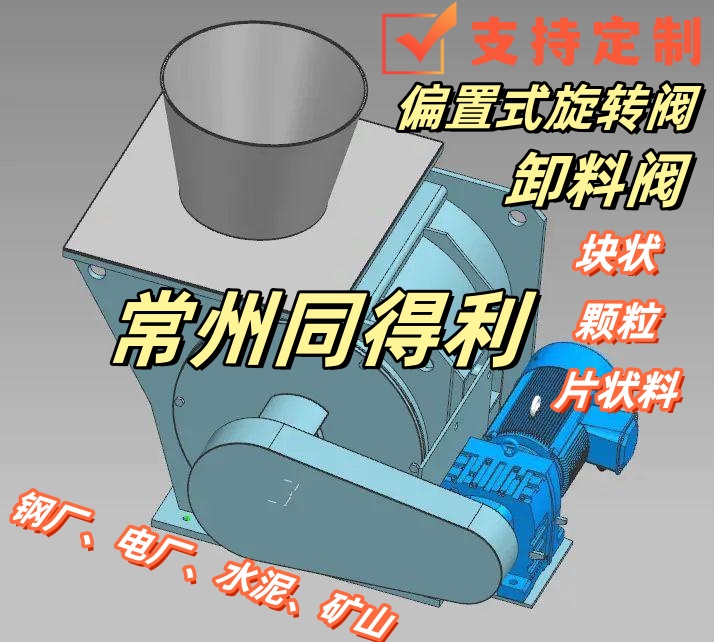

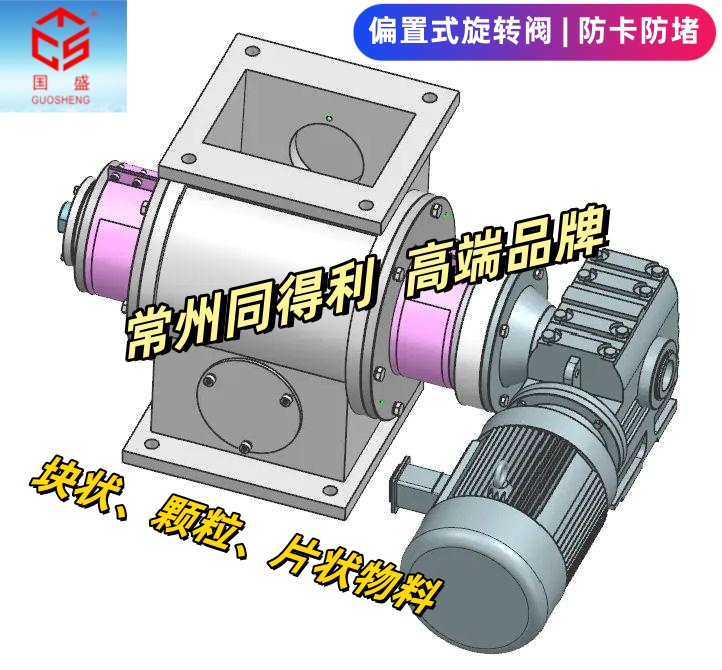

　　偏置式旋转阀主要用于钢厂、电厂、水泥、矿山原料输送。适用于块状、颗料、片状物料，起到很好的防卡防堵作用。【电话/微信咨询：陈经理18068546632】

　　1.适用于≤4kg/cm2系统压力或压差。

　　2.设置排气口(正压输送时选用)将叶轮旋转带出的高压气体通过排气口送至排气装置，提高填充效率。

　　3.防切料入口设计，即便上游充满物料也可安全启动。

　　4.轴承外置式安装、经久耐用、性能优异。

　　5.提供链驱动、直联驱动多种安装方式。

　　6.根据需求配置减速机电机。

　　7.材质主要有:不锈钢304-310系列、铝合金、钛合金等。【电话/微信咨询：陈经理18068546632】

　　我公司专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开阀、清洁阀、风送式旋转阀等产品。广泛应用于锂电池、粮食、饲料、石油化工、制药、淀粉、油脂、化工干燥、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。【电话/微信咨询：陈经理18068546632】

       《扫二维码-添加 陈经理 微信-咨询偏置式旋转阀》

　　Anti jamming rotary valves are mainly used for granular materials, block materials, sheet materials, gravity feeding, and pneumatic conveying unloading, equipped with special anti jamming structure guide grooves. Generally, a V-shaped feed inlet is used with chamfered blade tips; Integrated valve body exhaust port.

　　Flange forms: circular, square, offset.

　　Offset rotary valves are mainly used for conveying raw materials in steel mills, power plants, cement, and mines. Suitable for block, particle, and sheet materials, it has a good anti jamming and anti blocking effect.

　　1. Suitable for system pressures or pressure differentials of ≤ 4kg/cm2.

　　2. Set up an exhaust port (selected for positive pressure conveying) to send the high-pressure gas carried out by the impeller rotation to the exhaust device through the exhaust port, improving the filling efficiency.

　　3. Anti cutting material inlet design, even if the upstream is filled with materials, it can be safely started.

　　4. The bearing is externally installed, durable, and has excellent performance.

　　5. Provide multiple installation methods for chain drive and direct drive.

　　6. Configure the gearbox motor according to the requirements.

　　7. The main materials include stainless steel 304-310 series, aluminum alloy, titanium alloy, etc.

　　Our company specializes in the production of (B) GFY, YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening valves, cleaning valves, pneumatic rotary valves and other products. Widely used in equipment for industries such as lithium batteries, grain, feed, petrochemicals, pharmaceuticals, starch, oils and fats, chemical drying, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.
