螺旋输送机是一种利用电机带动螺旋回转，推移物料以实现输送目的的机械。它能水平、倾斜或垂直输送，具有结构简单、横截面积小、密封性好、操作方便、维修容易、便于封闭运输等优点。

　　A screw conveyor is a mechanical device that uses an electric motor to drive a screw to rotate and move materials to achieve conveying purposes. It can transport horizontally, obliquely, or vertically, and has the advantages of simple structure, small cross-sectional area, good sealing, easy operation, easy maintenance, and convenient enclosed transportation.

　　螺旋输送机工作原理：

　　当螺旋轴转动时，由于物料的重力及其与槽体壁所产生的摩擦力，使物料只能在叶片的推送下沿着输送机的槽底向前移动。物料的主要前进动力是来自螺旋叶片在轴向旋转时将物料沿叶片切线方向向上和向前的作用力。

　　When the spiral shaft rotates, due to the gravity of the material and the frictional force generated between it and the groove wall, the material can only move forward along the bottom of the conveyor groove under the push of the blades. The main forward force of the material comes from the force exerted by the spiral blades when rotating axially, which moves the material upwards and forward along the tangent direction of the blades.

　　螺旋输送机分类：【电话/微信咨询：陈经理18068546632】

　　螺旋输送机从输送物料位移方向的角度划分，螺旋输送机分为水平式螺旋输送机和倾斜式螺旋输送机两大类型。

　　From the perspective of material displacement direction, screw conveyors are divided into two types: horizontal screw conveyors and vertical screw conveyors.

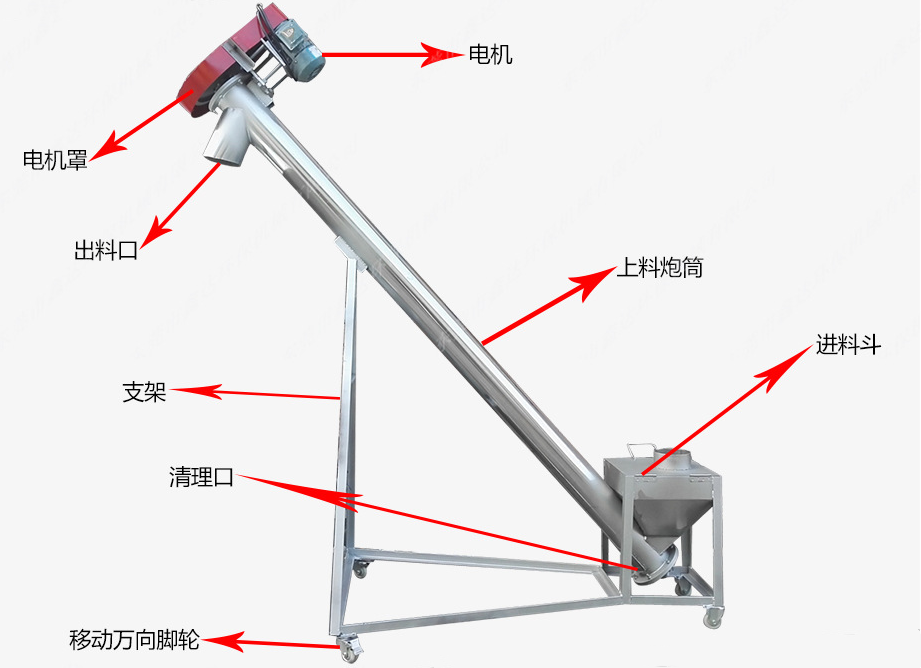

　　倾斜式螺旋输送机

　　倾斜螺旋输送机的螺旋体的转速比普通螺旋输送机的要高，加入的物料在离心力的作用下，与机壳间产生了摩擦力，该摩擦力阻止物料随螺旋叶片一起旋转并克服了物料下降的重力，从而实现了物料的倾斜输送。该机输送量小，输送高度小，转速较高，能耗大。特别适宜输送流动性好的粉粒状物料,主要用于提升物料，提升高度一般不大于8米。

　　The rotation speed of the spiral body of a vertical screw conveyor is higher than that of a regular screw conveyor. The added material generates frictional force between the machine casing under the action of centrifugal force, which prevents the material from rotating with the spiral blades and overcomes the gravity of the material's descent, thus achieving vertical transportation of the material. This machine has a small conveying capacity, a small conveying height, high rotational speed, and high energy consumption. Especially suitable for conveying powder and granular materials with good fluidity, mainly used for lifting materials, with a lifting height generally not exceeding 8 meters.

　　水平螺旋输送机：

　　当物料加入固定的机槽内时，由于物料的重力及其与机槽间的摩擦力作用，堆积在机槽下部的物料不随螺旋体旋转，而只在旋转的螺旋叶片推动下向前移动，如同不旋转的螺母沿着转动的螺杆作平移运动一样，达到输送物料的目的。该机便于多点装料与卸料，输送过程中可同时完成混合、搅拌或冷却功能。对超载敏感，易堵塞;对物料有破碎损耗，水平螺旋输送机的结构简单，便于安装和维修以及故障处理。适用于水平或微倾斜(20º以下)连续均匀输送松散物料。

　　When the material is added to a fixed machine slot, due to the gravity of the material and its frictional force with the slot, the material piled up at the bottom of the slot does not rotate with the spiral body, but only moves forward under the push of the rotating spiral blades, just like a non rotating nut moving along the rotating screw, achieving the purpose of conveying the material. This machine is convenient for multi-point loading and unloading, and can simultaneously complete mixing, stirring, or cooling functions during the conveying process. Sensitive to overload and prone to blockage; The horizontal screw conveyor has a simple structure and is easy to install, maintain, and troubleshoot due to material crushing and loss. Suitable for continuous and uniform conveying of loose materials horizontally or slightly inclined (below 20 º).

　　螺旋输送机应用范围：

　　螺旋机广泛应用于各行业，如化工、建材、电力、冶金、煤矿炭、粮食等行业，适用于水平或倾斜输送粉状、粒状和小块状物料，如煤矿、灰、渣、水泥、粮食等，物料温度小于200℃。螺旋机不适于输送易变质的、粘性大的、易结块的物料。在混凝土搅拌站中,螺旋输送机的作用得到了很好的体现。

　　Spiral machines are widely used in various industries, such as chemical, building materials, electricity, metallurgy, coal mine charcoal, grain, etc. They are suitable for horizontal or inclined conveying of powdered, granular, and small materials, such as coal mine, ash, slag, cement, grain, etc., with material temperatures below 200 ℃. Spiral machines are not suitable for conveying materials that are prone to spoilage, high viscosity, and clumping. The role of screw conveyors is well demonstrated in concrete mixing plants.

　　螺旋输送机优点:【电话/微信咨询：陈经理18068546632】

　　具有横截面尺寸小，结构简单，密封性能良好，中间多点装料和卸料，操作方便，成本较低等优点。

　　It has the advantages of small cross-sectional size, simple structure, good sealing performance, multiple loading and unloading points in the middle, convenient operation, and low cost.
